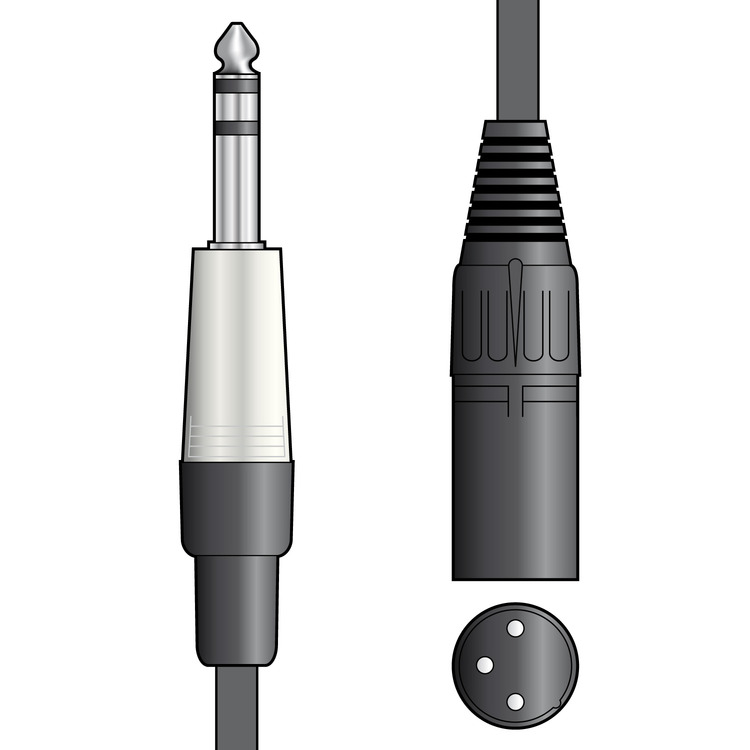

Classic Audio Leads 6.3mm TRS Jack Plug - XLR Male

190.048UK S6J-XM150

A durable, high quality, shielded audio lead with pro quality, die-cast 6.3mm stereo TRS jack plug and XLR male connector, offering exceptional sound and reliability. Made with high-grade cable; p...

Description Version Packed
190.048UK
Classic Audio Lead TRS 6.3mm Jack - XLR Male 1.5m
1.5m Sleeve
190.049UK
Classic Audio Lead TRS 6.3mm Jack - XLR Male 3.0m
3.0m Sleeve
190.050UK
Classic Audio Lead TRS 6.3mm Jack - XLR Male 6.0m
6.0m Sleeve
190.051UK
Classic Audio Lead TRS 6.3mm Jack - XLR Male 12.0m
12.0m Sleeve

Classic Audio Leads 6.3mm TRS Jack Plug - XLR Male

A durable, high quality, shielded audio lead with pro quality, die-cast 6.3mm stereo TRS jack plug and XLR male connector, offering exceptional sound and reliability. Made with high-grade cable; pure copper conductors and cotton-reinforcement; soft-grip, anti-tangle, rubberised jacket; and machine-soldered connections.

Specification : Common

  • Cable : diameter 6mmØ
  • Conductors 2 x 20strand, 0.1mmØ pure copper
  • Connectors 6.3mm TRS jack plug, male XLR
  • Pin-out Balanced: 1-Sleeve, 2-Tip, 3-Ring

Specification : Versions

  190.048UK 190.049UK 190.050UK 190.051UK
Length 1.5m 3.0m 6.0m 12.0m

Trade information

  190.048UK 190.049UK 190.050UK 190.051UK
Barcode / EAN 5015972071250 5015972071267 5015972071274 5015972071281
Package type Sleeve Sleeve Sleeve Sleeve
Package dimensions 60 x 320 x 15mm 70 x 320 x 20mm 90 x 320 x 25mm 90 x 320 x 35mm
Package weight 0.11kg 0.16kg 0.27kg 0.20kg
Package quantity 1 unit 1 unit 1 unit 1 unit
Carton dimensions 330 x 390 x 260mm 330 x 390 x 260mm 330 x 390 x 260mm 330 x 390 x 260mm
Carton weight 11.00kg 12.80kg 13.45kg 5.00kg
Carton quantity 100 packages 80 packages 50 packages 25 packages

Support : articles

Balanced or Unbalanced Signals?

There is much confusion about balanced and unbalanced audio signals and how they differ. In order to understand this, we need to cover the basics of audio signals and how they are made.
