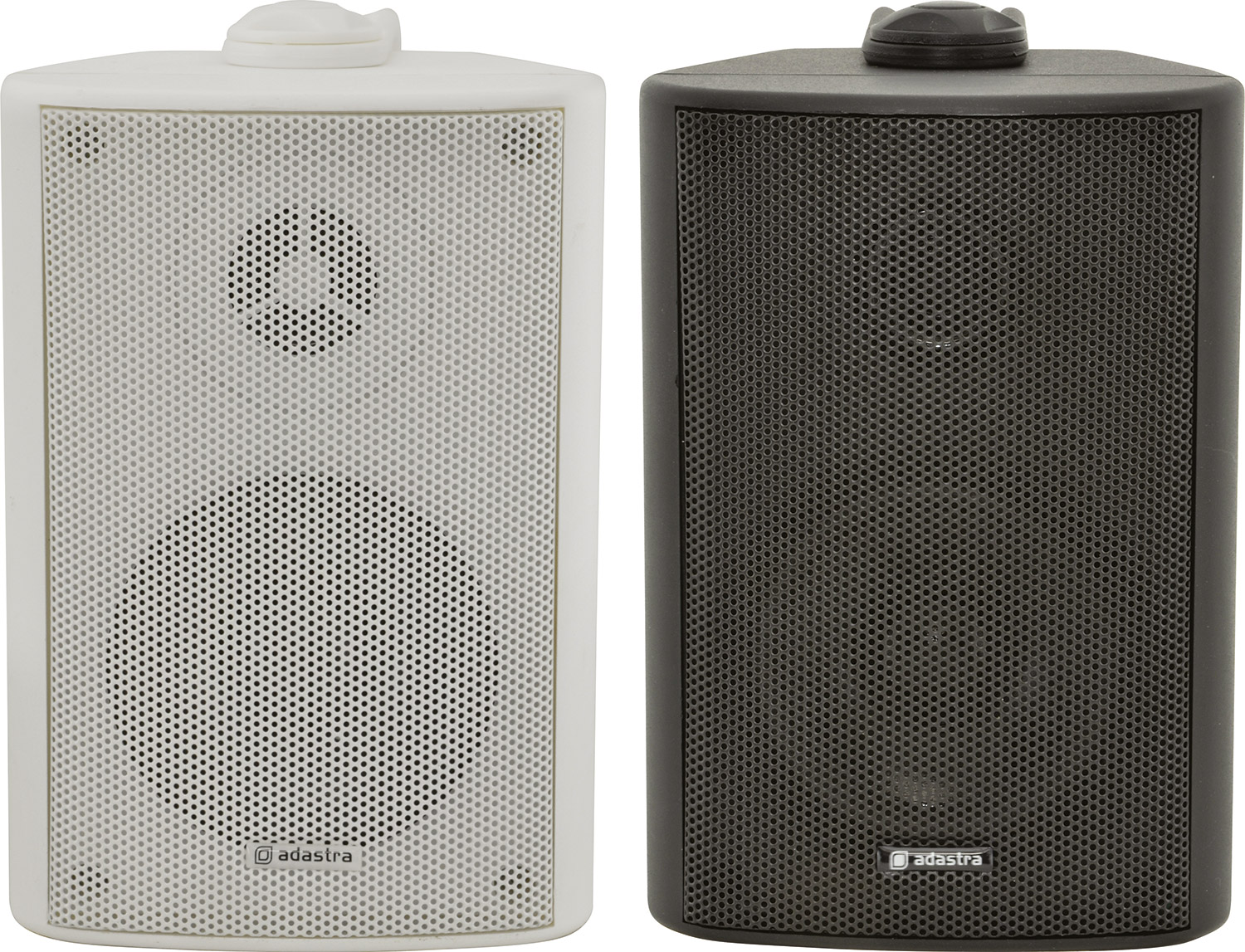

BC Series - 100V Indoor Speakers

952.710UK BC3V-W

Industry standard 100V indoor speakers with ABS enclosures and a powder coated steel grille grille. Wall or ceiling surface mounting via the adjustable steel bracket. The trapezoidal design allows ...

  • Rotary selector switch for 100V line tappings or 8 Ohms operation
  • 2 way speaker system with crossover network
  • Wall mounting bracket supplied
Description Version Packed
952.710UK
BC3V-W 100V 3" background speaker white
3" White each Box Label
952.711UK
BC3V-B 100V 3" background speaker black
3" Black each Box Label
952.712UK
BC4V-W 100V 4" background speaker white
4" White each Box Label
952.713UK
BC4V-B 100V 4" background speaker black
4" Black each Box Label
952.714UK
BC5V-W 100V 5.25" background speaker white
5.25" White each Box Label
952.715UK
BC5V-B 100V 5.25" background speaker black
5.25" Black each Box Label
952.716UK
BC6V-W 100V 6.5" background speaker white
6.5" White each Box Label
952.717UK
BC6V-B 100V 6.5" background speaker black
6.5" Black each Box Label

BC Series - 100V Indoor Speakers

Industry standard 100V indoor speakers with ABS enclosures and a powder coated steel grille grille. Wall or ceiling surface mounting via the adjustable steel bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners or angled for directional coverage. Main drivers have high quality coated paper cones for full-sounding low and mid-range frequencies, ideal for music playback and clear voice announcements.

  • Rotary selector switch for 100V line tappings or 8 Ohms operation
  • 2 way speaker system with crossover network
  • Wall mounting bracket supplied
  • Alternative M6 threaded mounting points
  • Spring terminal connection
  • Supplied singly
  • Connection Spring terminals

Versions

  952.710UK 952.711UK 952.712UK 952.713UK 952.714UK 952.715UK 952.716UK 952.717UK
Model BC3V-W BC3V-B BC4V-W BC4V-B BC5V-W BC5V-B BC6V-W BC6V-B
Colour White Black White Black White Black White Black
Woofer 75mmØ (3'') reinforced paper cone 75mmØ (3'') reinforced paper cone 100mmØ (4'') reinforced paper cone 100mmØ (4'') reinforced paper cone 130mmØ (5.25'') reinforced paper cone 130mmØ (5.25'') reinforced paper cone 165mmØ (6.5'') reinforced paper cone 165mmØ (6.5'') reinforced paper cone
Tweeter 12mm (0.5'') polymer HF driver 12mm (0.5'') polymer HF driver 25mm (1'') balanced dome 25mm (1'') balanced dome 25mm (1'') balanced dome 25mm (1'') balanced dome 25mm (1'') balanced dome 25mm (1'') balanced dome
Frequency response 120Hz - 20kHz 120Hz - 20kHz 110Hz - 20kHz 110Hz - 20kHz 100Hz - 20kHz 100Hz - 20kHz 90Hz - 20kHz 90Hz - 20kHz
Power max. : 8 Ohms 60W 60W 70W 70W 90W 90W 120W 120W
Power rms : 8 Ohms 30W 30W 35W 35W 45W 45W 60W 60W
SPL @ 1W/1m 87dB 87dB 88dB 88dB 89dB 89dB 89dB 89dB
Tappings 6W, 3W, 1.5W + 8 Ohms 6W, 3W, 1.5W + 8 Ohms 20W, 10W, 5W, 2.5W + 8 Ohms 20W, 10W, 5W, 2.5W + 8 Ohms 30W, 20W, 10W, 5W + 8 Ohms 30W, 20W, 10W, 5W + 8 Ohms 40W, 20W, 10W, 5W + 8 Ohms 40W, 20W, 10W, 5W + 8 Ohms
Impedance : 100V 1.6k, 3.3k, 6.6k Ohms 1.6k, 3.3k, 6.6k Ohms 500, 1k, 2k, 4k Ohms 500, 1k, 2k, 4k Ohms 333, 500, 1k, 2k Ohms 333, 500, 1k, 2k Ohms 250, 500, 1k, 2k Ohms 250, 500, 1k, 2k Ohms
Dimensions 106 x 153 x 98mm 106 x 153 x 98mm 150 x 195 x 150mm 150 x 195 x 150mm 180 x 235 x 175mm 180 x 235 x 175mm 220 x 280 x 210mm 220 x 280 x 210mm
Weight 900g 900g 1.63kg 1.63kg 2.38kg 2.38kg 3.08kg 3.08kg

Support : articles

100V line speakers

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • BC-series indoor 100V PA speaker
  • Wall-mounting bracket
  • 2 x cap screws
