Touch Remote Wall Plate for RZ45 Audio Matrix

953.050UK TR86

Remote touch control for the RZ45 audio matrix system built into a single gang wall plate. Connected via RJ45.

  • Hygienic acrylic touch operated surface
  • Illuminated with colour coded indicators
  • Easy installation via RJ45 connection
Description Version Packed
953.050UK
TR86 Touch Wall Remote for RZ45 Audio Matrix
Box Label

Touch Remote Wall Plate for RZ45 Audio Matrix

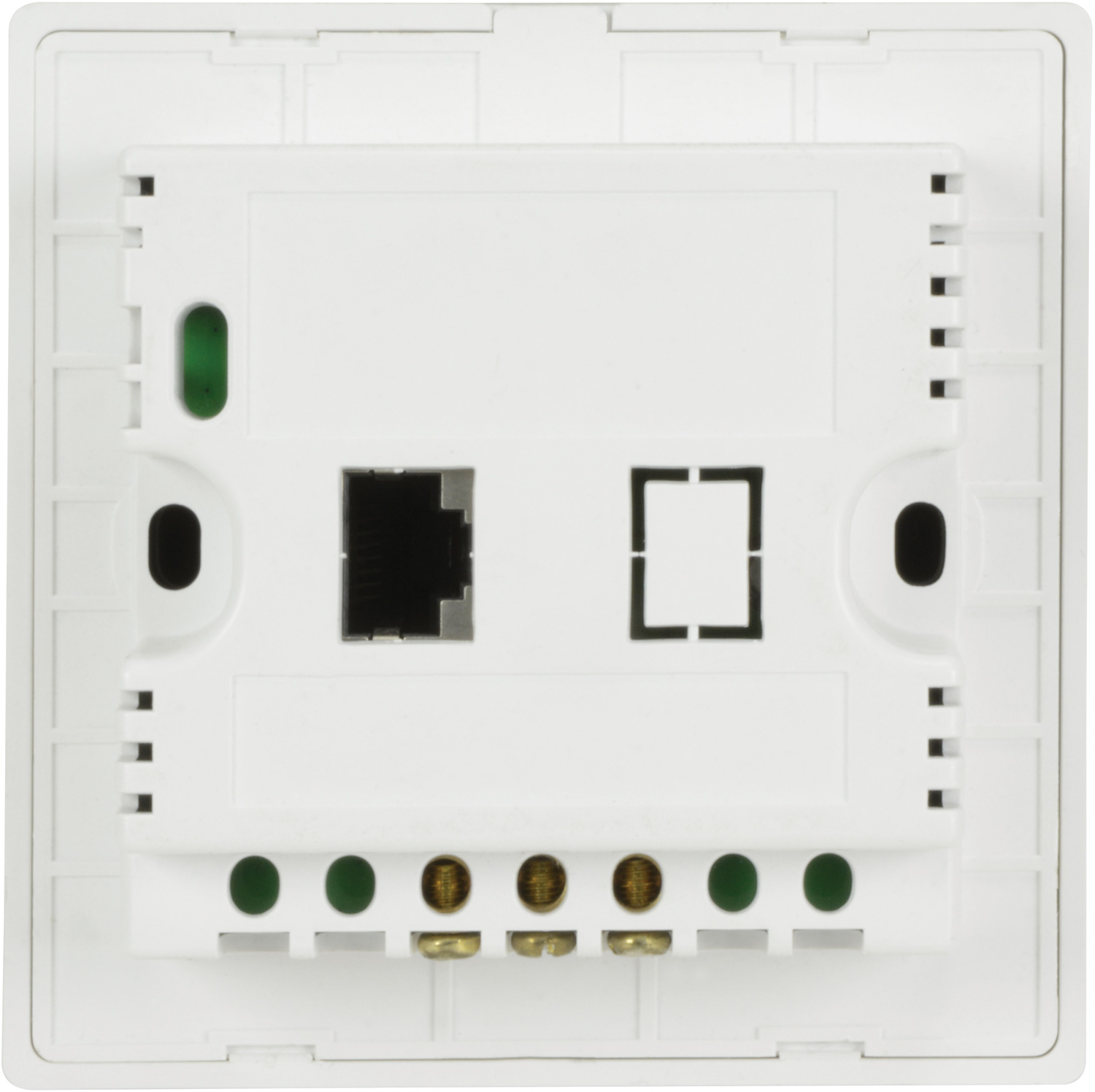

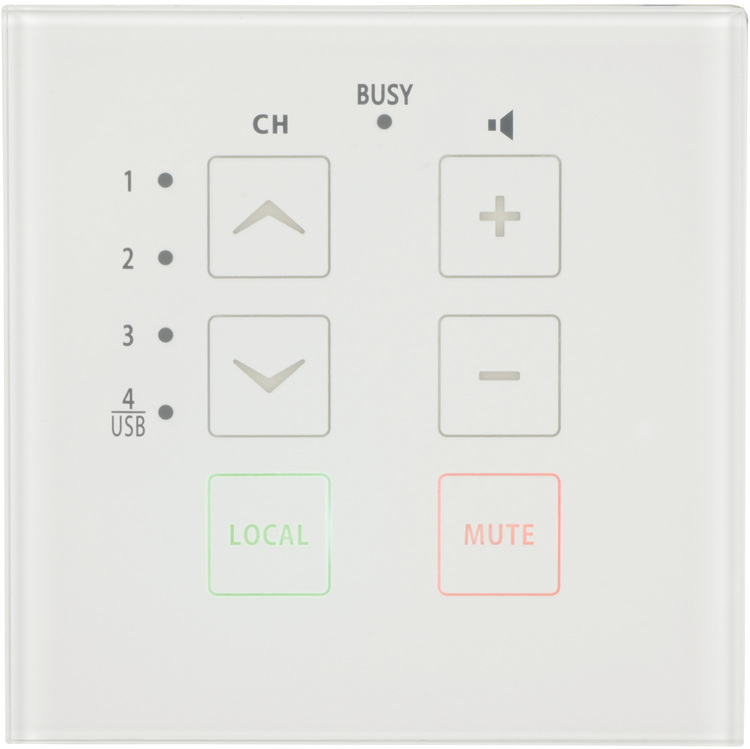

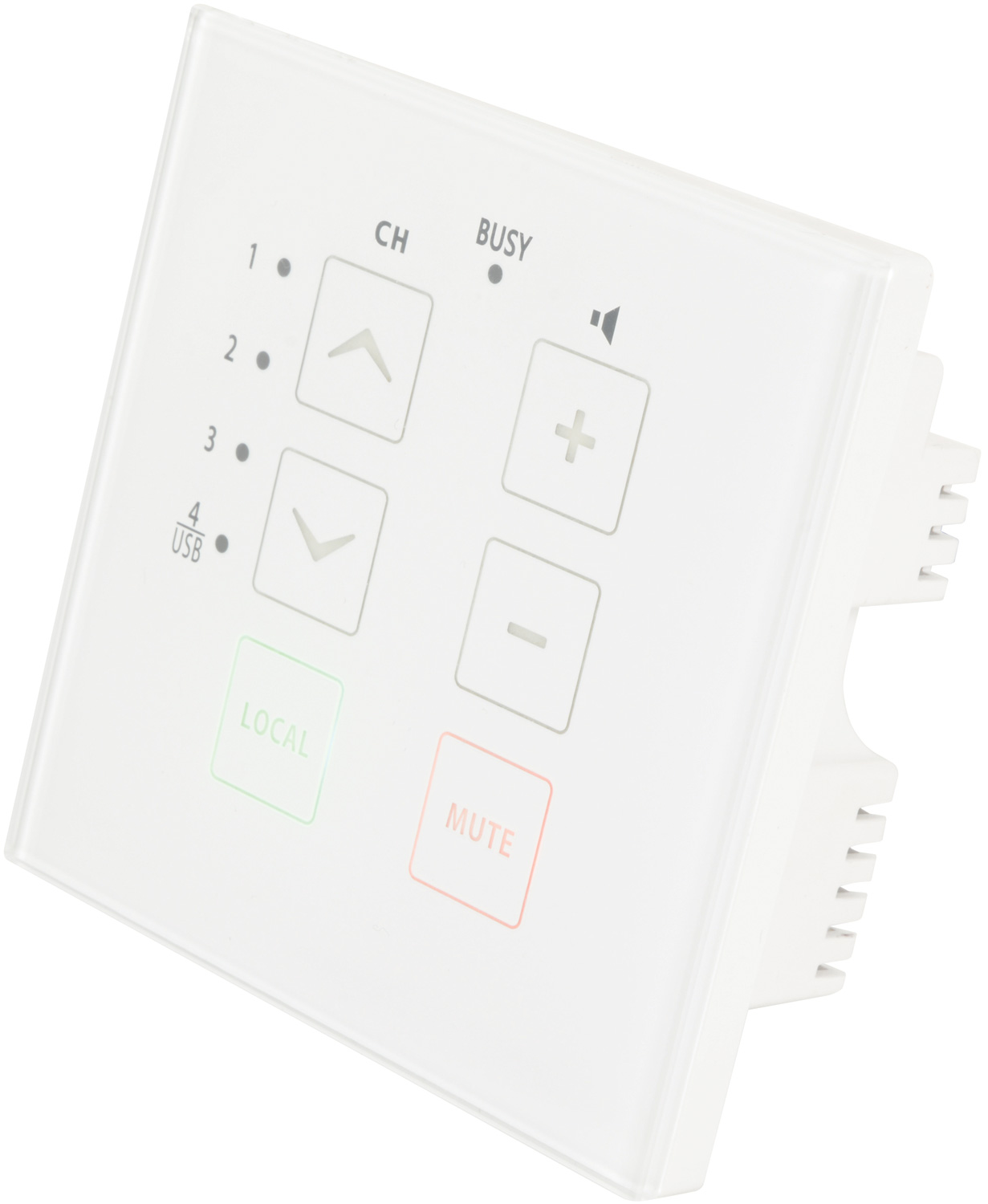

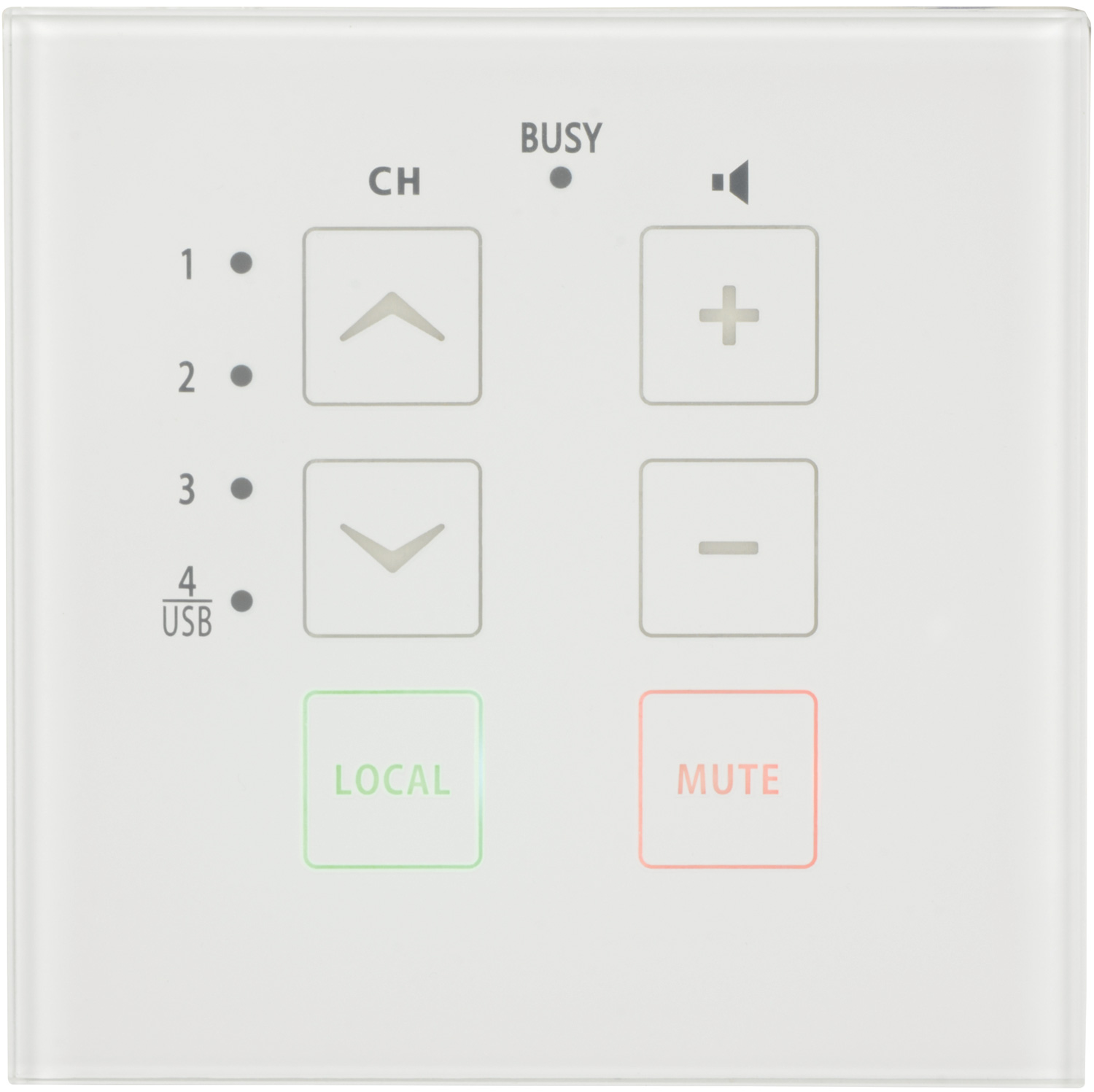

Remote control for the RZ45 audio matrix system built into a single gang 86 x 86mm wall plate. The illuminated acrylic touch-operated surface selects between 3 stereo audio sources or the inbuilt media player on the RZ45 and controls the output level to its zone. Connection by standard network cable carries signal and power to the TR86 panel up to 100m away from the RZ45 or signal up to 1km away with a separate 24Vdc power input. Additionally, a mono line level signal can be wired internally to the panel via screw terminals to provide an independent local audio source. Up to 5 TR86 remote panels may be used with a single RZ45 unit controlling up to 5 independent zones.

  • Hygienic acrylic touch operated surface
  • Illuminated with colour coded indicators
  • Easy installation via RJ45 connection
  • Up to 5 remote panels per RZ45 audio matrix
  • Up to 100m powered directly from RZ45 or 1km with +24V power
  • Power supply 24Vdc (from RZ45 or externally)
  • Connection 8P8C (RJ45)
  • Terminals Local +24V, Ground, Local line input
  • Controls Sources 1-4 (USB), Local, Mute, Level +/-
  • Mounting depth 38mm
  • Dimensions 86 x 86 x 38mm
  • Weight 128g
