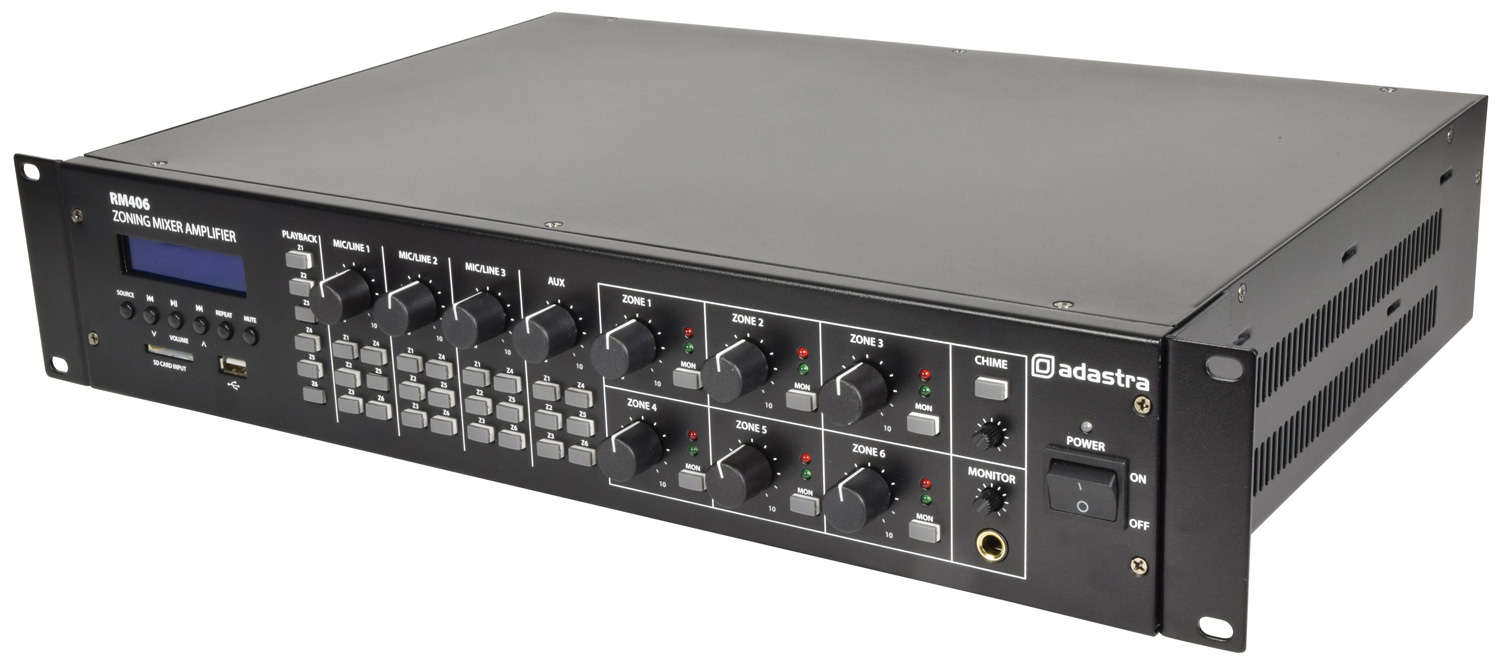

RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth

953.160UK RM406

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs,...

  • Integral USB/SD/FM audio player
  • Internal Bluetooth receiver
  • 100V or 4/8 Ohms operation
Description Version Packed
953.160UK
RM406 Mixer-Amp 100V 6 x 40W + USB/SD/FM/BT
Box Printed

RM406 100V Mixer Amplifier 6 x 40W + USB/SD/FM/Bluetooth

Zone mixer-amplifier with 6 x 40W class D power section for 100V or 4/8 Ohms speakers. Each zone can be monitored from the front panel via a headphone output with volume control. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player with Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

  • Integral USB/SD/FM audio player
  • Internal Bluetooth receiver
  • 100V or 4/8 Ohms operation
  • 6 independent output zones
  • 3 mic/line and 1 auxiliary input
  • Mic priority and chime functions
  • Switchable +20V phantom power
  • 24V mute contacts
  • Monitor headphones output

Specification

  • Power supply 170-264Vac, 50Hz (IEC)
  • Power output 6 x 40W rms
  • Amplifier : construction Class D + transformer outputs
  • Audio source USB/SD/FM/BT audio player
  • Inputs 3 x mic/line (XLR/jack), auxiliary 2 x RCA
  • Zone outputs: line 6 x RCA (mono)
  • Zone outputs: speaker 6 x terminal outputs 100V / 8 Ohms / 4 Ohms / Com
  • Phantom power +20V switchable to each XLR
  • Monitor outputs 6.3mm stereo phones, 2 x RCA line
  • Mute +24V relay contacts
  • THD <0.76% @ 1kHz
  • Input impedance 1k Ohms (mic/line)
  • Input sensitivity -11dB (line), -46dB (mic)
  • SNR 84dB (line), 82dB (mic)
  • Bluetooth version 2.0
  • Frequency response 100Hz - 24kHz
  • Dimensions 433 x 89 x 403mm
  • Weight 11kg

Trade information

  953.160UK
Barcode / EAN 5015972211106
Package type Box Printed
Package dimensions 475 x 550 x 160mm
Package weight 10.00kg
Package quantity 1 unit
Carton dimensions 425 x 560 x 328mm
Carton weight 21.60kg
Carton quantity 2 packages

In the box

The box for this item contains :

  • RM406 Zoning mixer-amplifier
  • Rack-mounting brackets
  • IEC mains lead(s)
