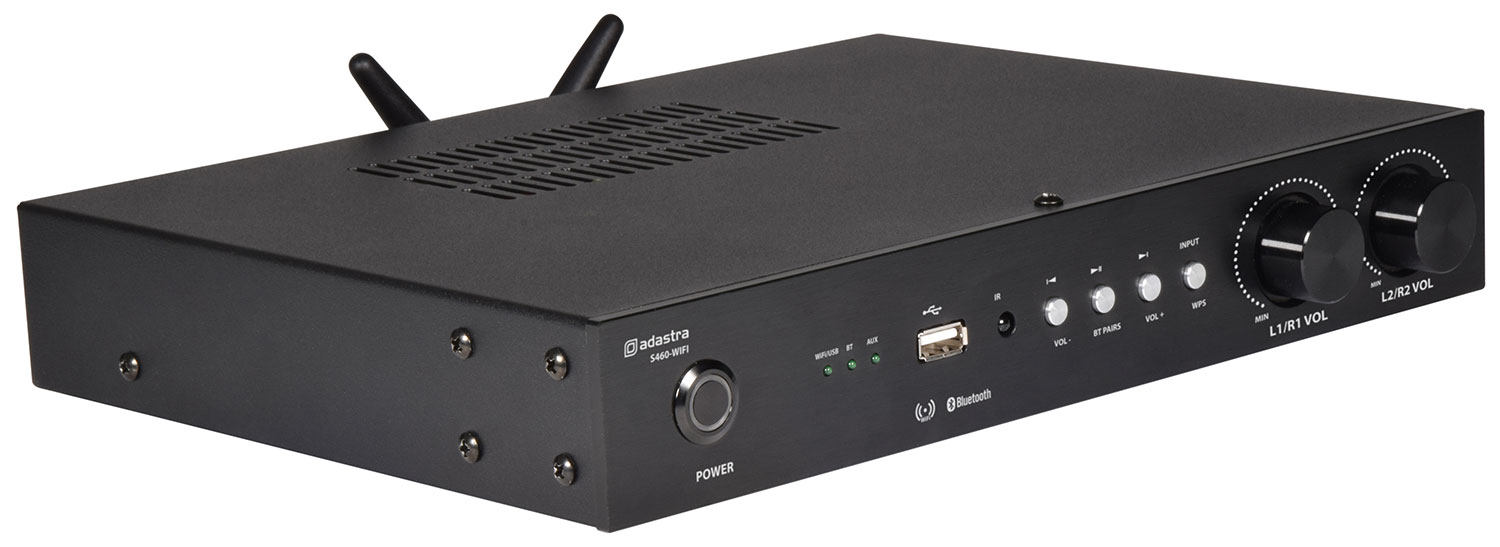

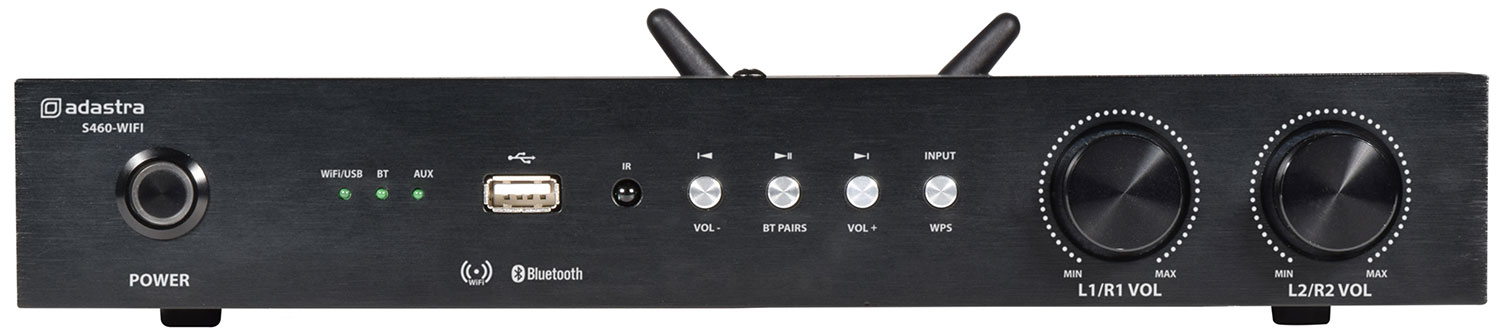

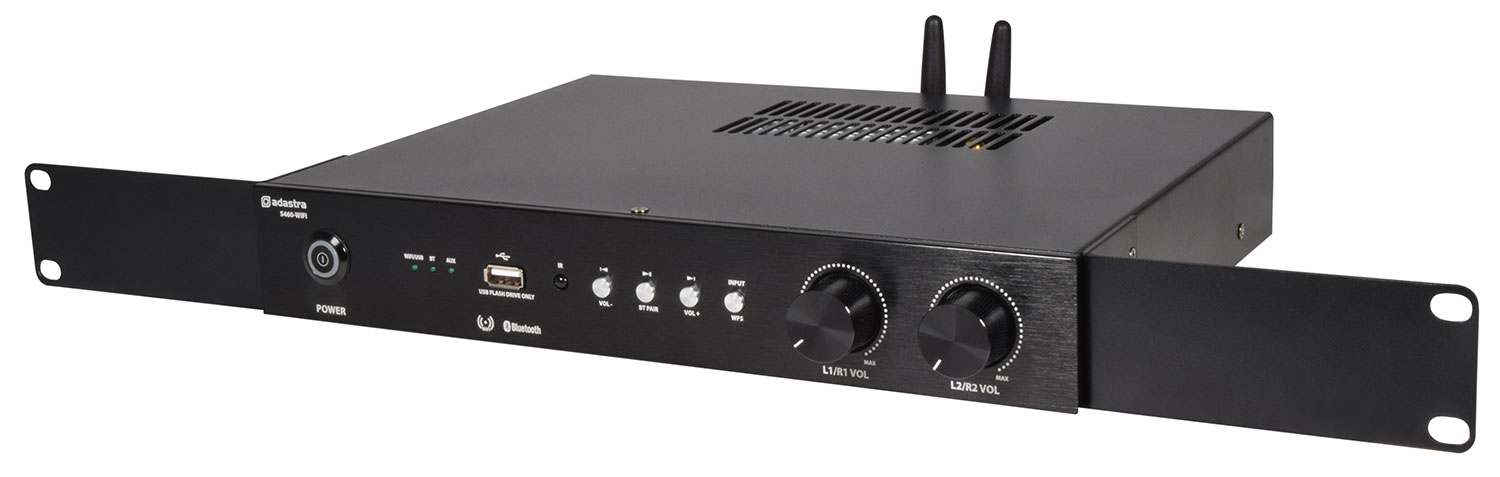

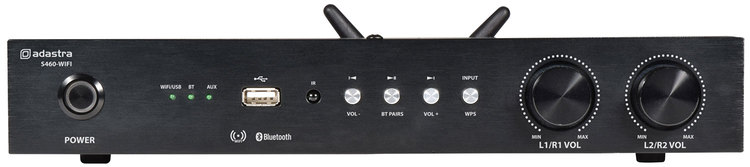

S460-WIFI Multi Streaming Amplifier

103.146UK S460-WIFI

Class-D dual stereo amplifier delivering up to 4 x 60W output with Bluetooth and internet streaming capability. Two internal amplifiers have individual volume control, allowing different music leve...

  • Built-in WiFi receiver
  • RJ45 wired LAN connection
  • Free WiiM Legacy Player app for Android or iOS
Description Version Packed
103.146UK
S460-WIFI Streaming Amplifier
4 x 60W - WiFi & LAN Box Label

S460-WIFI Multi Streaming Amplifier

Class-D dual stereo amplifier delivering up to 4 x 60W output with Bluetooth and internet streaming capability. Two internal amplifiers have individual volume control, allowing different music levels in 2 separate areas. Controlled from an Android or iOS smart phone, the S460-WIFI is compatible with freely available apps to stream music and podcasts directly from a WiFi or wired RJ45 network connection. Embedded internet radio offers high quality digital audio from almost any online radio station or podcast available worldwide. Subscription services can store online playlists which can be cast directly from the internet without requiring the smart phone to be connected to the network. Wireless streaming of tracks and playlists stored on the smart phone can be sent from within the app or directly via Bluetooth to the amplifier. A line input is selectable for connection to a TV, CD, DVD or other playback device if required. In addition, the S260-WIFI has an input for USB for playback of stored tracks. Provides a versatile background music streaming solution for continuous playback of music from internet services or a choice of other sources for bars, cafes, restaurants, reception areas and house parties.

  • Built-in WiFi receiver
  • RJ45 wired LAN connection
  • Free WiiM Legacy Player app for Android or iOS
  • Bluetooth connectivity
  • USB audio player
  • 2 individual 2 x 60W amplifiers
  • Internal power supply
  • Power supply 110-240Vac, 50/60Hz (IEC)
  • Amplifier : construction 2 x stereo class-D amplifiers
  • Output power rms @ 4 Ohms 4 x 60W
  • Output power rms @ 8 Ohms 4 x 30W
  • Load impedance 4 or 8 Ohms

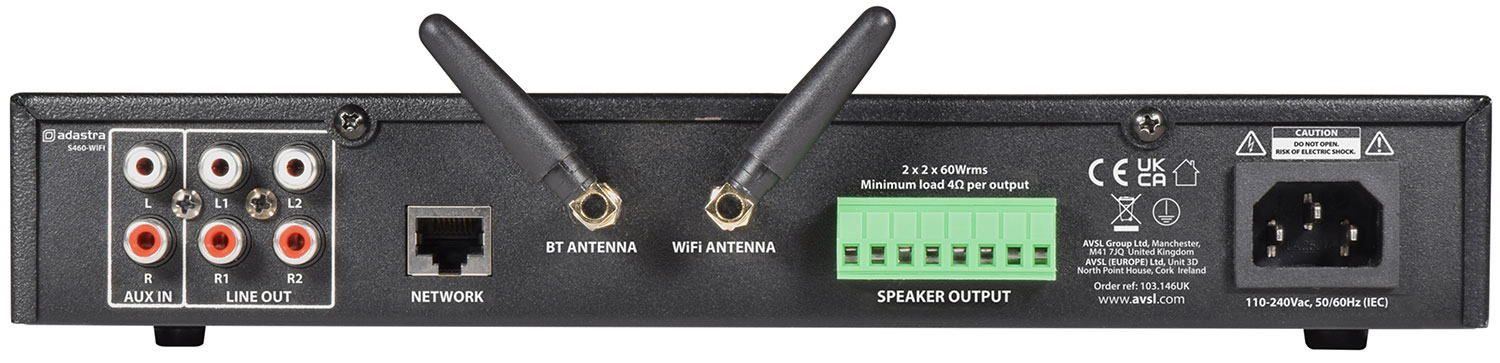

  • Speaker outputs L1, R1, L2, R2 +/- screw terminals (Euroblock)
  • Processor MediaTek MT7688 580 MHz
  • Sampling format 192kHz, 24-bit max.
  • Network spec RJ45 LAN and 802.11b/g/n WiFi standard (up to 300Mbps)
  • Bluetooth version v5.0
  • Audio source WiFi, LAN, Bluetooth, USB, Line input (RCA)
  • Line outputs L1 + R1 and L2 + R2 (RCA)
  • Dimensions 280 x 237 x 44mm
  • Weight 1.772kg

Support : articles

Amplifier Classes

There have been many developments in audio electronics, resulting in different amplifier circuit designs. Such designs can be divided into classes, of which 4 main types are relevant to audio – A, AB, H and D.

Friday, 28th February 2020

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • S460-WIFI streaming amplifier
  • IEC mains lead
  • Bluetooth & Wifi antennas

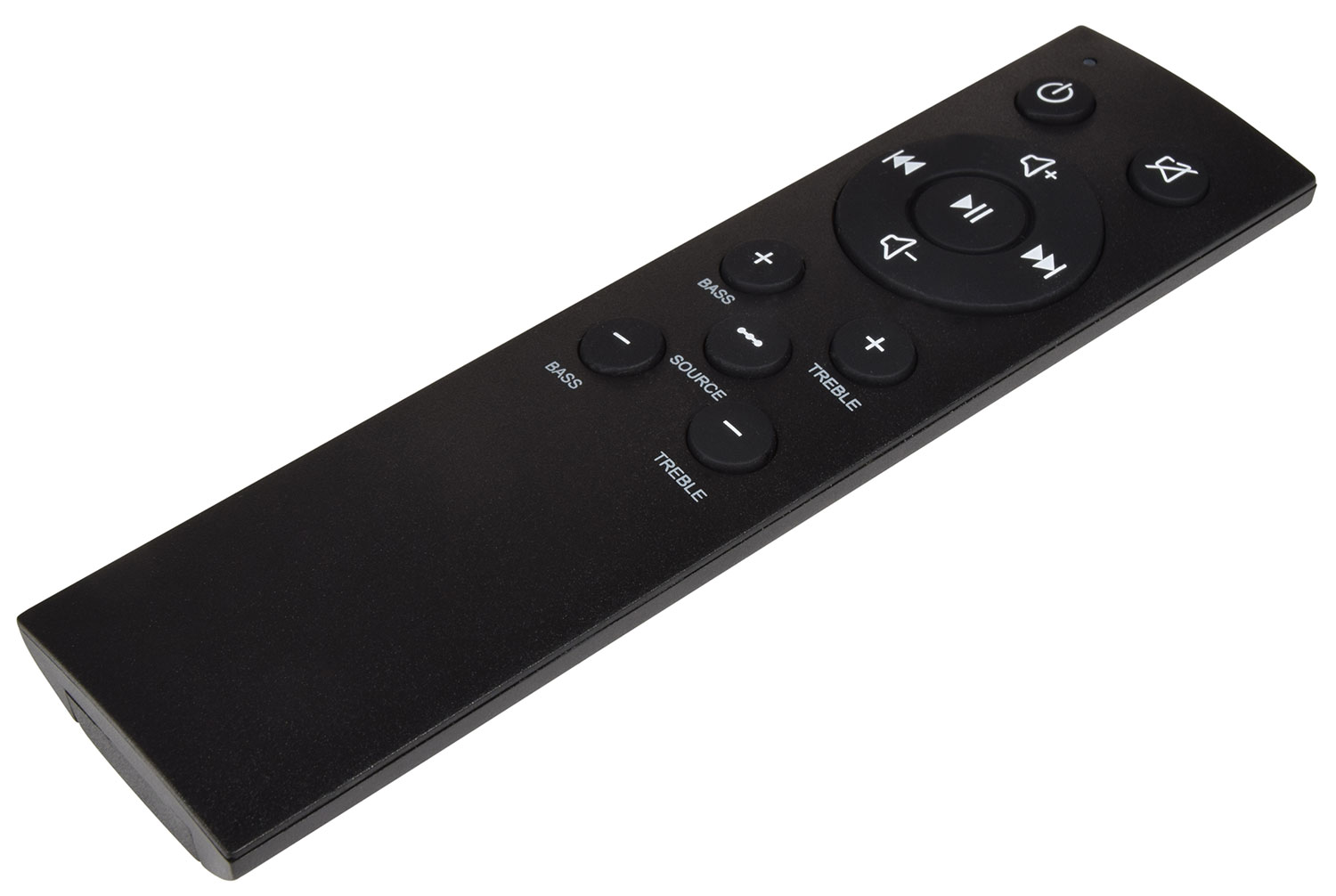

  • I.R. handheld remote control

Downloads

Instruction manual
For 103.146UK (615KB)
UK Declaration of conformity
For 103.146UK (249KB)
EU Declaration of conformity
For 103.146UK (239KB)
