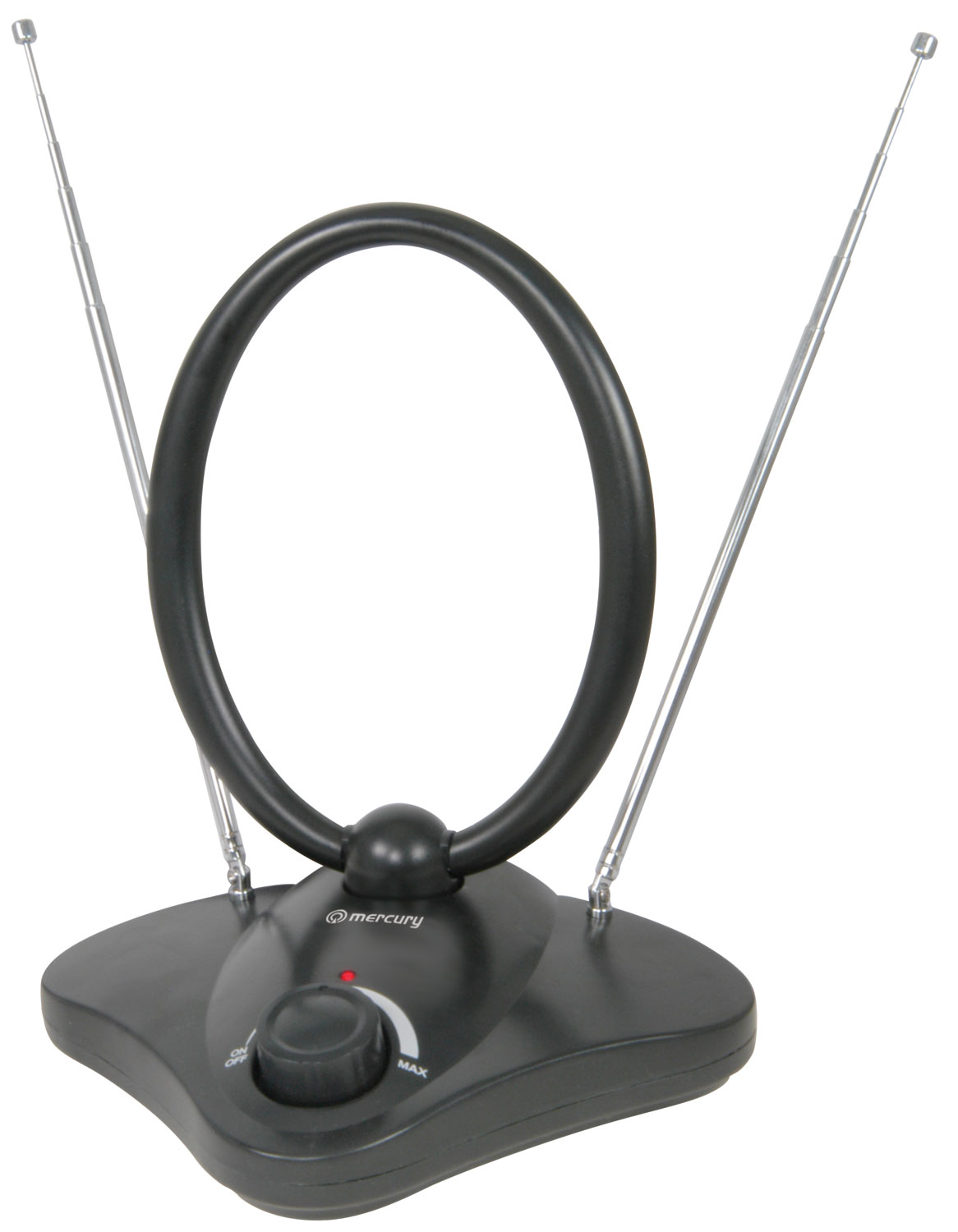

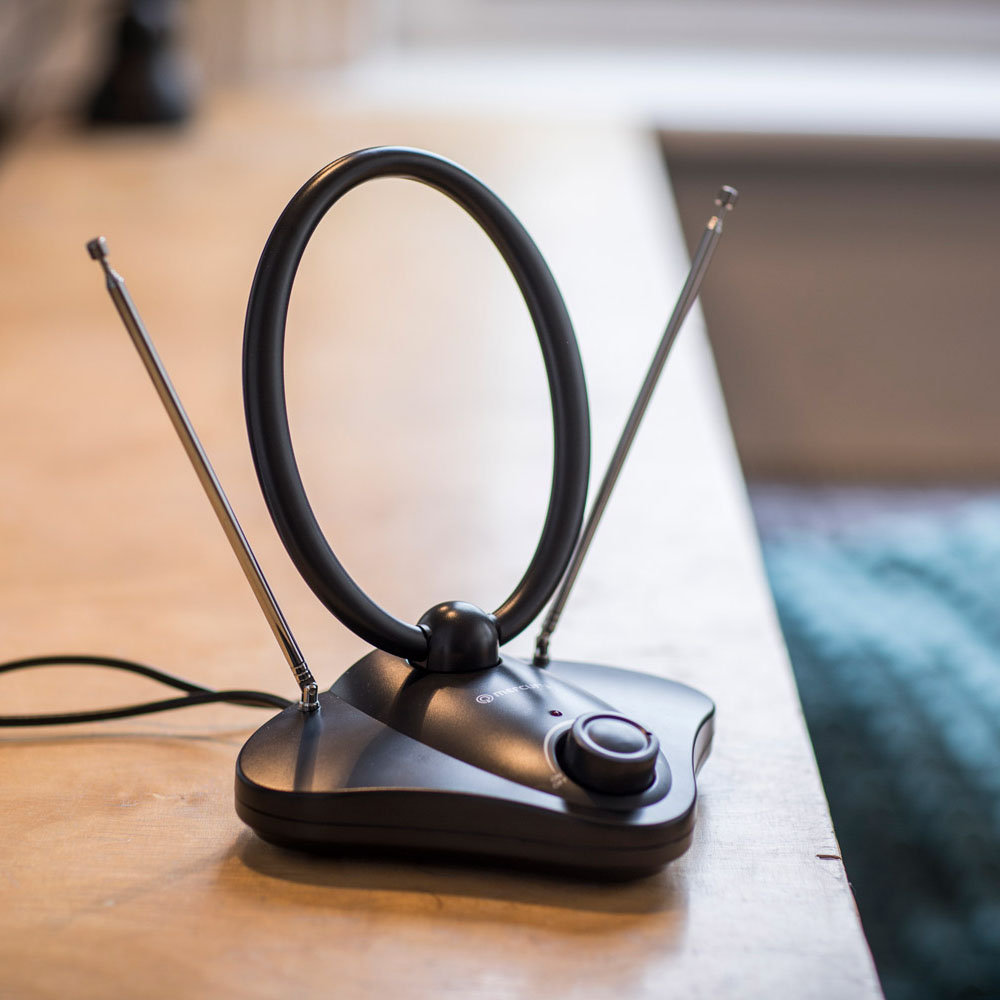

Amplified Indoor HDTV Aerial

120.503UK ST36B

A mains powered, amplified aerial compatible with Digital Terrestrial TV and DAB/FM radio signals. With an adjustable loop aerial for UHF TV signals and two telescopic aerials for VHF and FM radio ...

  • Compatible with Digital Terrestrial TV and DAB/FM radio signals
  • Built-in high gain low noise amplifier for areas with poor signal strength
  • Adjustable loop aerial, pans and tilts for best UHF TV reception
Description Version Packed
120.503UK
ST36B Indoor amplified TV aerial
Hanging Giftbox

Amplified Indoor HDTV Aerial

A mains powered, amplified aerial compatible with Digital Terrestrial TV and DAB/FM radio signals. With an adjustable loop aerial for UHF TV signals and two telescopic aerials for VHF and FM radio signals, providing maximum flexibility even in low signal areas. Gain can also be manually adjusted on the unit and there is an LED indicator showing power supply.

  • Compatible with Digital Terrestrial TV and DAB/FM radio signals
  • Built-in high gain low noise amplifier for areas with poor signal strength
  • Adjustable loop aerial, pans and tilts for best UHF TV reception
  • 2 x 728mm telescopic antennas for optimum VHF and FM radio reception
  • Variable gain control knob and Power LED indicator
  • Frequency range : UHF 470-862MHz
  • Frequency range : VHF 40-230MHz
  • Impedance 75 ohms
  • Gain 36dB
  • Current consumption 50mA @12Vdc
  • Power supply 230Vac, 50Hz or 12Vdc 50mA
  • Lead length 1.2m
  • Dimensions 195 x 144 x 230mm
  • Weight 500g

Downloads

Instruction manual
For 120.503UK (101KB)
UK Declaration of conformity
For 120.503UK (249KB)
EU Declaration of conformity
For 120.503UK (238KB)
