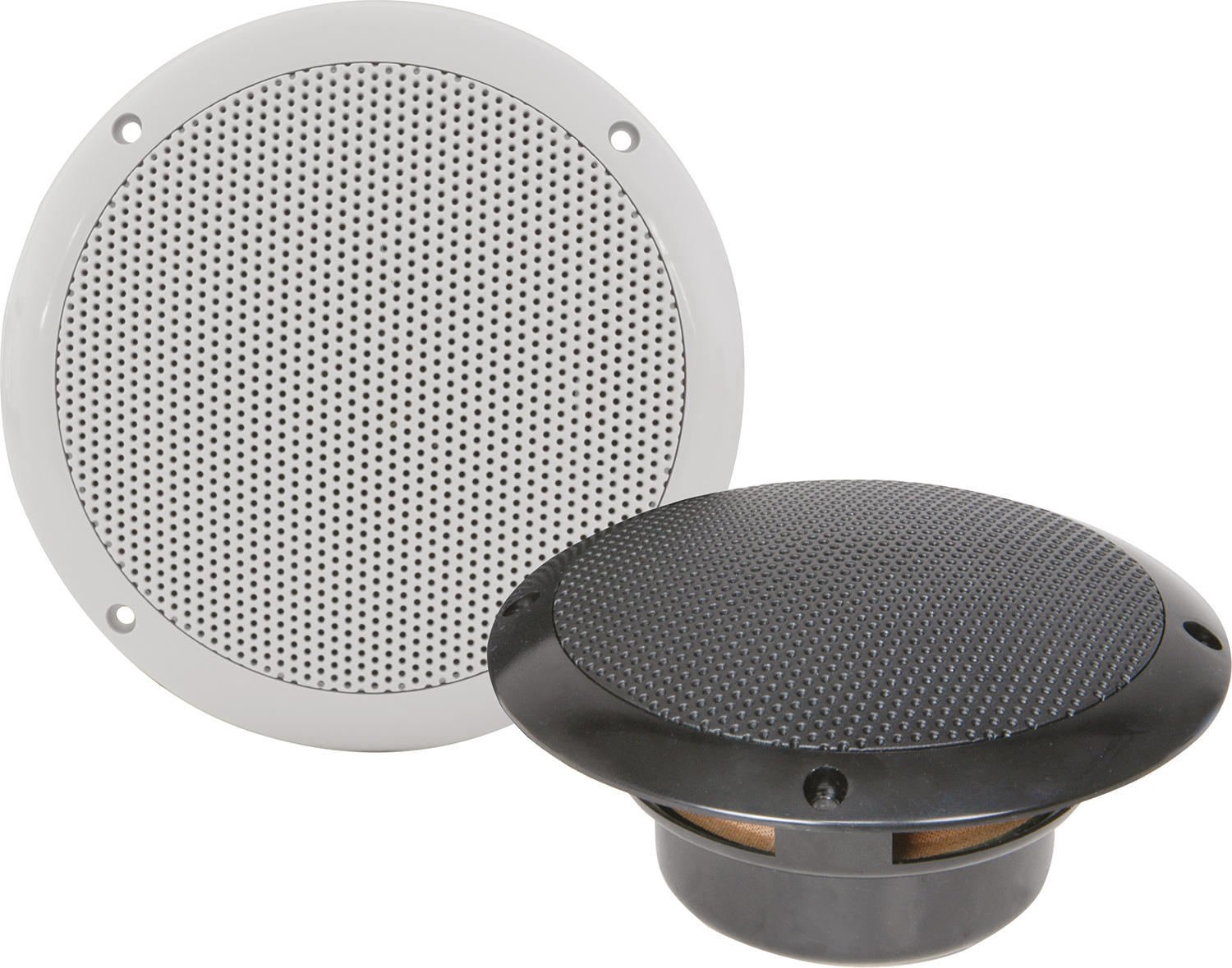

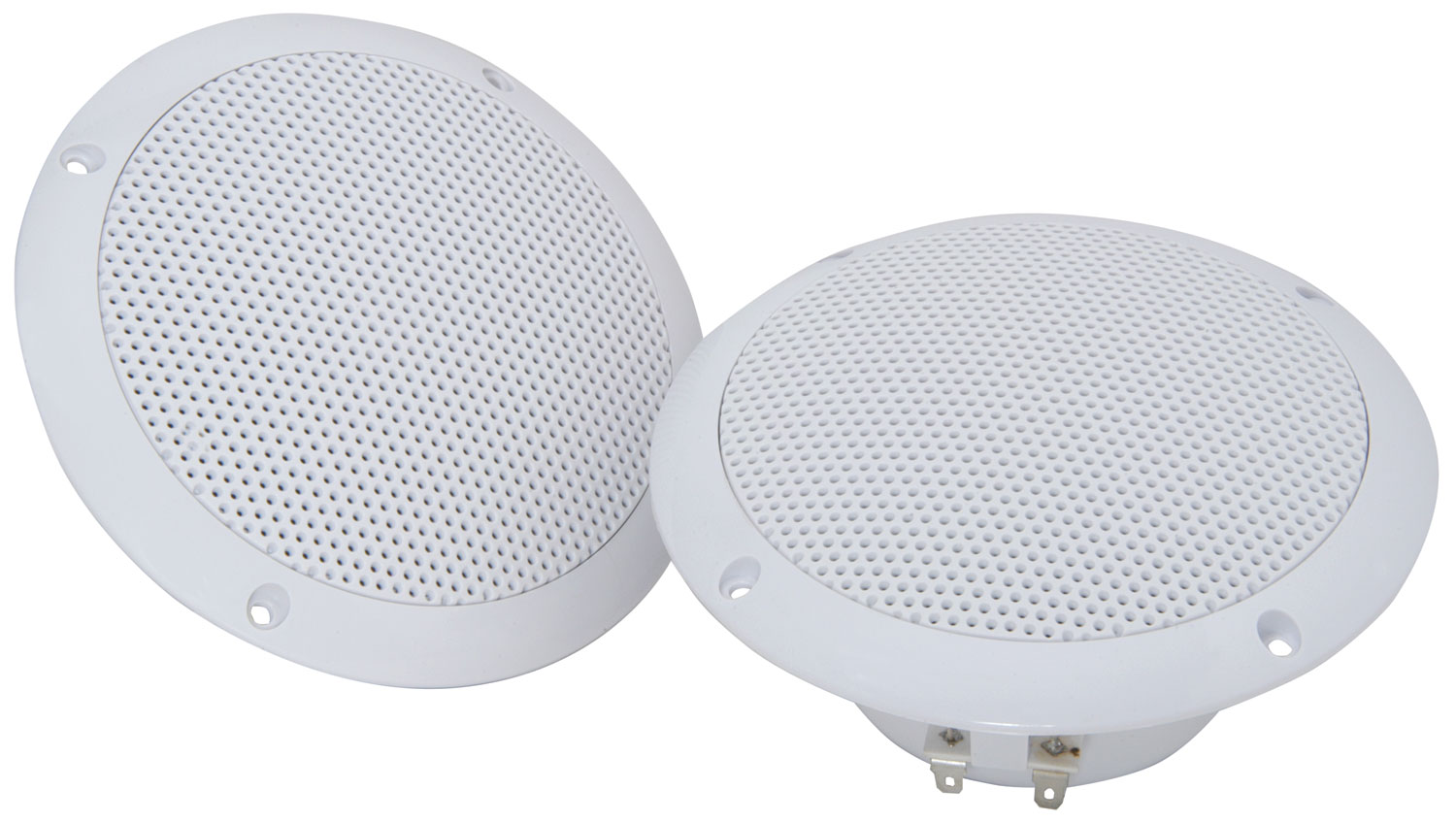

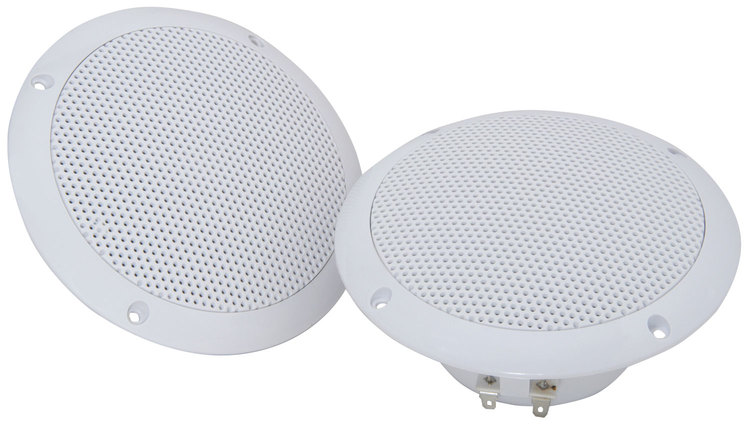

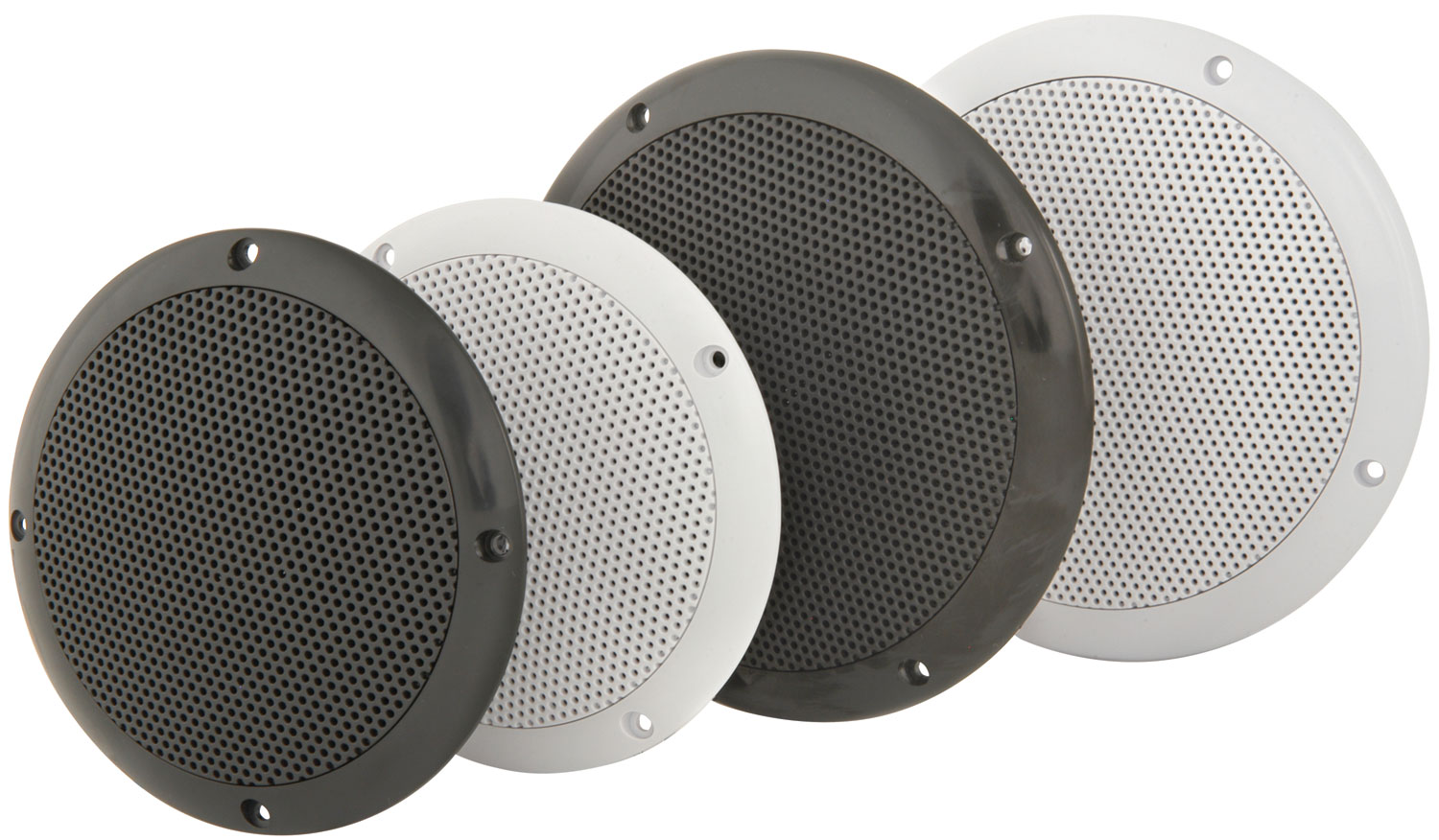

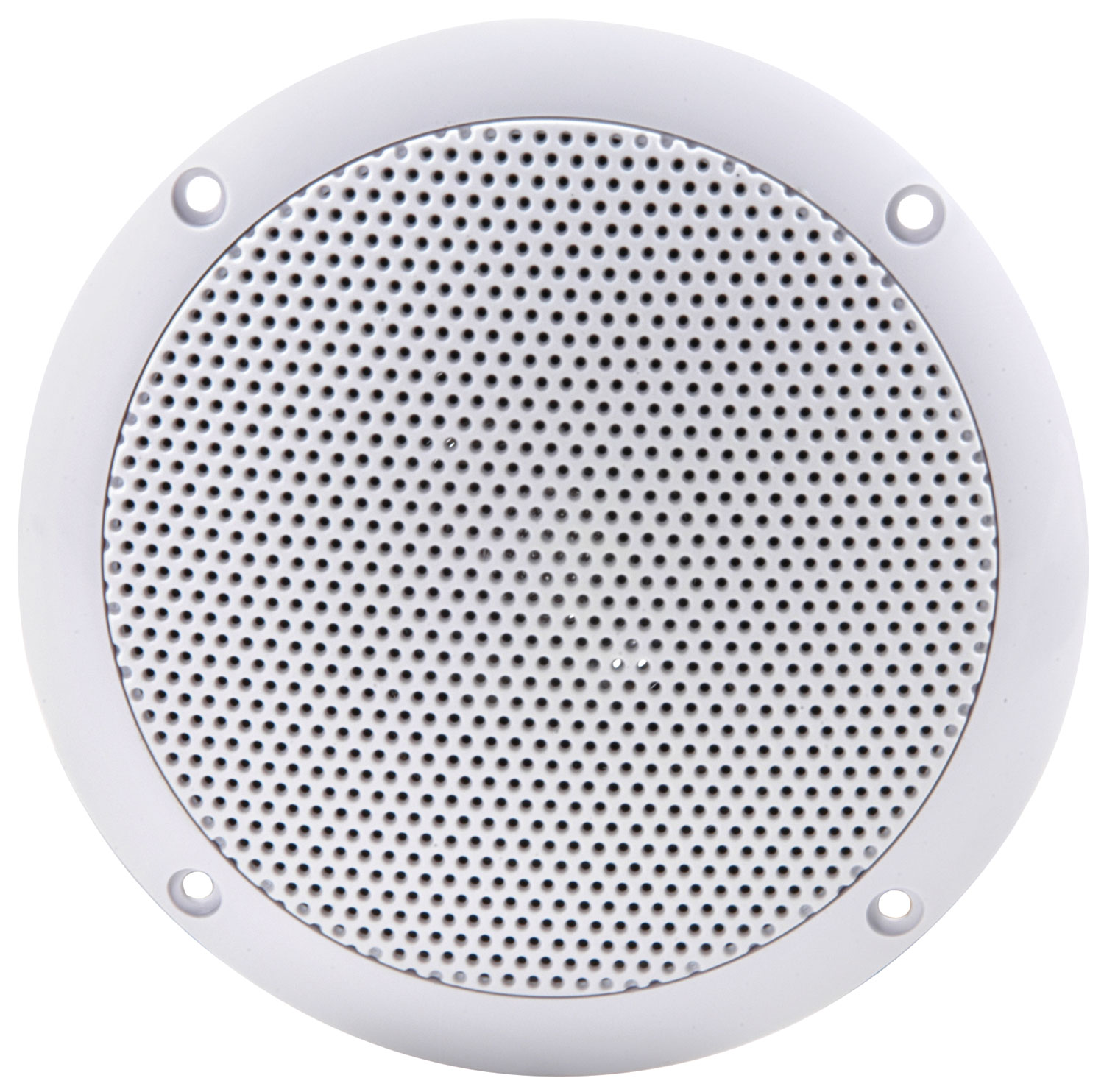

OD Series Water Resistant Speakers

125.030UK OD5-W4

A range of water resistant speakers for panel mounting, suitable for PA installations in swimming pools, bathrooms etc.

  • 2-way speakers
  • 5cm (2") tweeter with mylar cone
  • IP35 rated
Description Version Packed
125.030UK
OD5-W4 Water resistant speaker, 13cm (5"), 80W max, 4 ohms, White
5" White 4 Ohm Gift Box
125.032UK
OD5-W8 Water resistant speaker, 13cm (5"), 80W max, 8 ohms, White
5" White 8 Ohm Gift Box
125.061UK
OD6-W4 Water resistant speaker, 16.5cm (6.5"), 100W max, 4 ohms, White
6.5" White 4 Ohm Gift Box
125.063UK
0D6-W8 Water resistant speaker, 16.5cm (6.5"), 100W max, 8 ohms, White
6.5" White 8 Ohm Gift Box
125.050UK
OD6-B8 Water resistant speaker, 16.5cm (6.5"), 100W max, 8 ohms, Black
6.5" Black 8 Ohm Gift Box

OD Series Water Resistant Speakers

A range of water resistant speakers for panel mounting, suitable for PA installations in swimming pools, bathrooms etc.

  • 2-way speakers
  • 5cm (2") tweeter with mylar cone
  • IP35 rated
  • Plastic enclosure

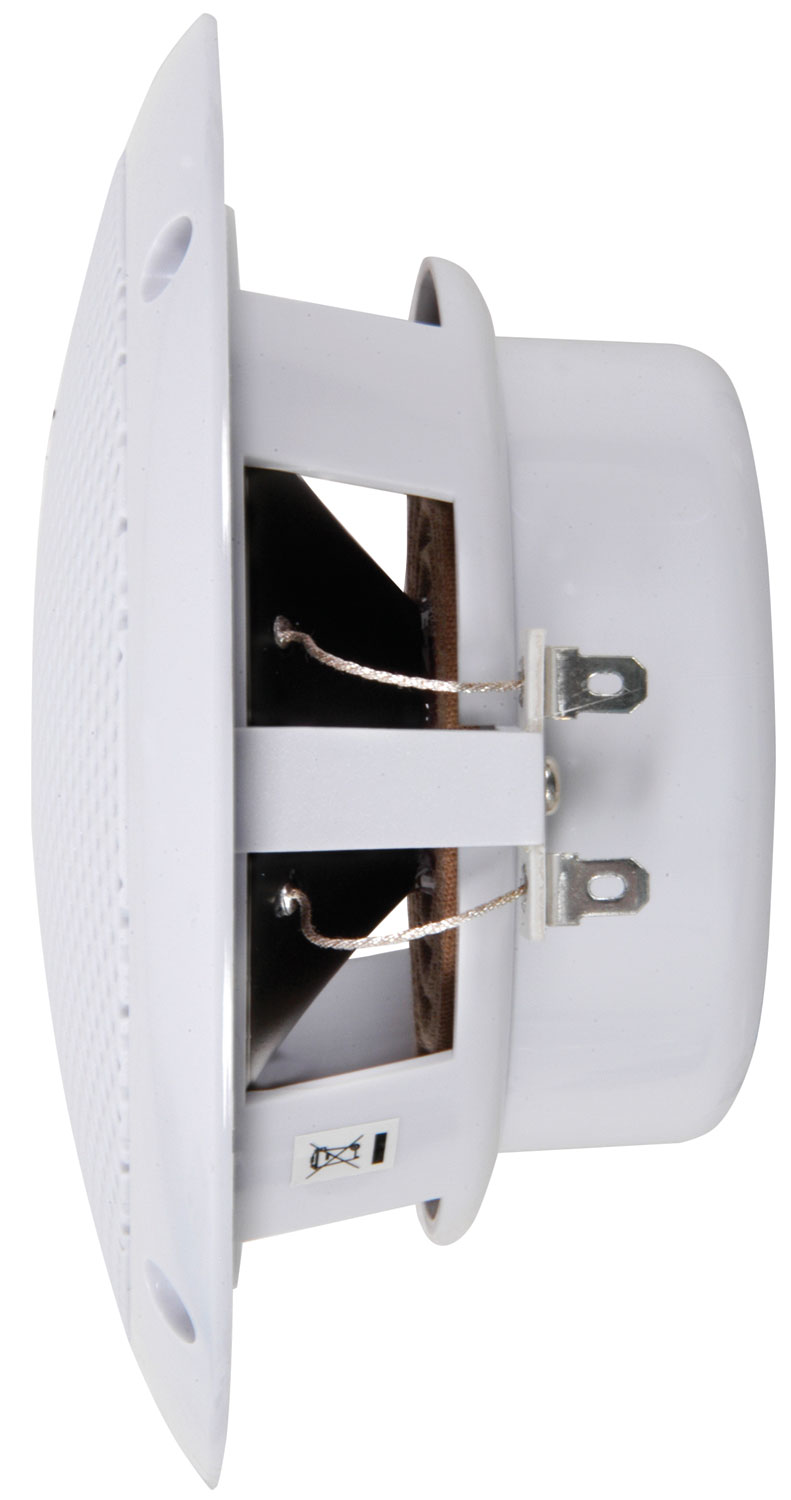

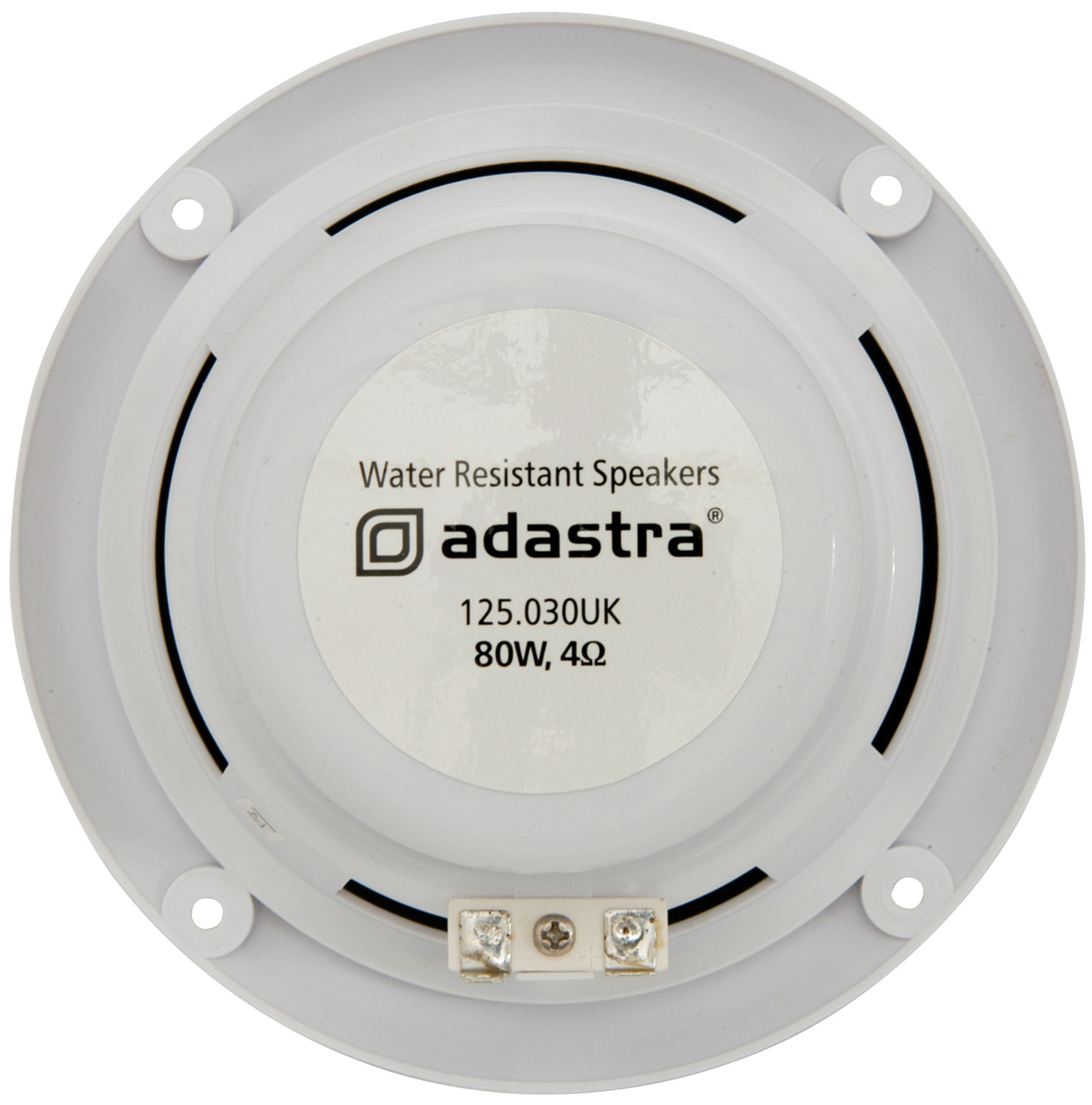

  • Spade terminal connections (6mm)
  • Woofer with polypropylene cone
  • Built-in crossover

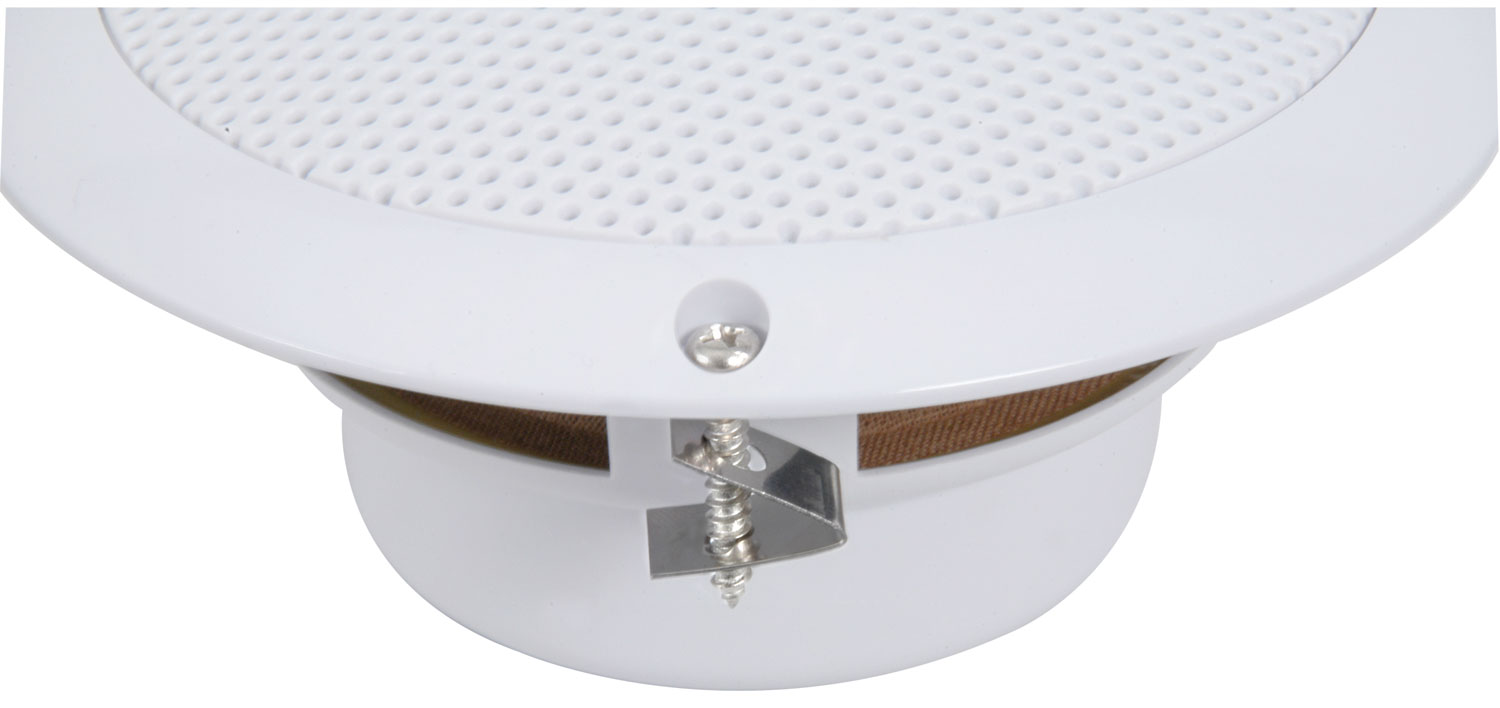

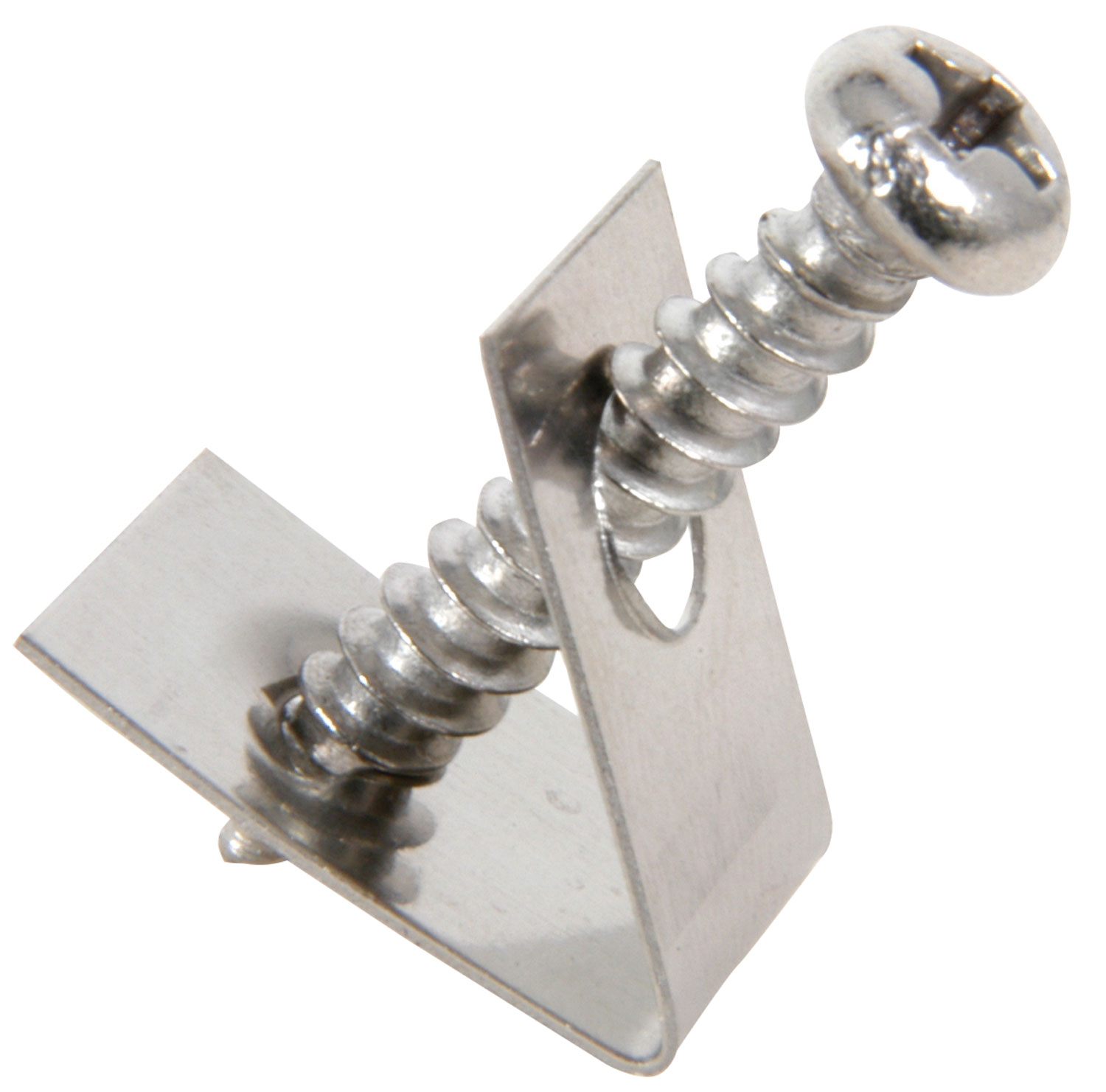

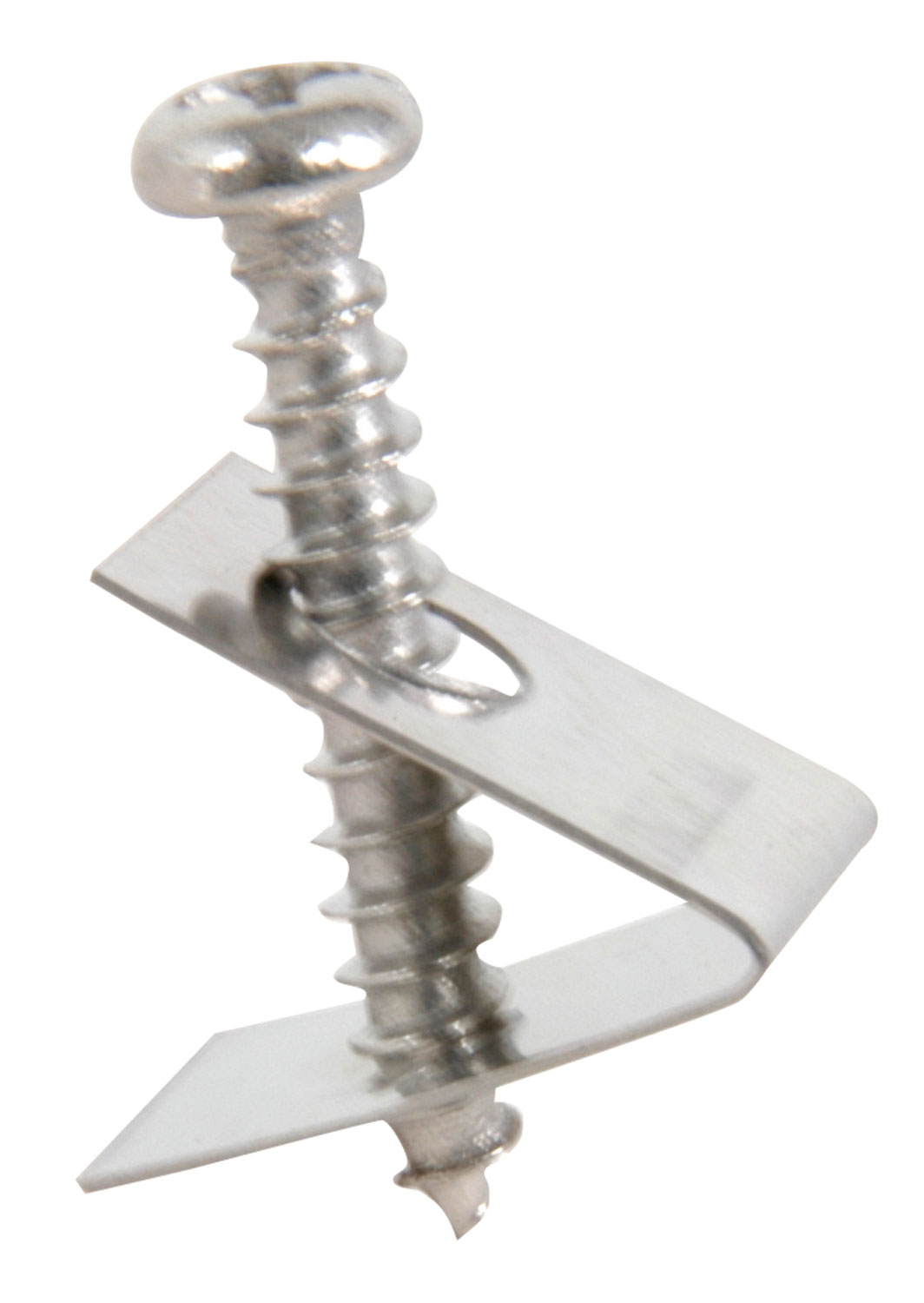

  • Includes fixing kit
  • Gasket included
  • Supplied in pairs
  • Tweeter 50mm (2")
  • Humidity max. 95%
  • IP rating IP35
  • Dispersion angle 140°
  • Temperature range -20 - 85°C

Versions

  125.030UK 125.032UK 125.061UK 125.063UK 125.050UK
Colour White White White White Black
Impedance 4 ohms 8 ohms 4 ohms 8 ohms 8 ohms
Speaker size 130mm (5") 130mm (5") 165mm (6.5") 165mm (6.5") 165mm (6.5")
Frequency response 100Hz - 20kHz 100Hz - 20kHz 80Hz - 20kHz 80Hz - 20kHz 80Hz - 20kHz
Power max. 80W 80W 100W 100W 100W
Power rms 35W 35W 40W 40W 40W
Magnet weight 184g (6.5 oz) 184g (6.5 oz) 221g (7.8 oz) 221g (7.8 oz) 221g (7.8 oz)
Cutout 112mmØ 112mmØ 132mmØ 132mmØ 132mmØ
Mounting depth 56mm 56mm 65mm 65mm 65mm
SPL @ 1W/1m 86dB 86dB 87dB 87dB 87dB
Dimensions 72.5 x 148mmØ 72.5 x 148mmØ 84.5 x 180mmØ 84.5 x 180mmØ 84.5 x 180mmØ
Weight 565g 565g 745g 745g 745g
