C-BAR: 24 x 3W RGB DMX LED Bar

151.592UK C-BAR

LED beam and effects bar with 24 high output COB tri-colour LEDs to provide colour washes and moving patterns against walls, ceilings or even across floors. 8 groups of 3 LEDs can be controlled by ...

  • 24 high output tri-colour COB LEDs
  • 8 independent segments for pattern chases
  • 5, 8, 14, 26 and 50 channel DMX modes
Full description Video Find retailer
Description Version Packed
151.592UK
C-BAR 24x3W RGB DMX LED Bar 		24x3W RGB Box Label

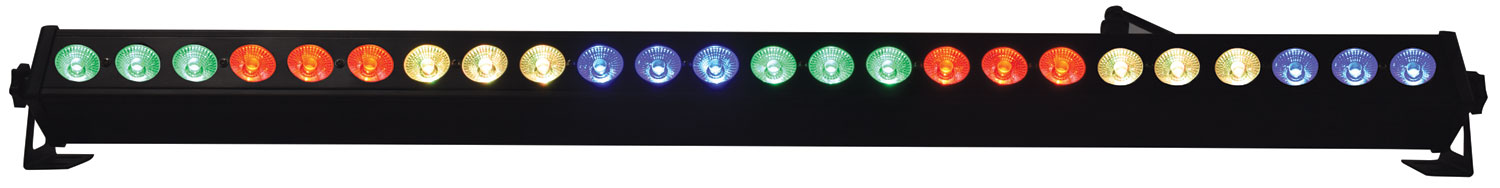

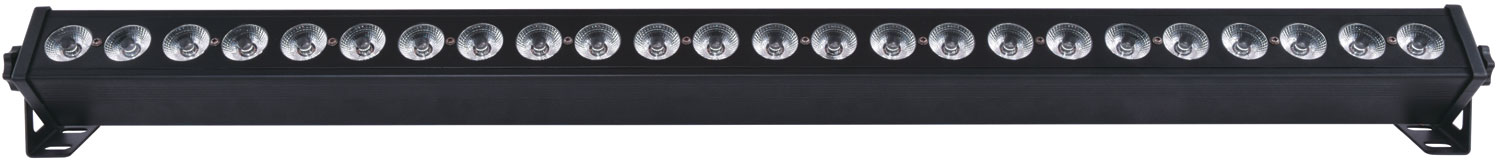

C-BAR: 24 x 3W RGB DMX LED Bar

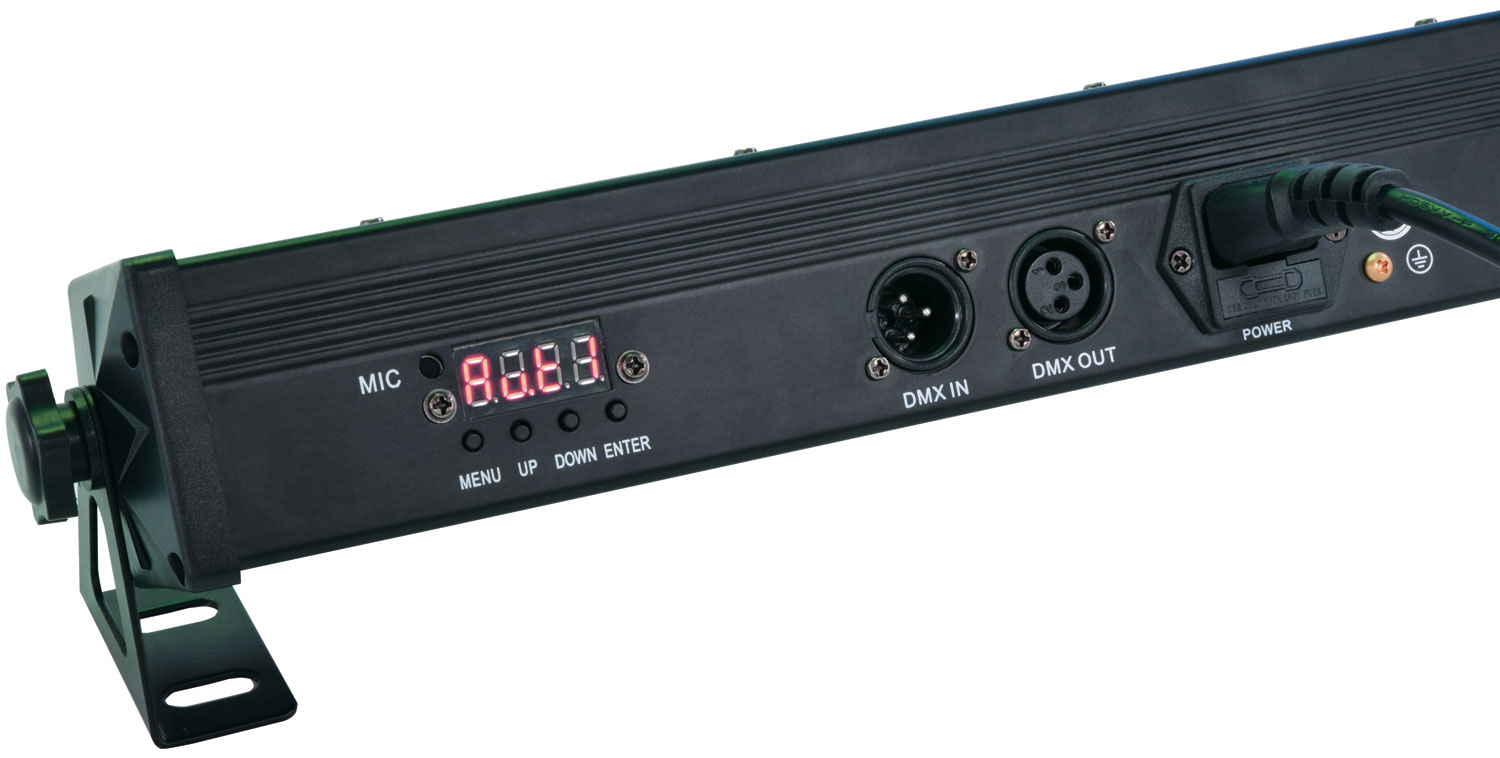

LED beam and effects bar with 24 high output COB tri-colour LEDs to provide colour washes and moving patterns against walls, ceilings or even across floors. 8 groups of 3 LEDs can be controlled by auto or sound activated modes from preset internal colour sequences. Alternatively, in manual mode, the bar can be set to static colour or operated remotely by DMX in various channel modes. Supplied with tilt-adjustable brackets for mounting to a wall or ceiling.

  • 24 high output tri-colour COB LEDs
  • 8 independent segments for pattern chases
  • 5, 8, 14, 26 and 50 channel DMX modes

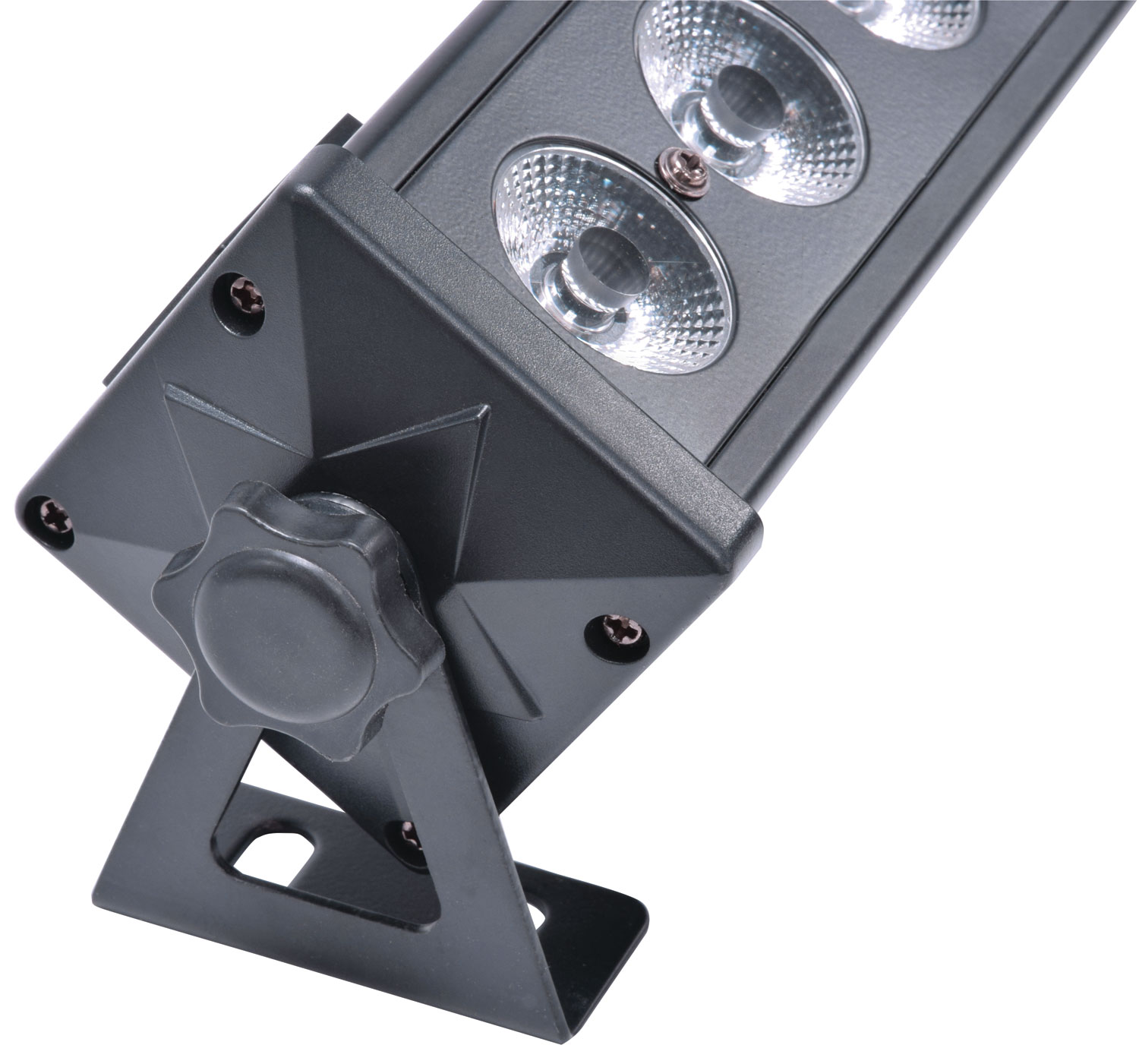

  • Supplied with end mounting brackets
  • Power supply 110-240Vac, 50/60Hz (IEC)
  • Power consumption 80W
  • Fuse F3AL
  • LED : type 3W RGB 3-in-1 COB
  • LED : quantity 24
  • Beam angle 45°
  • Modes DMX, auto, sound-activated, master/slave
  • Sections 8 (3 LEDs per section)
  • DMX channels 5, 8, 14, 26 or 50
  • Effects Strobe, pulse, gradual fade, cycle, sequence, sound activated, static colour
  • Dimensions 1020 x 65 x 65mm
  • Weight 1.8kg

In the box

The box for this item contains :

  • C-BAR RGB DMX LED Bar
  • Adjustable end mounting brackets

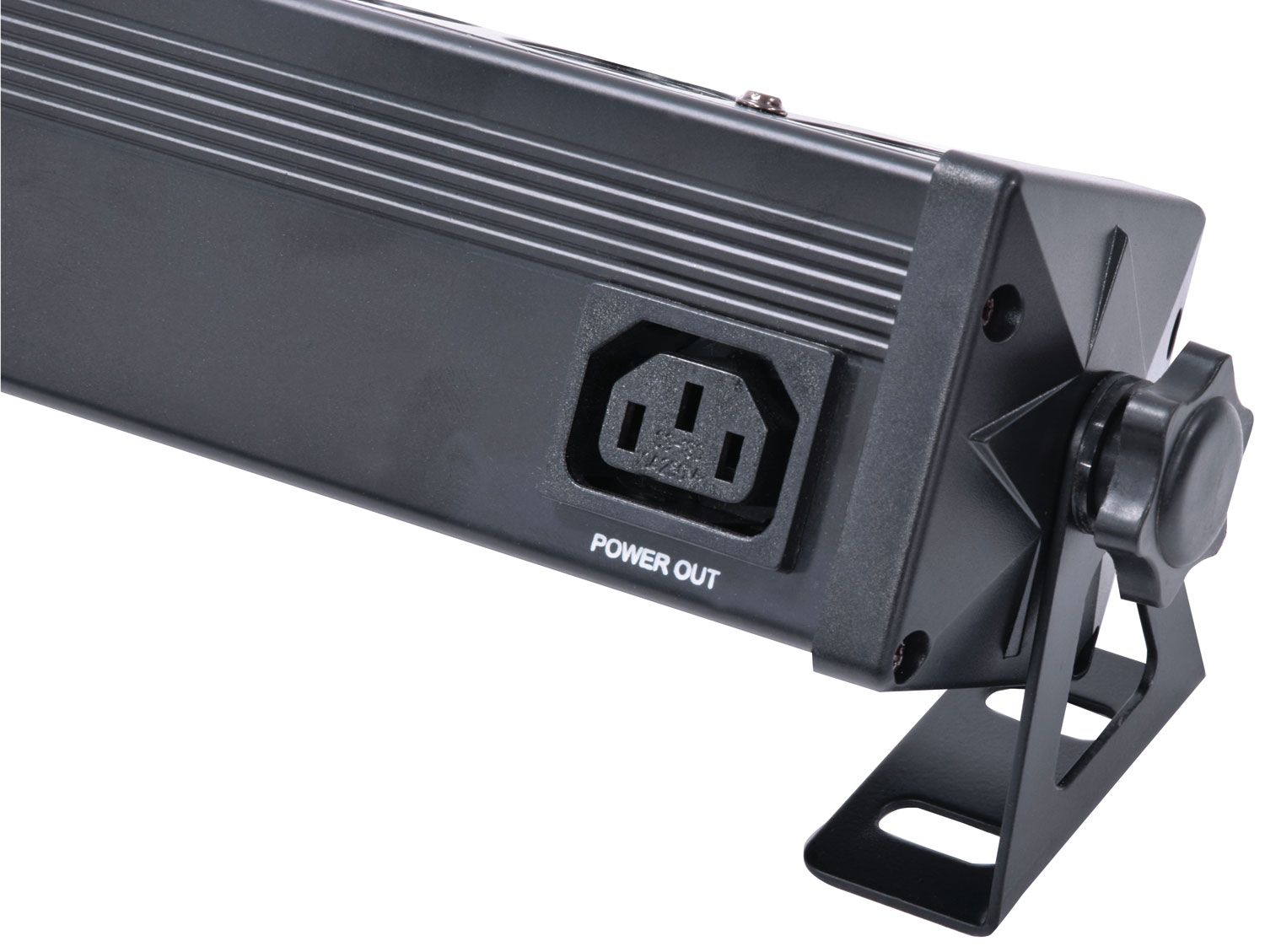

  • IEC mains power lead

Videos

QTX The SURGE C-BAR 24x3W RGB DMX LED Bar - 151.592UK

Downloads

Instruction manual
For 151.592UK (608KB)
UK Declaration of conformity
For 151.592UK (252KB)
EU Declaration of conformity
For 151.592UK (240KB)
