DERBY9 LED Light Effect

151.605UK DERBY9

A classic multi-colour derby effect with multiple beams twisting in formation. Nine different coloured 3 Watt LEDs deliver vivid coloured patterns, split through precision optics for wide area cove...

  • Wide area coverage
  • Colour change, rotation and flash effects
  • 9 colour 3W LEDs
Description Version Packed
151.605UK
LED Derby9 Light Effect
Box Label BW

DERBY9 LED Light Effect

A classic multi-colour derby effect with multiple beams twisting in formation. Nine different coloured 3 Watt LEDs deliver vivid coloured patterns, split through precision optics for wide area coverage. Control via DMX512 or infra red remote control for auto program or sound activation offers versatile operation modes for mobile discos, stage shows may form part of a larger lighting installation.

  • Wide area coverage
  • Colour change, rotation and flash effects
  • 9 colour 3W LEDs
  • DMX512 compatible
  • Internal auto and sound-activated programs

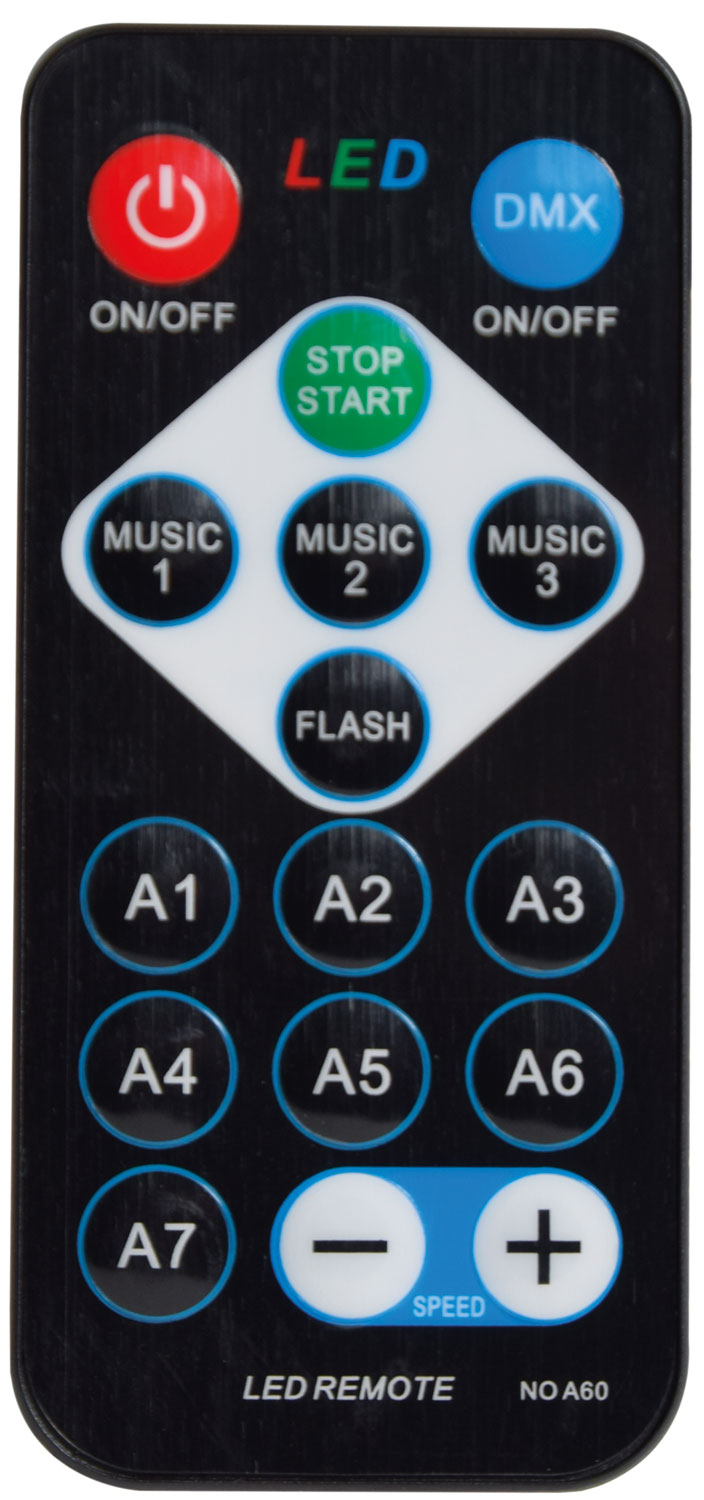

  • Supplied with I.R. remote control
  • Power supply 220-240Vac, 50/60Hz (IEC)
  • Power consumption 30W
  • Fuse F3AL
  • LED : quantity 9 x 3W
  • LED : colour Red, green, blue, amber, yellow, purple, WW, CW, UV

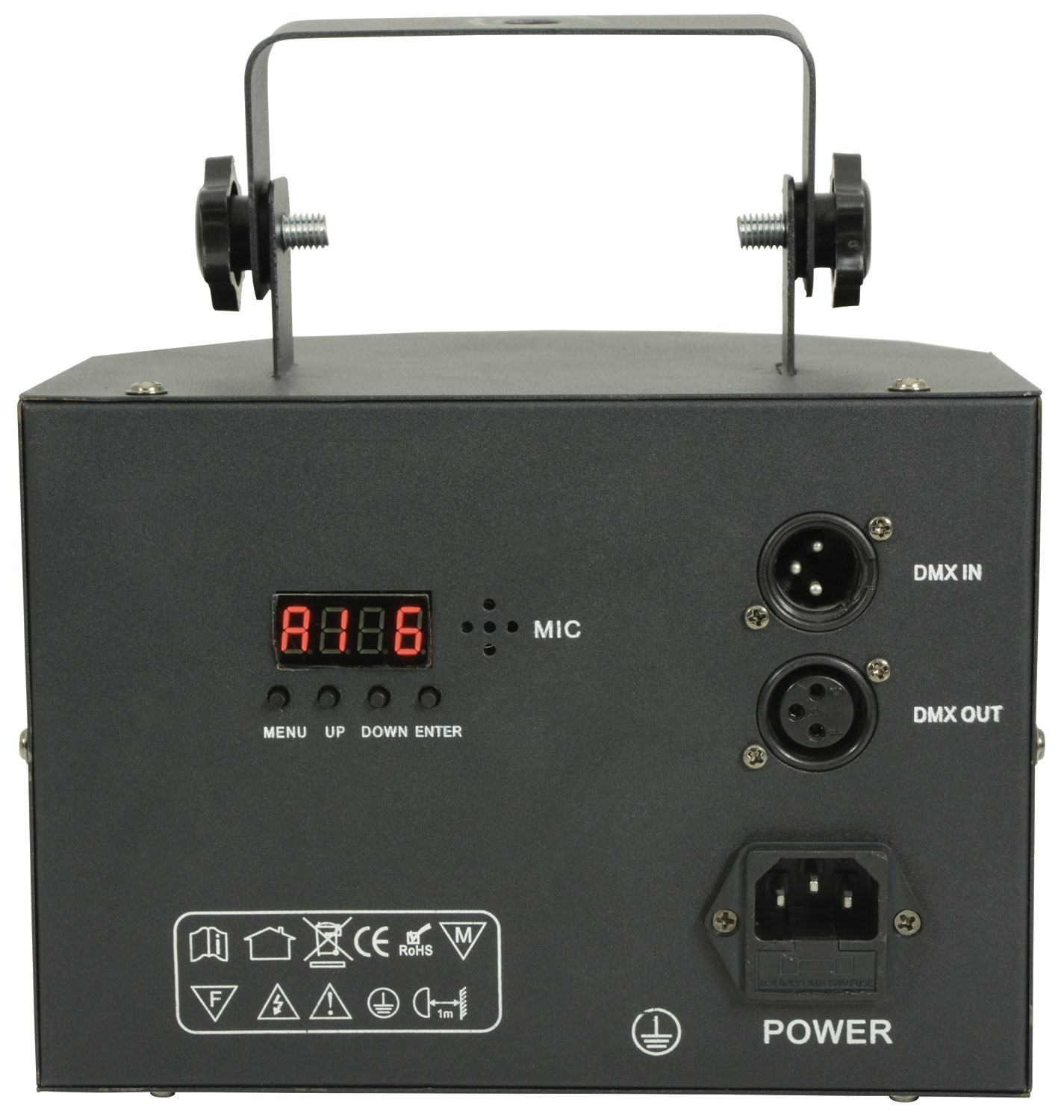

  • DMX connection 3-pin XLR in & out
  • DMX channels 7
  • Dimensions 200 x 162 x 140mm
  • Weight 1.1kg

In the box

The box for this item contains :

  • DERBY9 light effect
  • Mounting bracket
  • I.R. remote control
  • IEC power lead

Videos

151.605UK - DERBY9 LED Light Effect

Downloads

Instruction manual
For 151.605UK (217KB)
UK Declaration of conformity
For 151.605UK (250KB)
EU Declaration of conformity
For 151.605UK (240KB)
