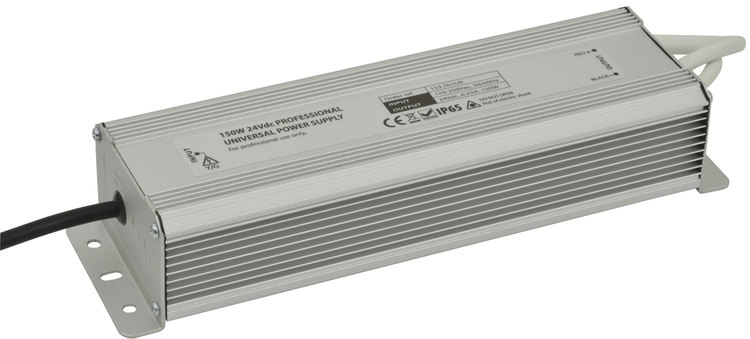

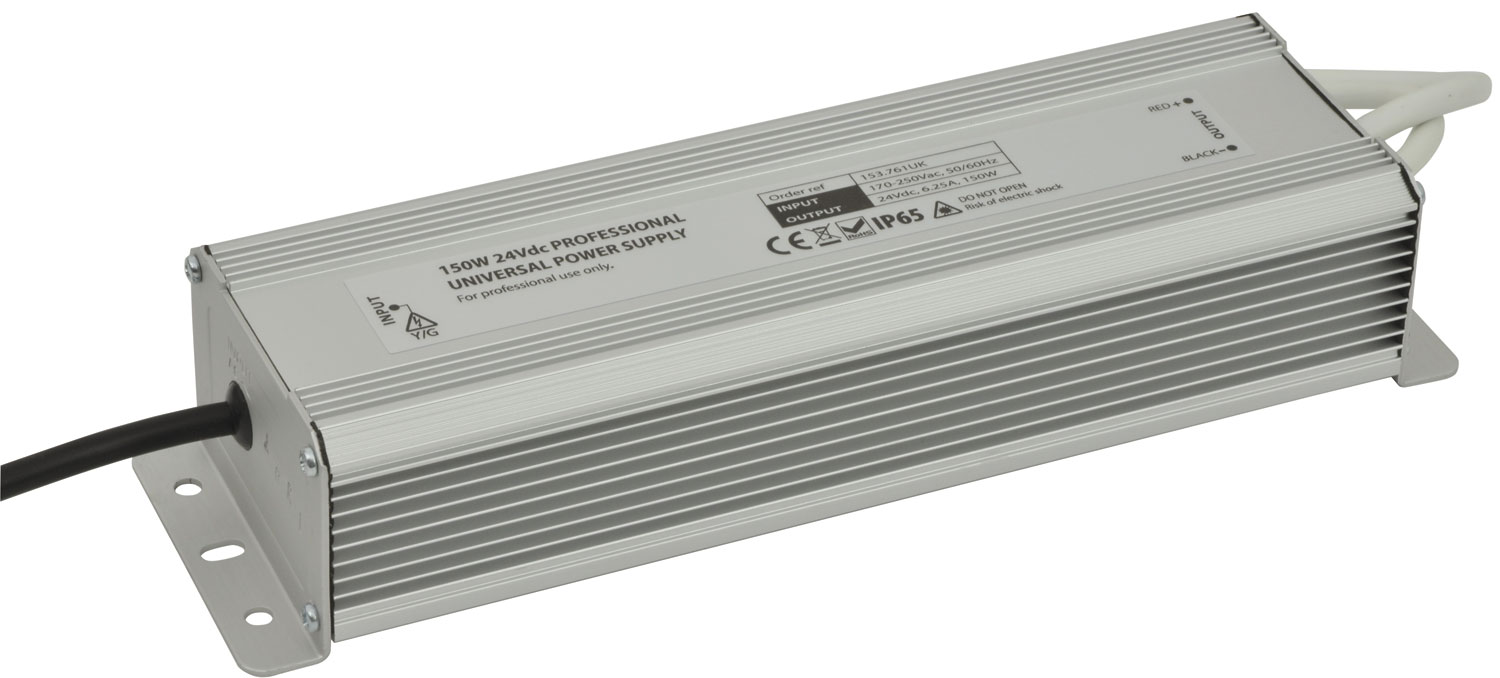

Universal 24Vdc Power Supplies
24Vdc 6.25A 150W
153.761UK
PS150-24
A range of IP67 rated 24Vdc power supplies, available in a range of power output ratings from 30W to 300W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional use… more
- Ideal for 24Vdc LED Tape and Lighting Installations
- 1 or 2 outputs for loop output connection
- Waterproof IP67 rated
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
153.757UK
Power Supply 24Vdc 1.25A 30W |
24Vdc 1.25A 30W | Box Label |
|
153.758UK
Power Supply 24Vdc 1.875A 45W |
24Vdc 1.875A 45W | Box Label |
|
153.759UK
Power Supply 24Vdc 2.50A 60W |
24Vdc 2.50A 60W | Box Label |
|
153.760UK
Power Supply 24Vdc 4.16A 100W |
24Vdc 4.16A 100W | Box Label |
|
153.761UK
Power Supply 24Vdc 6.25A 150W |
24Vdc 6.25A 150W | Box Label |
|
153.762UK
Power Supply 24Vdc 8.33A 200W |
24Vdc 8.33A 200W | Box Label |
|
153.763UK
Power Supply 24Vdc 10.4A 250W |
24Vdc 10.4A 250W | Box Label |
|
153.764UK
Power Supply 24Vdc 12.5A 300W |
24Vdc 12.5A 300W | Box Label |
Universal 24Vdc Power Supplies
A range of IP67 rated 24Vdc power supplies, available in a range of power output ratings from 30W to 300W, suitable for both indoor and outdoor LED Tape & lighting installations. For professional use only.
- Ideal for 24Vdc LED Tape and Lighting Installations
- 1 or 2 outputs for loop output connection
- Waterproof IP67 rated
- Short circuit protection
- Professional use power supplies
- Weight 2.8kg
- Dimensions 245 x 70 x 46mm
- Current 6.25A
- Total power output 150W
- Input voltage 170-250Vac, 50/60Hz
- Output feeds 1
- Output voltage 24Vdc
- IP rating IP67
