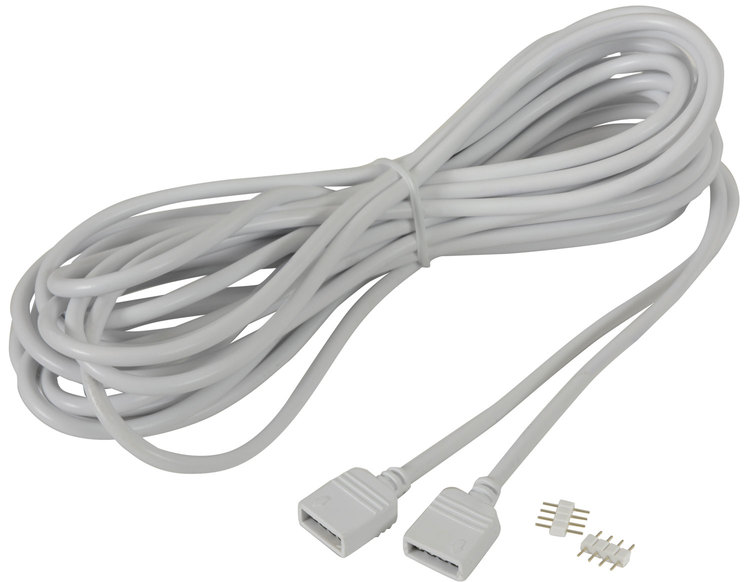

RGB LED Tape Extension Leads

153.905UK RGB-5M

Extension leads with 4-pin connectors to enable extended runs of 10mm or 12mm RGB LED tape. Each cable has a capacity of up to 2A current and can otherwise be used to connect RGB amplifiers (153.77...

  • Solderless installation
  • White PVC coated cable
Full description Find retailer
Description Version Packed
153.903UK
RGB LED Tape Extension Lead 3.0m 		Extension Lead 3.0m Poly Bag
153.905UK
RGB LED Tape Extension Lead 5.0m 		Extension Lead 5.0m Poly Bag

RGB LED Tape Extension Leads

Extension leads with 4-pin connectors to enable extended runs of 10mm or 12mm RGB LED tape. Each cable has a capacity of up to 2A current and can otherwise be used to connect RGB amplifiers (153.771UK) for additional power. Designed to make extended RGB tape installation neater and easier to execute.

  • Easy to extend RGB LED tape installation
  • Use in conjunction with RGB amplifier (153.771UK) for runs above 2A
  • Current rating 2A max. per lead
  • Connectors 4-pin (B, R, G, V+)

Versions

  153.903UK 153.905UK
Dimensions 3000 x 13 x 6mm 5000 x 13 x 6mm
Weight 80g 90g

In the box

The box for this item contains :

  • RGB tape extension lead
  • 4-pin connectors

Downloads

UK Declaration of conformity
For 153.905UK (242KB)
EU Declaration of conformity
For 153.905UK (231KB)
