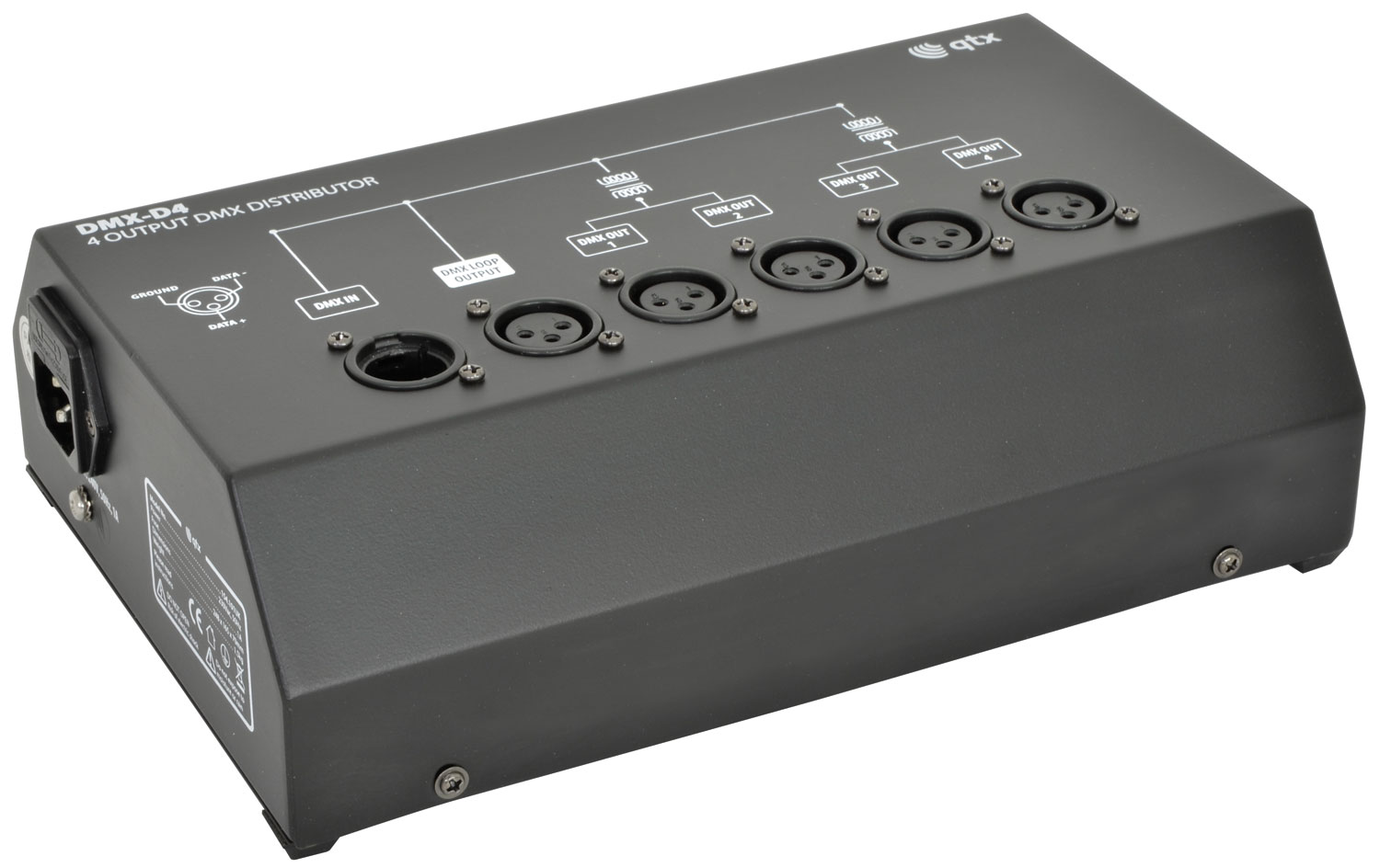

4 Way DMX Booster/Distributor

154.101UK DMX-D4

This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally...

  • DMX Loop out or DMX terminated (supplied)
  • 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
  • Powered by mains to boost signal over a long distance
Full description Find retailer
Description Version Packed
154.101UK
DMX-D4 - 4 Way DMX Booster/Distributor 		Box Label

4 Way DMX Booster/Distributor

This 4 way DMX Booster/distributor has one input, loop through and two electrically opto isolated outputs. Both DMX input and DMX output are provided with 3 pin XLR connectors making it universally compatible with most lighting systems. This item is ideally used for splitting the signal over a large area rather than running a chain. The box will isolate individual sub chains, making it quick and easy to protect and fix faults when they occur without the whole system failing.

  • DMX Loop out or DMX terminated (supplied)
  • 2 x Opto isolated DMX outputs (isolated in pairs, CH1&2, CH3&4)
  • Powered by mains to boost signal over a long distance
  • Power supply 230Vac, 50Hz (IEC)
  • DMX inputs 1
  • DMX outputs 4
  • Dimensions 248 x 165 x 70mm
  • Weight 1.5kg

Downloads

Instruction manual
For 154.101UK (188KB)
UK Declaration of conformity
For 154.101UK (248KB)
EU Declaration of conformity
For 154.101UK (236KB)
