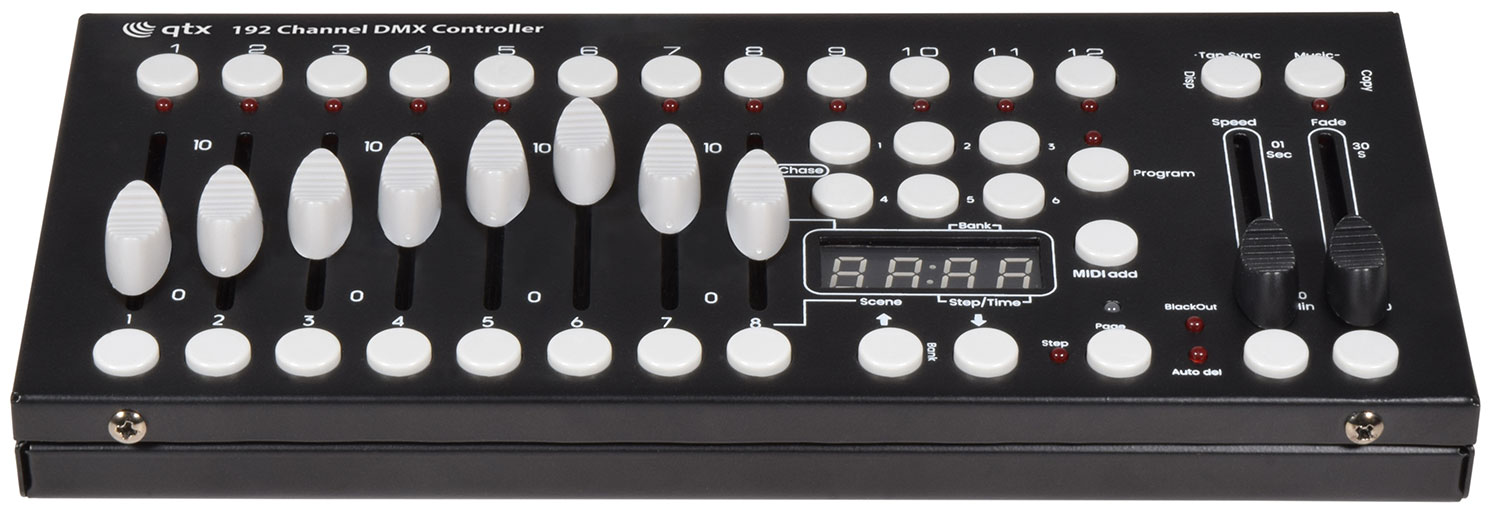

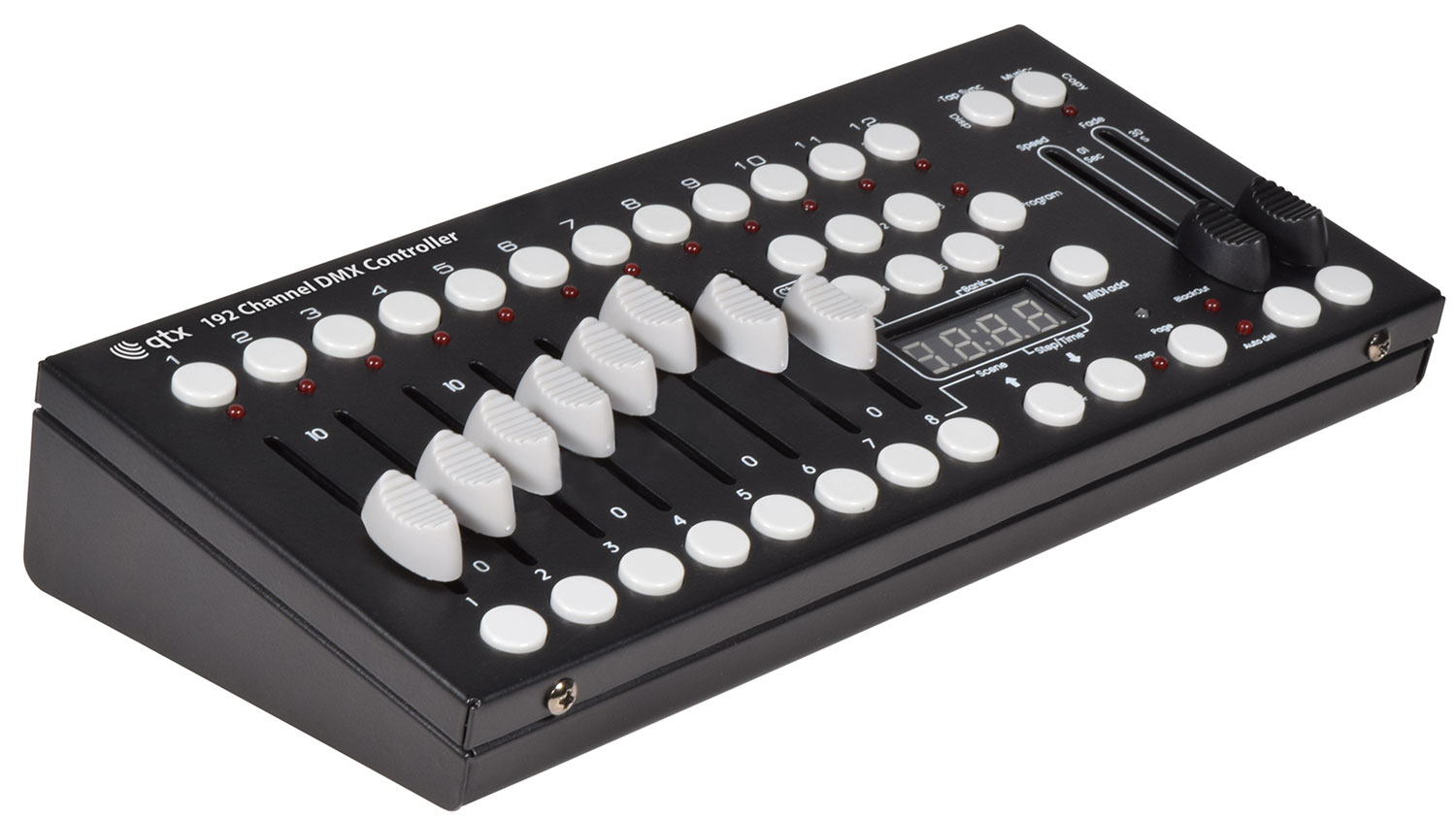

192 Channel DMX Controller

154.103UK DMX-192

A small yet versatile 192 channel DMX controller with 12 fixtures. Each fixture controls up to 16 channels per unit. There are 23 programmable bank buttons each holding 8 scenes. These scenes can b...

  • 12 fixtures each with 16 channels
  • 23 banks each with 8 programmable scenes
  • 8 channel slider with page up and page down
Description Version Packed
154.103UK
192 Channel DMX Controller
Box Label

192 Channel DMX Controller

A small yet versatile 192 channel DMX controller with 12 fixtures. Each fixture controls up to 16 channels per unit. There are 23 programmable bank buttons each holding 8 scenes. These scenes can be programmed into 6 chase sequences each holding up to 240 scenes which can be triggered by sound, manually by tap or automatically by the time faders between 0.1 seconds and 10 minutes. A lightweight and portable controller, ideal for small theatres or stage applications.

  • 12 fixtures each with 16 channels
  • 23 banks each with 8 programmable scenes
  • 8 channel slider with page up and page down
  • 6 chase banks with music, auto or manually triggered sequences
  • Speed slider from 0.1 second to 10 minutes
  • Fade slider from 0 to 30 seconds
  • Blackout button and integrated microphone
  • Ideal for small theatres and stage applications
  • DMX channels 192
  • Power supply 12Vdc, 1500mA
  • Dimensions 260 x 125 x 50mm
  • Weight 876g

In the box

The box for this item contains :

  • DMX controller

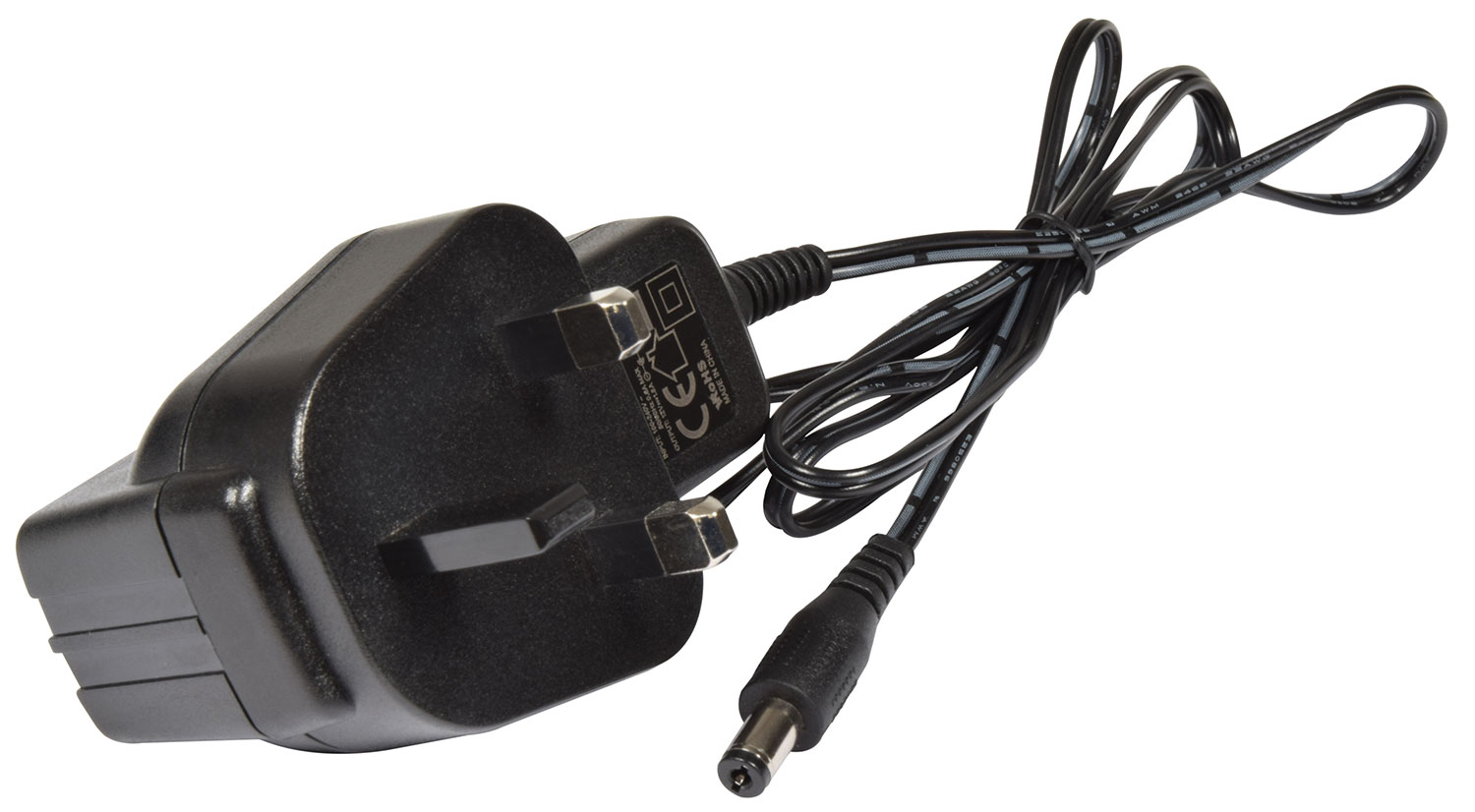

  • UK power supply
  • User manual

Downloads

Instruction manual
For 154.103UK (170KB)
UK Declaration of conformity
For 154.103UK (248KB)
EU Declaration of conformity
For 154.103UK (236KB)
