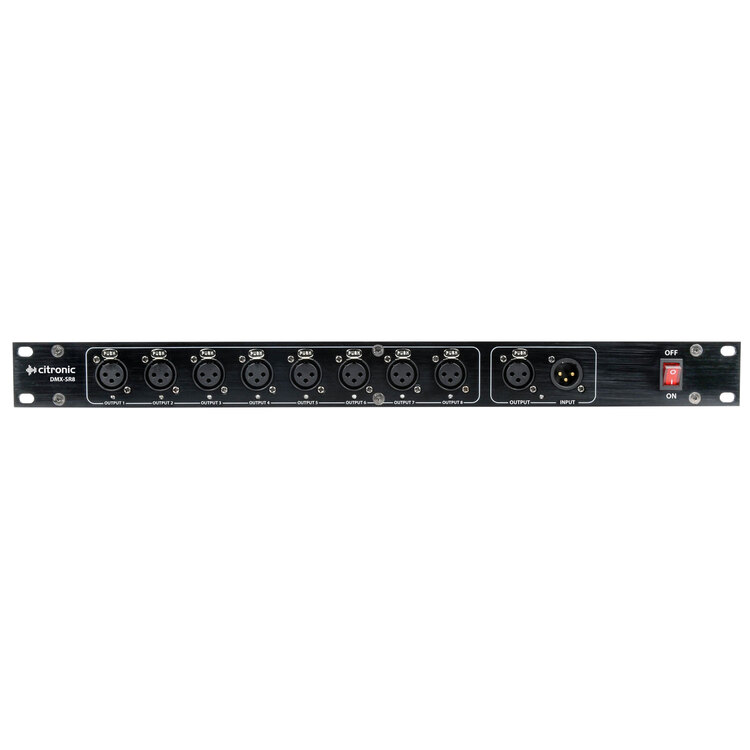

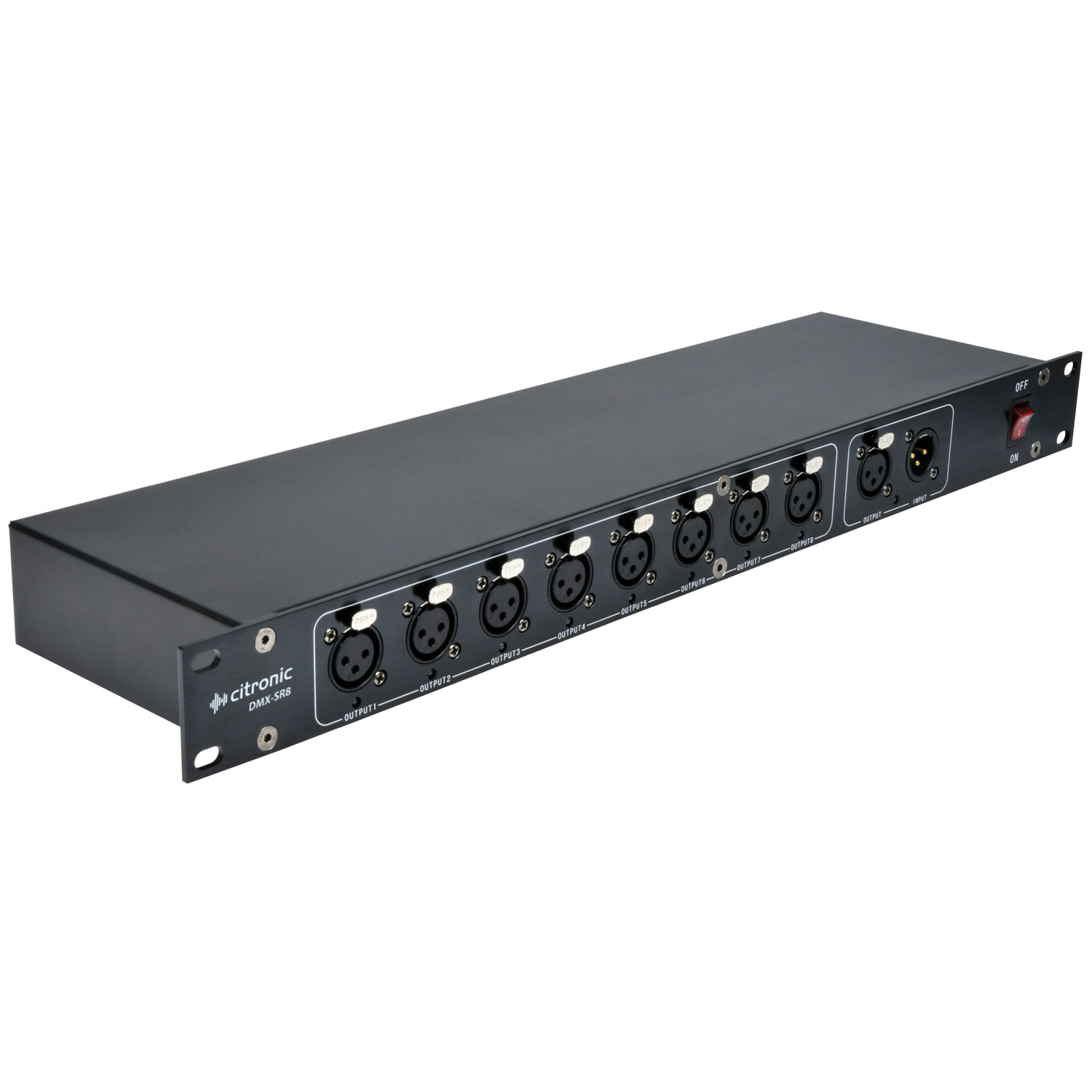

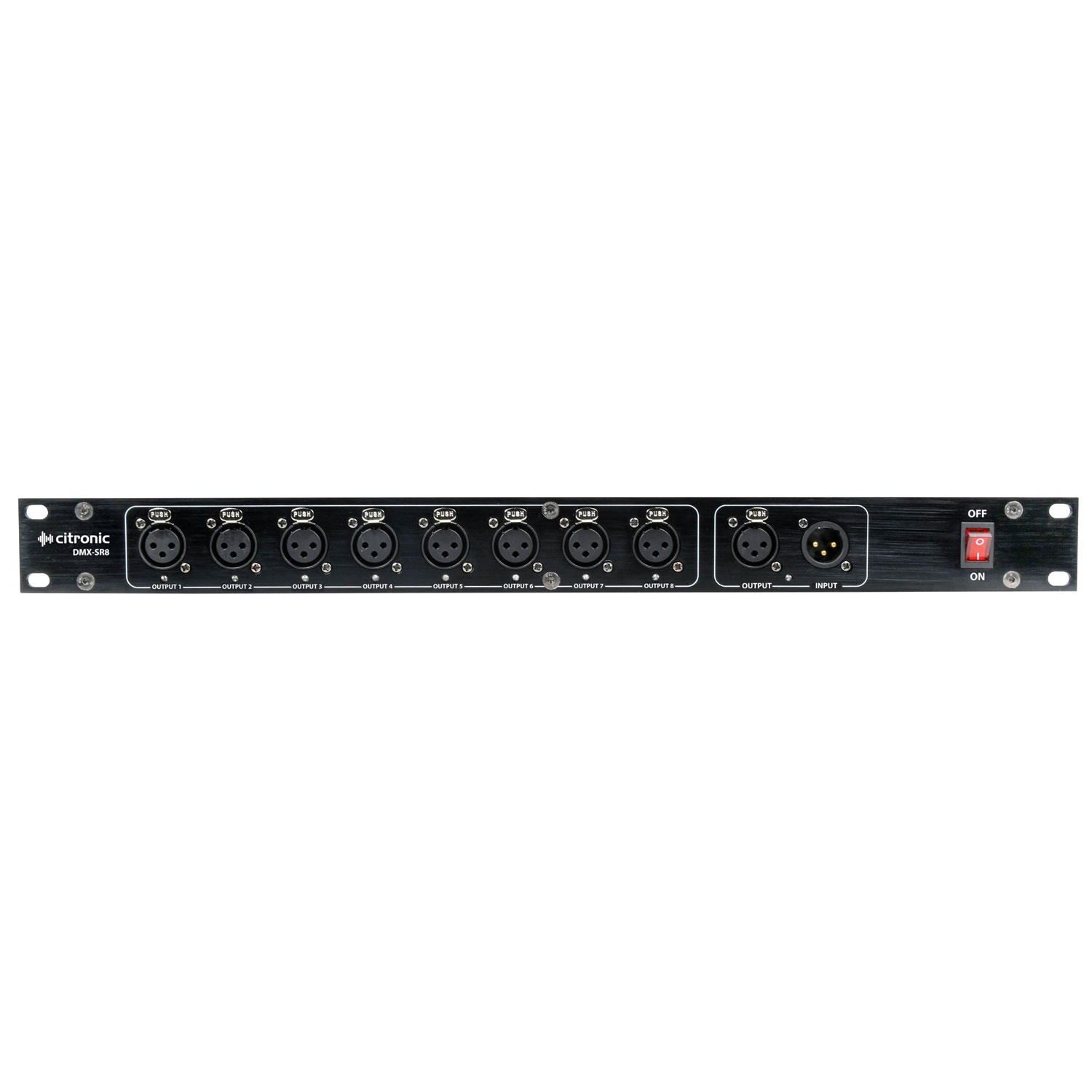

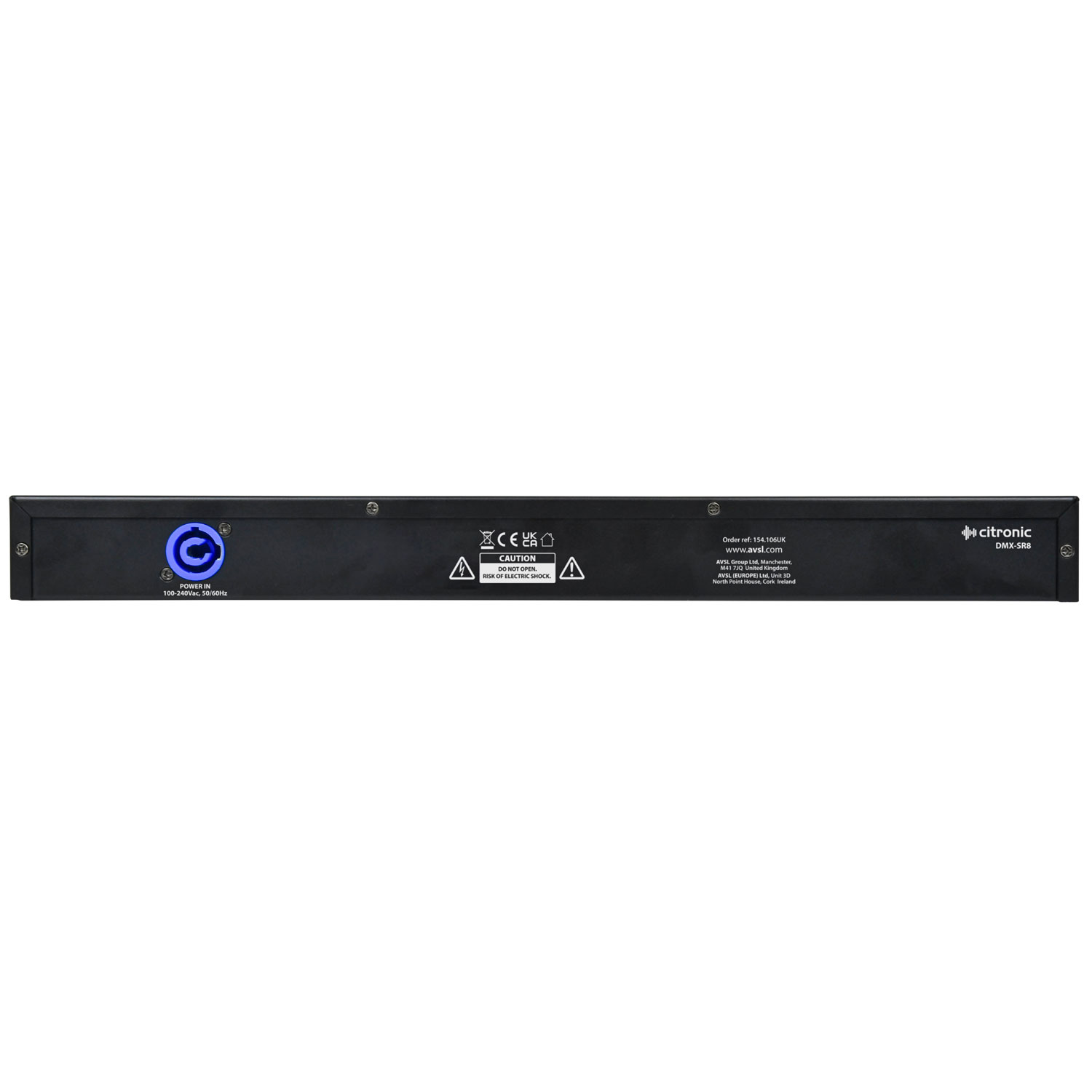

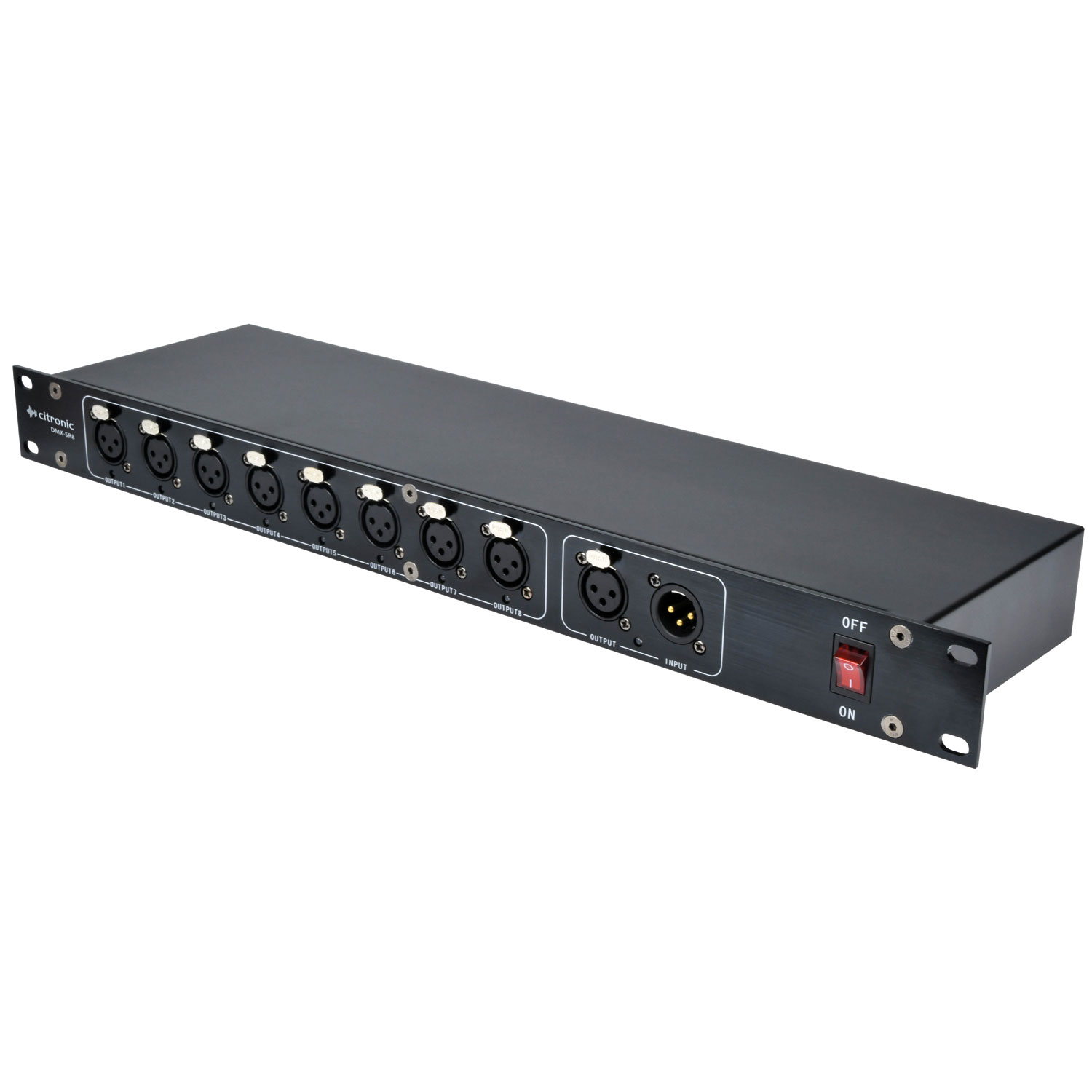

DMX-SR8: 19" Rack-Mount 8-Way DMX Splitter

A 19" rack-mount 8-way DMX splitter designed to distribute a single DMX512 signal to multiple lighting fixtures while maintaining signal integrity. The unit features one DMX input, a link output, and eight isolated outputs to protect connected equipment from interference or faults on the DMX line. Housed in a robust 1U 19-inch rack chassis, this splitter is ideal for fixed installations, touring racks, and professional lighting control systems where reliable DMX distribution is required.

• 8 (or 4) DMX signal distribution outputs with electrical isolation.
• Supports up to 32 fixtures per output.
• 19" Rack Mountable (1U).
• Electrical isolation between input and thru output.

• DMX connection 1 x 3-Pin Input, 1 x 3-Pin Thru, 8 x 3-Pin Output
• Power connection Power in (twist and lock)
• Power supply AC90V~240V, 50Hz/60Hz
• Power consumption 15w
• Dimensions 45mm x 140mm x 484mm
• Weight 1.77kg
