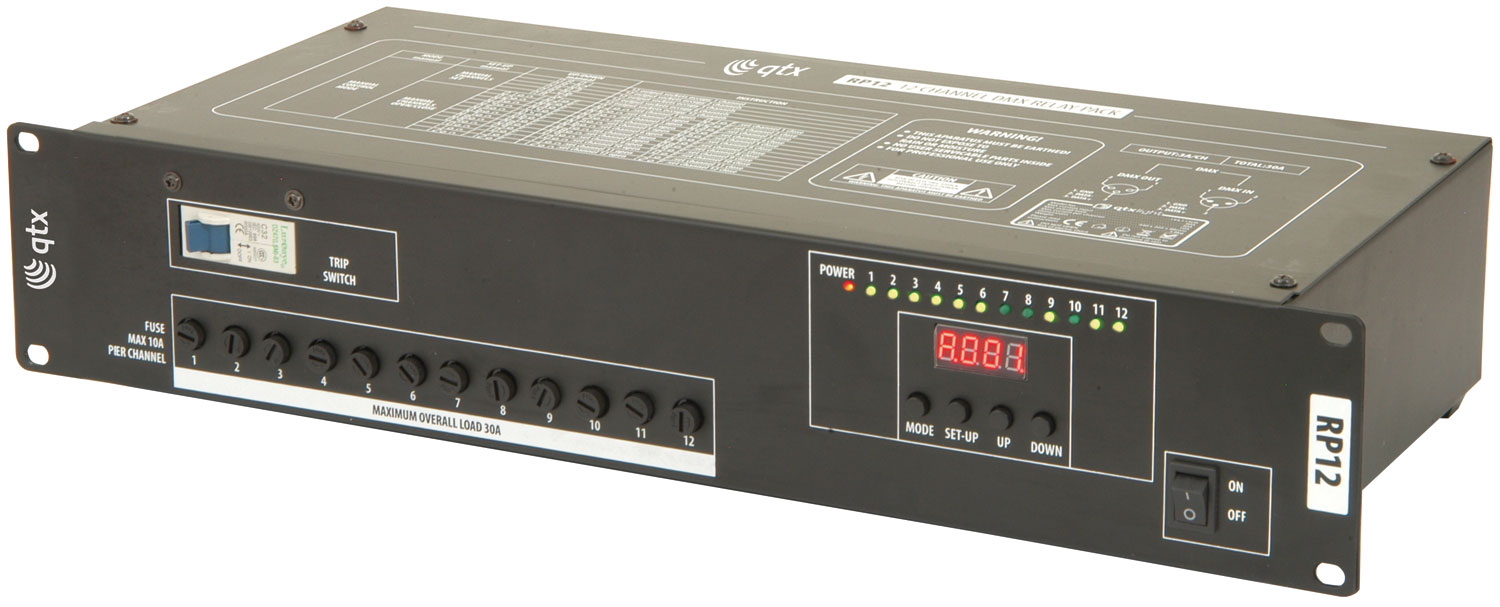

12 Channel DMX Relay Pack

154.113UK RP12

The RP12 is a relay pack with 12 IEC power outputs. Each output is controlled by an individual relay which turns the power on and off saving energy and preserving the lifespan of your light effects...

  • 12 individual IEC outputs
  • 12, 6, 3, 2 or 1 channel DMX

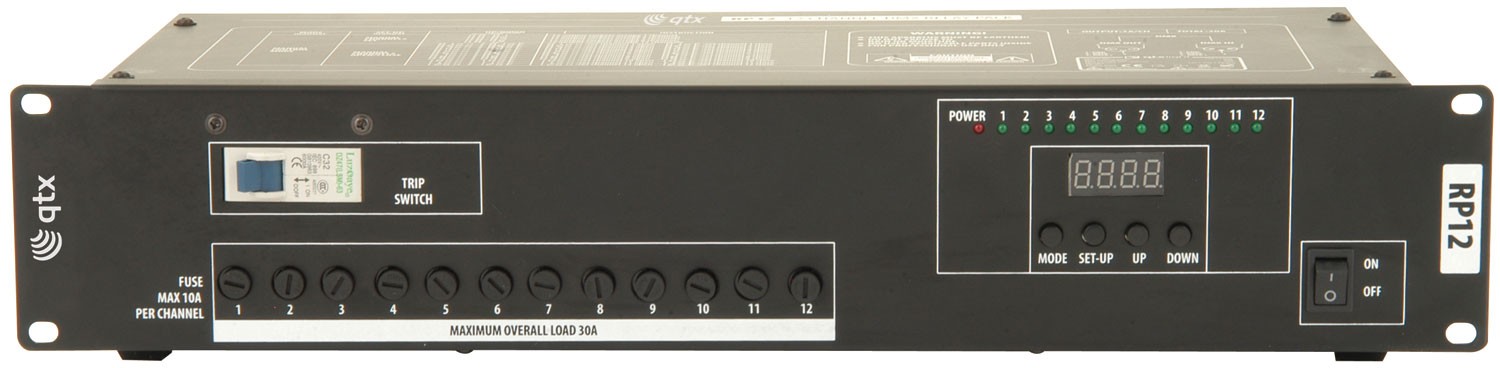

  • Digital LED display on the front panel
Description Version Packed
154.113UK
RP12 12 Channel DMX relay pack
Box Label

12 Channel DMX Relay Pack

The RP12 is a relay pack with 12 IEC power outputs. Each output is controlled by an individual relay which turns the power on and off saving energy and preserving the lifespan of your light effects. This is ideal for use with low voltage LED light effects which, when used with dimmer packs, turn on and off randomly with the pulse voltage sent through the system. These outputs can be turned on or off using the controls on the digital LED front panel display or by DMX which can be configured so that there are 12, 6, 3, 2 or 1 channel DMX allowing you to suit the need for your setup.

  • 12 individual IEC outputs
  • 12, 6, 3, 2 or 1 channel DMX
  • Digital LED display on the front panel
  • DMX or manually controlled
  • 19" rack mountable
  • Power supply 230Vac, 50Hz
  • Maximum current input 30A
  • Maximum current per channel 10A

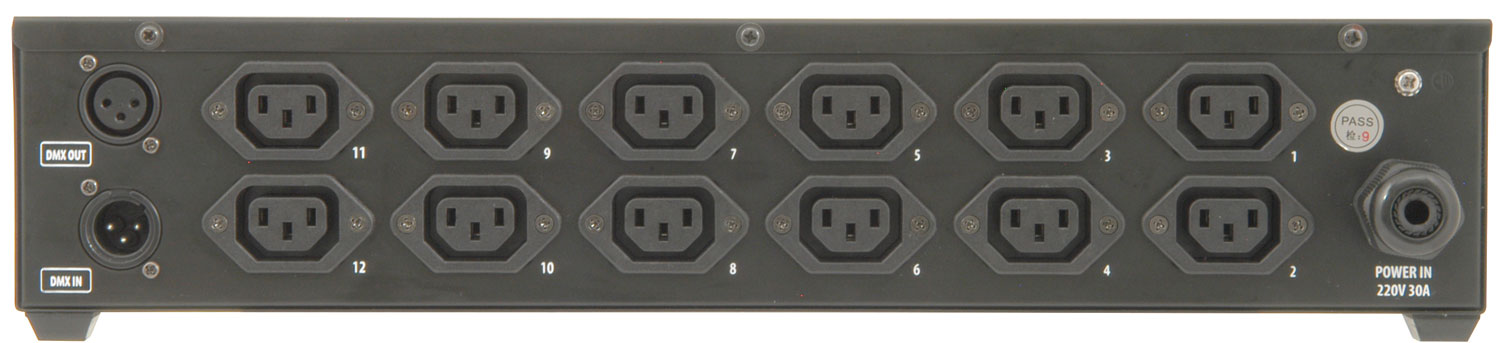

  • IEC outputs 12
  • Dimensions 440 x 205 x 88mm
  • Weight 3.8kg

Downloads

Instruction manual
For 154.113UK (258KB)
UK Declaration of conformity
For 154.113UK (251KB)
EU Declaration of conformity
For 154.113UK (240KB)
