12V UV LED Tape - 5M Reel
156.704UK
LT12560-UV
5m reel of high output LED tape with 60 x SMD5050 LEDs per metre. Light output is a bright visible violet colour which can make certain materials fluoresce at close range, giving an ultraviolet eff...
- 60 high output LEDs per metre
- Ultraviolet light output
- Self-adhesive backing for easy installation
| Description | |
|---|---|
|
156.704UK
UV LED tape 12Vdc 60 LEDs per metre |
12V UV LED Tape - 5M Reel

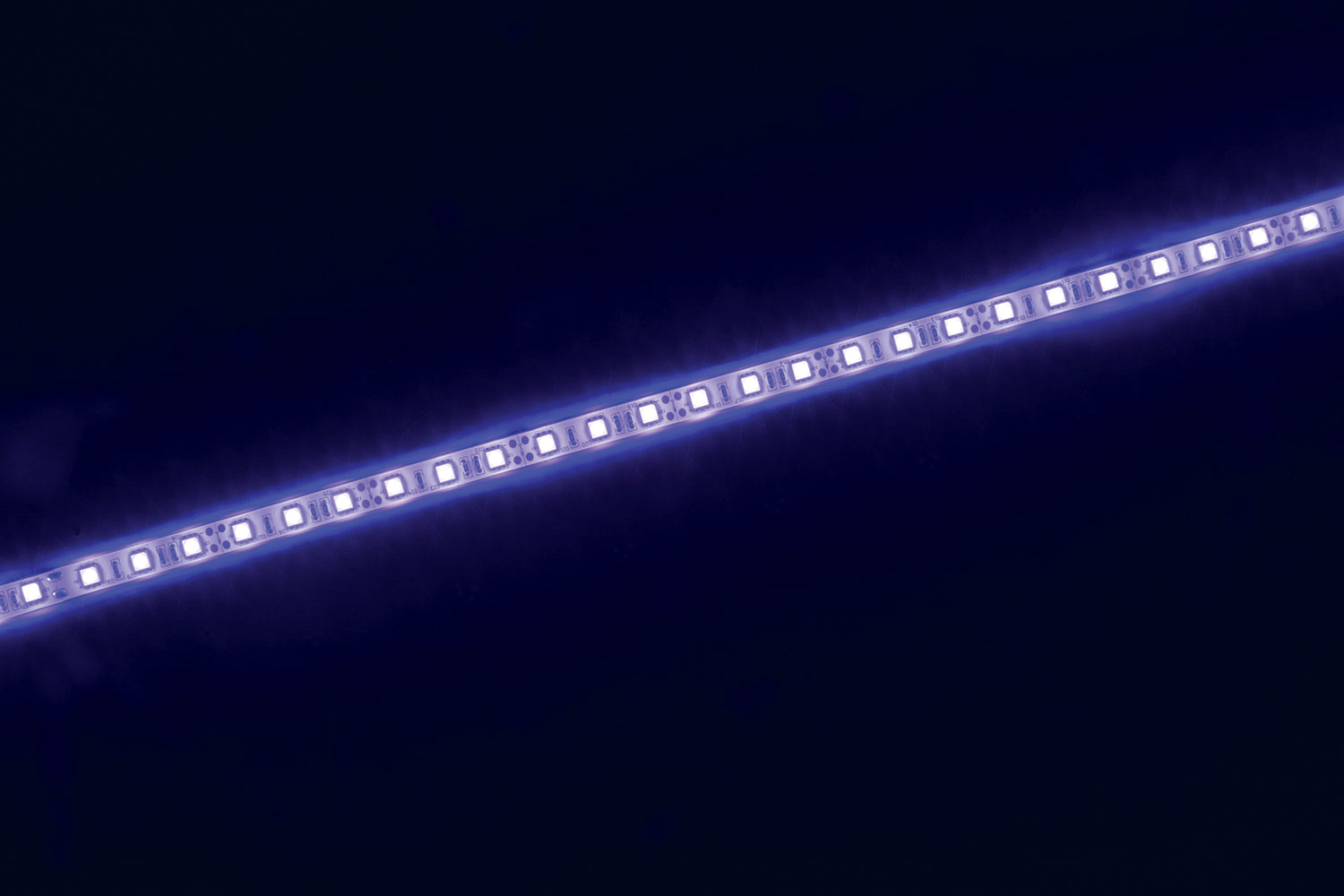

5m reel of high output LED tape with 60 x SMD5050 LEDs per metre. Light output is a bright visible violet colour which can make certain materials fluoresce at close range, giving an ultraviolet effect. The tape is protected with a clear IP65 coating and has a self-adhesive backing for easy installation. Cutting points are provided at every 5cm for custom lengths. 12Vdc power in and out connections are via locking DC5521 jacks. Designed to produce UV effects for glow parties, themed events and displays.
- 60 high output LEDs per metre
- Ultraviolet light output
- Self-adhesive backing for easy installation
- IP65 rated
- Powered by 12Vdc (min. 3.5A per reel - not included)
- Supplied with easy-to-use connection accessories
- Compatible with controllers: 153.789UK, 153.794UK, 153.795UK, 153.796UK & 153.841UK
- Voltage 12Vdc
- LED : quantity per metre 60
- Power consumption per metre 8.4W/m
- Current 700mA per metre
- Beam angle 140°
- LED : colour Violet with ultraviolet
- LED : type SMD5050
- Luminous flux (Lumens per metre) 540lm/m
- Light intensity per LED (millicandelas) 5000mcd
- Cut intervals 5cm
- LED : spacing 16mm
- Reel length 5m
- IP rating IP65
- Cross-section 10.5 x 3mm
- Weight 230g
