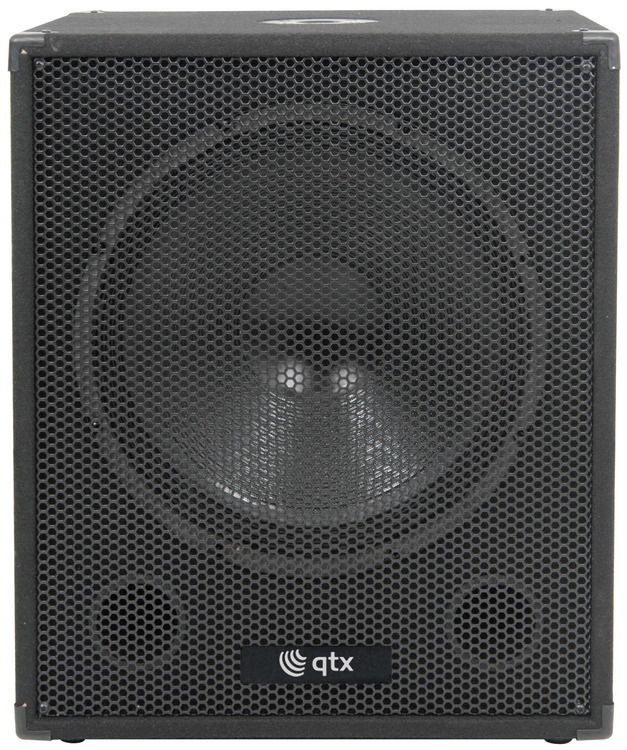

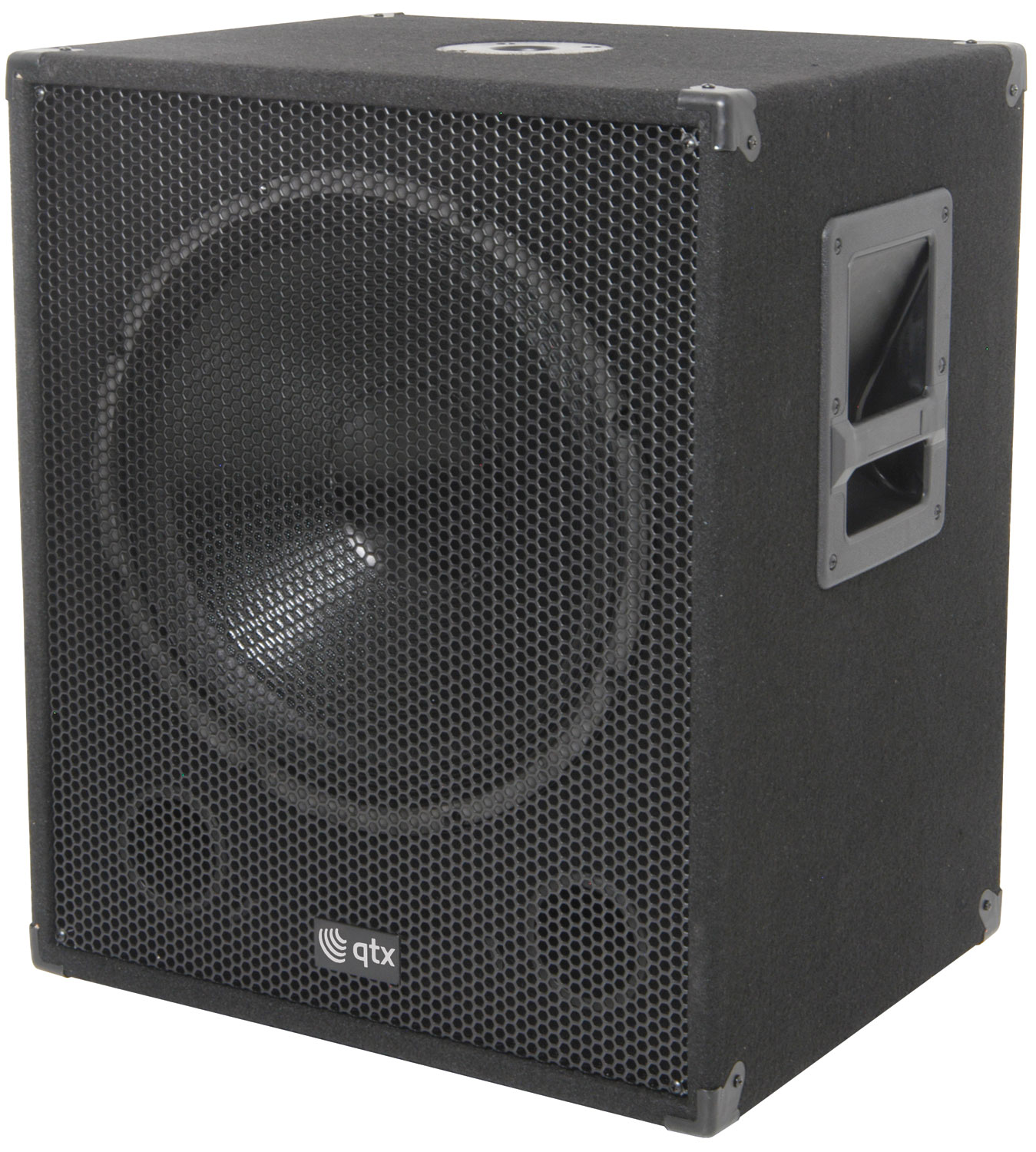

QT Series Active Sub Cabinets

170.751UK QT15SA

Active subwoofers with integral amplifier and adjustable low pass filter in rugged, carpet covered wooden cabinet.

  • Adjustable cutoff frequency
  • Metal corner protectors
  • Side mounted carrying handles
Description Version Packed
170.751UK
QT15SA Active Sub 15inch, 600W
15" Box Label
170.755UK
QT18SA Active Sub 18inch, 1000W
18" Box Label

QT Series Active Sub Cabinets

Active subwoofers with integral amplifier and adjustable low pass filter in rugged, carpet covered wooden cabinet.

  • Adjustable cutoff frequency
  • Metal corner protectors
  • Side mounted carrying handles
  • Integral 35mm pole-mount
  • Power supply 230Vac, 50Hz (IEC)
  • Cut-off frequency 40 - 150Hz

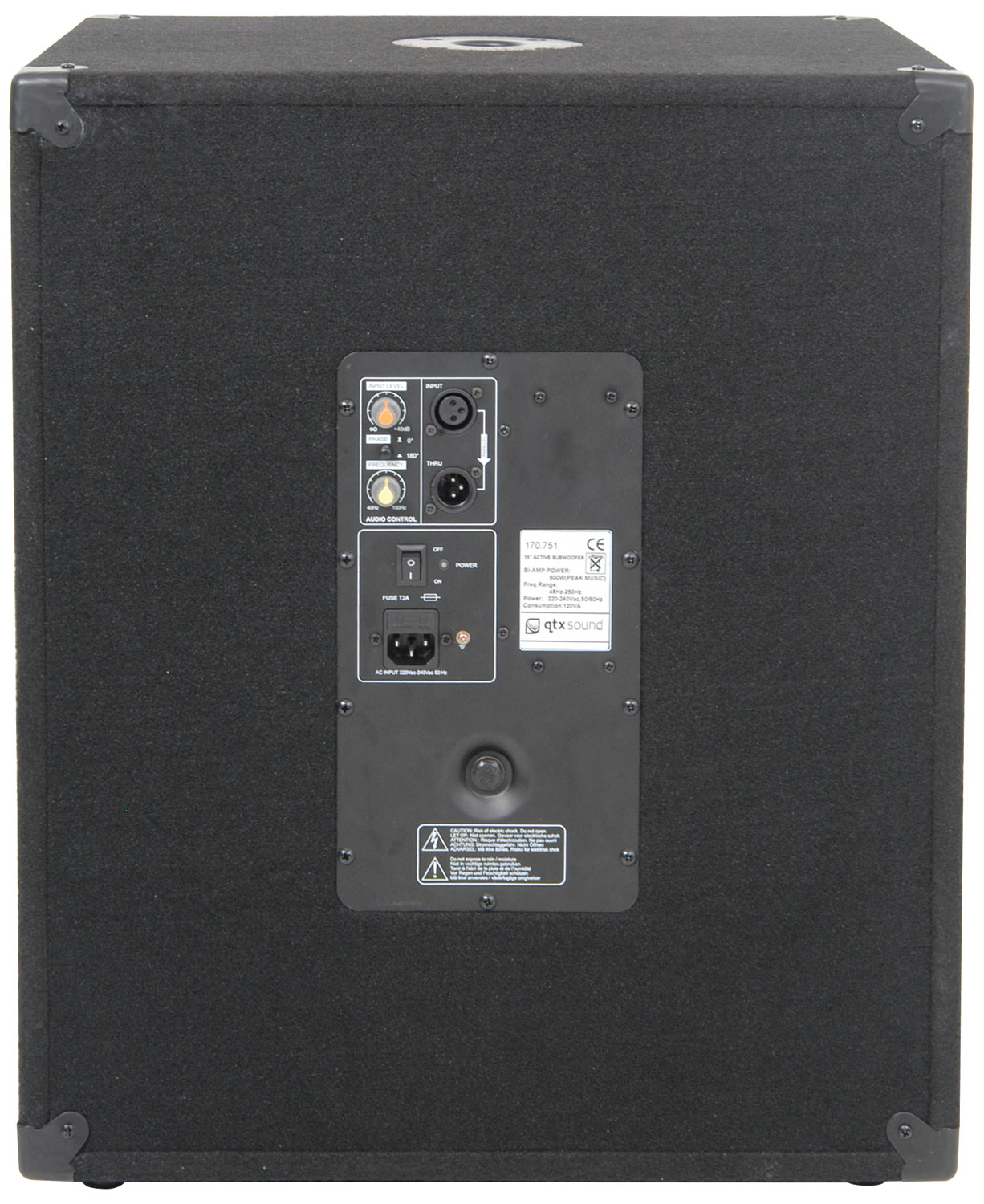

  • Connections XLR line in, XLR line out

Versions

  170.751UK 170.755UK
Driver 380mm (15'') 450mm (18'')
Power rms 150W 250W
Power handling : max. 600W 1000W
Dimensions 640 x 555 x 440mm 675 x 585 x 475mm
Weight 22kg 29kg
