Dual Handheld Microphone VHF Wireless System
171.816UK
VH2

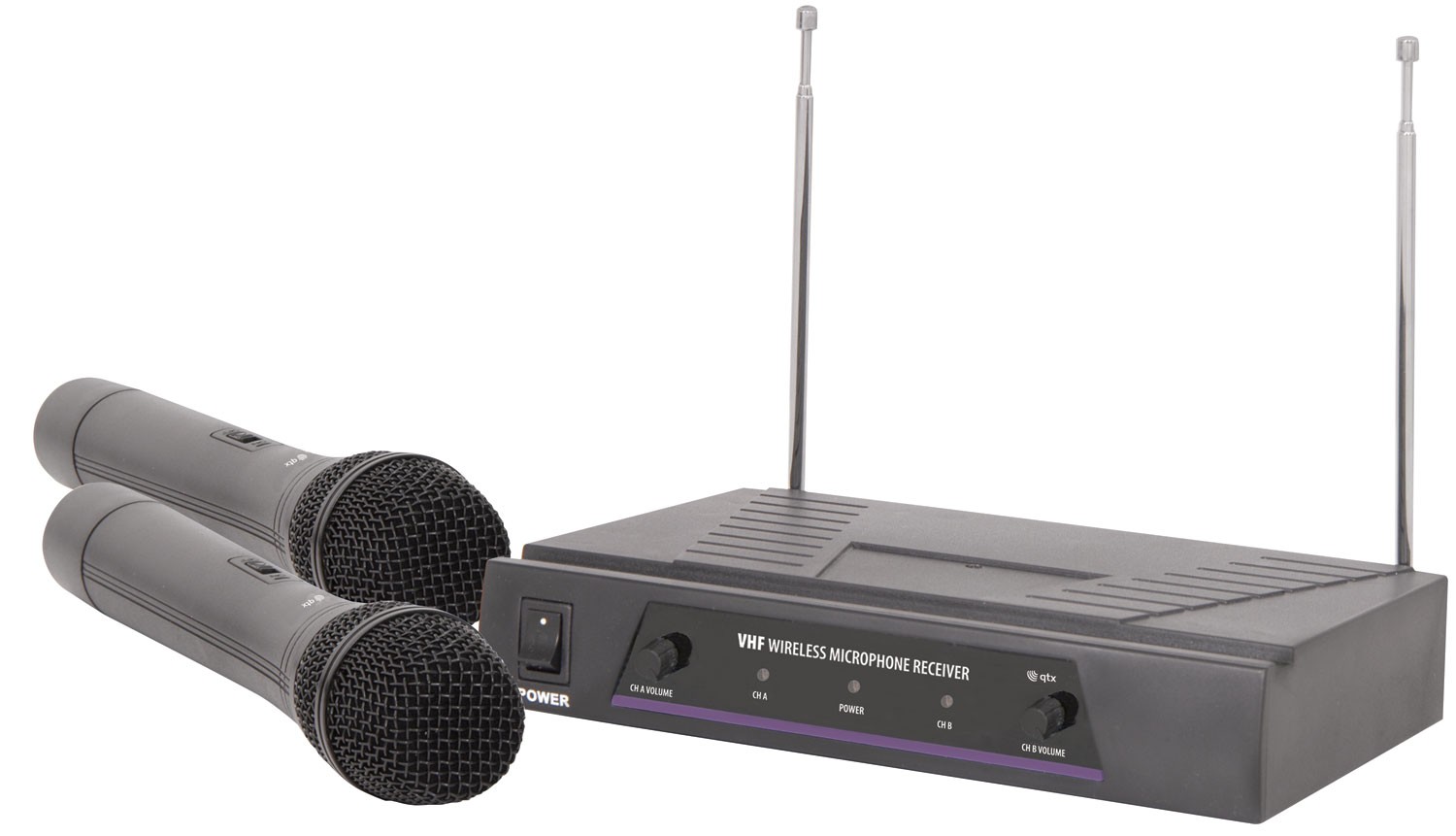

A dual channel VHF wireless microphone system with a half-width 1U receiver and 2 handheld transmitters.
- Up to 50m range
- Supplied with batteries and jack lead
- Note: Maximum of 2 VHF frequencies can be operated in combination
Dual Handheld Microphone VHF Wireless System
A dual channel VHF wireless microphone system with a half-width 1U receiver and 2 handheld transmitters.
- Up to 50m range
- Supplied with batteries and jack lead
- Note: Maximum of 2 VHF frequencies can be operated in combination
Specification : Common
- Power supply : receiver 10Vac 250mA (supplied)
- Battery : handheld transmitters 9V, PP3 (1 each, supplied)
- Maximum range 50.0m

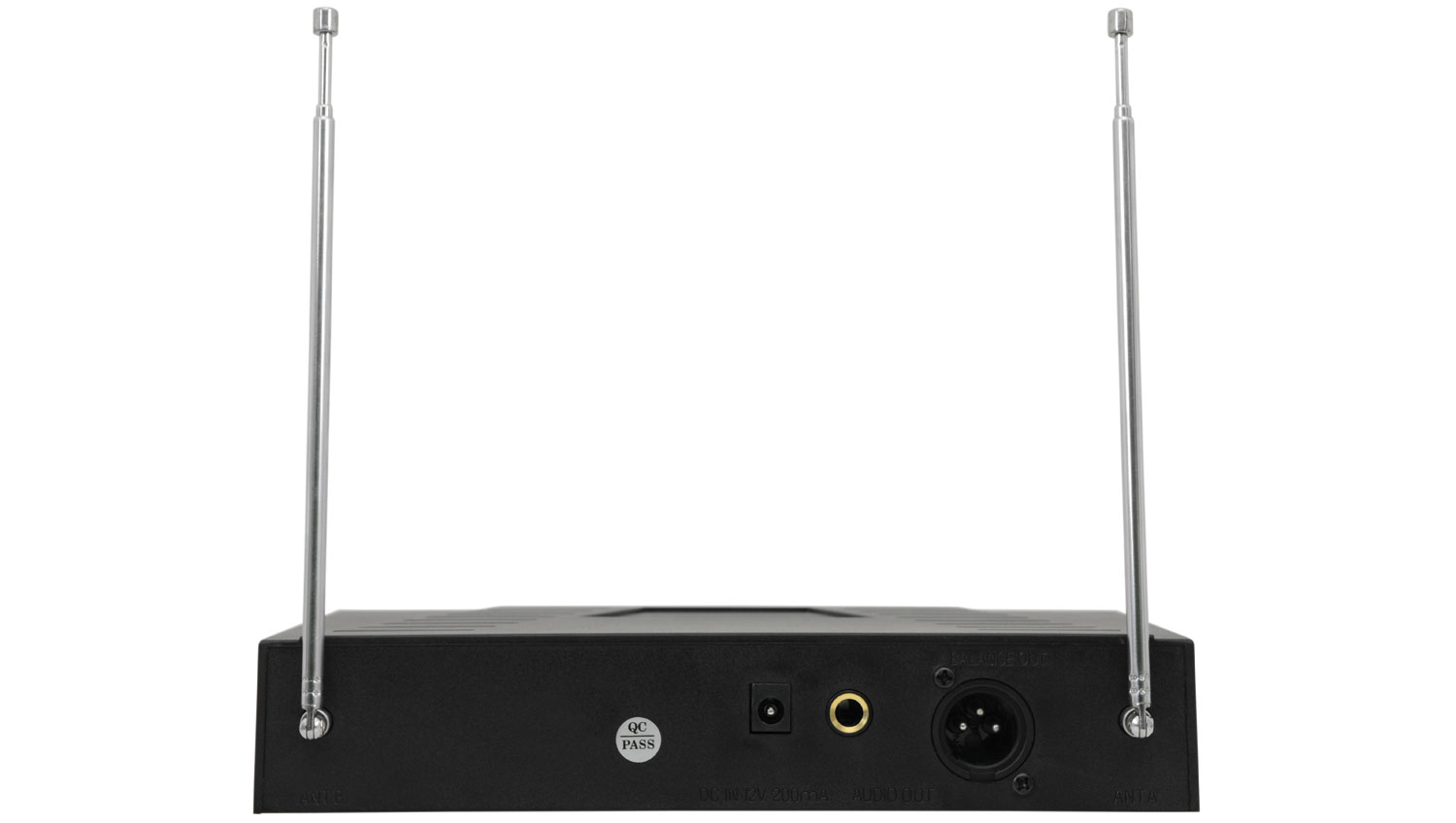

- Output connections XLR, 6.3mm jack
- S/N ratio >85dB
- THD <0.2%
- Dimensions : handheld transmitter 270 x 45mmØ
- Dimensions : receiver 45 x 210 x 180mm
- Weight : handheld transmitter 190g (no battery)
- Weight : receiver 573g
Specification : Versions
| 171.816UK | 171.817UK | |
|---|---|---|
| Operating frequencies | 173.8 + 174.8MHz | 174.1 + 175.0MHz |
Trade information
| 171.816UK | 171.817UK | |
|---|---|---|
| Barcode / EAN | 5015972092446 | 5015972091050 |
| Tariff code | 8518100090 | 8518100090 |
| Country of Origin | CN | CN |
| Package type | ABS Case | ABS Case |
| Package dimensions | 320 x 430 x 100mm | 320 x 430 x 100mm |
| Package weight | 2.57kg | 2.30kg |
| Package quantity | 1 unit | 1 unit |
| Carton dimensions | 325 x 445 x 520mm | 325 x 445 x 520mm |
| Carton weight | 12.85kg | 11.50kg |
| Carton quantity | 5 packages | 5 packages |
Support
Instruction manual
For 171.817UK (324KB)
For 171.817UK (324KB)
Instruction manual
For 171.816UK (324KB)
For 171.816UK (324KB)
