C-5RC Rechargeable Wireless Guitar Bug Set 5.8GHz
171.850UK
C-5RC
The C-5RC wireless system is the ultimate in convenience for guitar players needing a no-fuss wireless system. Operating on the 5.8GHz band means minimal chance of interference from WiFi or Blu...
- Licence free operation worldwide
- 5.8GHz band not affected by 2.4GHz traffic
- Up to 10 sets can be operated simultaneously (ideal conditions)
| Description | |
|---|---|
|
171.850UK
C-5RC Rechargeable Guitar Bug Set 5.8GHz |

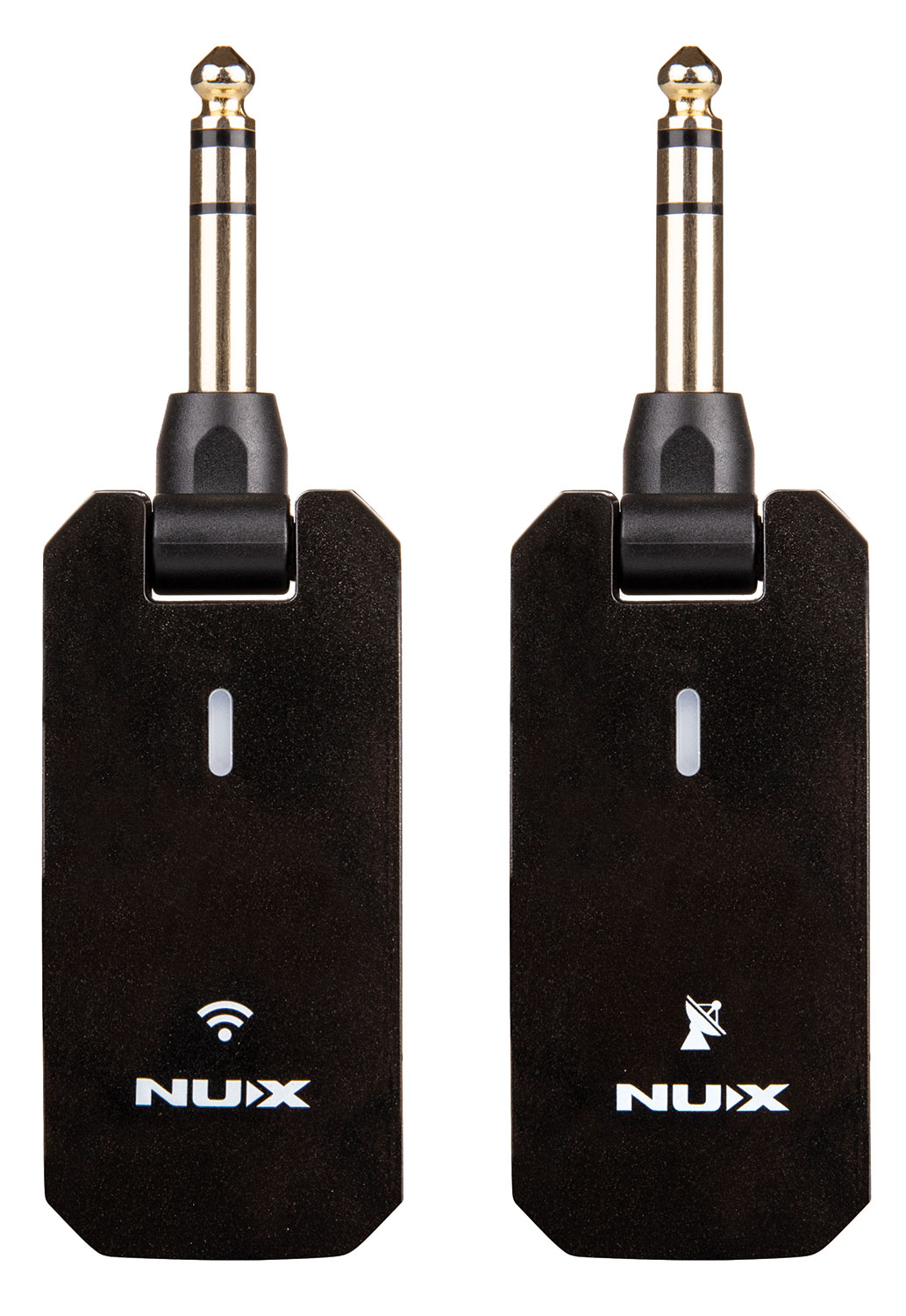

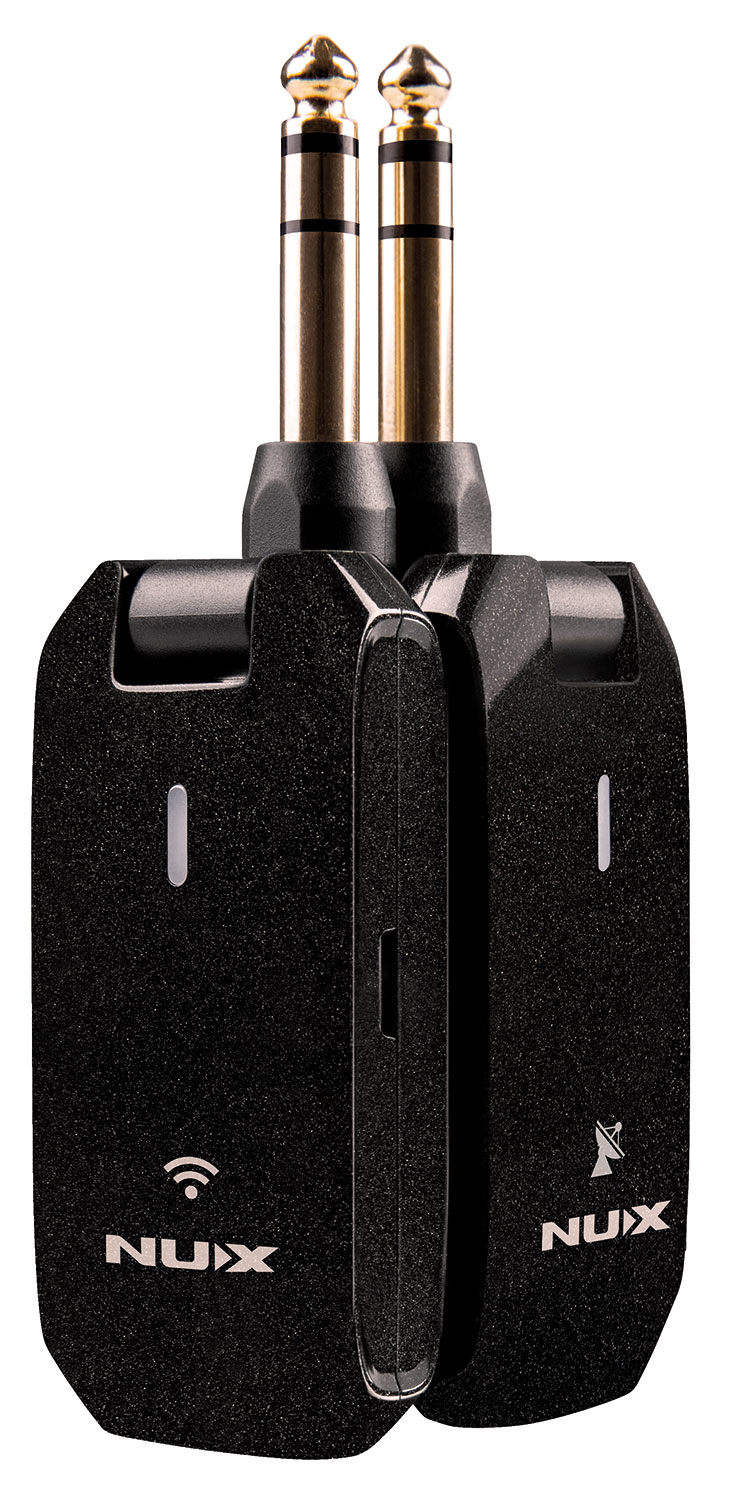

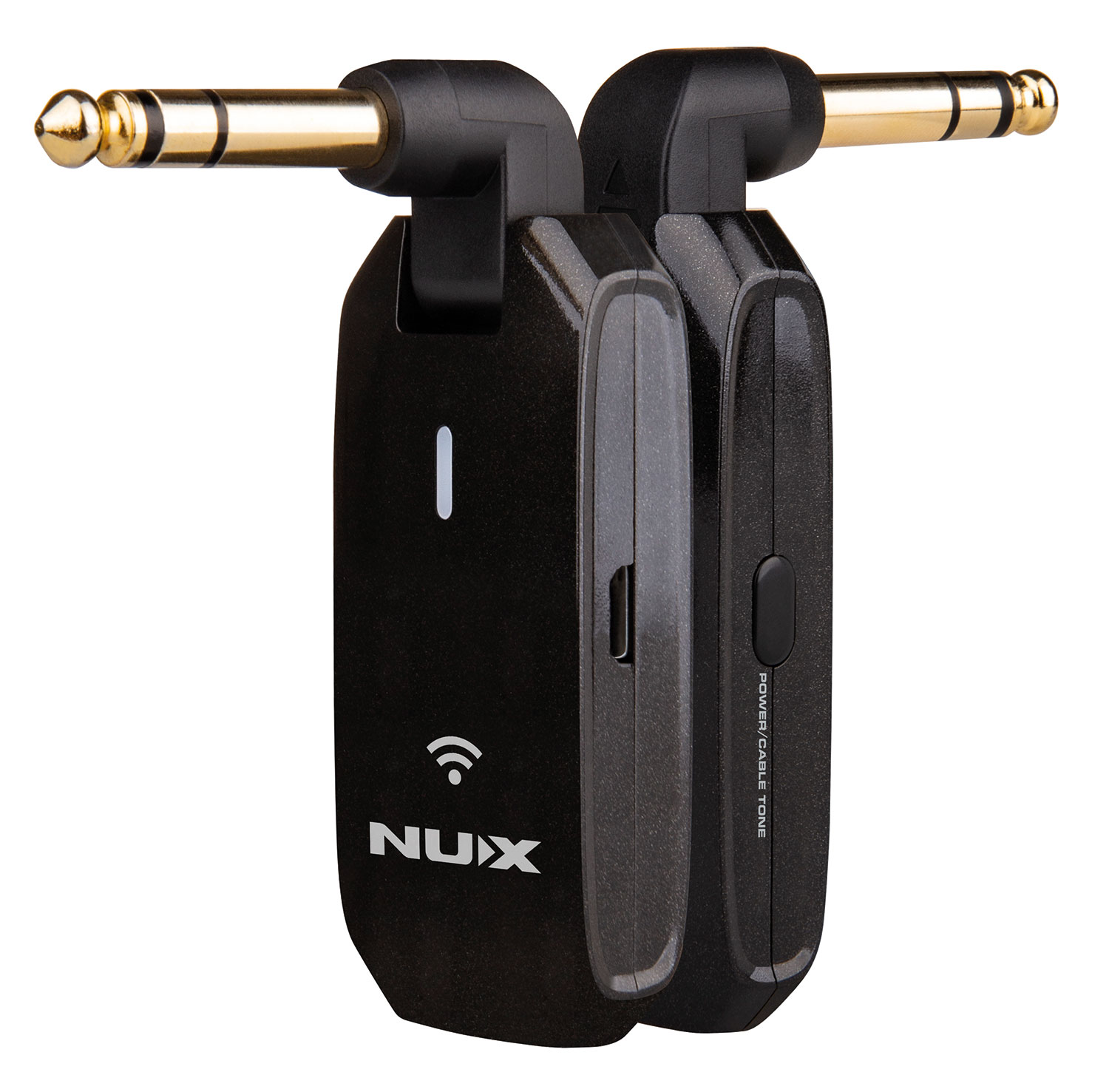

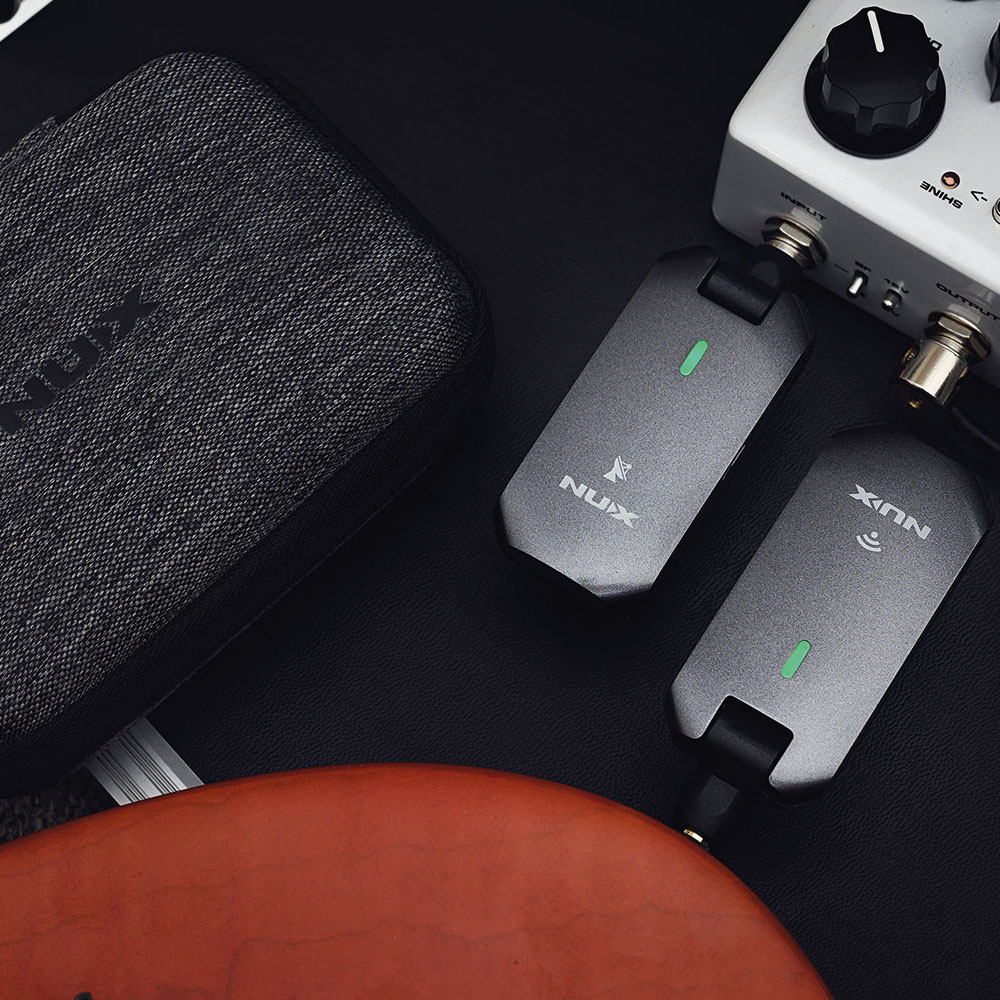

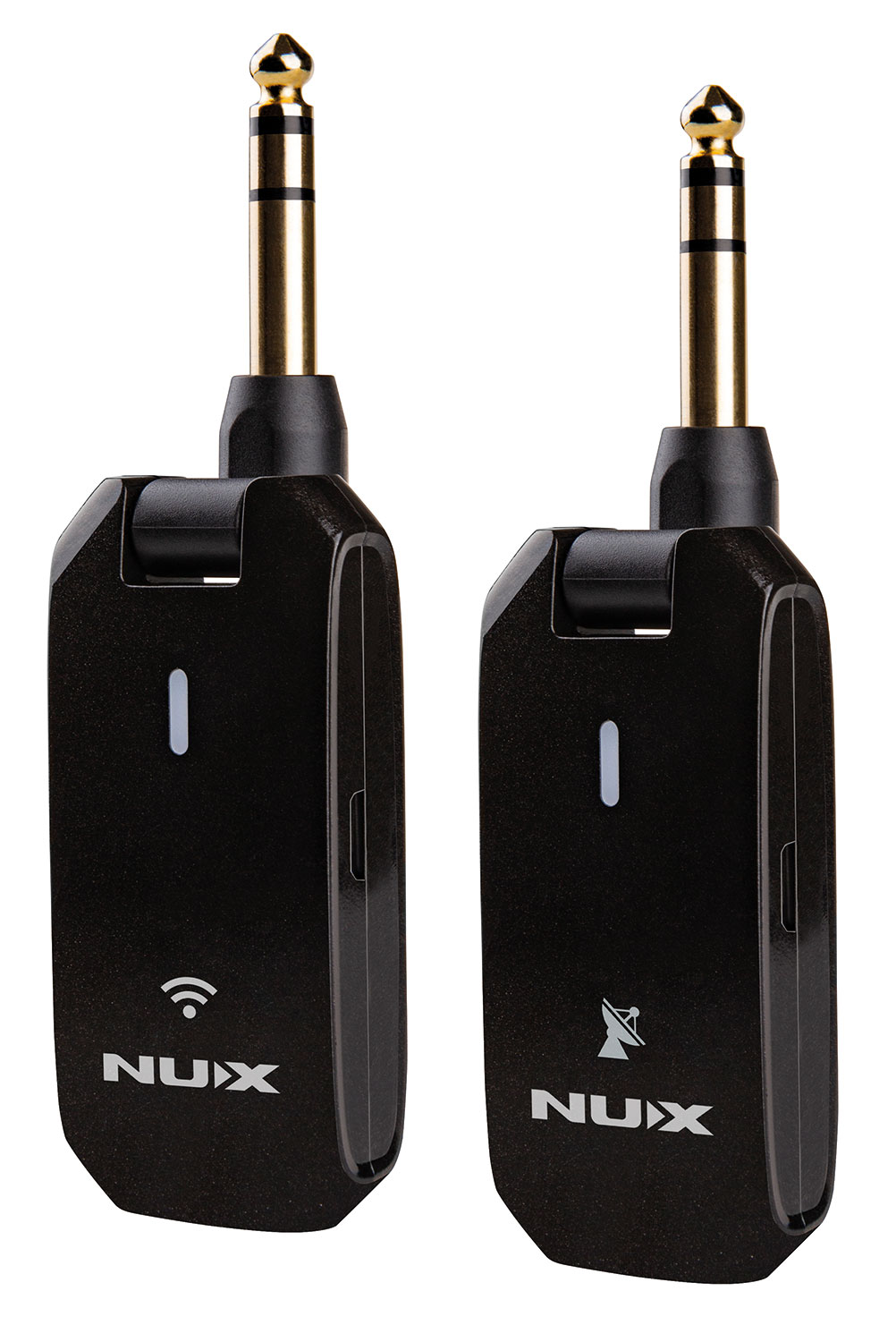

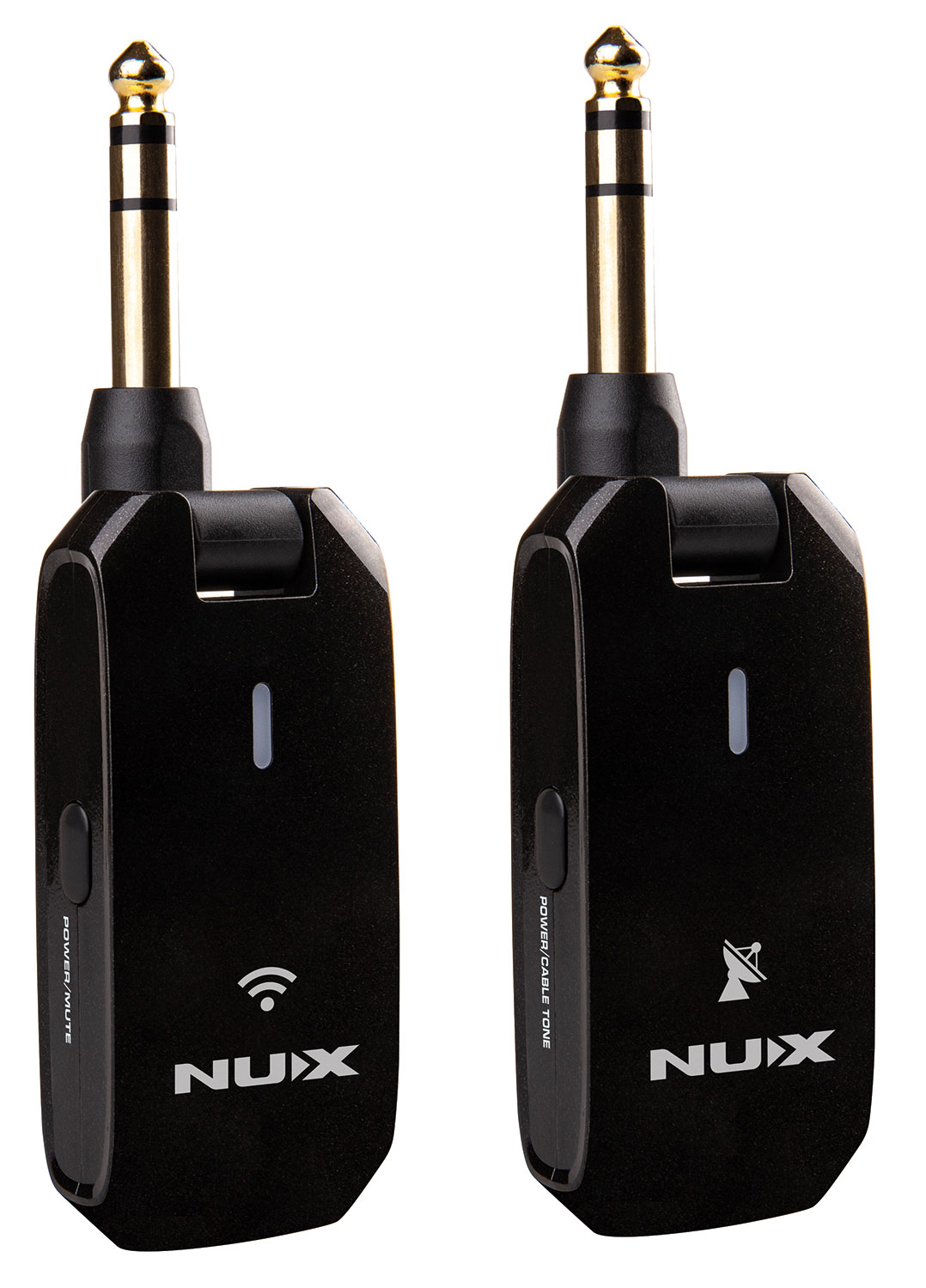

C-5RC Rechargeable Wireless Guitar Bug Set 5.8GHz
The C-5RC wireless system is the ultimate in convenience for guitar players needing a no-fuss wireless system. Operating on the 5.8GHz band means minimal chance of interference from WiFi or Bluetooth devices operating in the popular 2.4GHz band. Supplied as a transmitter and receiver set in a USB charging power case, each bug auto-pairs upon power-up and simply provides a stable and reliable wireless link from instrument to amp or effects. Enhanced by the latest NU-X technology and using their upgraded algorithm, the C-5RC fits perfectly with all types of electric guitars, electro-acoustic guitars, bass guitars and ukuleles, even with active or passive, piezo or magnetic pickups.
- Licence free operation worldwide
- 5.8GHz band not affected by 2.4GHz traffic
- Up to 10 sets can be operated simultaneously (ideal conditions)
- Auto-pairing for instantaneous setup
- Rechargeable transmitter & receiver
- Power Case included for portable re-charging
- Fully compatible with active pickups and EQ
- Power supply Rechargeable from 5V USB
- Connection 6.3mm jack plug (transmitter & receiver), micro-USB charging
- Sampling format 44.1kHz, 24-bit
- Carrier frequency 5.8GHz band (frequency agile)
- Max. range 30m (line of sight)
- Input impedance 1M Ohm (transmitter)
- Output impedance 1k Ohm (receiver)
- Latency <5.5ms
- THD +N <0.2% @1kHz
- Frequency response 20Hz - 20kHz
- S/N ratio 110dB
- Auto power off Sleep mode after 10 minutes no audio
- Battery pack 3.7V, 500mAh (transmitter & receiver), 3000mAh (Power Case)
- Battery operation time >4 hours
- Dimensions : transmitter 107 x 29 x 21mm
- Dimensions : receiver 107 x 29 x 21mm
- Weight : transmitter 34g
- Weight : receiver 34g
Support : articles
In the box
The box for this item contains :
- C-5RC transmitter bug
- C-5RC receiver bug

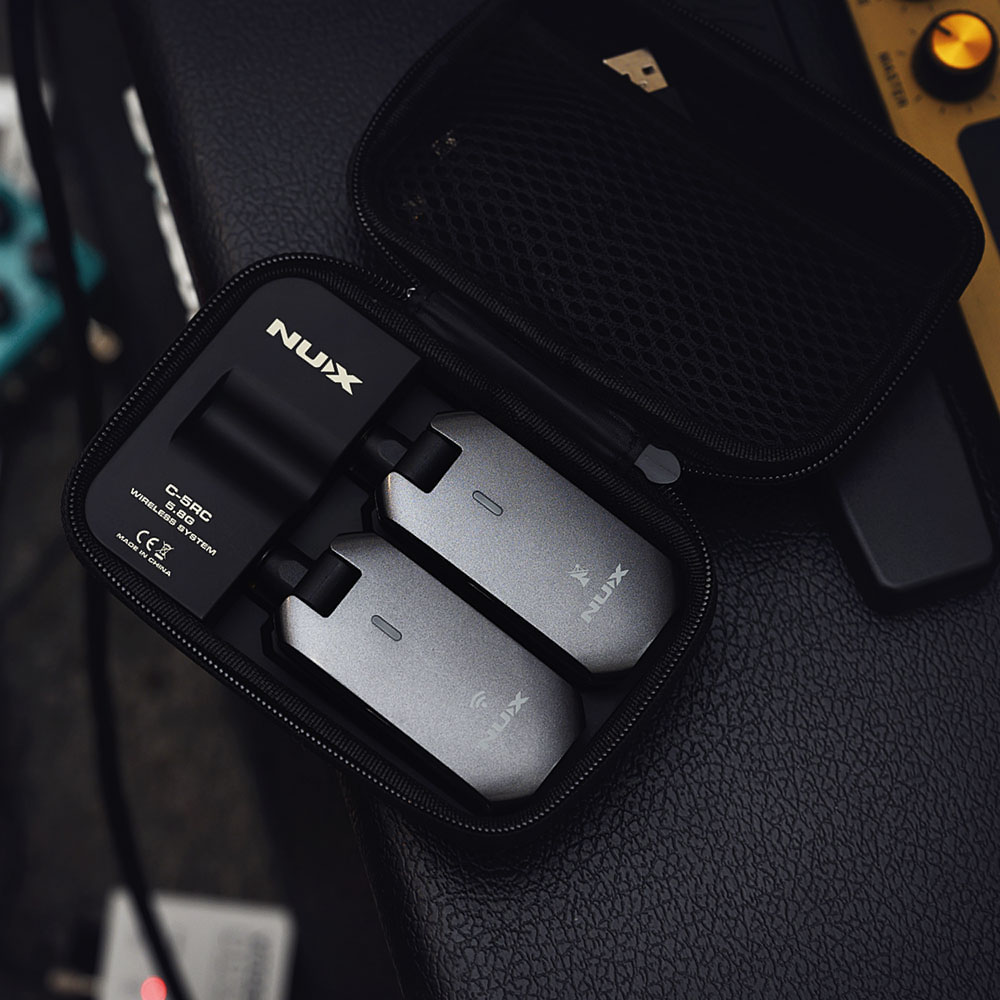

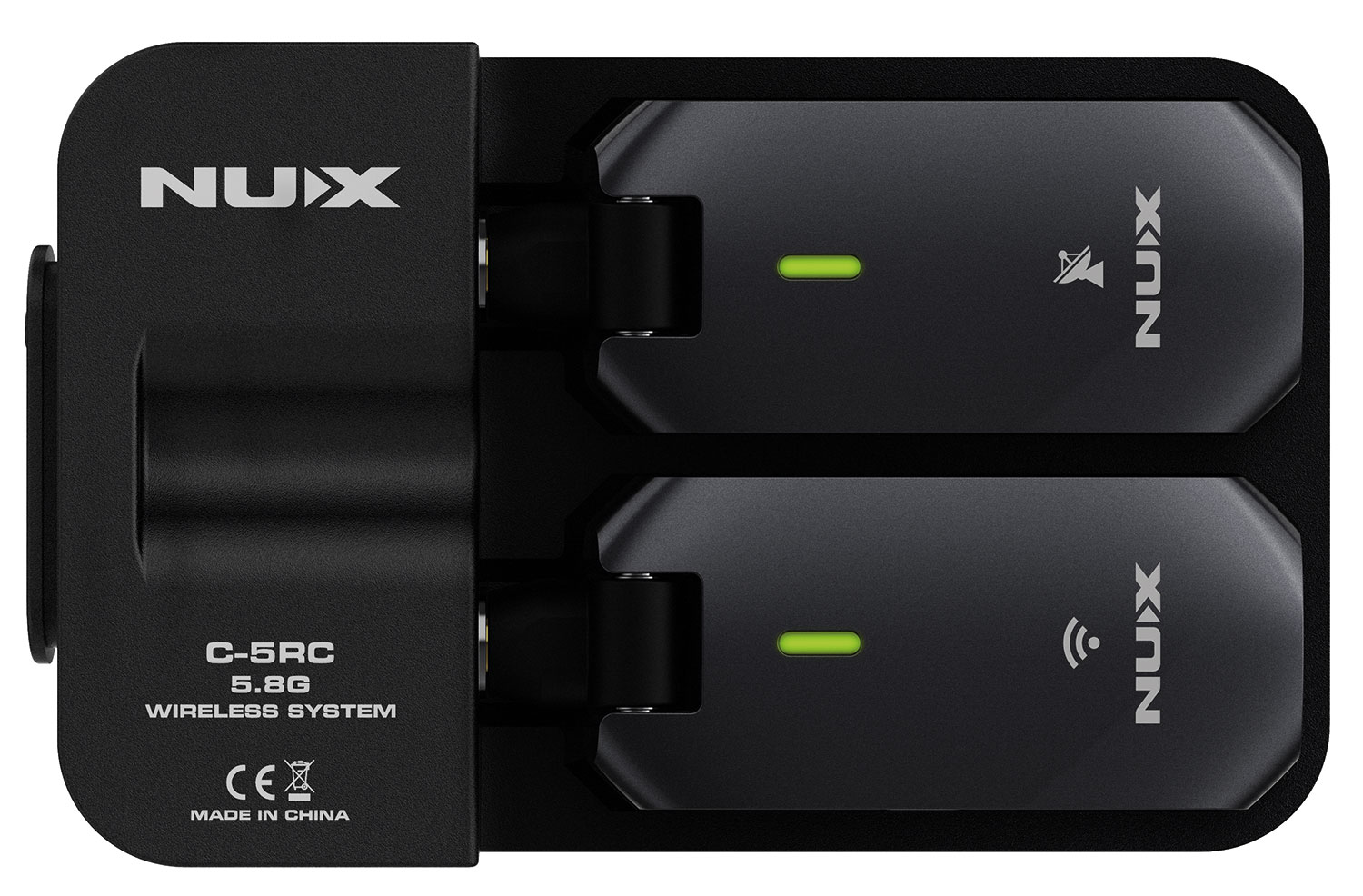

- Power Case for storage & recharging
- USB dual recharging lead
Downloads
Instruction manual
For 171.850UK (5.2MB)
For 171.850UK (5.2MB)
UK Declaration of conformity
For 171.850UK (251KB)
For 171.850UK (251KB)
EU Declaration of conformity
For 171.850UK (243KB)
For 171.850UK (243KB)
