LM58 Wireless 5.8GHz Lavalier Microphone System

171.858UK LM58

Ultra compact wireless lavalier microphone system with miniature rechargeable transmitter and receiver. The system operates on the license-free 5.8GHz band and all audio is digitally encoded, avoid...

  • Up to 2 transmitters can be paired with a receiver
  • Multiple receivers can pair to a single or pair of transmitters
  • Up to 4 transmitters can operate in the same area simultaneously
Description Version Packed
171.858UK
LM58 Wireless Clip Microphone Set 5.8GHz
LM58 Box Label

LM58 Wireless 5.8GHz Lavalier Microphone System

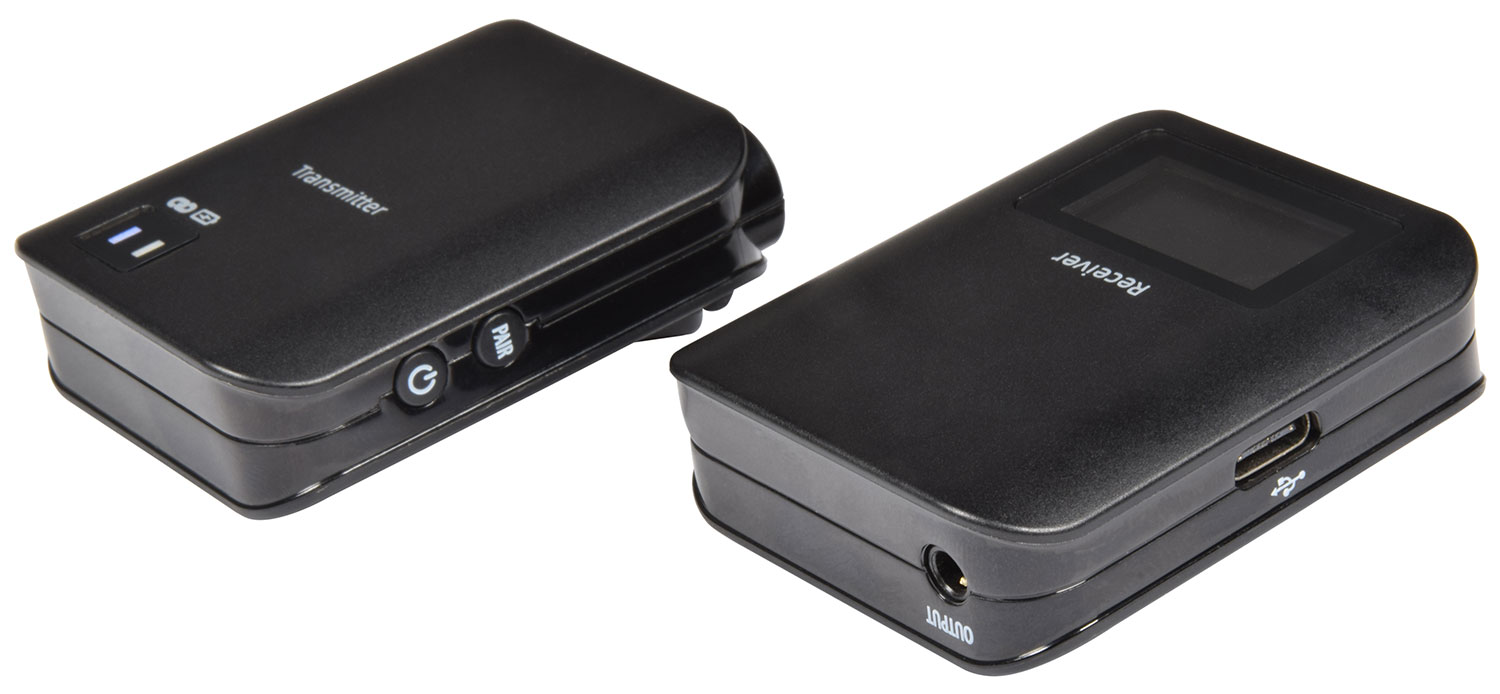

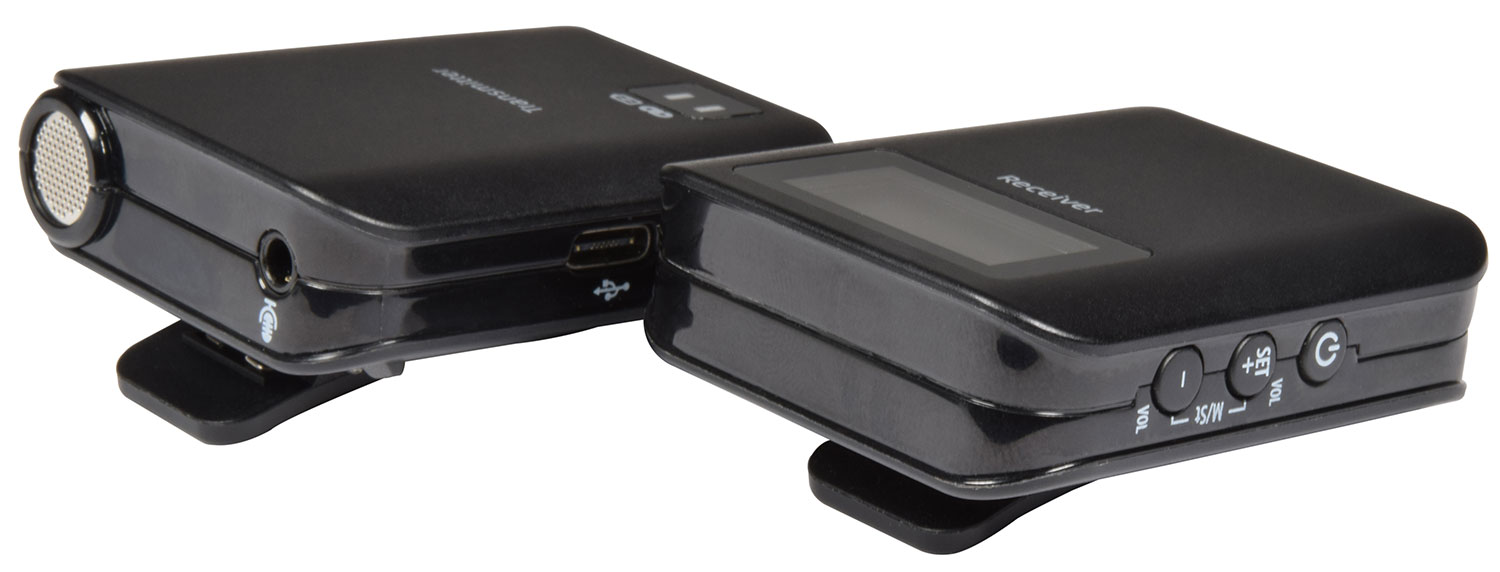

Ultra compact wireless lavalier microphone system with miniature rechargeable transmitter and receiver. The system operates on the license-free 5.8GHz band and all audio is digitally encoded, avoiding the noise associated with some VHF or UHF systems. The clip on transmitter has an integral condenser microphone which can be used as a lavalier mic for hands-free broadcast or presentation work. There is additionally a 3.5mm microphone input jack, which is compatible with Chord and many other lavalier and headset microphones. The clip on receiver has a 22 x 11mm colour display, showing RF and audio signal and output level status. Output level is set using +/- side mounted buttons which also toggle stereo or mono operation if pressed simultaneously. By default, the output is stereo and the first paired transmitter will occupy the left channel. As an option, one additional LM58 transmitter may be purchased and paired to the same receiver for 2-person presentations, with one microphone on the left channel and the other on the right. Output is fed via a 3.5mm stereo socket and each transmitter and receiver can be recharged through its USB type-C socket. A full wireless system that can be held in one hand, yet produces professional results that are ideal for online presenters, performers and lecturers.

  • Up to 2 transmitters can be paired with a receiver
  • Multiple receivers can pair to a single or pair of transmitters
  • Up to 4 transmitters can operate in the same area simultaneously
  • Built-in microphone or connect to a neckband or lavalier mic.
  • Power supply Internal rechargeable Li-ion battery
  • Carrier frequency 5.8GHz ISM band
  • Max. range Up to 60m
  • Microphone : polar pattern Omnidirectional
  • SPL max. 100dBu (internal microphone)
  • Dynamic range 90dB
  • Max. mic in -30dB
  • Frequency response 30Hz - 18kHz
  • S/N ratio 102dB
  • Transmitter : power 7dBm
  • Battery life 5 hours max.
  • Dimensions (each) 55 x 45 x 24mm (transmitter or receiver)
  • Weight (each) 31g (transmitter or receiver)

In the box

The box for this item contains :

  • 1 x clip on microphone transmitter
  • 1 x clip on recever

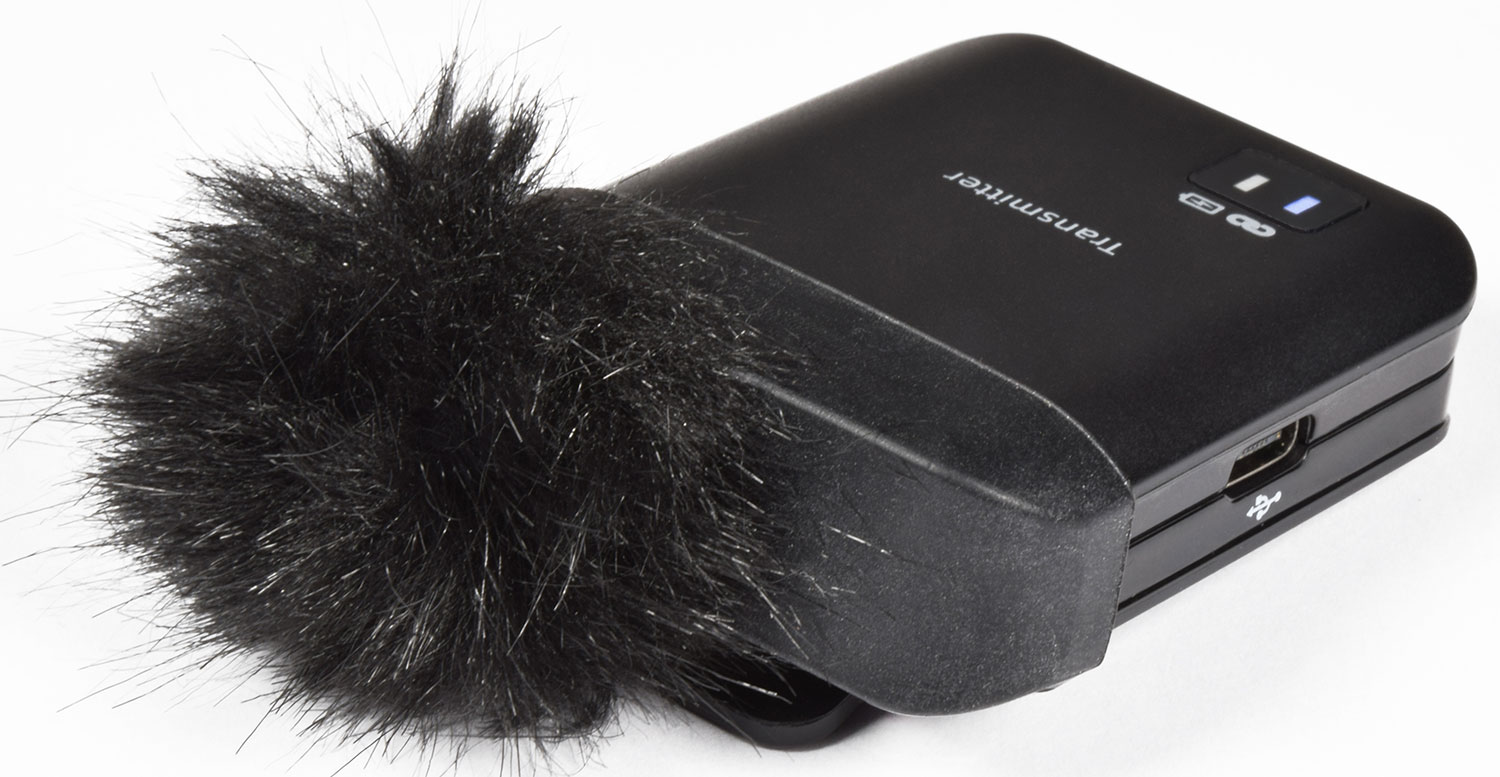

  • 1 x wind filter for transmitter microphone

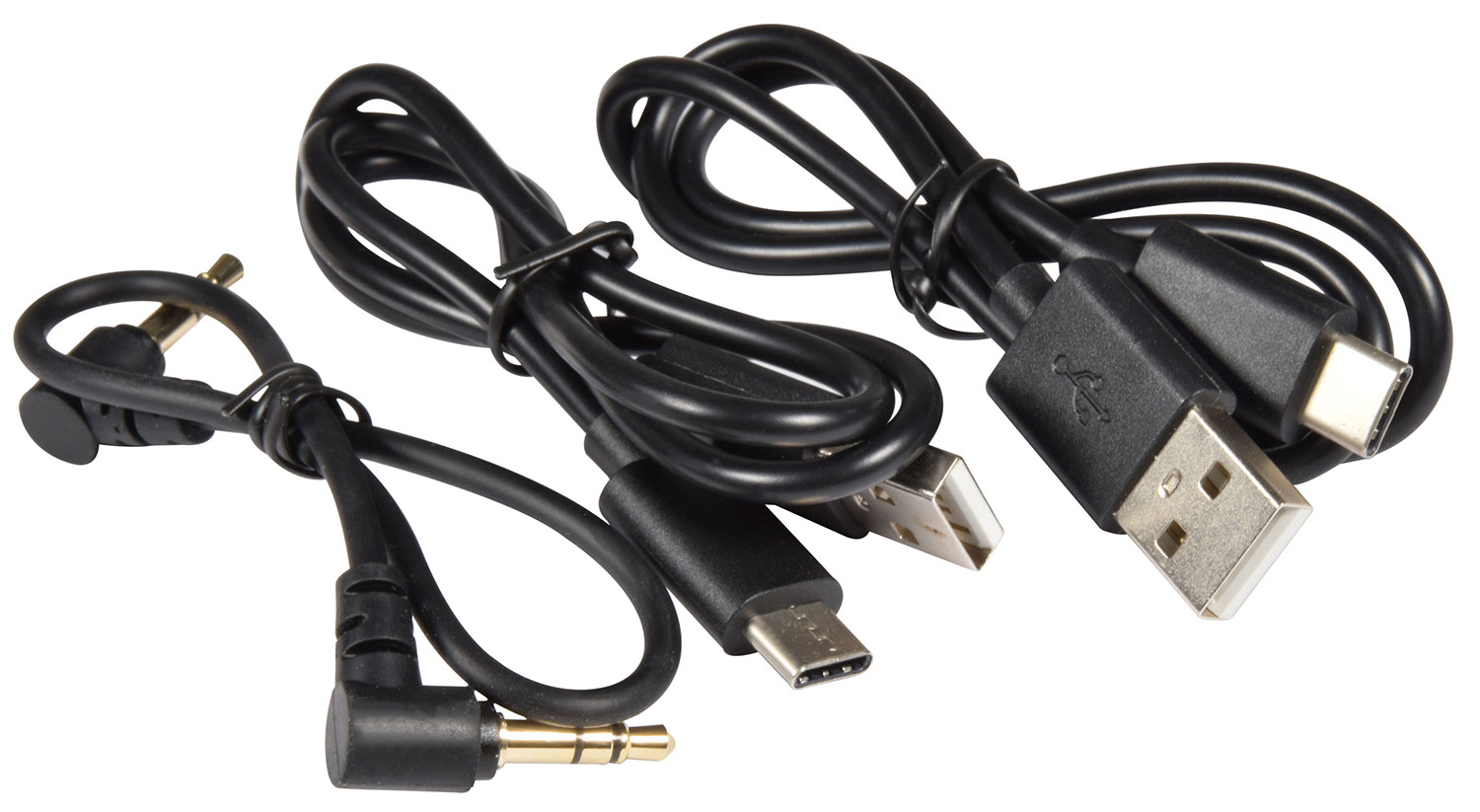

  • 2 x USB type-C charging leads
  • 1 x 3.5mm stereo audio output lead

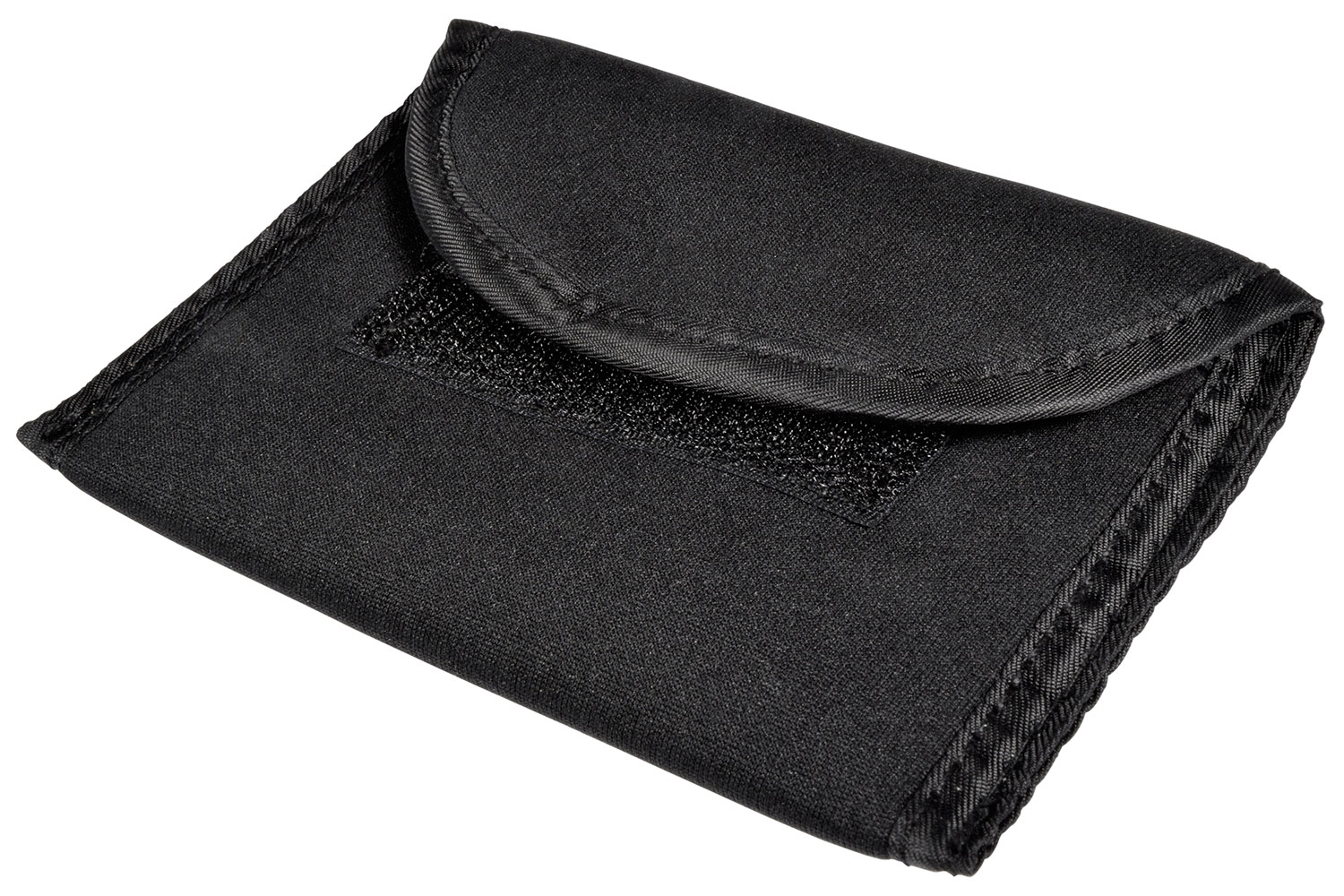

  • Carrying pouch

Downloads

Instruction manual
For 171.858UK (294KB)
UK Declaration of conformity
For 171.858UK (266KB)
EU Declaration of conformity
For 171.858UK (255KB)
