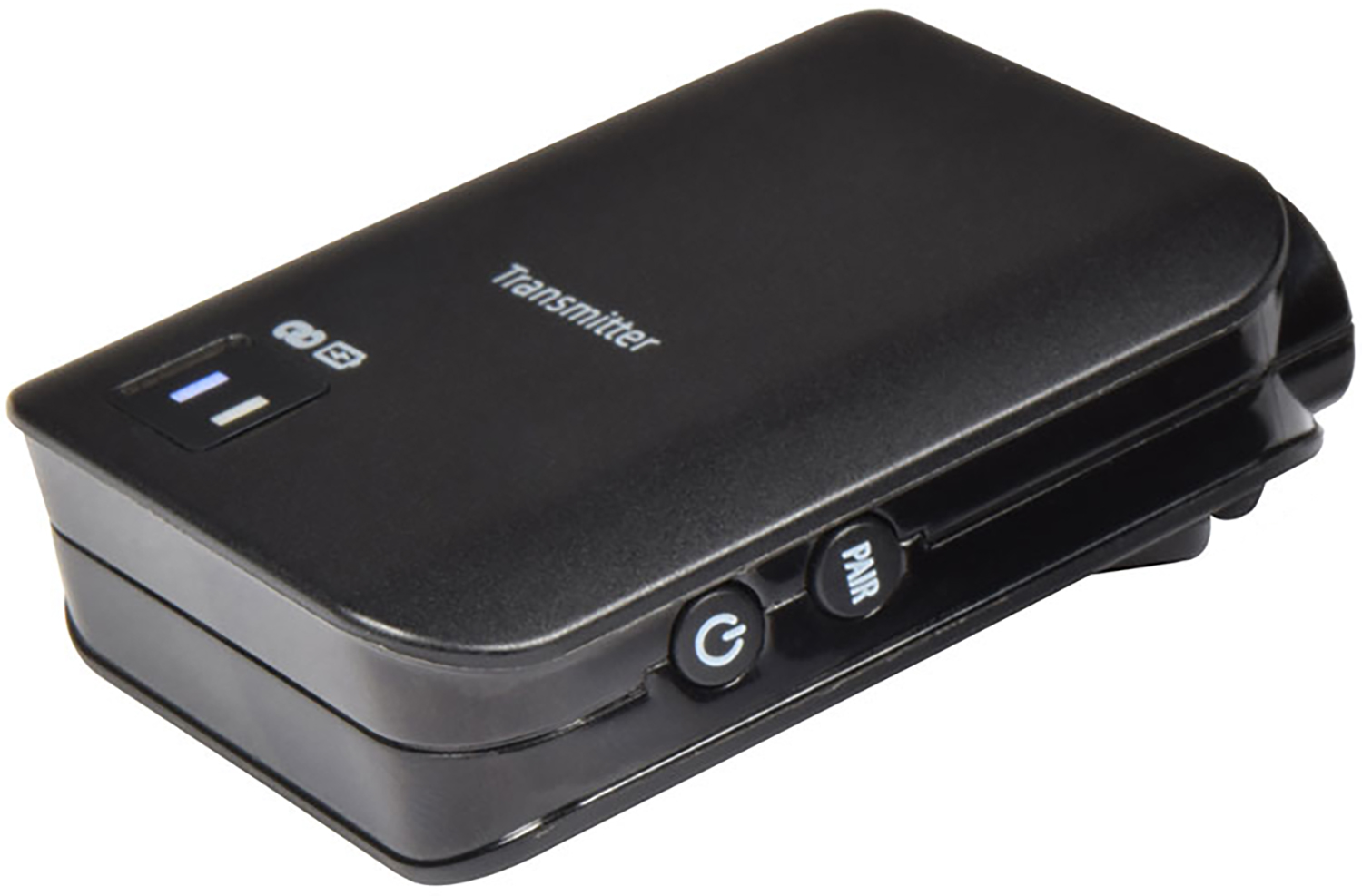

LM58 Lavalier Transmitter

171.859UK LM58-T

Additional clip transmitter with inbuilt microphone for the LM58 wireless lavalier microphone system. Up to 2 separate transmitters can be used with a single receiver for 2-way conversations and in...

  • For use with the LM58 lavalier mic system (171.858UK)
Full description Find retailer
Description Version Packed
171.859UK
Additional LM58 Transmitter 		LM58-T Box Label

LM58 Lavalier Transmitter

Additional clip transmitter with inbuilt microphone for the LM58 wireless lavalier microphone system. Up to 2 separate transmitters can be used with a single receiver for 2-way conversations and interviews.

  • For use with the LM58 lavalier mic system (171.858UK)
  • Power supply Internal rechargeable Li-ion battery
  • Carrier frequency 5.8GHz ISM band
  • Max. range Up to 60m
  • Microphone : polar pattern Omnidirectional
  • SPL max. 100dBu (internal microphone)
  • Dynamic range 90dB
  • Max. mic in -30dB
  • Frequency response 30Hz - 18kHz
  • S/N ratio 102dB
  • Transmitter : power 7dBm
  • Battery life 5 hours max.
  • Dimensions 55 x 45 x 24mm
  • Weight 31g

In the box

The box for this item contains :

  • LM58 lavalier transmitter

Downloads

Instruction manual
For 171.859UK (294KB)
UK Declaration of conformity
For 171.859UK (267KB)
EU Declaration of conformity
For 171.859UK (256KB)
