NU20 Dual UHF Wireless Microphone Systems
2 x Handheld
171.924UK
NU20-H
Dual wireless microphone system with UHF receiver and 2 handheld or beltpack transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting… more
- Digital signal path for clean audio output
- Rack-mounting accessories included
- Licence free operation in UK & EU
DESCRIPTION | VERSION | PACKED | |
---|---|---|---|
![]() |
171.924UK
NU20 Dual UHF Handheld Microphone System |
2 x Handheld | Box Label |
![]() |
171.926UK
NU20 Dual UHF Beltpack with Neckband + Lavalier Mic |
2 x Neckband / Lapel | Box Label |
Recommended Accessories |
|||
![]() |
171.927UK
NU20 Handheld Transmitter 863.8MHz |
863.8MHz | Box Label |
![]() |
171.928UK
NU20 Handheld Transmitter 864.8MHz |
864.8MHz | Box Label |
![]() |
171.929UK
NU20 Beltpack Transmitter 863.8MHz |
863.8MHz | Box Label |
![]() |
171.930UK
NU20 Beltpack Transmitter 864.8MHz |
864.8MHz | Box Label |
NU20 Dual UHF Wireless Microphone Systems

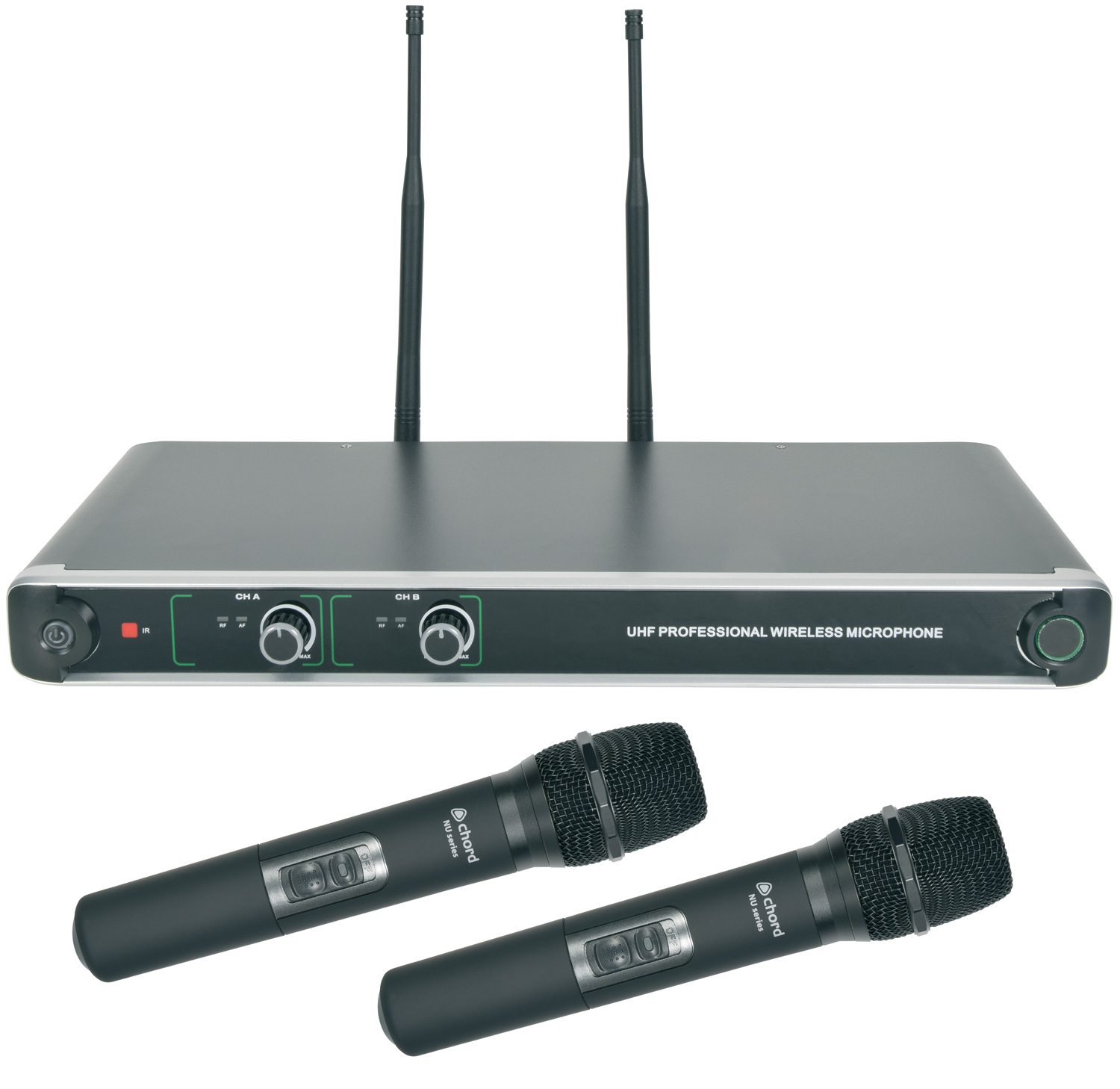

Dual wireless microphone system with UHF receiver and 2 handheld or beltpack transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.
- Digital signal path for clean audio output
- Rack-mounting accessories included
- Licence free operation in UK & EU

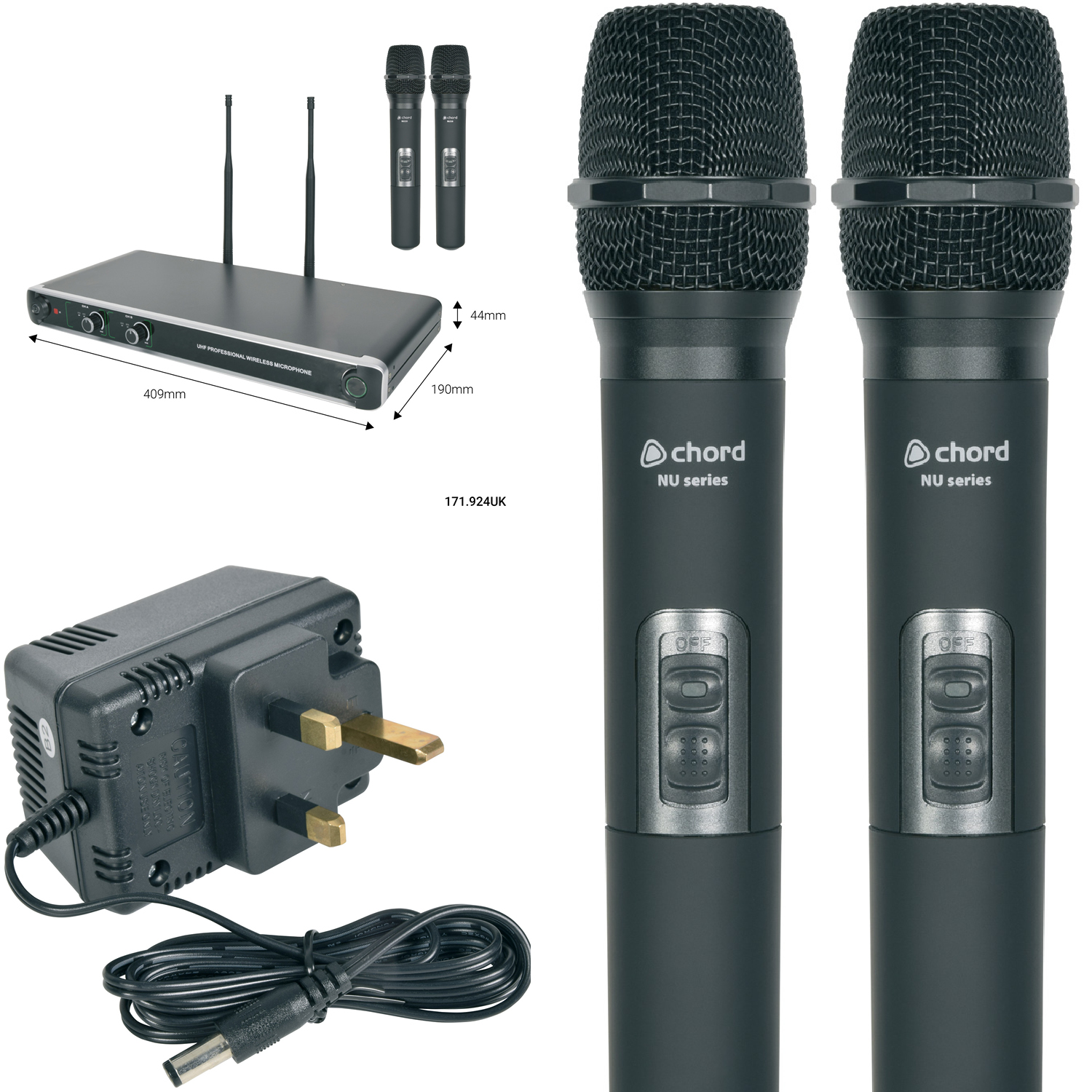

- Supplied with mains adaptor and 4 x AA batteries
- Weight : beltpack transmitter N/A
- Dimensions : beltpack transmitter N/A
- Weight : handheld transmitter 238g (no battery)
- Dimensions : handheld transmitter 243 x 48mmØ
- Power supply 14Vdc 350mA (adaptor included)
- Carrier frequencies 863.8MHz + 864.8MHz
- Wireless range Up to 60m
- Batteries 4 x AA (2 per transmitter)
- S/N ratio >80dB
- THD <0.5% @ 1kHz
- Output impedance 2.2k Ohms
- Output level 400mV (balanced), 200mV (unbalanced)
- Frequency response : ±3dB 50Hz-18KHz

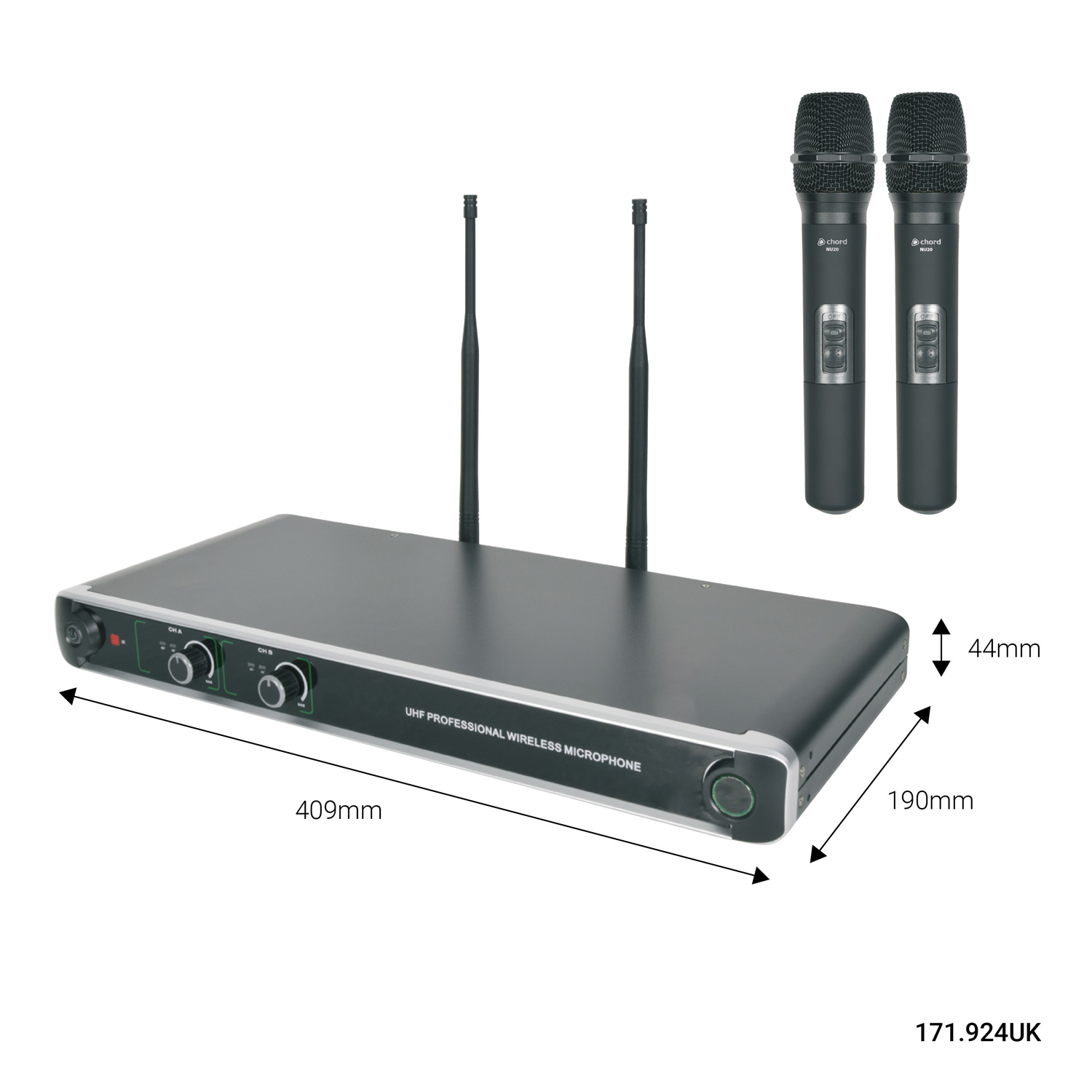

- Dimensions : receiver 409 x 190 x 44mm
- Weight : receiver 1.37kg
In the Box
- 2 x handheld transmitters - or - 2 x beltpacks each with headset and lavalier mic
- UHF dual channel receiver
- 2 x UHF antennas

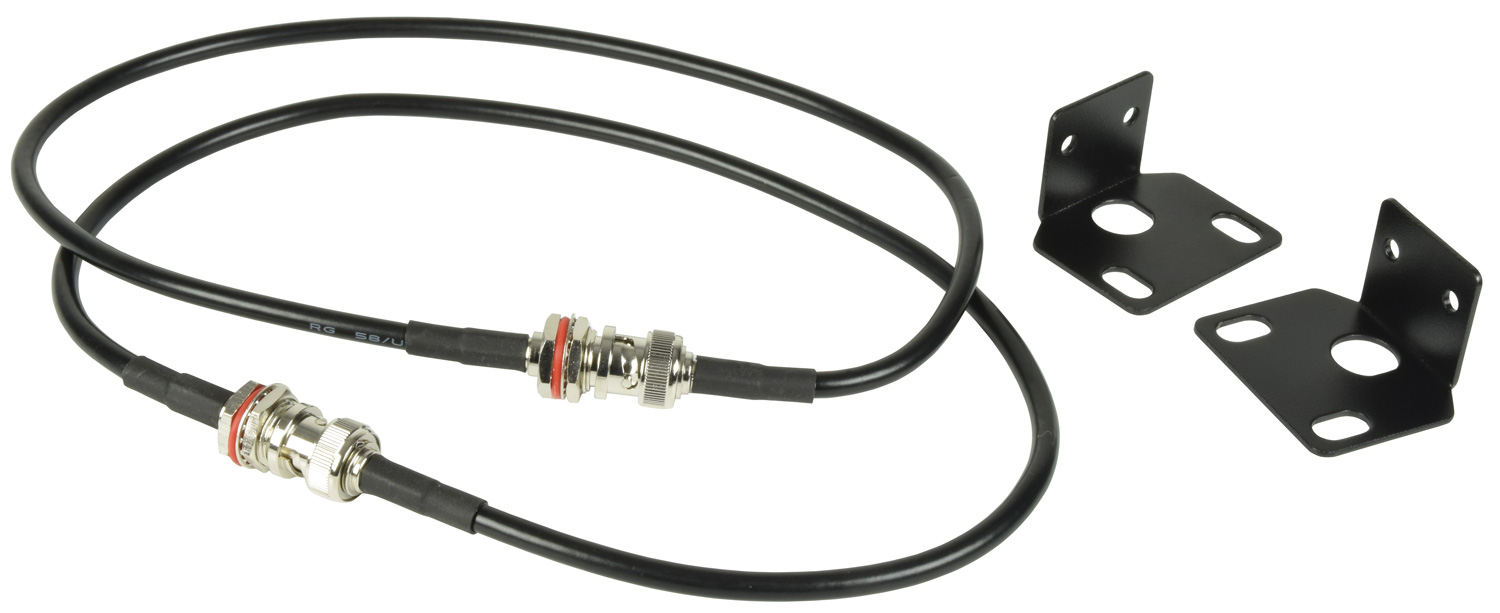

- 2 x antenna extension leads
- 2 x rack-mounting ears
- 14Vdc power adaptor
- 4 x AA batteries
