Tuneable Dual UHF Beltpack Microphone System

171.971UK RU210H

Dual channel PLL tuneable UHF wireless system with 2 beltpack transmitters and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks usin...

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal
Description Version Packed
171.971UK
RU210-N Dual Multi-UHF Neckband/Lavalier System
Gift Box

Tuneable Dual UHF Beltpack Microphone System

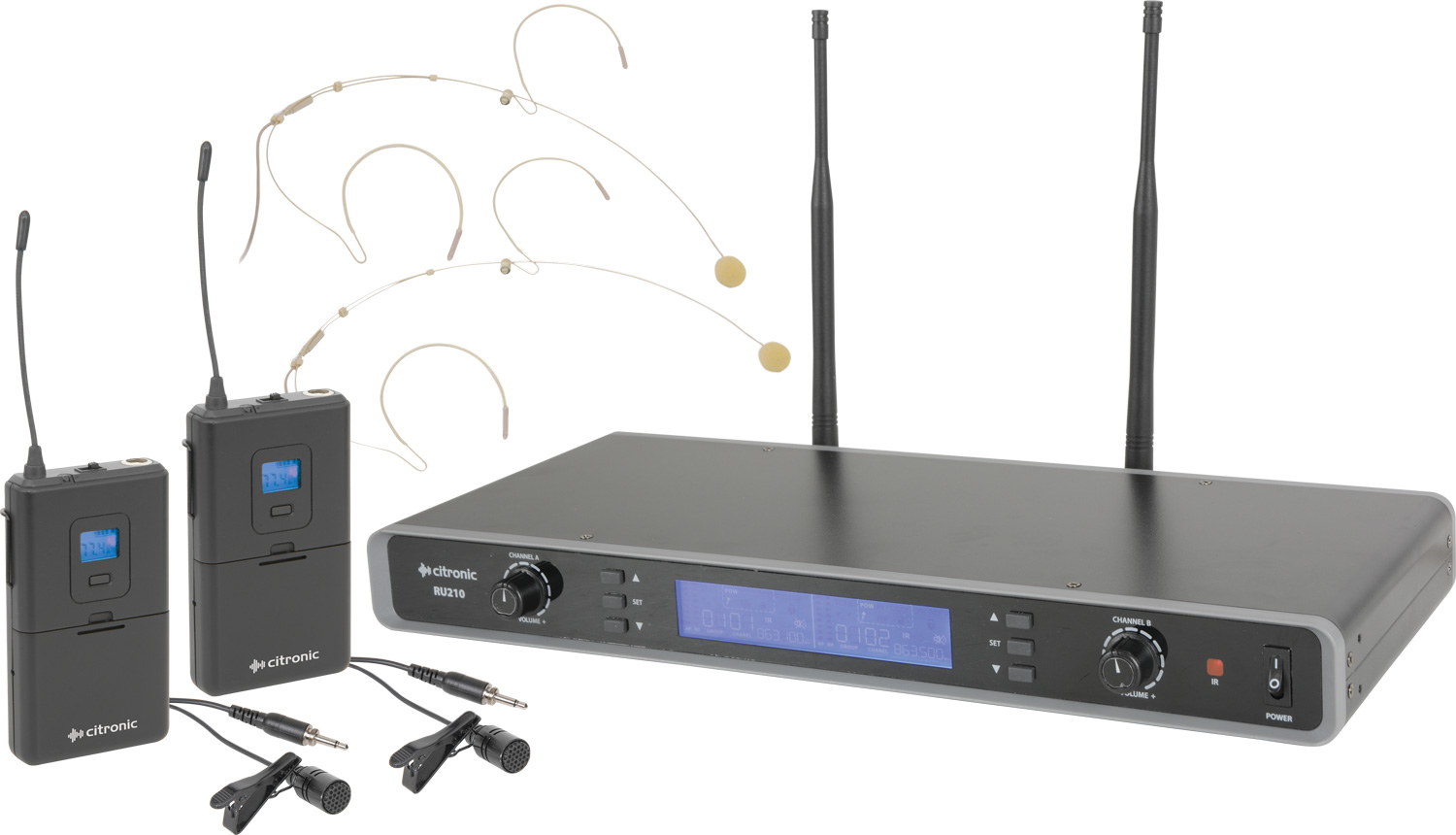

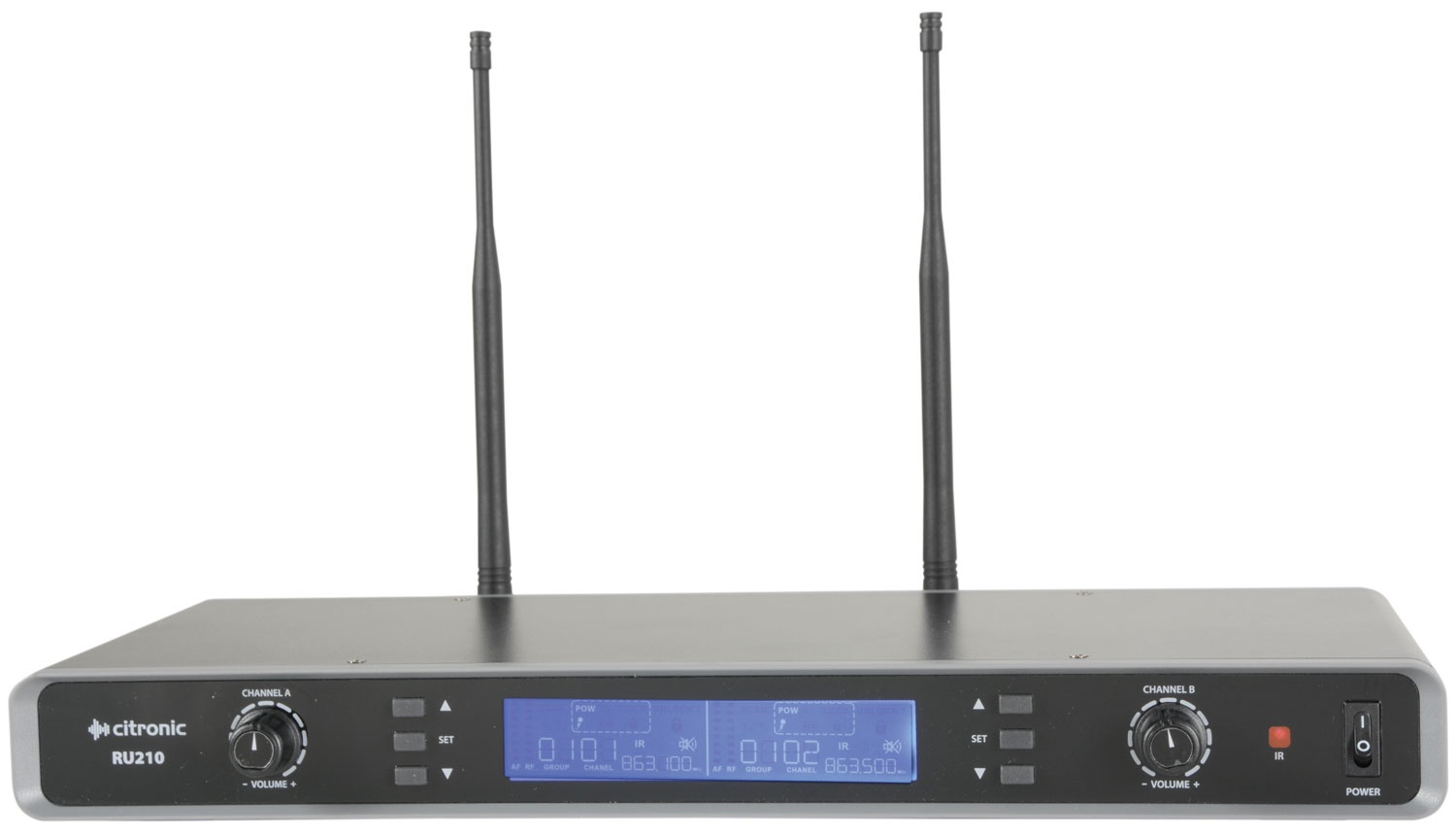

Dual channel PLL tuneable UHF wireless system with 2 beltpack transmitters and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal

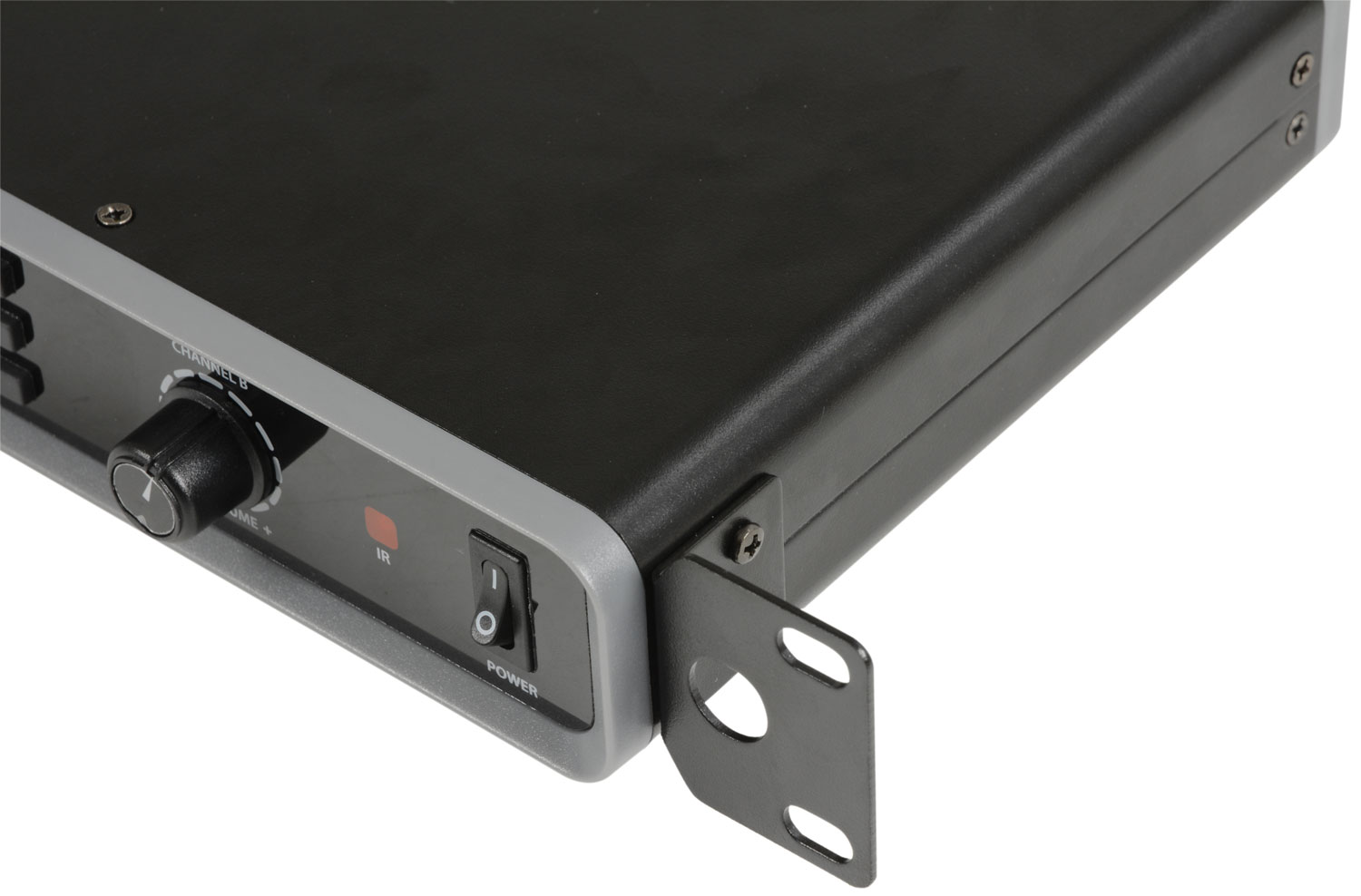

  • Rack-mounting accessories included
  • Supplied with mains adaptor and 4 x AA batteries
  • Power supply 12-18Vdc, 500mA (mains adaptor included)
  • Carrier frequencies 863 - 865MHz (81 selectable frequencies)
  • Range 60m
  • Batteries 4 x AA (2 per transmitter - included)
  • Signal to noise ratio >105dB
  • THD <0.5% @ 1KHz
  • Frequency response 50Hz-18KHz ±1 dB
  • Image rejection >85dB
  • Output impedance 2.2k Ohms
  • Output level 400mV (balanced), 200mV (unbalanced)
  • Dimensions : receiver 44 x 409 x 190mm
  • Weight : receiver 1.37kg
  • Dimensions : transmitter 110 x 67 x 24mm (ex antenna)
  • Weight : transmitter 75g (no battery)

In the box

The box for this item contains :

  • Dual channel receiver
  • 2 x beltpack transmitters
  • 2 x neckband microphones
  • 2 x lavalier microphones
  • 4 x AA batteries
  • 2 x UHF antennas
  • 2 x antenna leads
  • 2 x rack-mounting ears
  • Mains power adaptor
  • 6.3mm jack to jack lead

Videos

171.970UK - Citronic Tuneable Dual UHF Handheld Microphone System

Downloads

Instruction manual
For 171.971UK (368KB)
UK Declaration of conformity
For 171.971UK (245KB)
EU Declaration of conformity
For 171.971UK (238KB)
