Tuneable Dual UHF Beltpack Microphone System

171.973UK RU105-N

Single channel PLL tuneable UHF wireless system with beltpack transmitter and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using...

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal
Description Version Packed
171.973UK
RU105-N Multi-UHF Neckband/Lavalier System
Box Label

Tuneable Dual UHF Beltpack Microphone System

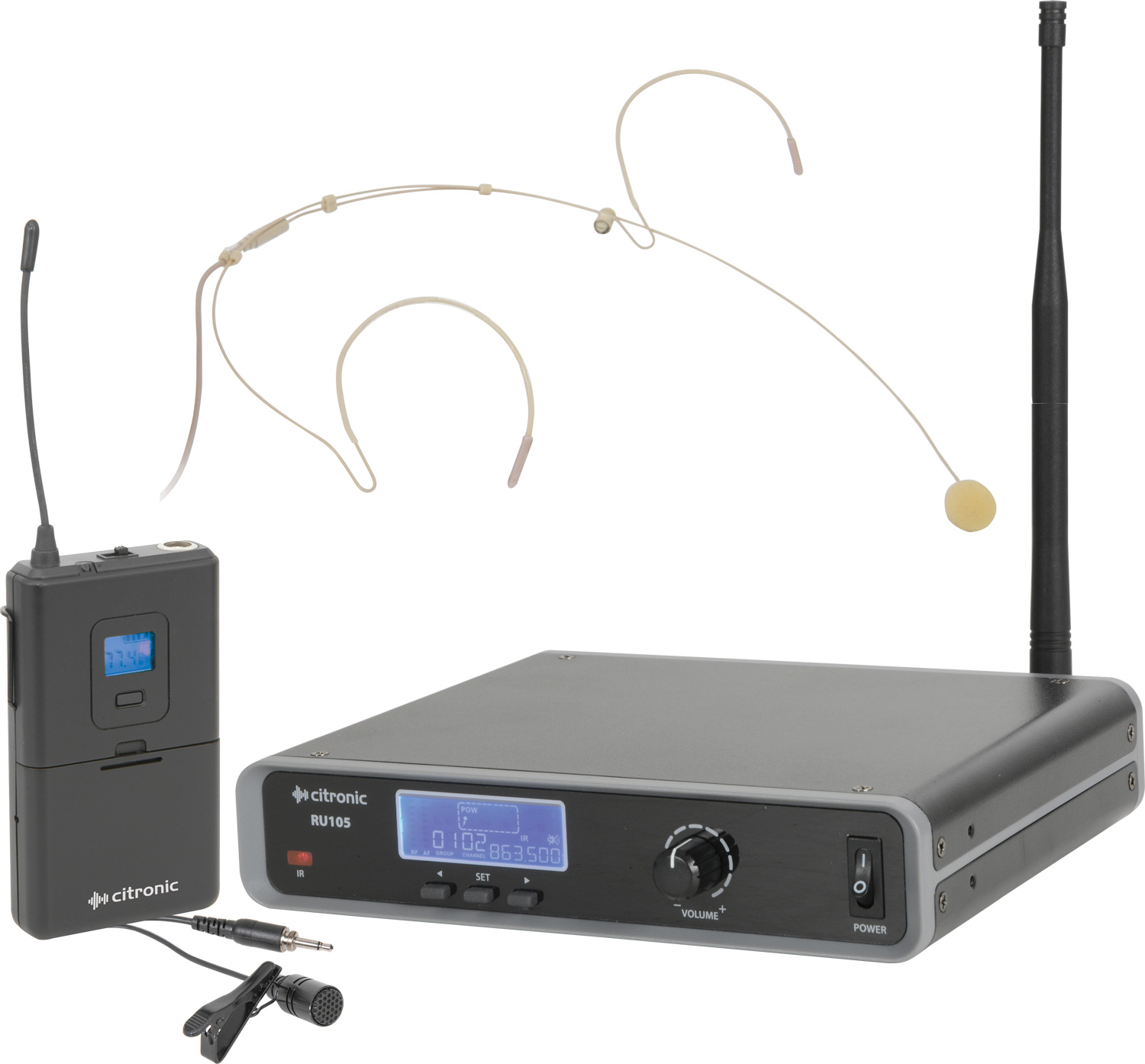

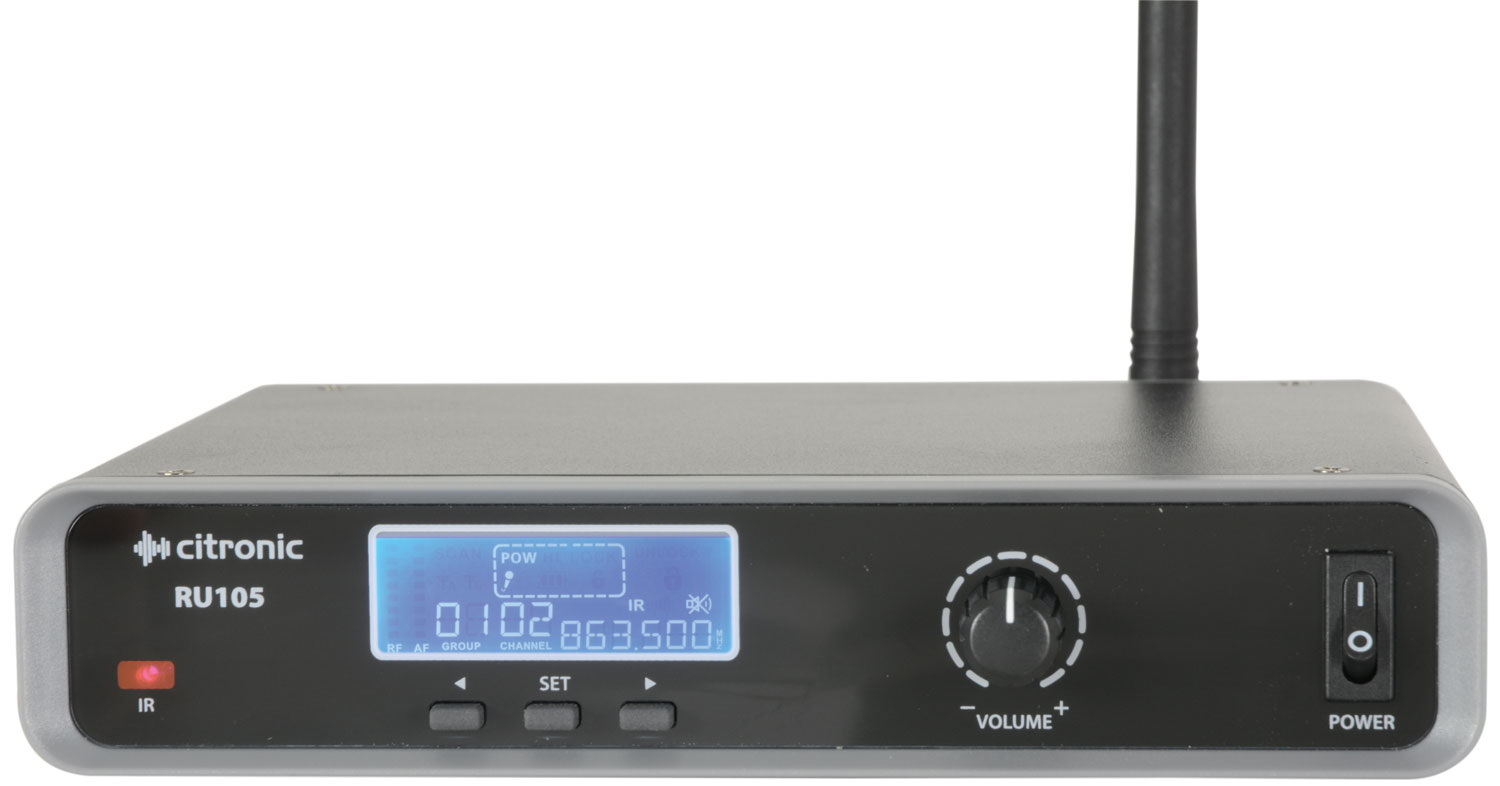

Single channel PLL tuneable UHF wireless system with beltpack transmitter and a choice of neckband microphones or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 4 RU105 systems can be operated together on the EU licence-free band.

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal

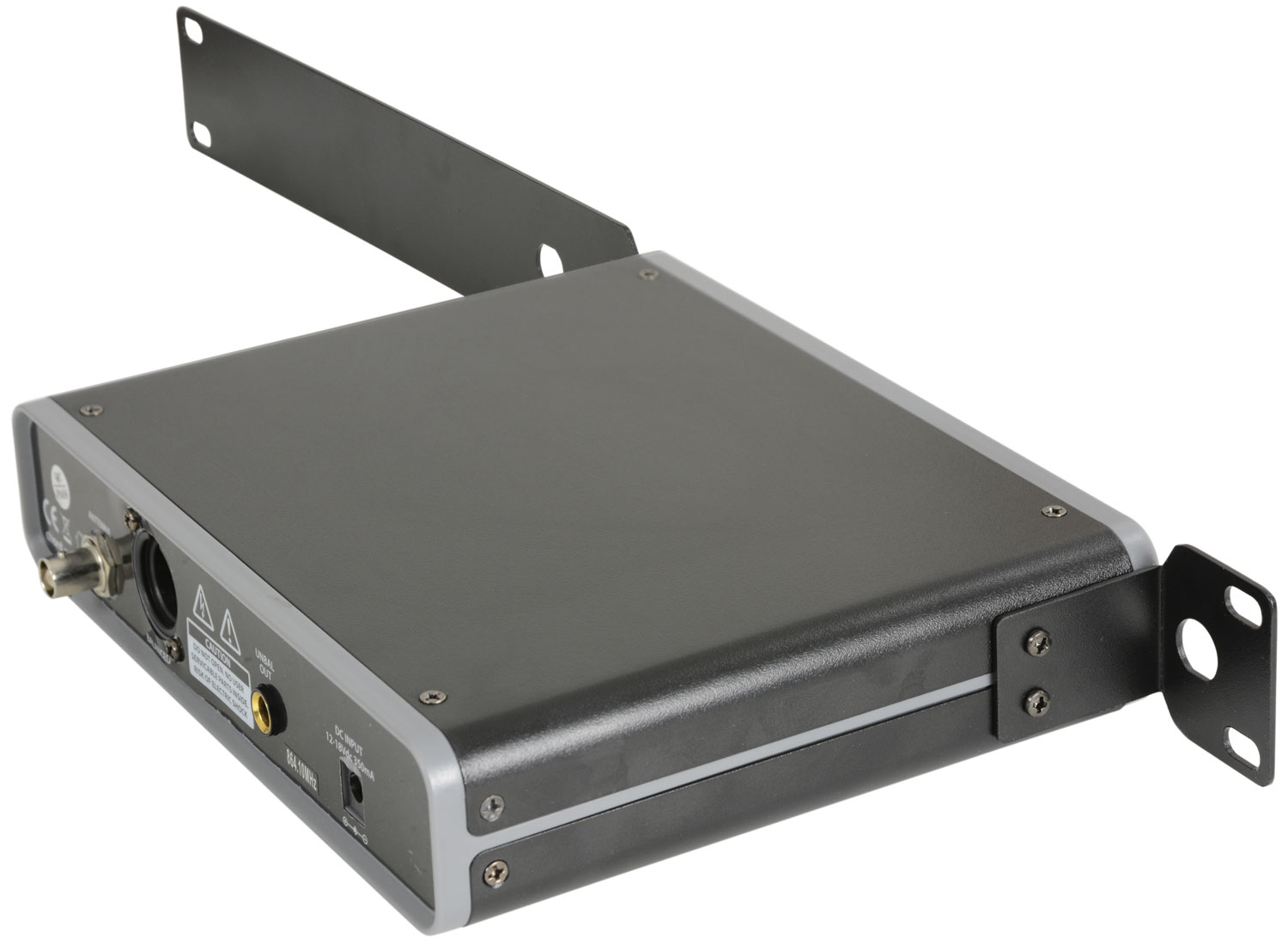

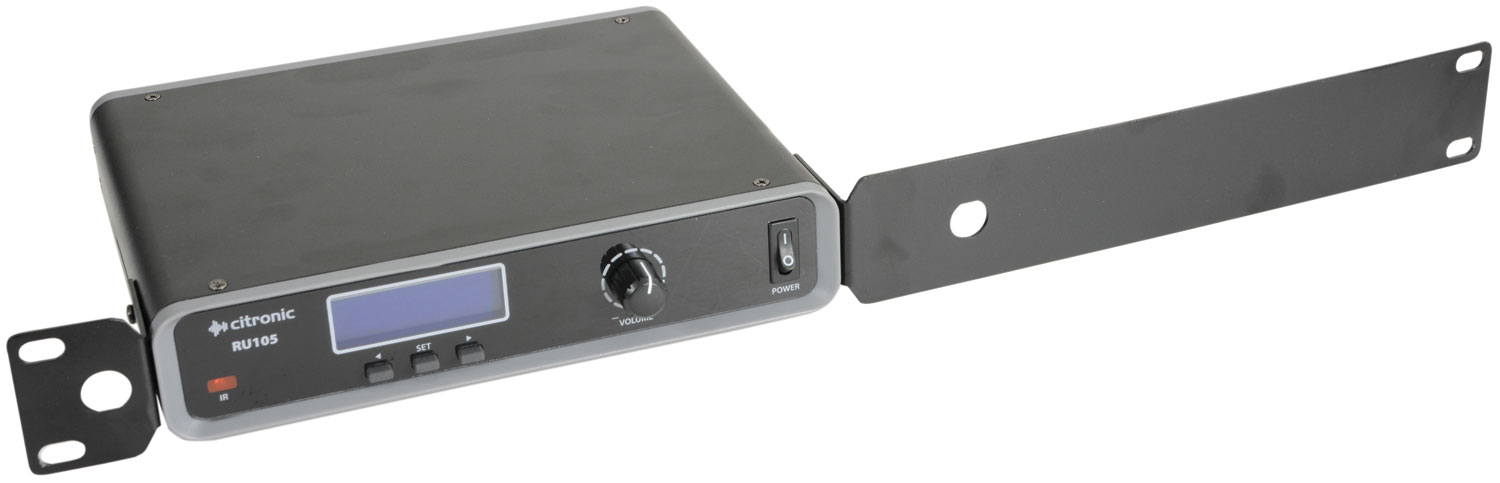

  • Rack-mounting accessories included
  • Supplied with mains adaptor and 2 x AA batteries

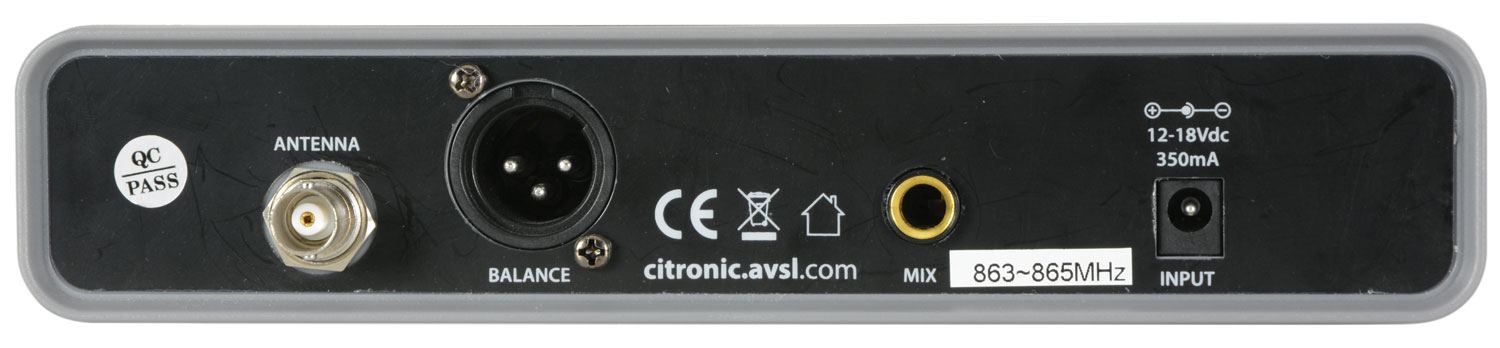

  • Power supply 12-18Vdc, 350mA (mains adaptor included)
  • Carrier frequency 863 - 865MHz (81 selectable frequencies)
  • Range 60m
  • Batteries 2 x AA (for transmitter - included)
  • Signal to noise ratio >105dB
  • THD <0.5% @ 1KHz
  • Frequency response 50Hz-18KHz ±1 dB
  • Image rejection >85dB
  • Output impedance 2.2k Ohms
  • Output level 400mV (balanced), 200mV (unbalanced)
  • Dimensions : receiver 44 x 198 x 190mm
  • Weight : receiver 710g
  • Dimensions : transmitter 110 x 67 x 24mm
  • Weight : transmitter 75g (no battery)

In the box

The box for this item contains :

  • UHF receiver
  • Beltpack transmitter
  • Neckband microphone
  • Lavalier microphone
  • 2 x AA batteries
  • UHF antenna
  • Antenna lead
  • Rack-mounting kit
  • Mains power adaptor

Downloads

Instruction manual
For 171.973UK (270KB)
UK Declaration of conformity
For 171.973UK (247KB)
EU Declaration of conformity
For 171.973UK (238KB)
