UHF Wireless Handheld Microphone System

171.981UK NU1-H

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting ...

  • Pilot tone & mute circuit for stable signal
  • Licence free operation in UK & EU
  • Rack-mounting accessories included
Description Version Packed
171.981UK
NU1 Handheld UHF System 863.1MHz
863.1MHz Gift Box
171.982UK
NU1 Handheld UHF System 864.1MHz
864.1MHz Gift Box

Accessories

Description Version Packed
171.988UK
Handheld Mic 863.1MHz for NU1
863.1MHz Box Plain

UHF Wireless Handheld Microphone System

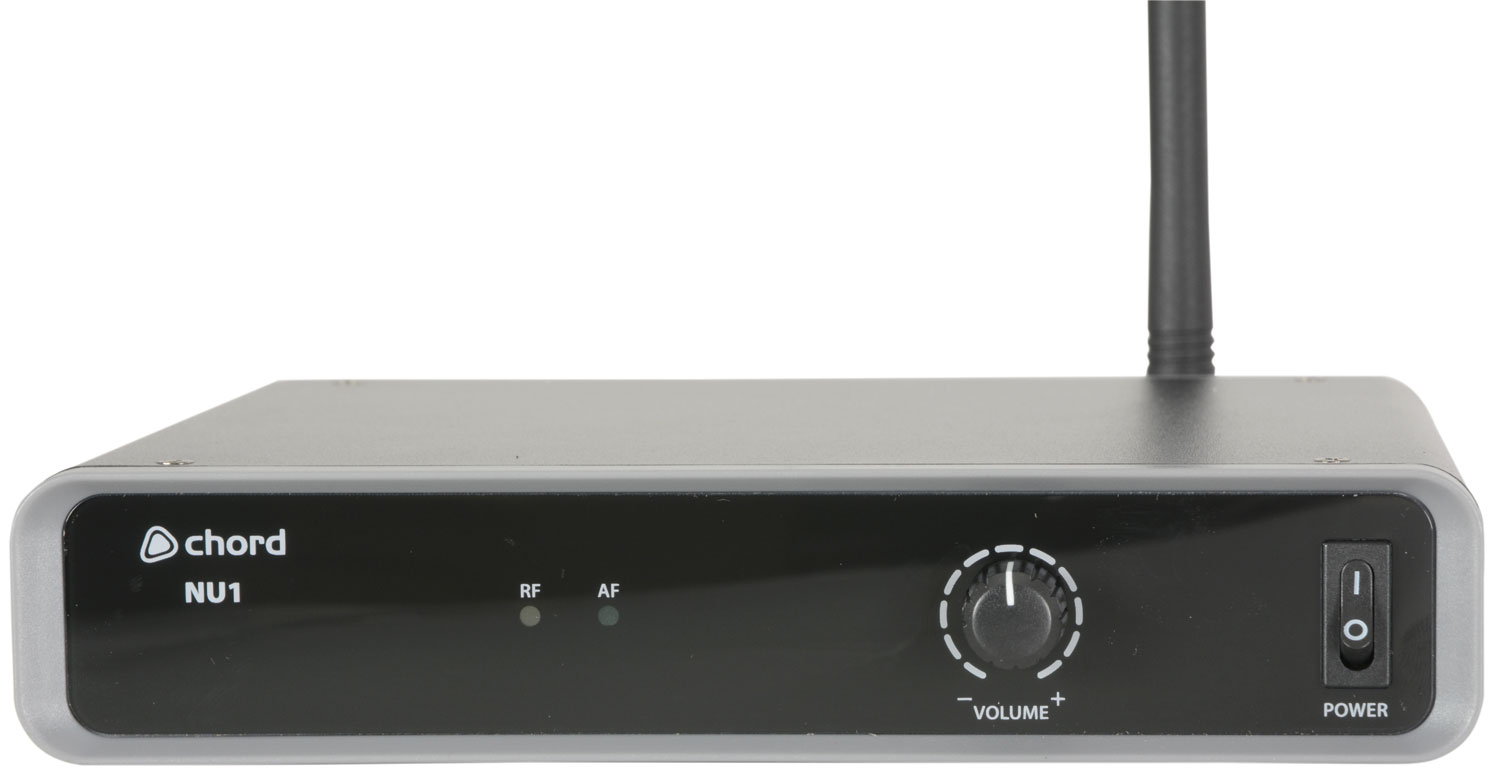

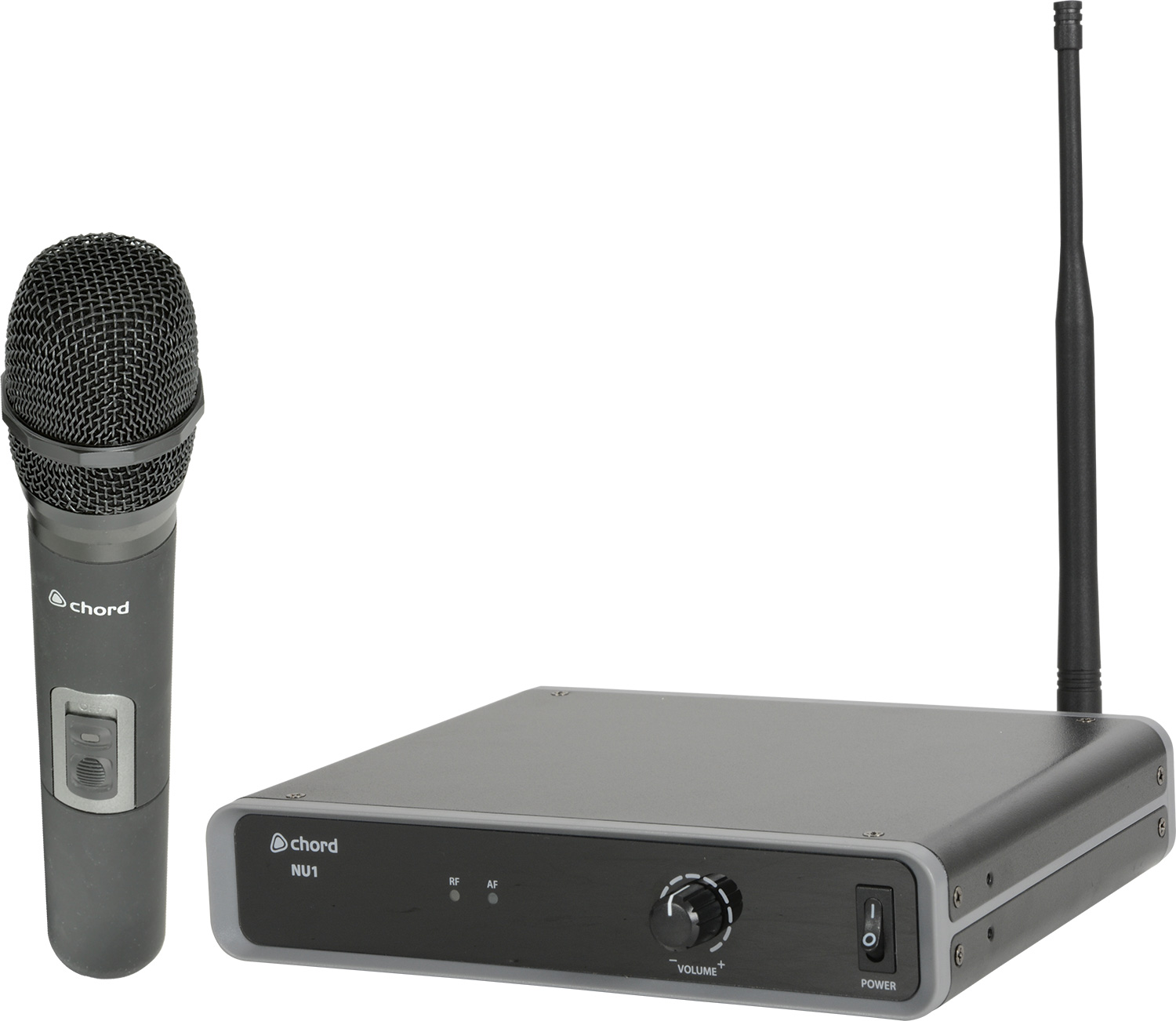

Wireless microphone system with fixed UHF handheld transmitter and half rack-width receiver. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.

  • Pilot tone & mute circuit for stable signal
  • Licence free operation in UK & EU
  • Rack-mounting accessories included
  • Supplied with mains adaptor and 2 x AA batteries
  • Power supply 12-18Vdc, 350mA (mains adaptor included)
  • Range 60m
  • Batteries 2 x AA (for transmitter - included)
  • Signal to noise ratio >105dB
  • THD <0.5% @ 1kHz
  • Frequency response 50Hz-18KHz ±1 dB
  • Image rejection >85dB
  • Output impedance 2.2k Ohms

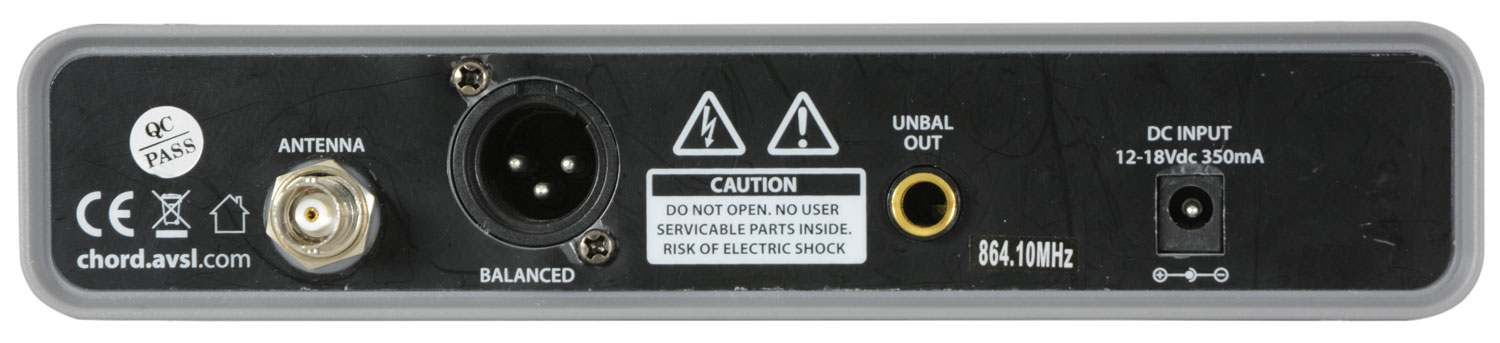

  • Output level 400mV (balanced), 200mV (unbalanced)
  • Dimensions : receiver 44 x 198 x 190mm
  • Weight : receiver 710g
  • Dimensions : transmitter 243 x 48mmØ
  • Weight : transmitter 238g (no battery)

Versions

  171.981UK 171.982UK
Carrier frequency 863.1MHz 864.1MHz

In the box

The box for this item contains :

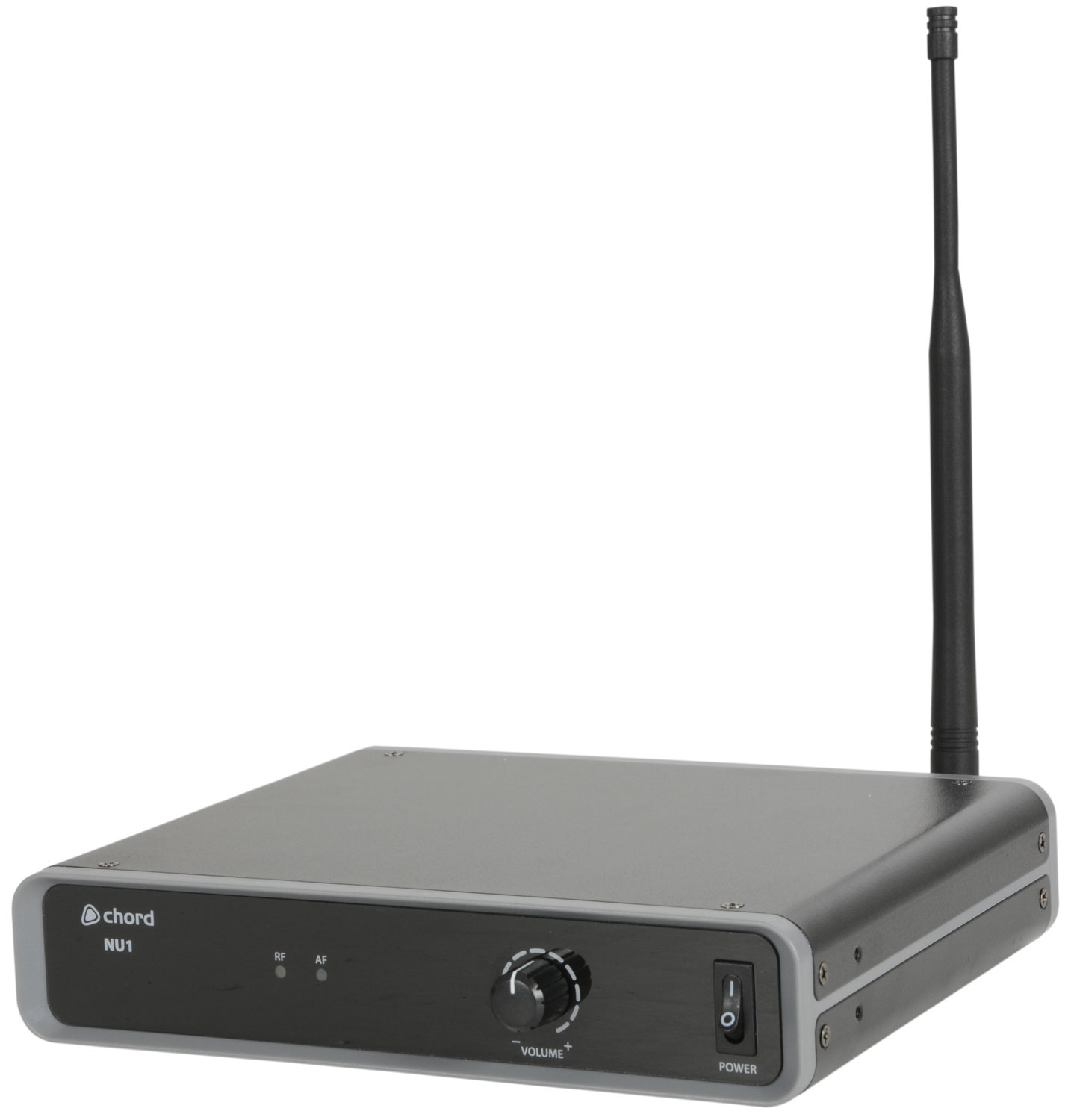

  • UHF receiver

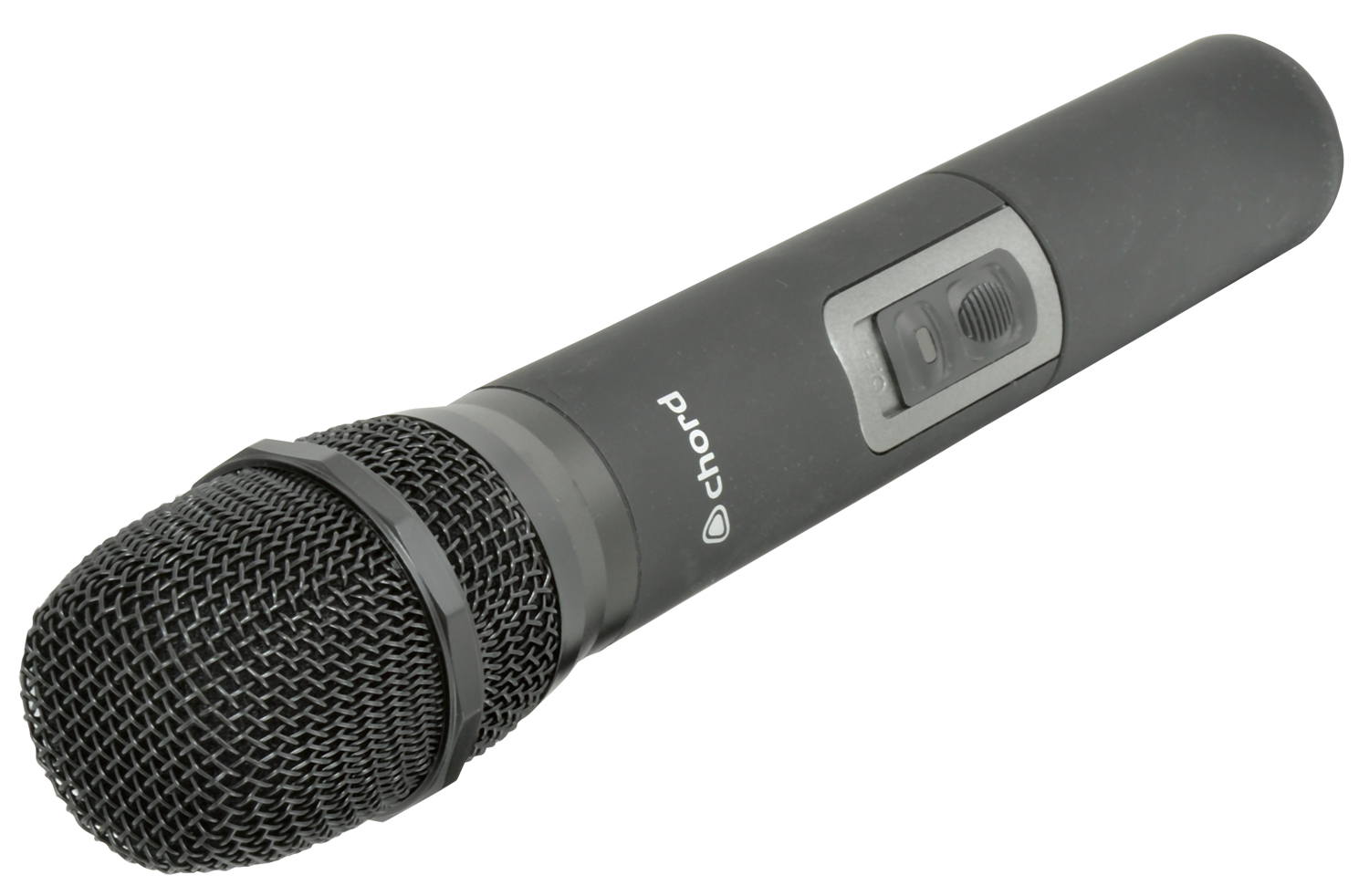

  • Handheld transmitter
  • 2 x AA batteries
  • UHF antenna
  • Antenna lead

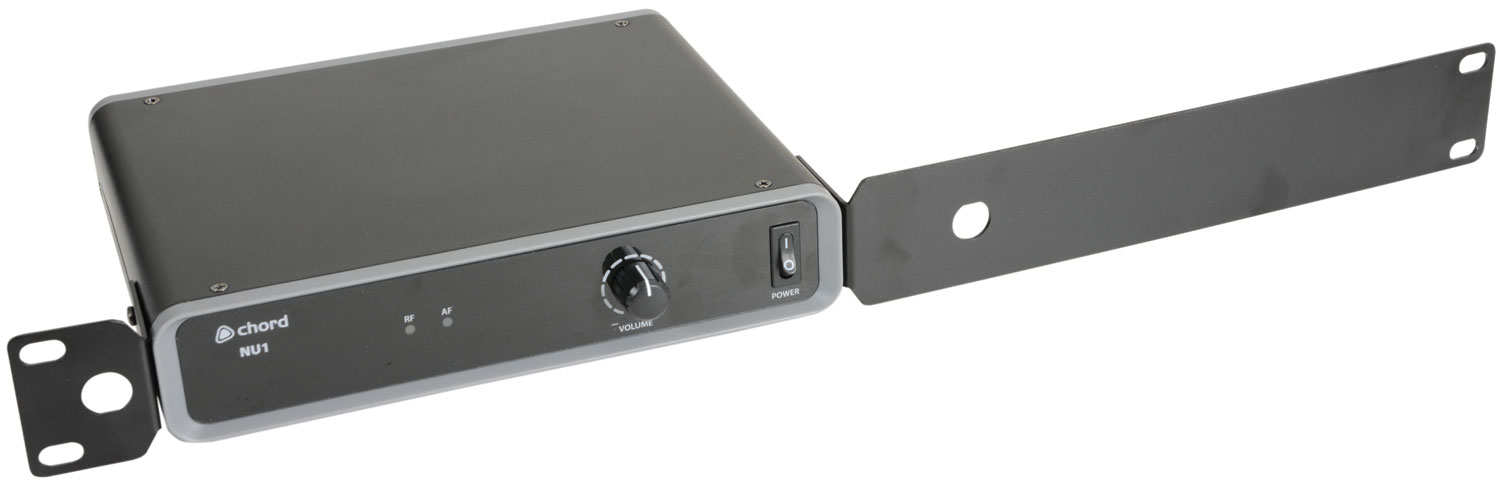

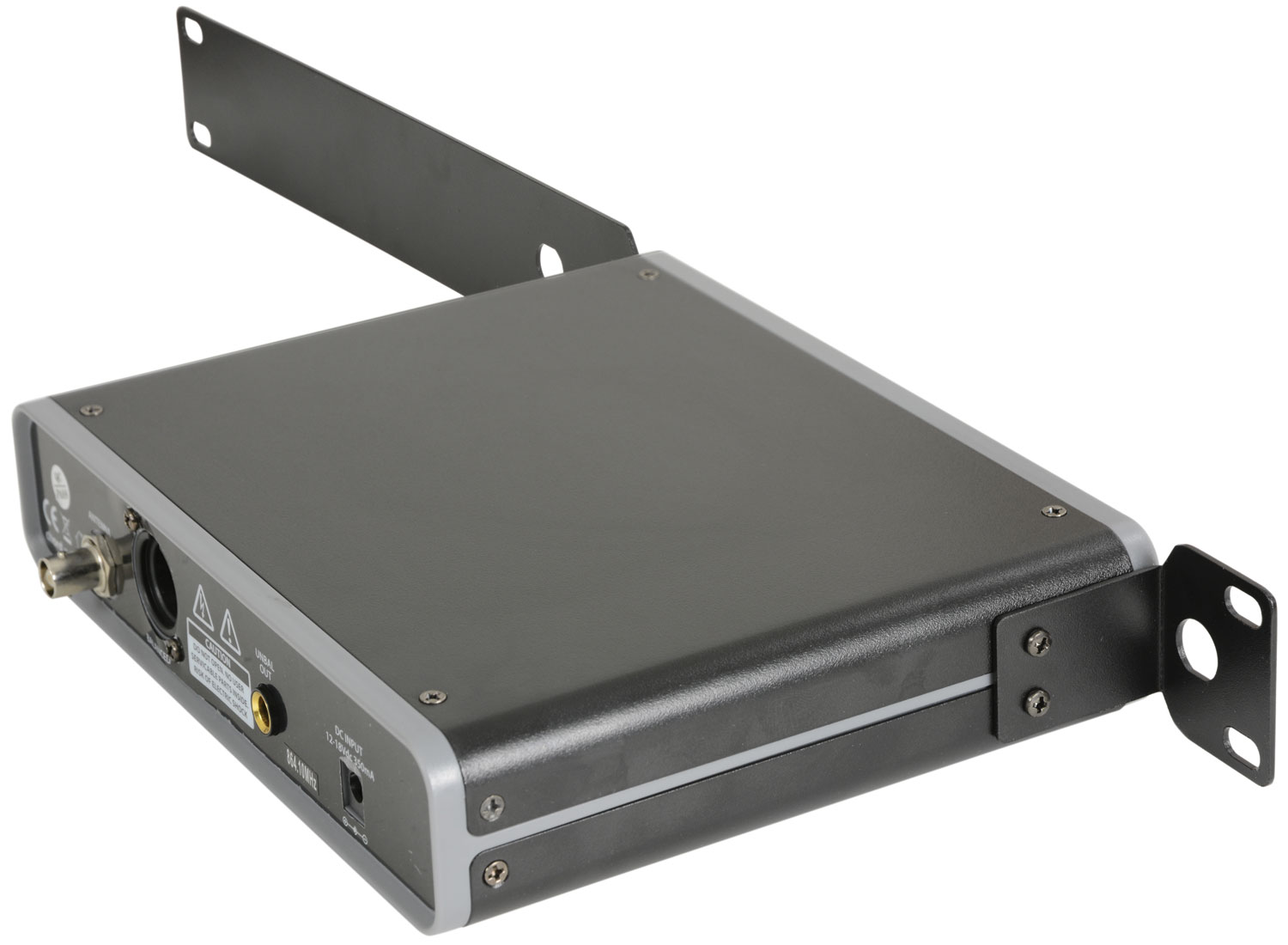

  • Rack-mounting kit
  • Mains power adaptor
  • 6.3mm jack to jack lead

Downloads

Instruction manual
For 171.981UK (270KB)
UK Declaration of conformity
For 171.981UK (248KB)
EU Declaration of conformity
For 171.981UK (240KB)
