UHF Wireless Beltpack Microphone System

171.984UK NU1-N

Wireless microphone system with fixed UHF beltpack transmitter and half rack-width receiver. Supplied with a choice of neckband or lavalier microphones. The receiver unit is compatible with standar...

  • Pilot tone & mute circuit for stable signal
  • Licence free operation in UK & EU
  • Rack-mounting accessories included
Description Version Packed
171.983UK
NU1 Neckband/Lavalier UHF System 863.1MHz
863.1MHz Box Label BW
171.984UK
NU1 Neckband/Lavalier UHF System 864.1MHz
864.1MHz Box Label BW

Accessories

Description Version Packed
171.997UK
Beltpack 864.1MHz for NU1
864.1MHz Box Plain

UHF Wireless Beltpack Microphone System

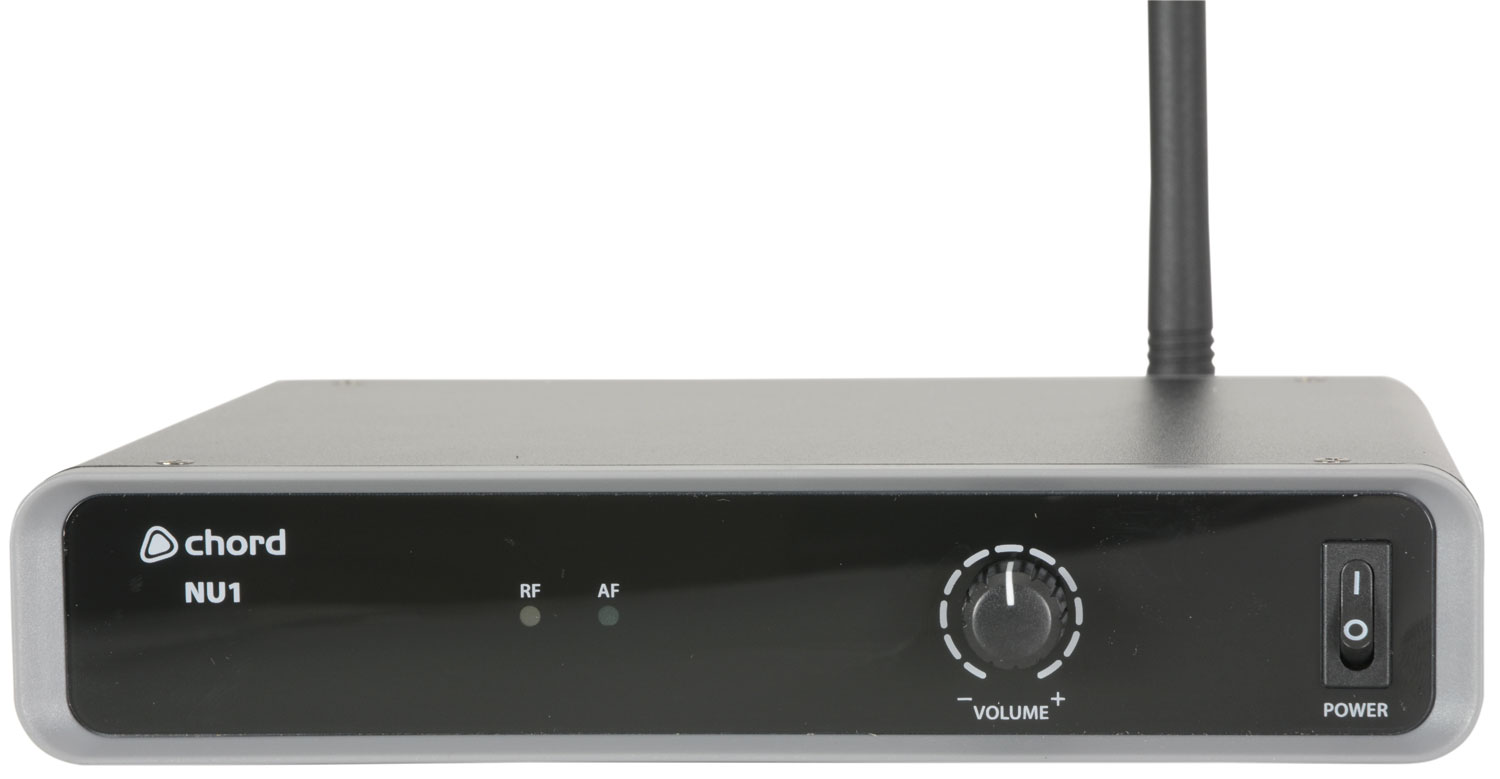

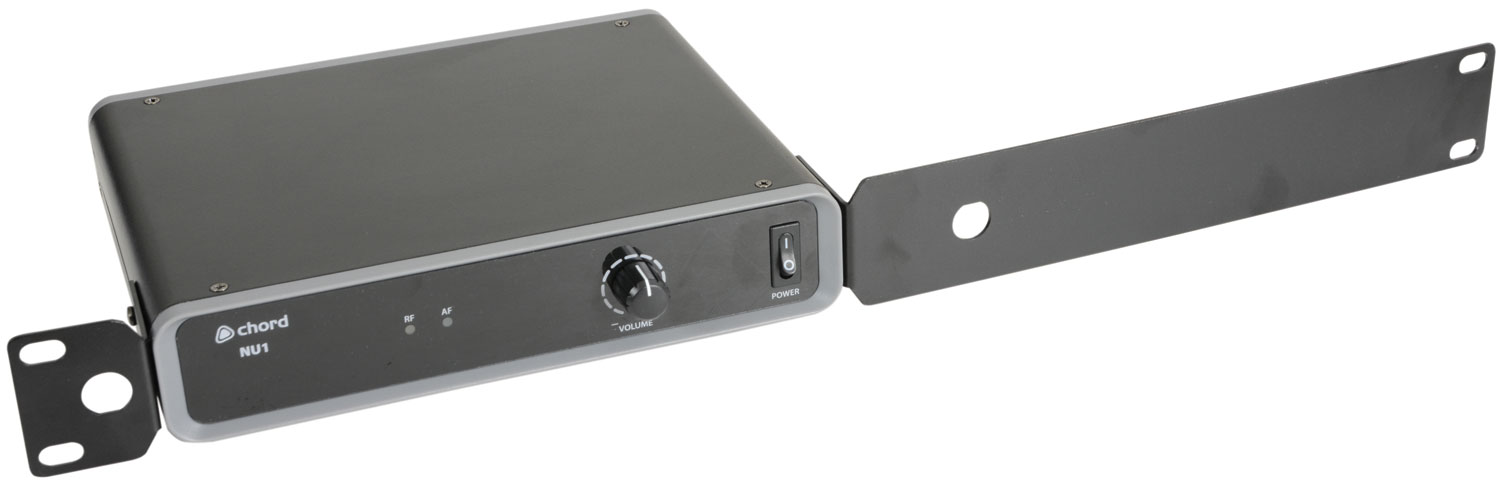

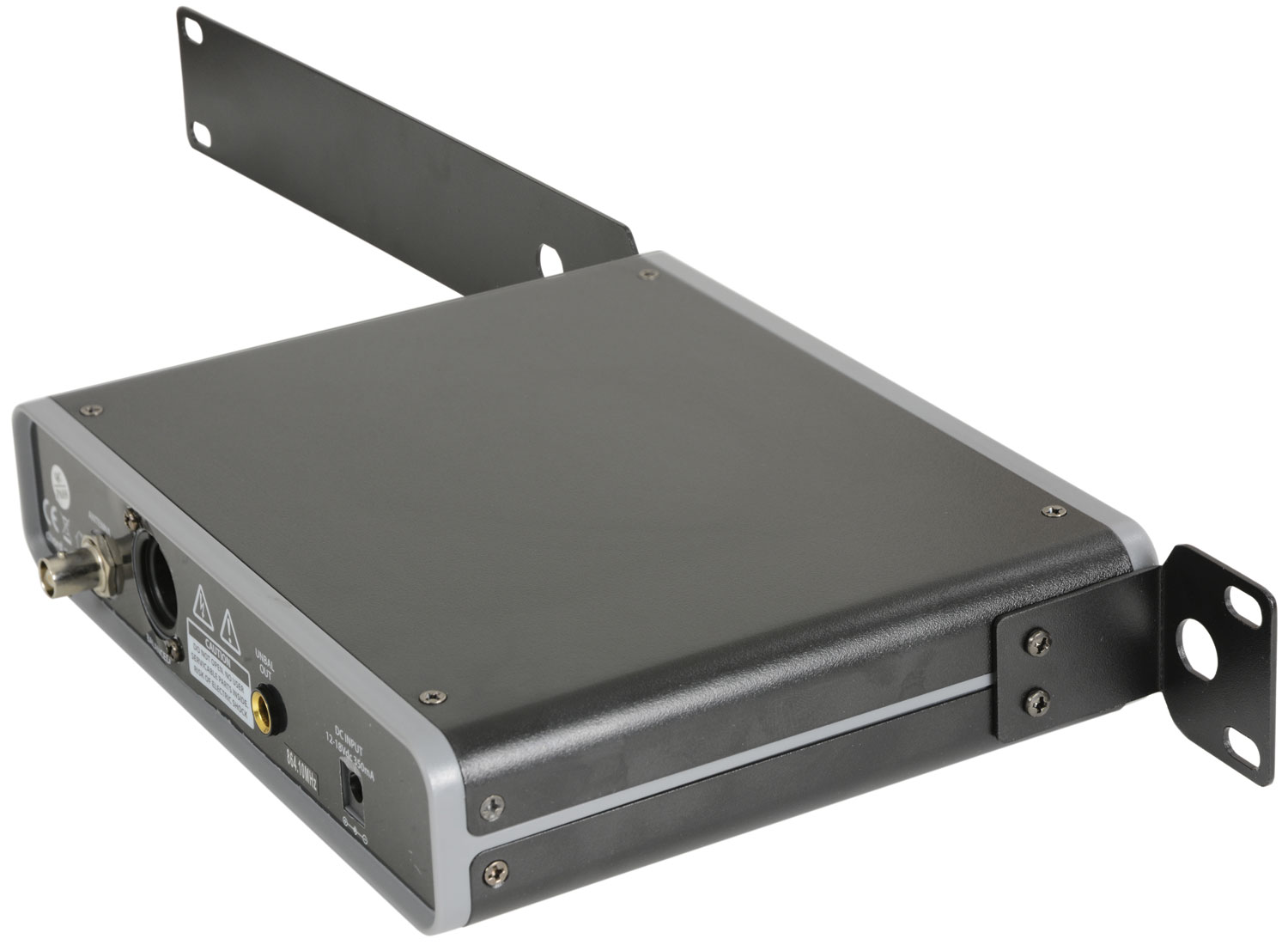

Wireless microphone system with fixed UHF beltpack transmitter and half rack-width receiver. Supplied with a choice of neckband or lavalier microphones. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories.

  • Pilot tone & mute circuit for stable signal
  • Licence free operation in UK & EU
  • Rack-mounting accessories included
  • Supplied with mains adaptor and 2 x AA batteries
  • Power supply 12-18Vdc, 350mA (mains adaptor included)
  • Range 60m
  • Batteries 2 x AA (for transmitter - included)
  • Signal to noise ratio >105dB
  • THD <0.5% @ 1kHz
  • Frequency response 50Hz-18KHz ±1 dB
  • Image rejection >85dB
  • Output impedance 2.2k Ohms

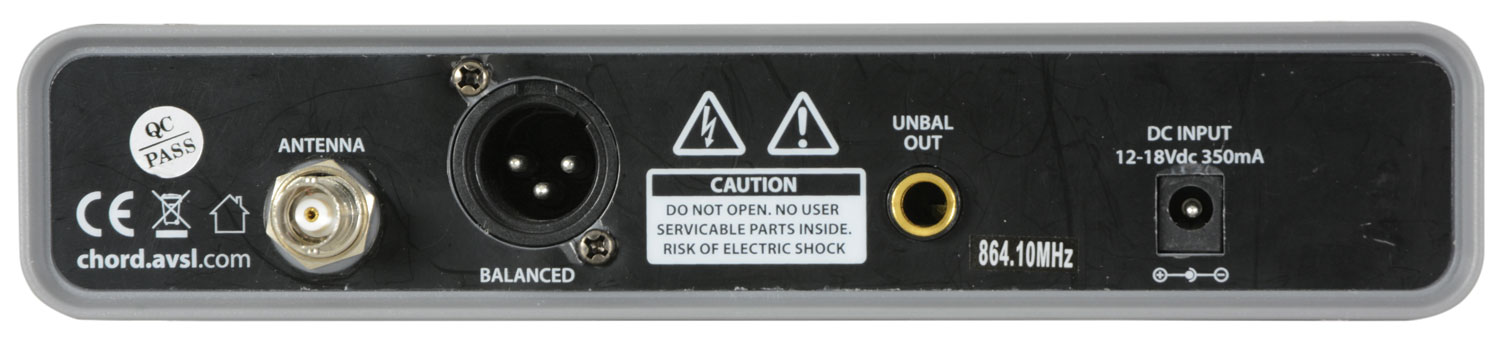

  • Output level 400mV (balanced), 200mV (unbalanced)
  • Dimensions : receiver 44 x 198 x 190mm
  • Weight : receiver 710g
  • Dimensions : transmitter 205 x 68 x 25mm
  • Weight : transmitter 76g (no battery)

Versions

  171.983UK 171.984UK
Carrier frequency 863.1MHz 864.1MHz

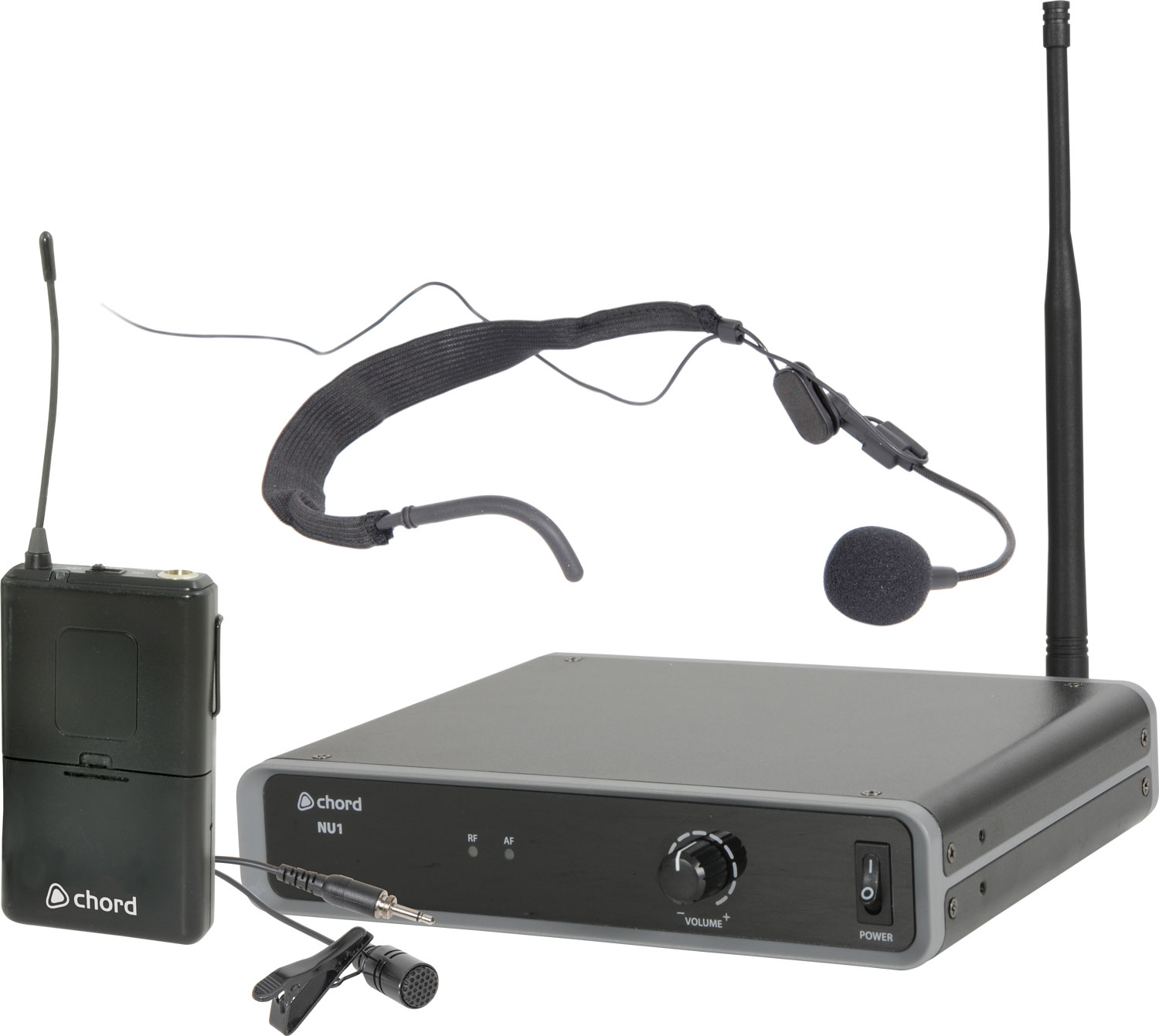

In the box

The box for this item contains :

  • UHF receiver
  • Beltpack transmitter
  • Neckband microphone
  • Lavalier microphone
  • 2 x AA batteries
  • UHF antenna
  • Antenna lead
  • Rack-mounting kit
  • Mains power adaptor
  • 6.3mm jack to jack lead

Downloads

Instruction manual
For 171.984UK (270KB)
UK Declaration of conformity
For 171.984UK (249KB)
EU Declaration of conformity
For 171.984UK (240KB)
