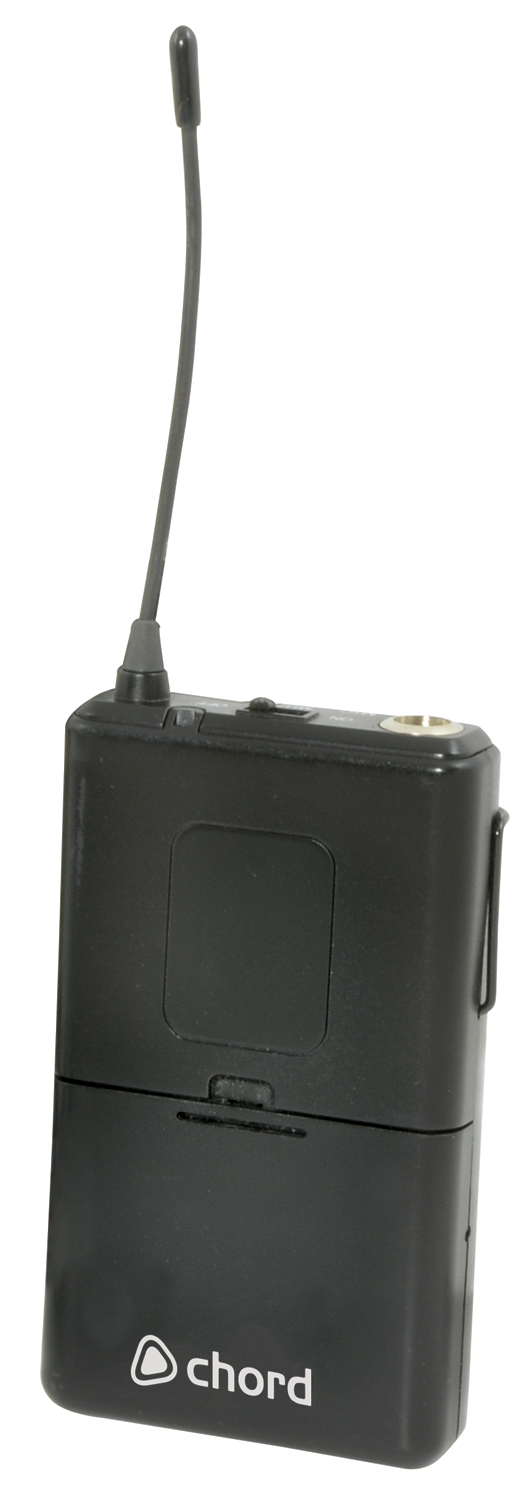

Beltpack Transmitters for NU1 Systems

171.994UK NUBP-863.1

UHF beltpack transmitter compatible with Chord UHF wireless systems.

  • Compatible with NU1 systems
Full description Find retailer
Description Version Packed
171.994UK
Beltpack 863.1MHz for NU1 		863.1MHz Box Label
171.997UK
Beltpack 864.1MHz for NU1 		864.1MHz Box Label

Accessories

Description Version Packed
656.010UK
Alkaline batteries, AA, 1.5V, 4pk 		AA, 1.5V, 4 pack Gift Box

Beltpack Transmitters for NU1 Systems

UHF beltpack transmitter compatible with Chord UHF wireless systems. Available in 2 different carrier frequency versions with pilot tone for compatibility with NU1 systems.

  • Pilot tone for NU1 compatibility
  • Up to 60m range
  • Compatible with NU1 systems
  • Compatible with Chord neckband and lavalier microphones
  • Power supply 3Vdc (2 x AA batteries)
  • Maximum range 60m
  • Dimensions 205 x 68 x 25mm
  • Weight 76g (no batteries)
  • Connector Threaded 3.5mm mono jack (for lavalier or headset)

Versions

  171.994UK 171.997UK
Carrier frequency 863.1MHz 864.1MHz

In the box

The box for this item contains :

  • Beltpack transmitter

Downloads

UK Declaration of conformity
For 171.994UK (250KB)
EU Declaration of conformity
For 171.994UK (240KB)
