Q Series Stereo Power Amplifiers
600W
172.054UK
Q600
Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and performers. more
- 19" rack-mountable (2U)
- 6.3mm jack or RCA inputs
- SPK, 6.3mm jack or 4mm post outputs
Q Series Stereo Power Amplifiers
Stereo workhorse power amplifiers with multiple input and output connection options. Designed for accurate and reliable service for venues, DJs and performers.
- 19" rack-mountable (2U)
- 6.3mm jack or RCA inputs
- SPK, 6.3mm jack or 4mm post outputs
- Fan cooled
- Weight 7.35kg
- Dimensions 482 x 300 x 88mm (2U)
- Power rms : 8 Ohms 2 x 100W
- Power rms : 4 Ohms 2 x 150W
- Power max. : 4 Ohms 2 x 300W
- Fuse rating T5A (240V) / T10A (110V)
- Power supply 230Vac, 50Hz (IEC)
- Frequency response 20Hz - 20kHz
- Input connectors 6.3mm jack, RCA (L+R)
- Input sensitivity 775mV, 10k Ohms
- S/N ratio >98dB
- THD <0.5%

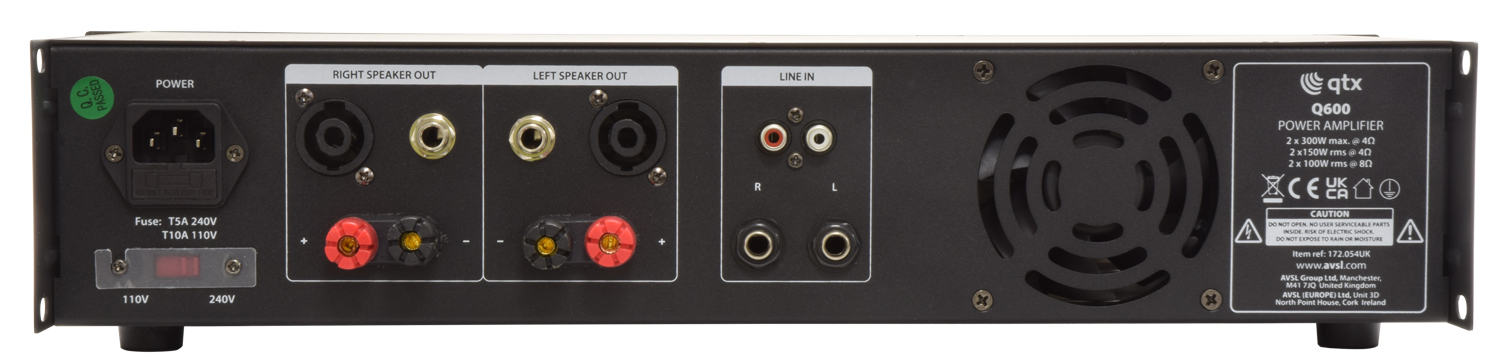

- Output connectors 6.3mm jack, SPK, 4mm binding posts (L+R)
