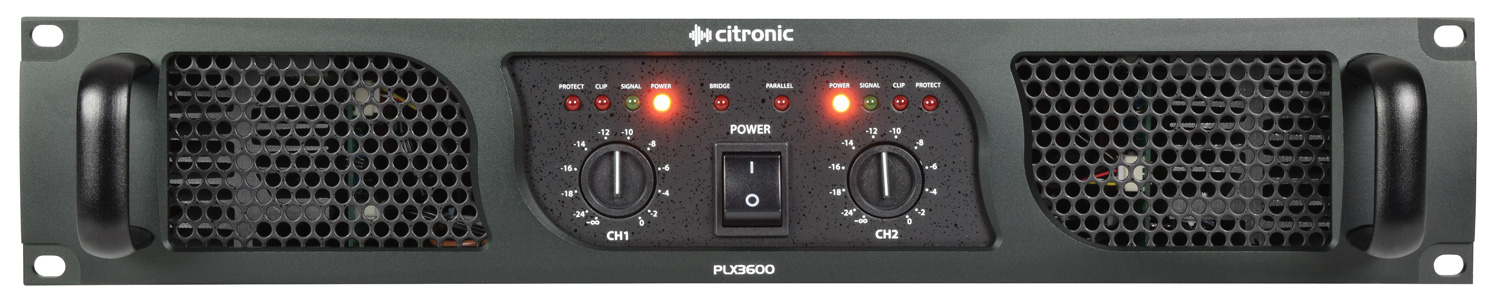

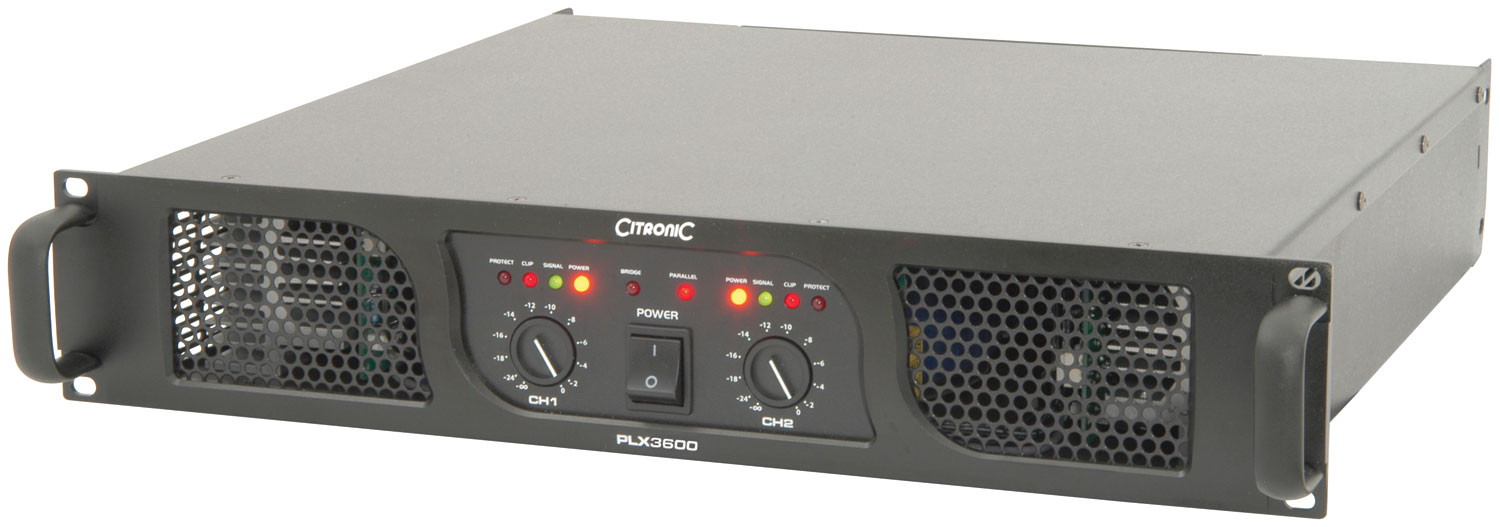

PLX Series Power Amplifiers

172.218UK PLX3600

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm bindi...

  • Bridge mode for high power mono operation
  • Output stable down to 2 Ohms
  • Removable handles for low profile install
Description Version Packed
172.214UK
PLX2000 power amplifier, 2 x 700W @ 4 Ohms
2 x 1000Wrms @2 ohms Box Label BW
172.216UK
PLX2800 power amplifier, 2 x 1050W @ 4 Ohms
2 x 1400Wrms @2 ohms Box Label BW
172.218UK
PLX3600 power amplifier, 2 x 1350W @ 4 Ohms
2 x 1800Wrms @2 ohms Box Label BW

PLX Series Power Amplifiers

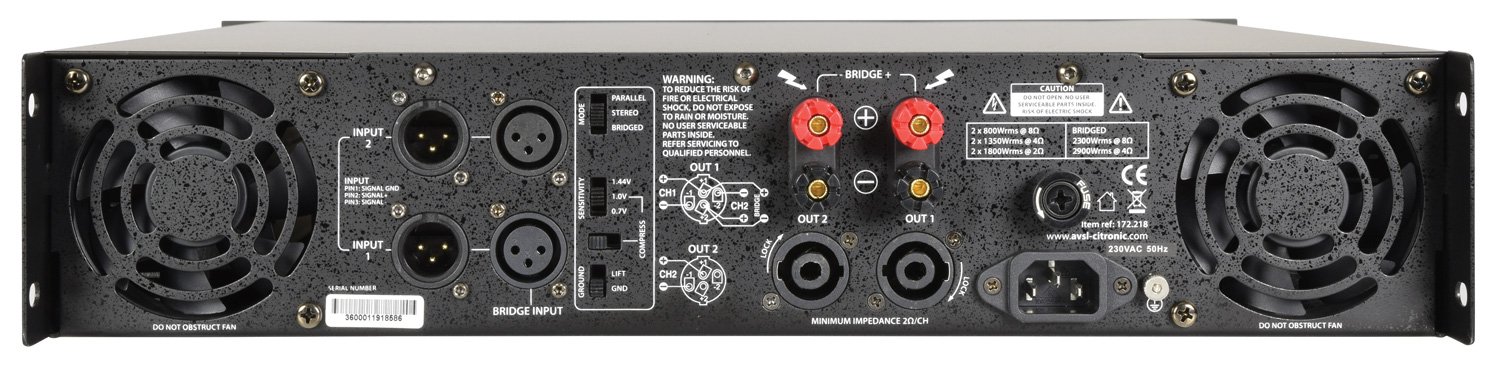

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

  • Bridge mode for high power mono operation
  • Output stable down to 2 Ohms
  • Removable handles for low profile install
  • Switchable clip limiter
  • Power supply 230Vac, 50Hz (IEC)
  • Controls Level channel 1, level channel 2, ground, mode, clip limiter
  • Input impedance 20k ohms
  • Frequency response 5Hz - 50kHz
  • Total harmonic distortion 0.05%
  • Slew rate 40V/us
  • Damping factor >400
  • Protection Short-circuit, overload, D.C. and thermal protect
  • Dimensions 482 x 453 x 88mm (2U)

Versions

  172.214UK 172.216UK 172.218UK
Fuse F8A (6 x 32mm) F12A (6 x 32mm) F15A (6 x 32mm)
Amplifier : construction Class-AB Class-AB Class-H
Power rms @ 2 Ohms 2 x 1000W 2 x 1400W 2 x 1800W
Power rms @ 4 Ohms 2 x 700W 2 x 1050W 2 x 1350W
Power rms @ 8 Ohms 2 x 400W 2 x 600W 2 x 800W
Power rms bridge @ 4 Ohms 1700W 2300W 2900W
Power rms bridge @ 8 Ohms 1250W 1750W 2300W
Weight 22.5kg 25kg 26kg
