CG Series Guitar Amplifiers
173.046UK
CG-30

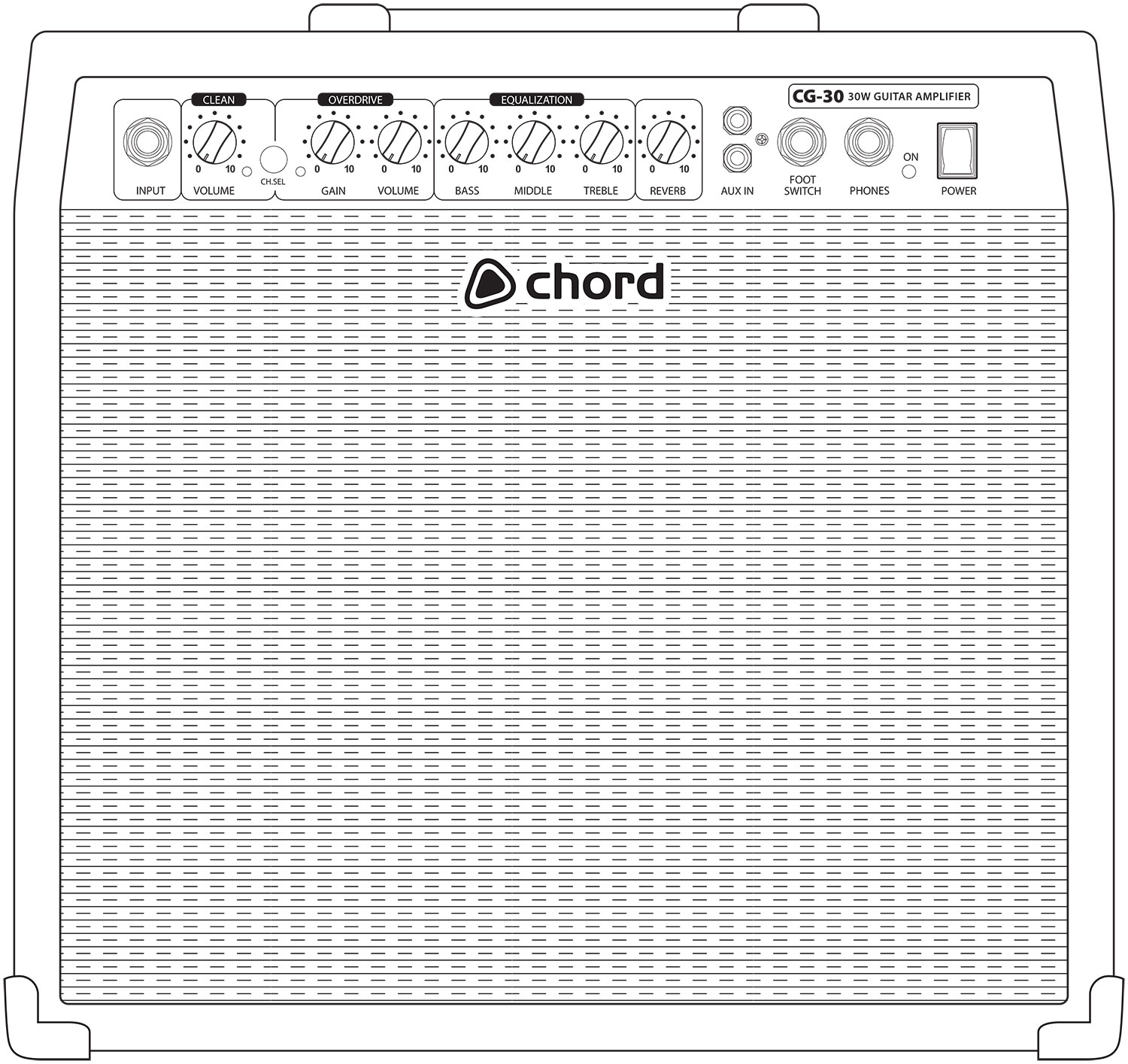

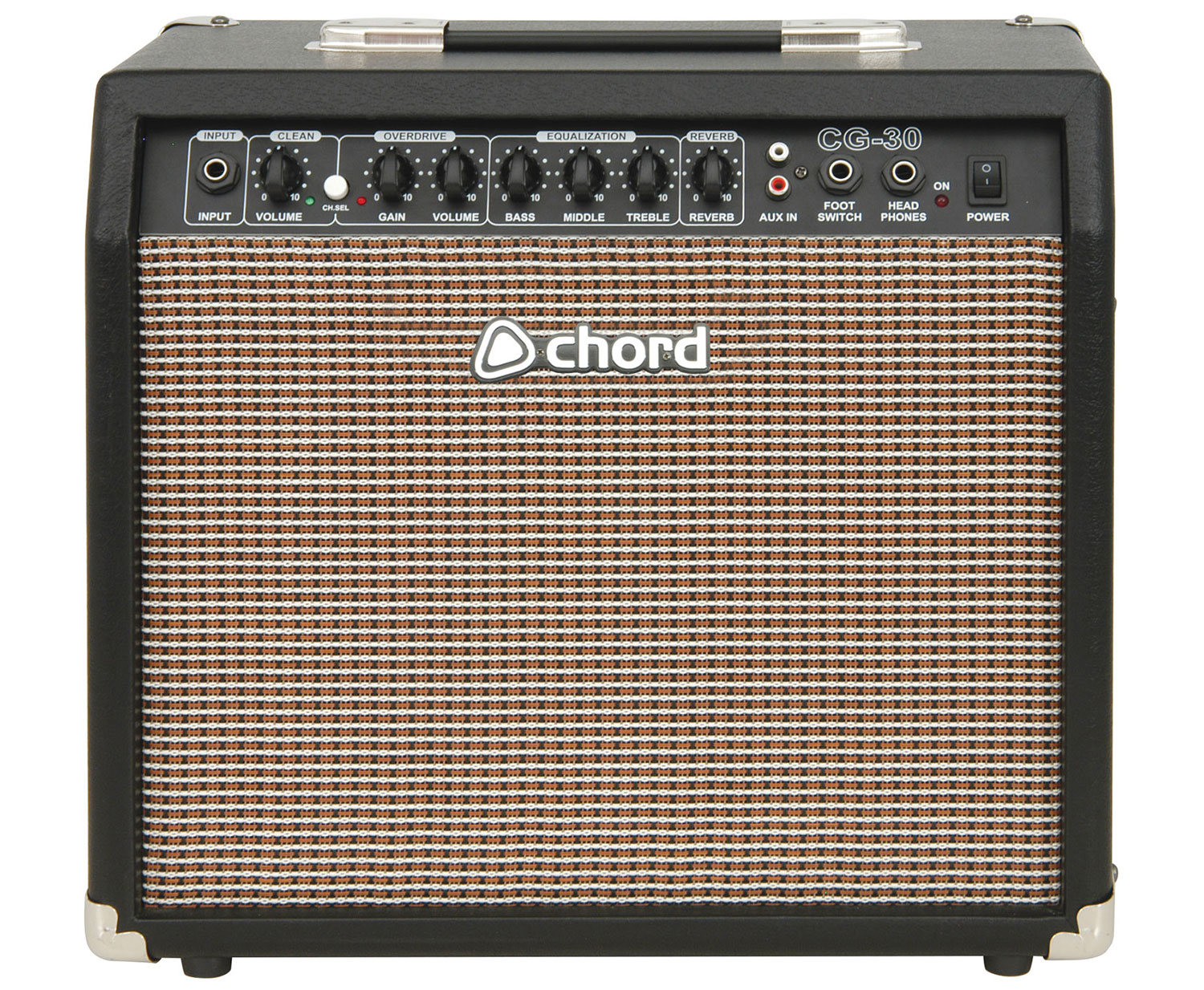

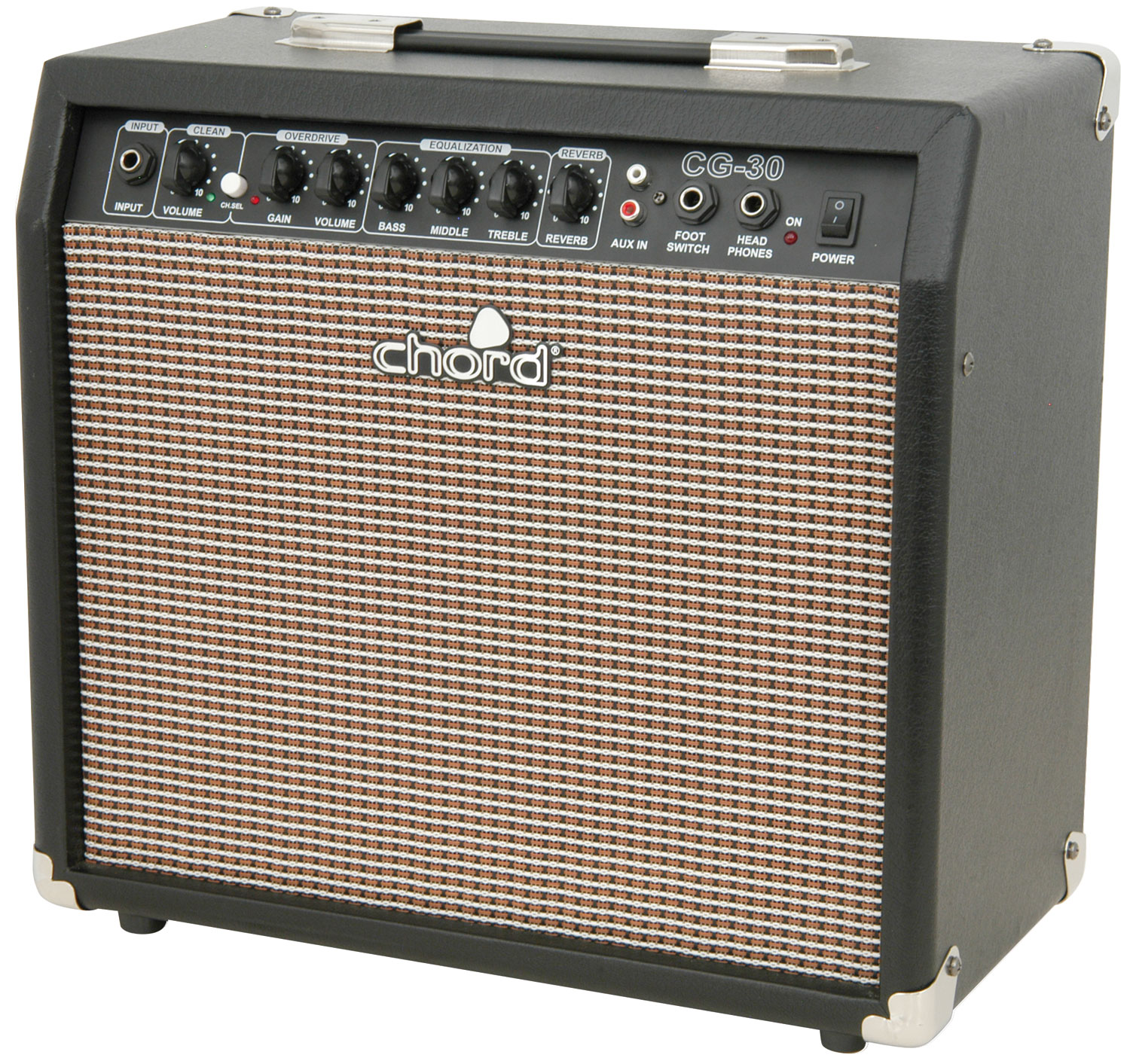

Classically styled guitar combo in a vinyl covered cabinet with metal corner protectors and basket-weave style grille cloth. Front control panel is recessed with retro "chicken-head" control knobs ...
- Headphone output for practice
- Switchable clean and drive channels
- Classic styling
CG Series Guitar Amplifiers
Classically styled guitar combo in a vinyl covered cabinet with metal corner protectors and basket-weave style grille cloth. Front control panel is recessed with retro "chicken-head" control knobs and additional features for Gain, EQ and outputs. Custom solid-state circuitry is voiced to produce authentic vintage-style clean and driven tones.
- Headphone output for practice
- Switchable clean and drive channels
- Classic styling
- Power supply 230Vac, 50Hz (IEC)
Versions
| 173.045UK | 173.046UK | 173.048UK | |
|---|---|---|---|
| Output | 15Wrms | 30Wrms | 60Wrms |
| Speaker | 200mm (8") | 250mm (10") | 300mm (12") |
| Controls | Clean volume, overdrive gain + volume, bass, middle, treble, reverb | Clean volume, overdrive gain, volume, bass, middle, treble, reverb | Clean volume, bass & treble, overdrive gain, (mid) contour, bass, treble, volume, reverb |
| Connections | Guitar input, headphones out (6.3mm jack), aux in (RCA) | Guitar input, footswitch input, headphones out (6.3mm jack), aux in (RCA) | Guitar input, footswitch input, effects loop send & return, headphone out (6.3mm jack), aux in (RCA) |
| Dimensions | 340 x 325 x 180mm | 410 x 380 x 200mm | 480 x 530 x 280mm |
| Weight | 7.0kg | 9.8kg | 16.6kg |
Downloads
Instruction manual
For 173.046UK (481KB)
For 173.046UK (481KB)
UK Declaration of conformity
For 173.046UK (247KB)
For 173.046UK (247KB)
EU Declaration of conformity
For 173.046UK (236KB)
For 173.046UK (236KB)
