Zeus Guitar Pedal Power Supply

173.087UK NIP-Z10

NU-X have built an enviable reputation as guitar pedal experts and great guitar sound starts with the power source. Using standard 9Vdc power adaptors usually releases unwanted noise into the signa...

  • Extremely low noise circuitry
  • Fully isolated outputs
  • Multiple voltage options
Description Version Packed
173.087UK
Zeus Guitar Pedal Power Supply
Zeus PSU Gift Box

Zeus Guitar Pedal Power Supply

NU-X have built an enviable reputation as guitar pedal experts and great guitar sound starts with the power source. Using standard 9Vdc power adaptors usually releases unwanted noise into the signal chain and unstable power can adversely affect the operation and even life expectancy of some boutique pedals. Zeus is an extremely low noise, high current power supply designed specifically for audio effect circuits with 6 fully isolated 9V outlets, 3 switchable 9/12/18V outlets and a fully variable 6-12V outlet. This lightweight and efficient power supply has the flexibility and reliability to run a full pedal board, even with multi-effect units added, with problem-free operation.

  • Extremely low noise circuitry
  • Fully isolated outputs
  • Multiple voltage options
  • High current capacity
  • Supplied with various DC link cables to handle most pedal input types
  • Supplied with a 2-outlet combiner lead with 2.5mm DC plug for higher power units.

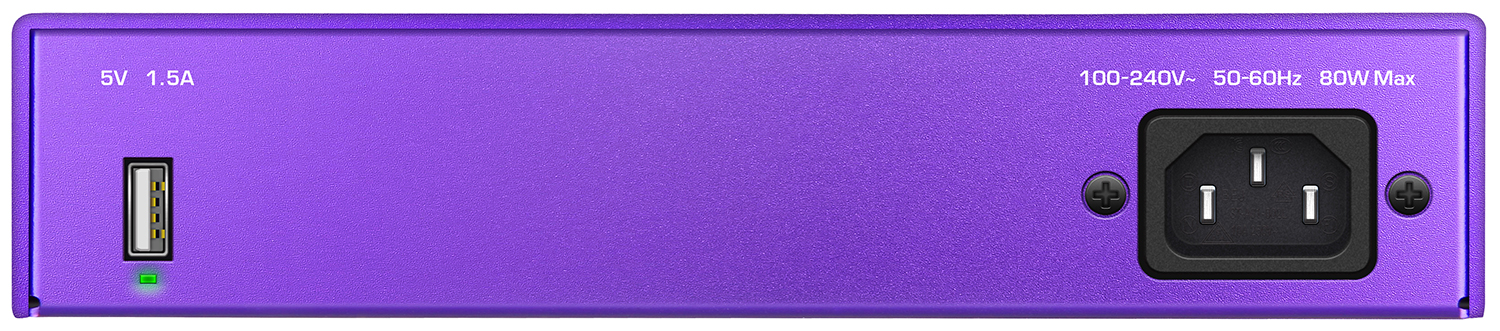

  • Power supply 100-240Vac, 50/60Hz (IEC)

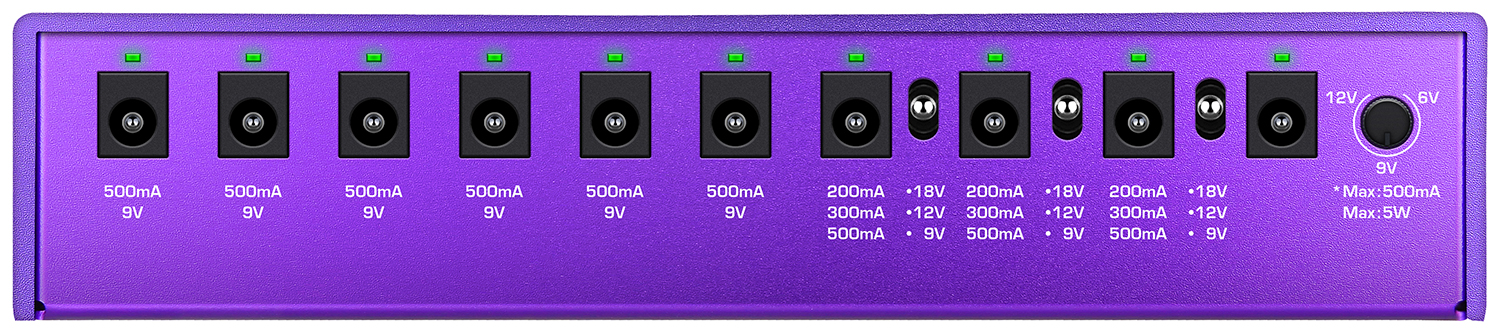

  • Outputs 6 x 9VDC, 3 x 9/12/18vDC, 1 x 6-12Vdc variable (all DC5521 jack)
  • USB output current 1.5A (Type-A outlet)
  • Dimensions 195 x 101 x 42mm
  • Weight 658g

In the box

The box for this item contains :

  • Zeus guitar pedal power supply
  • 5 x DC jack link cables (5.5x2.1mm) straight to angle 0.5m
  • 5 x DC jack link cables (5.5x2.1mm) straight to angle 0.3m
  • 1 x DC jack reverse polarity cable (5.5x2.1mm) straight to angle 0.5m
  • 1 x DC jack (5.5x2.1mm) to 3.5mm plug cable 0.5m
  • 1 x twin DC jack (5.5x2.1mm) socket to single DC plug (5.5x2.5mm)
  • 1 x IEC power lead

Downloads

Instruction manual
For 173.087UK (7.6MB)
UK Declaration of conformity
For 173.087UK (247KB)
EU Declaration of conformity
For 173.087UK (239KB)
