B-11 PRO Violin Wireless System

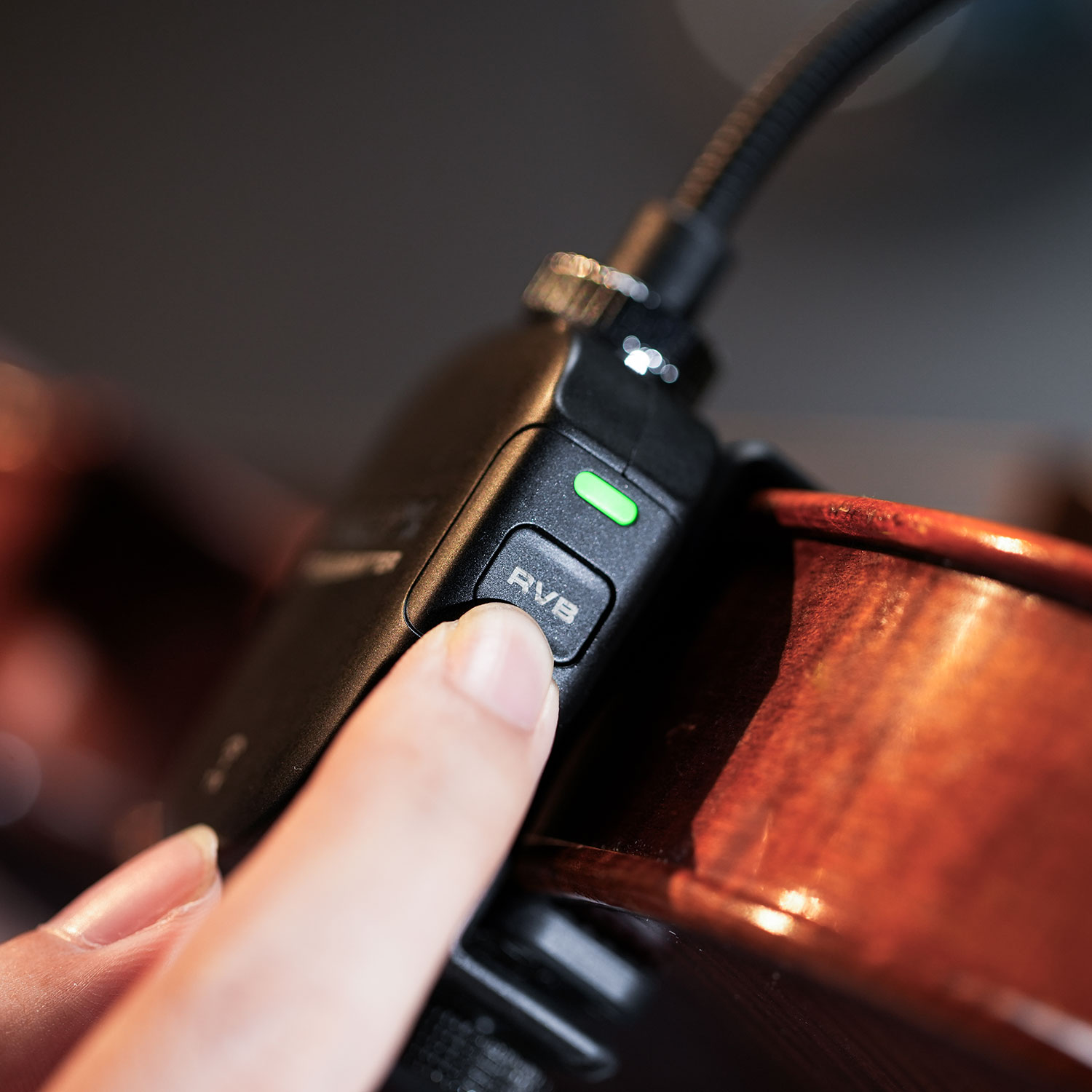

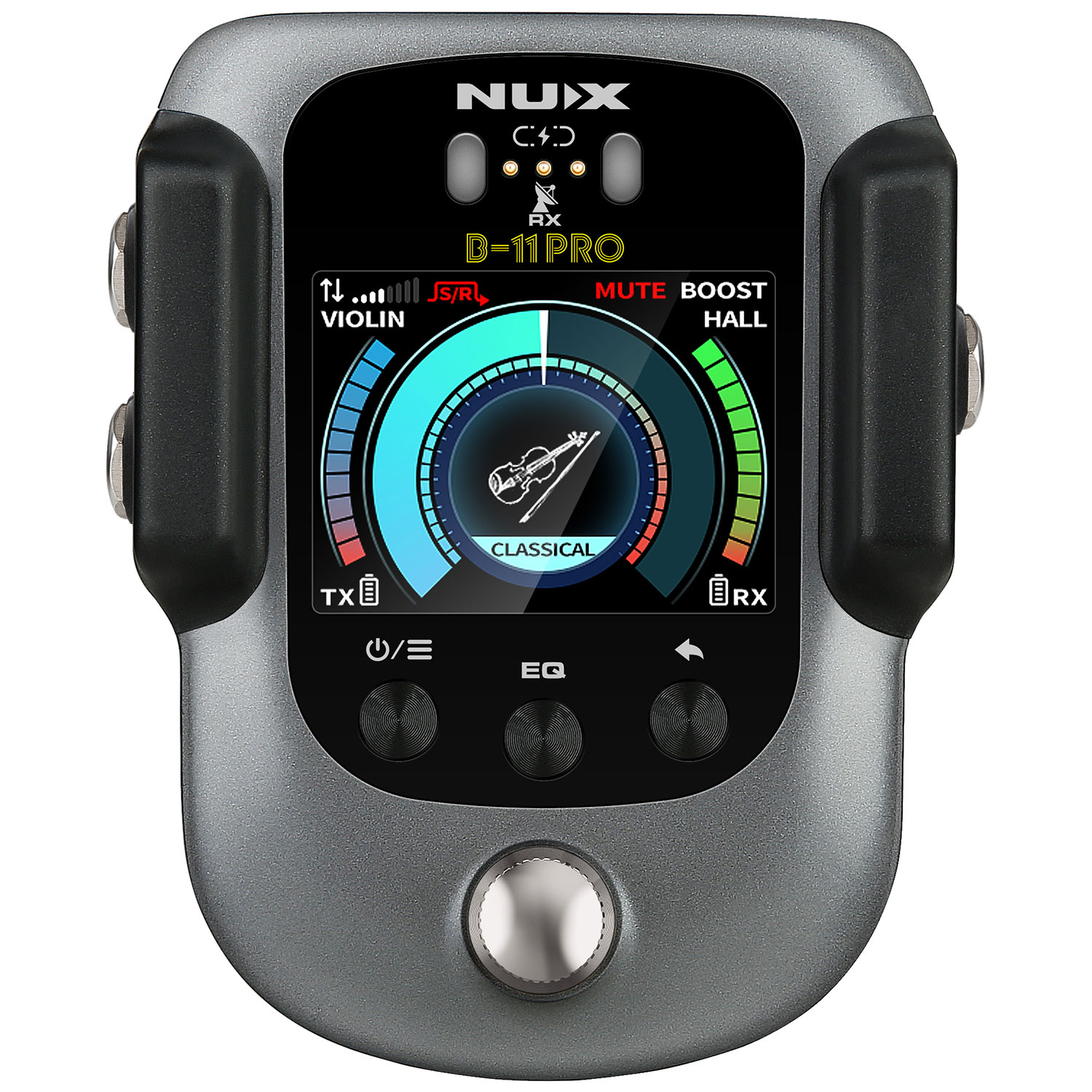

The NUX B-11 PRO Wireless System is a perfect fusion of advanced technology and refined elegance, designed specifically for violin and viola. It frees you completely from the limitations of traditional wired pickups. Powered by NUX’s advanced wireless technology, it delivers professional-grade 24-bit / 48 kHz high-quality audio transmission. With an ultra-low latency of just 3.6 ms and a transmission range of up to 165 feet, you gain complete freedom of movement on stage, letting the music flow effortlessly. </br></br> NUX’s Pro Series combines anti-interference tech, intelligent frequency hopping, 1MHz narrowband transmission, Audio Zip/Unzip, six stability levels, and a true-diversity dual-antenna design for rock-solid, reliable signal. The system automatically selects the cleanest channel, effectively avoiding interference to ensure stable and clear signals—perfect for environments with a high density of wireless devices. The built-in Reverb Effect provides professional-grade Room, Hall, or Plate reverb effects, easily activated with a single press of the button on the right side of the transmitter. Detailed reverb parameters can be adjusted through the receiver’s user interface menu. </br></br> The B-11 Pro Offers 10 EQ pre-sets and 2 customizable EQ settings for violin and viola. Pre-sets cover Classical, Modern, Warm, and Custom styles, allowing instant switching with a single button. Powered by NUX’s advanced 2.4 GHz wireless technology, the system delivers outstanding transmission performance and sound quality. During use, the transmission mode can be adjusted between Low Latency and Stable according to the surrounding environment. Latency can be as low as 3.6 ms, with a transmission range of up to 50 meters (165 feet). Equipped with a cardioid condenser instrument microphone, capturing a natural, full-bodied tone rich in detail. </br></br> A newly designed shock-absorbing structure significantly reduces vibration while further minimizing the size and weight of the microphone assembly—greatly enhancing the overall playing experience. Designed specifically for violin and viola, the transmitter features a magnetic design that allows quick attachment to the transmitter mount during performance breaks, or easy removal for charging. (The transmitter mount is fixed to the edge of the instrument body.) Both the transmitter and receiver are equipped with high-capacity lithium batteries. A fully charged transmitter provides up to 6.5 hours of operation. During breaks, the transmitter can be conveniently placed on top of the receiver for charging. After configuration in the receiver’s menu, different functions can be triggered via short press or long press of the footswitch. Footswitch functions include: Boost, Mute, Tuner, S/R Bypass, and Reverb

• PRO Series Anti-Interference Technology
• Built-in Reverb Effects
• Professional EQ Presets For Violin/Viola

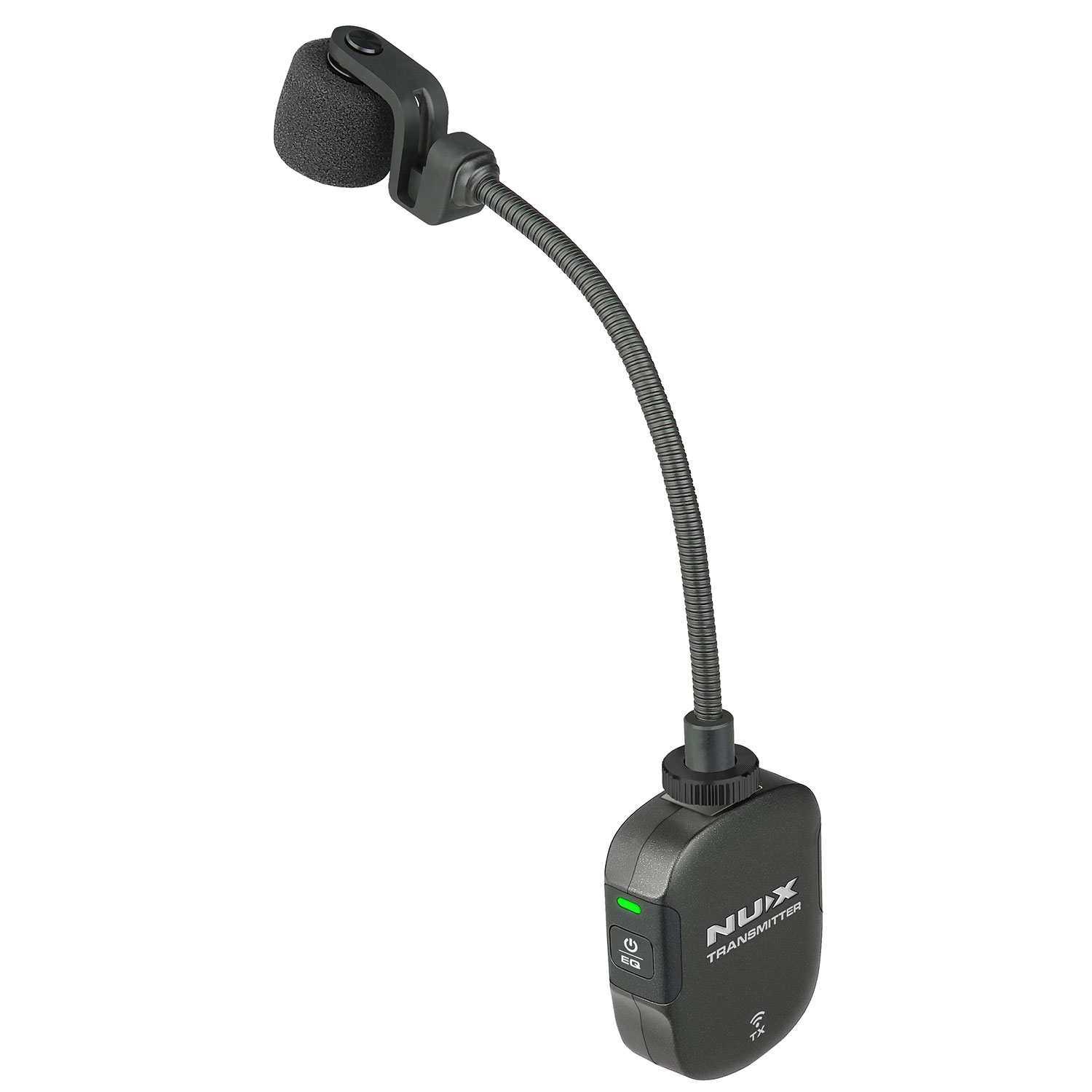

• Specially Tuned Microphone for Violin Performance
• Quick Installation
• High-Capacity Lithium Battery

• Microphone Condenser
• Microphone : polar pattern Cardioid
• Microphone : sensitivity -46dB
• Operating frequency 2.4 GHz ISM (2.4 GHz – 2.4835 GHz)
• Transmitter : power <10 mW E.I.R.P
• Operating range Up to 50 m(165 ft)
• Latency 3.6ms (Low Latency) / 6.1ms (Default) / 9.9ms (Stable)
• Bit rate 24bit / 48kHz
• Frequency response 20Hz – 20kHz
• Battery life Transmitter (up to 6.5 hours), Receiver (up to11 hours)
• Battery capacity Transmitter (3.7V / 450mAh), Receiver (3.7V / 3000mAh)
• Dimensions Transmitter (excluding microphone): 90mm (L) x 115mm (W) x 55mm (H)
• Weight Transmitter (excluding microphone): Approx.33g
• Dimensions Receiver : 90mm (L) x 115mm (W) x 55mm (H)
• Weight Receiver: Approx.468g
