Damp Digital Reverb Pedal

173.554UK NRV-3

Damp is the name given to this miniature digital reverb pedal to describe the immersive sound image provided by its 3 inbuilt reverb models. A choice of Spring, Plate or Hall reverberation types ca...

  • 3 selectable reverberation models
  • Buffered or true bypass selectable
  • Strong and lightweight aluminium die-cast chassis
Description Version Packed
173.554UK
Damp Digital Reverb Pedal
Digital Reverb Gift Box

Damp Digital Reverb Pedal

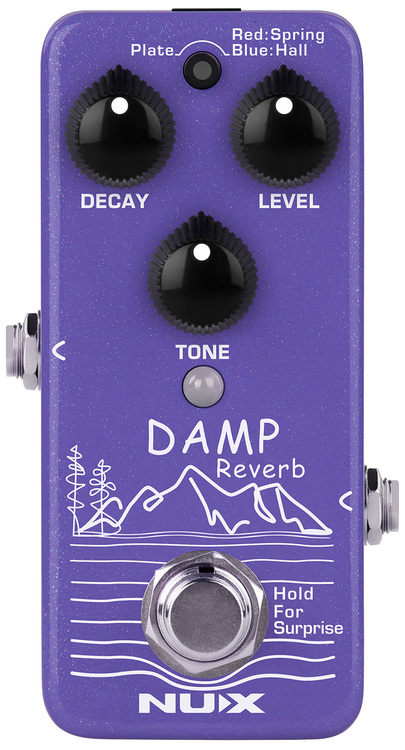

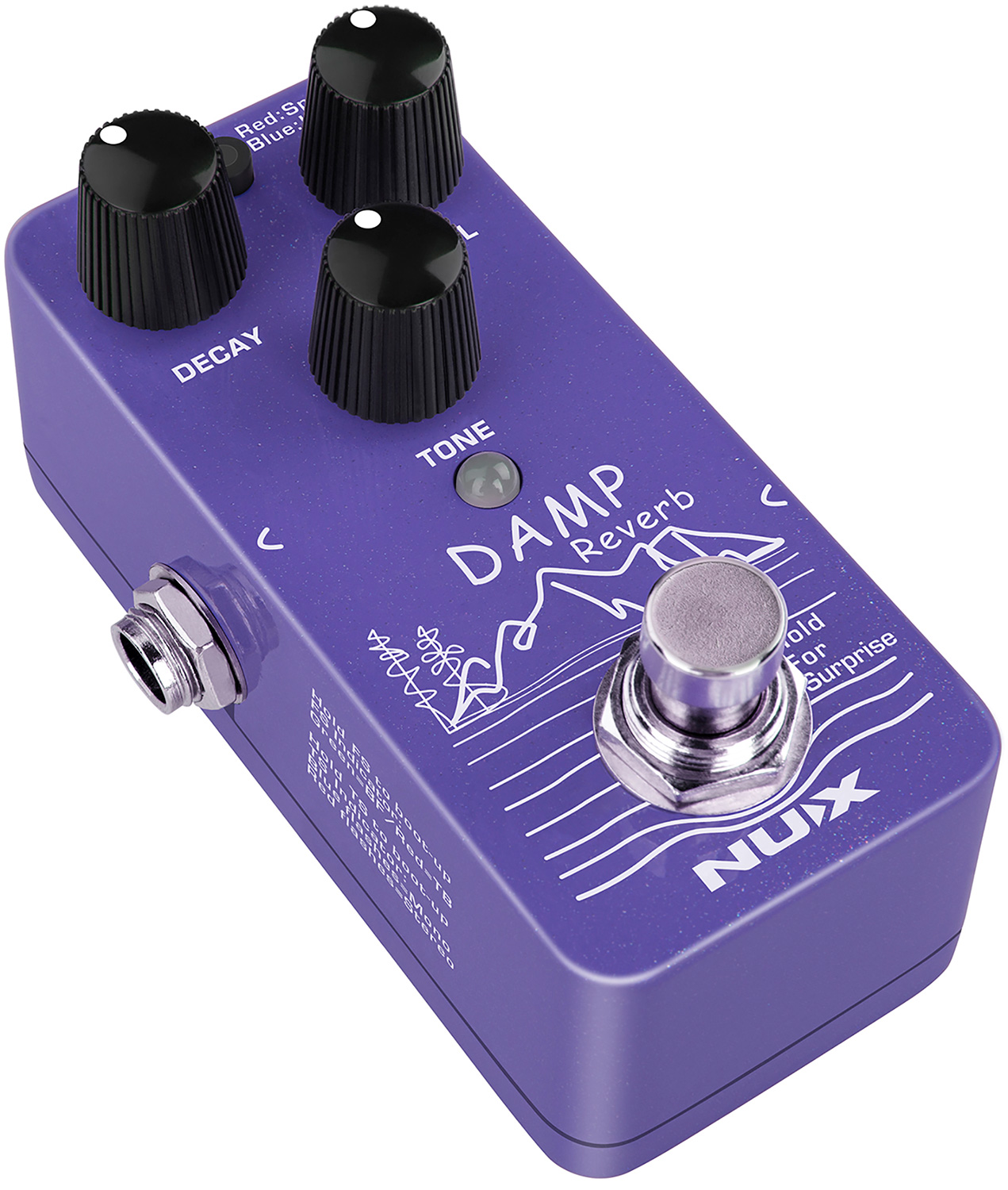

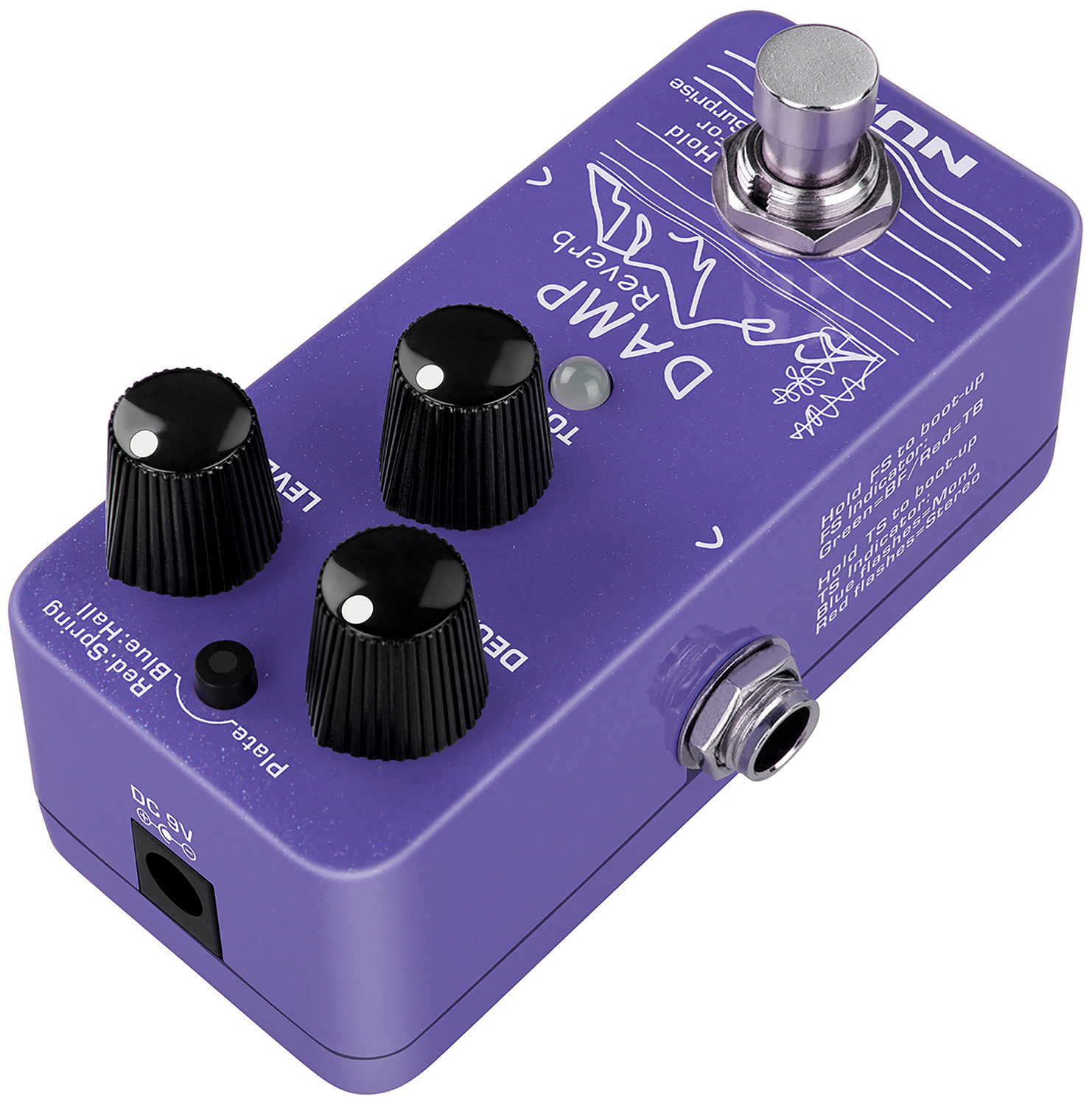

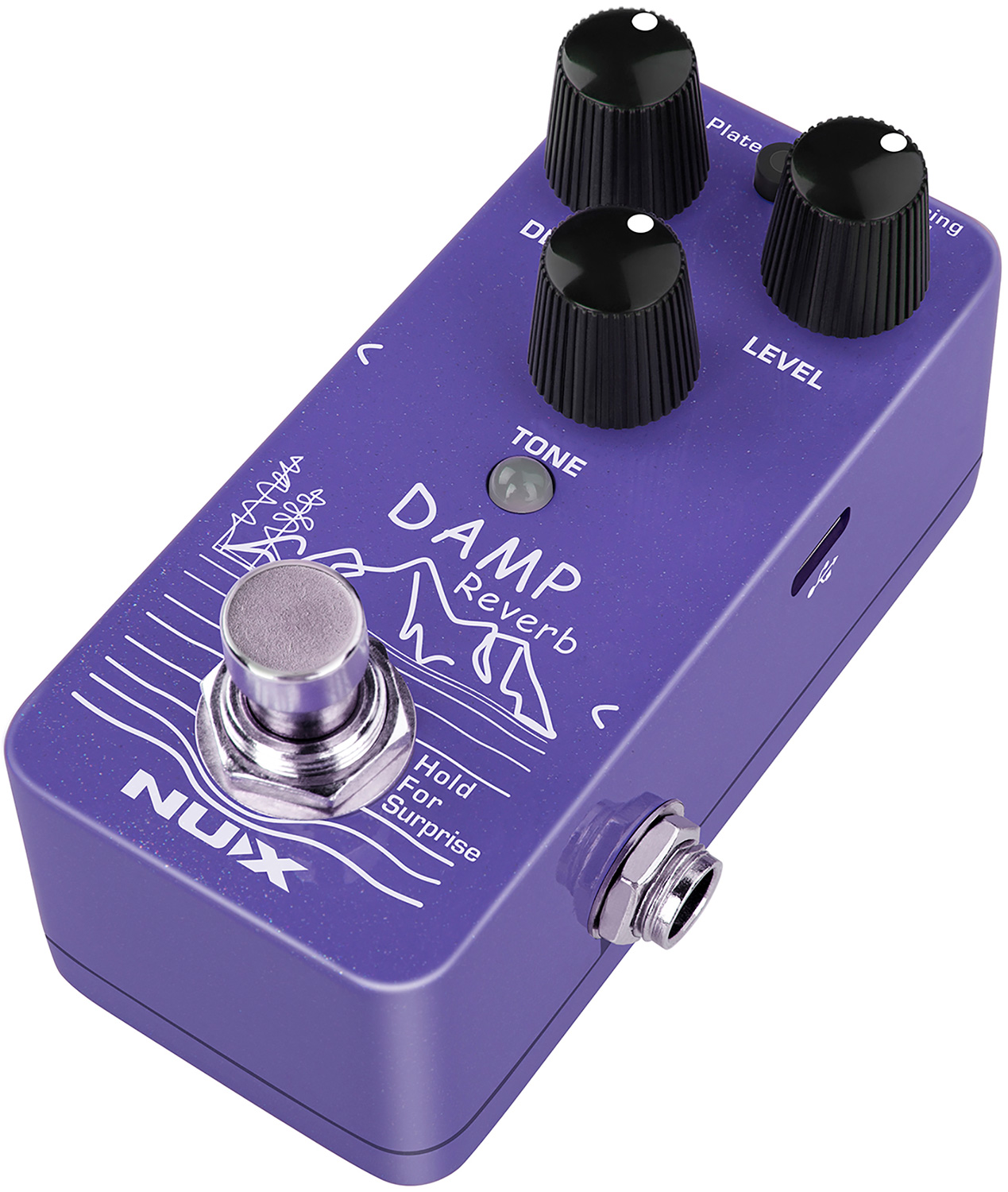

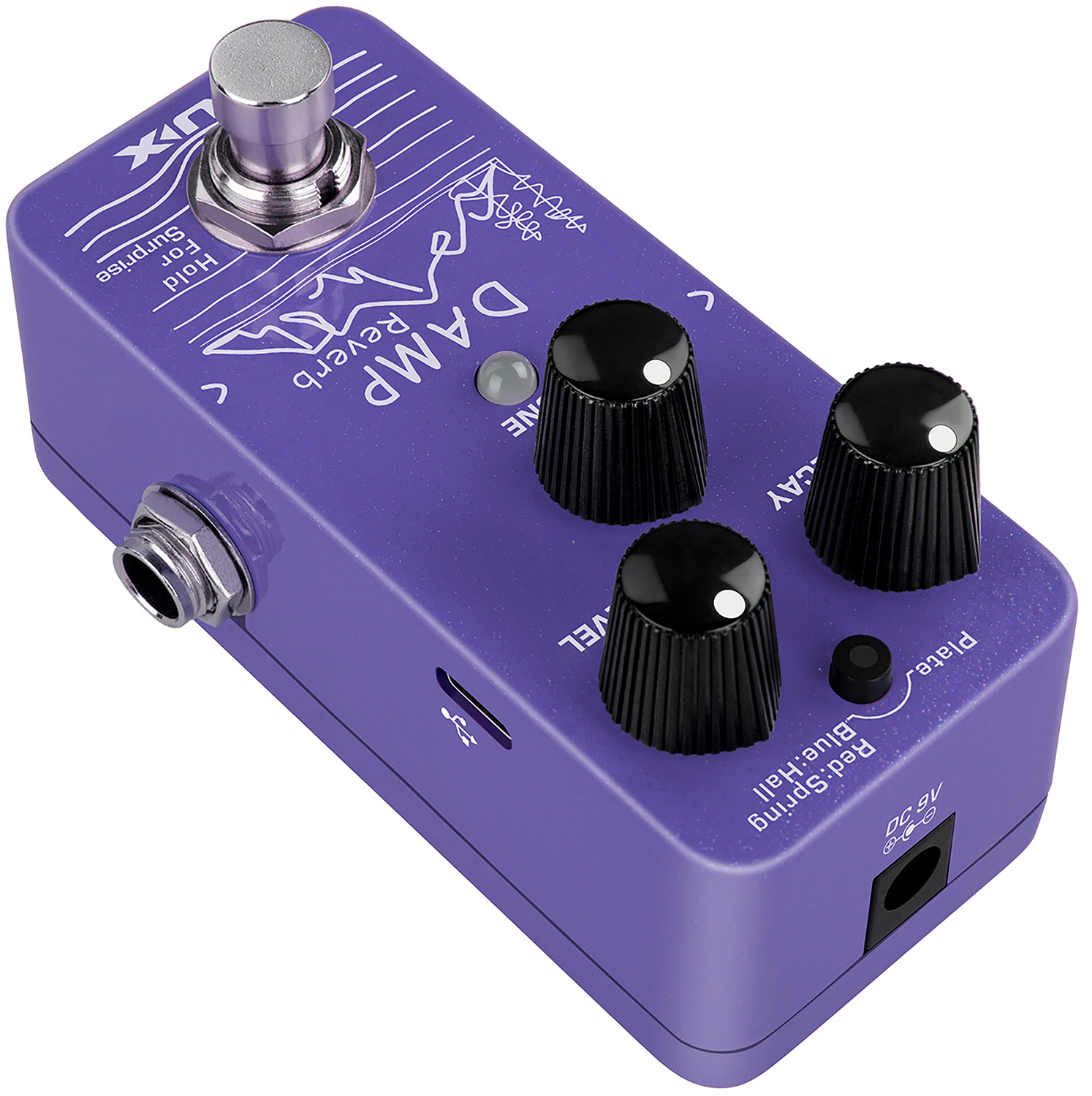

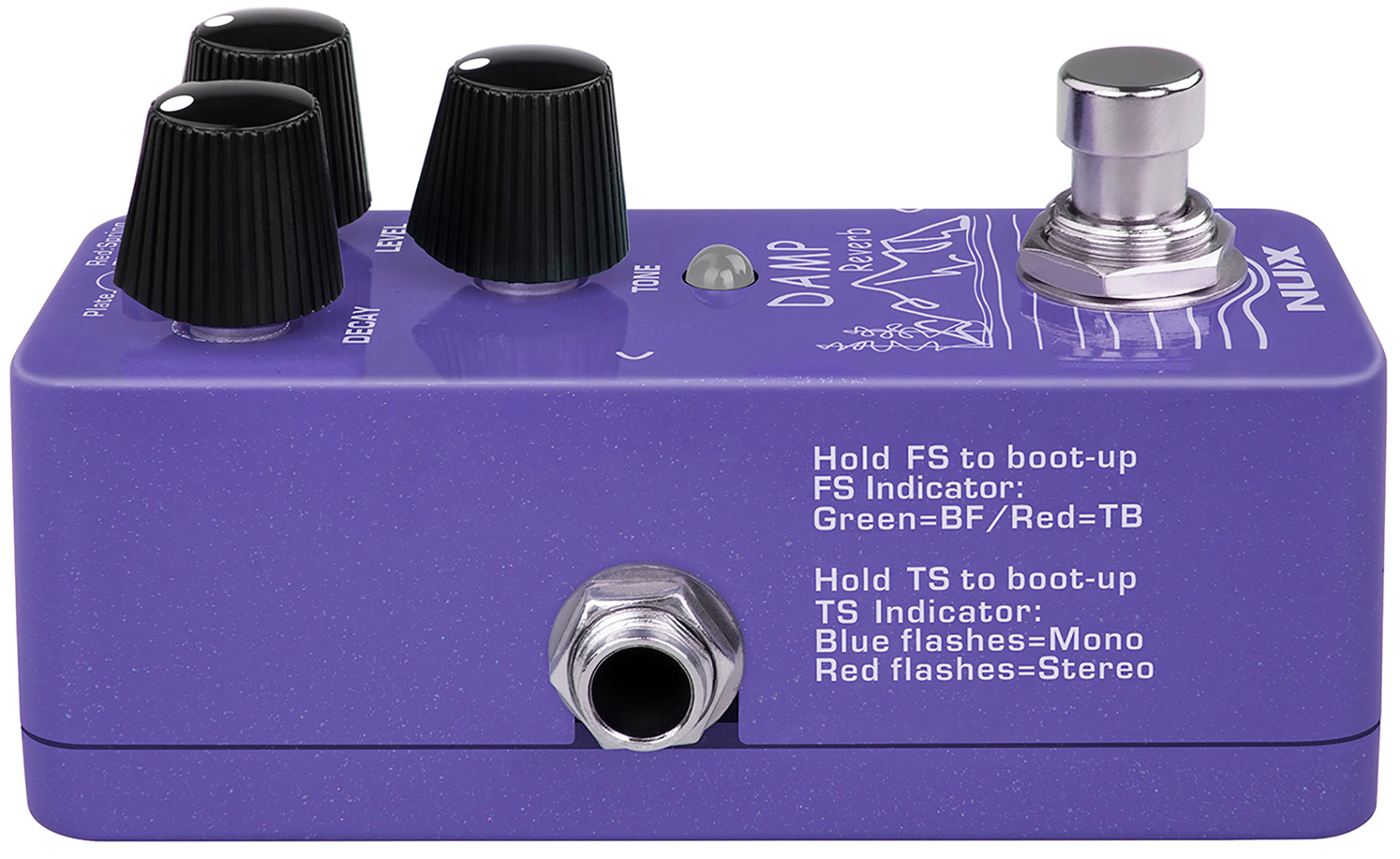

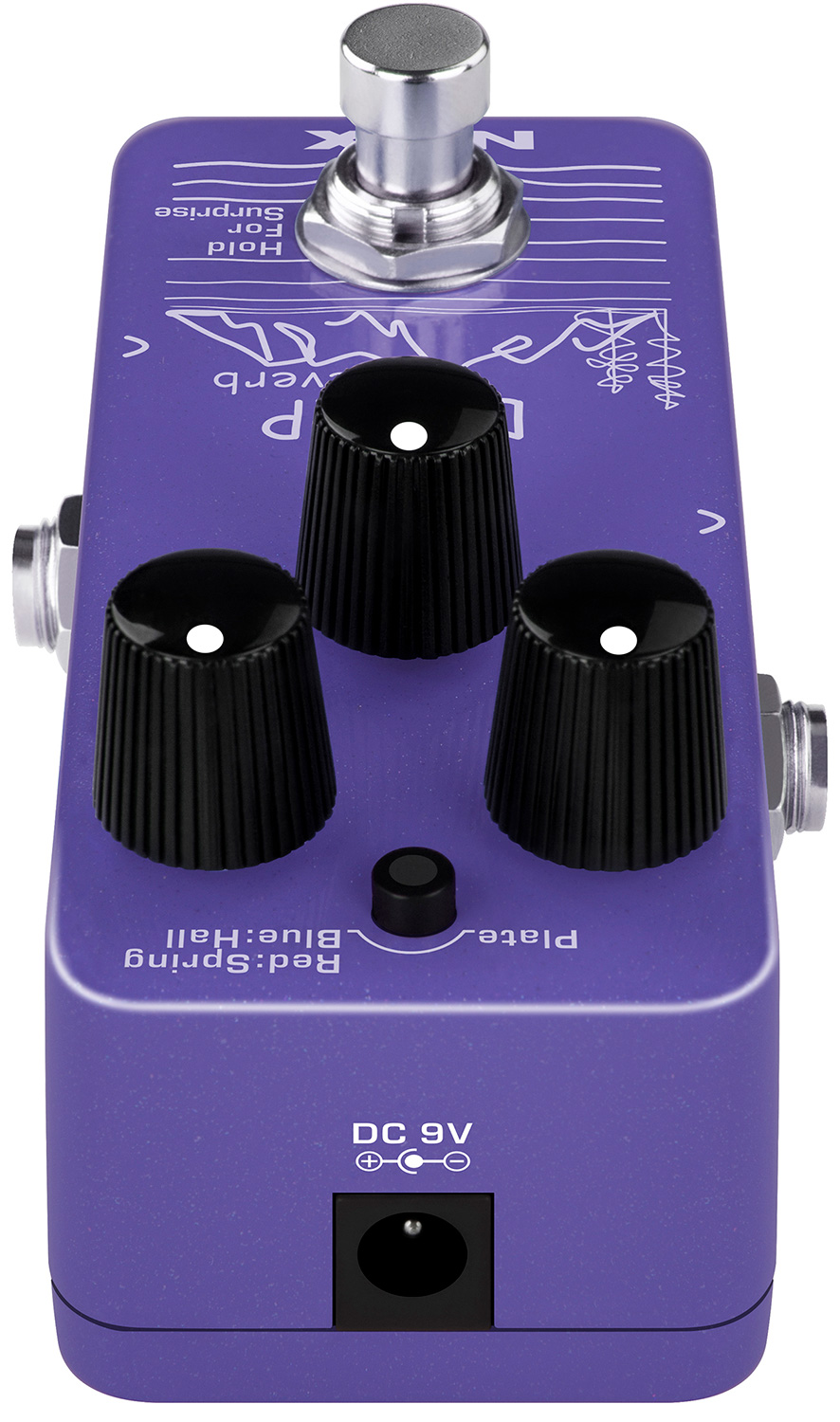

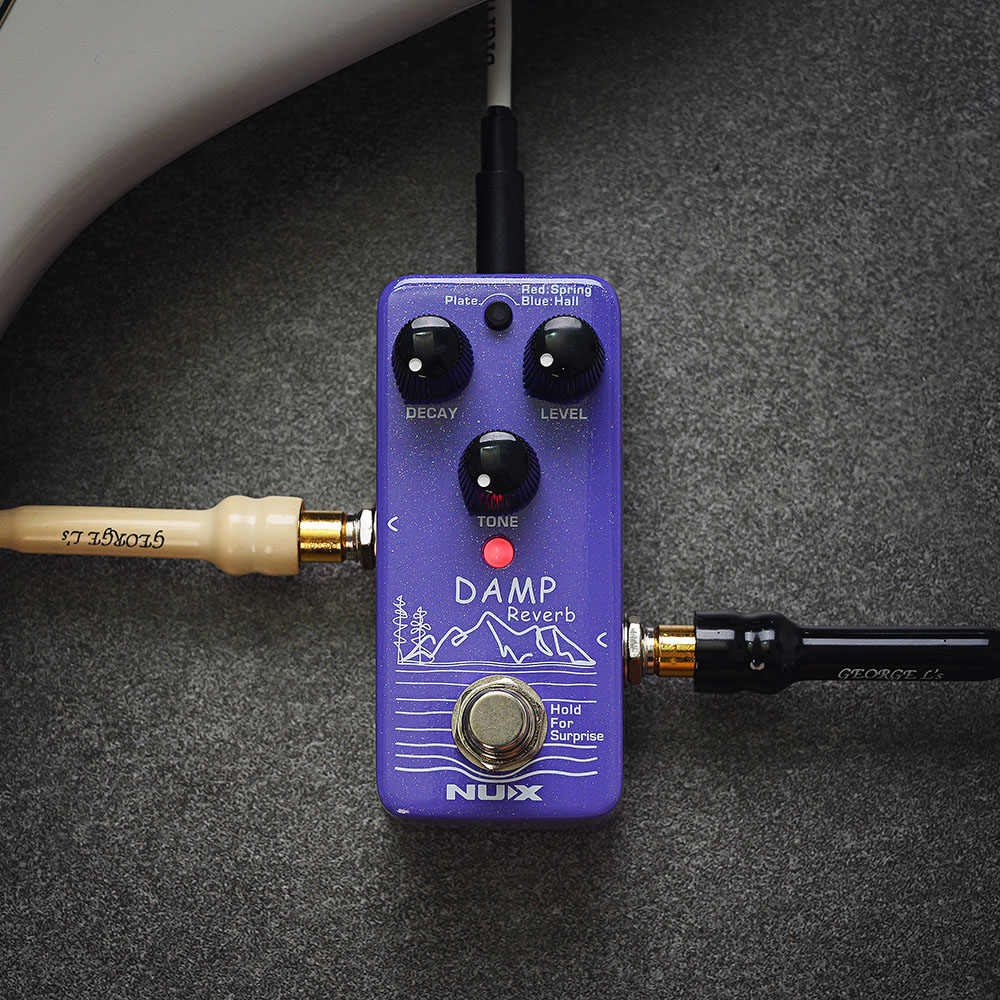

Damp is the name given to this miniature digital reverb pedal to describe the immersive sound image provided by its 3 inbuilt reverb models. A choice of Spring, Plate or Hall reverberation types can be selected by the illuminated push button at the top of the pedal. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Three rotary controls adjust Decay, Level and Tone settings as required. Pressing the footswitch activates or deactivates the effect, whilst holding this pedal enables a secondary effect - Shimmer in Plate mode or Freeze in Spring or Hall modes. The Damp pedal is versatile enough to cover a wide range of reverb styles with a minimal footprint on guitarists' pedalboards or for patching into an effects loop for other instruments or even vocals.

  • 3 selectable reverberation models
  • Buffered or true bypass selectable
  • Strong and lightweight aluminium die-cast chassis

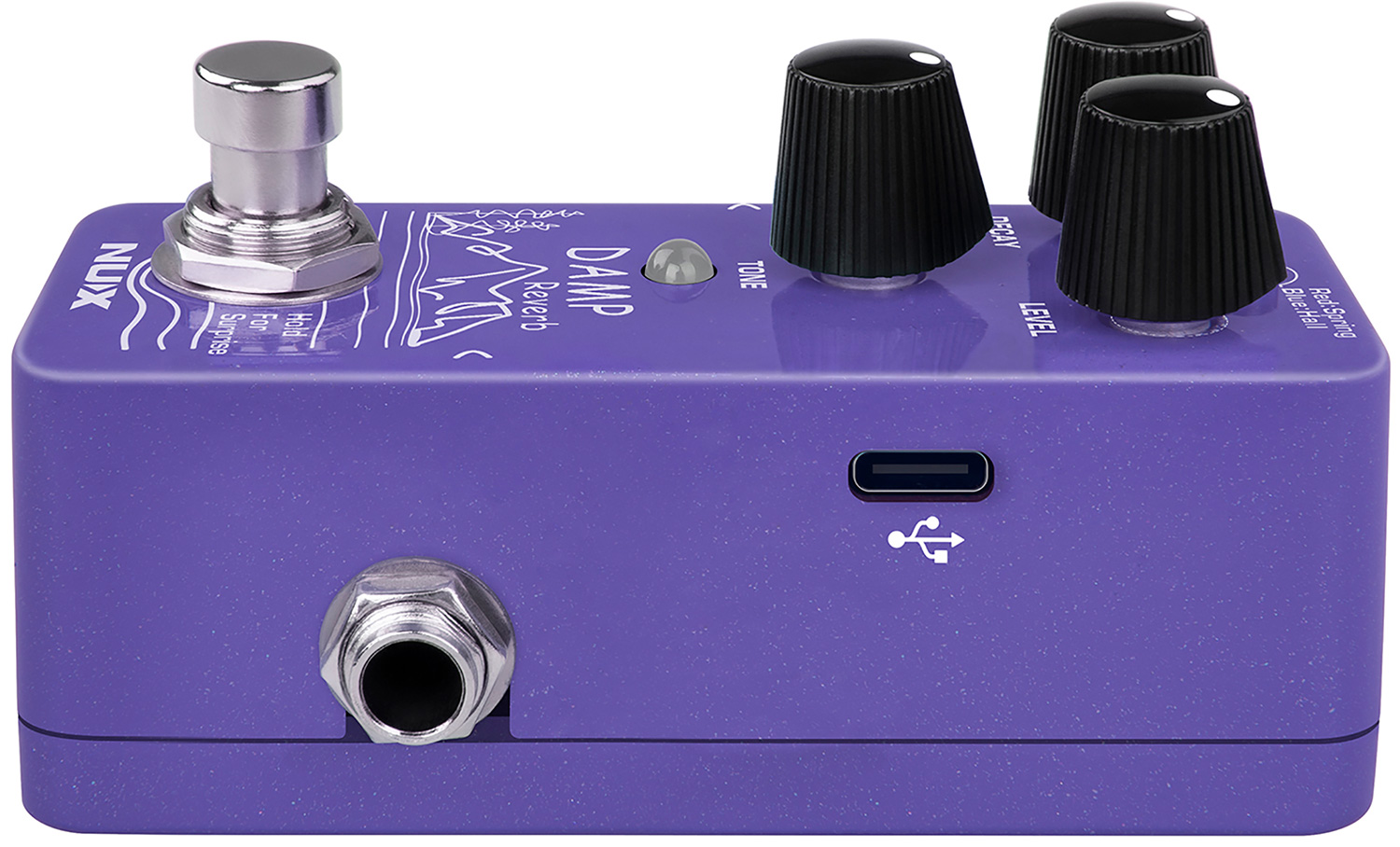

  • USB-C port for future firmware updates
  • Requires 9V center negative DC Power Supply 100mA current draw (Not Supplied)
  • Compatible power supply 173.290UK
  • Power supply 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
  • Controls Decay, Level, Tone and 3 reverb modes switch
  • Dimensions 94 x 53 x 51mm
  • Weight 175g

In the box

The box for this item contains :

  • Damp digital reverb pedal

Downloads

Instruction manual
For 173.554UK (2.7MB)
UK Declaration of conformity
For 173.554UK (245KB)
EU Declaration of conformity
For 173.554UK (235KB)
