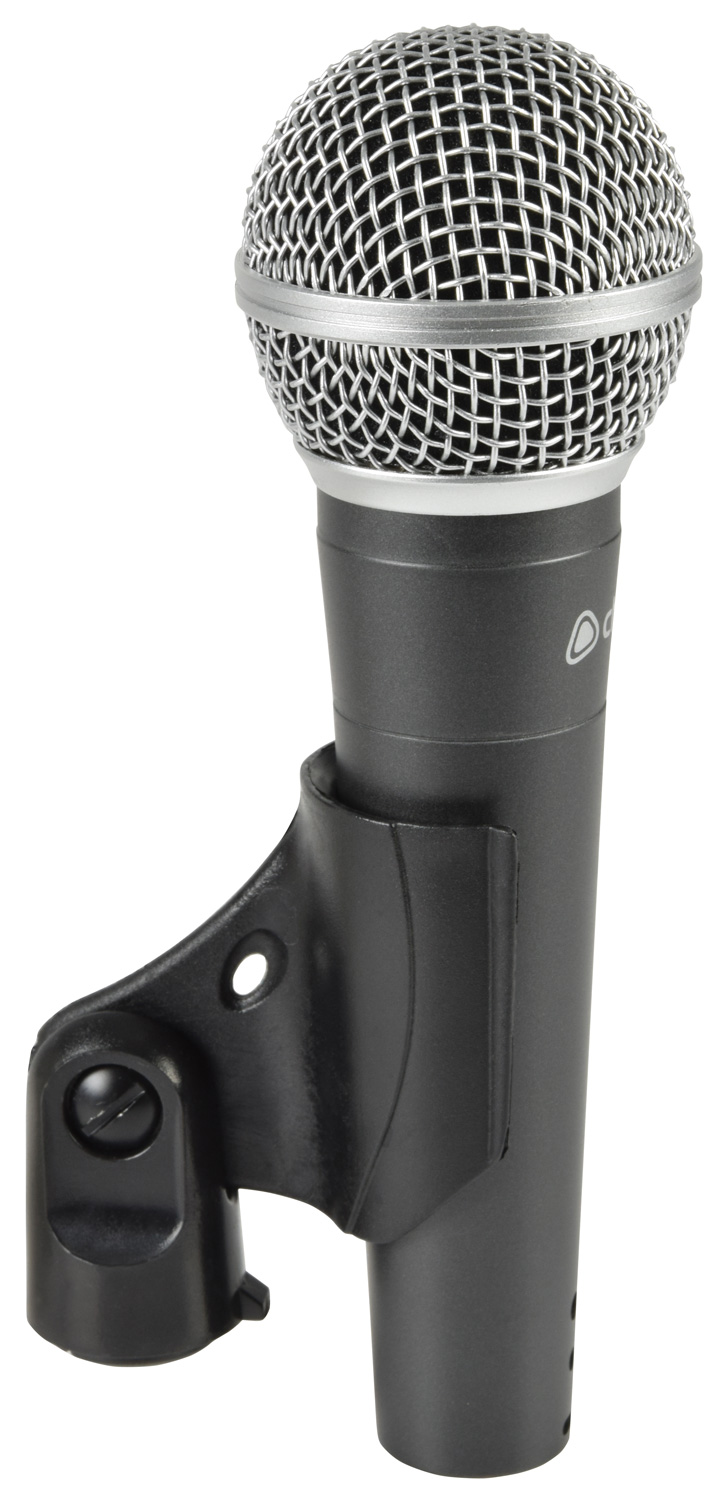

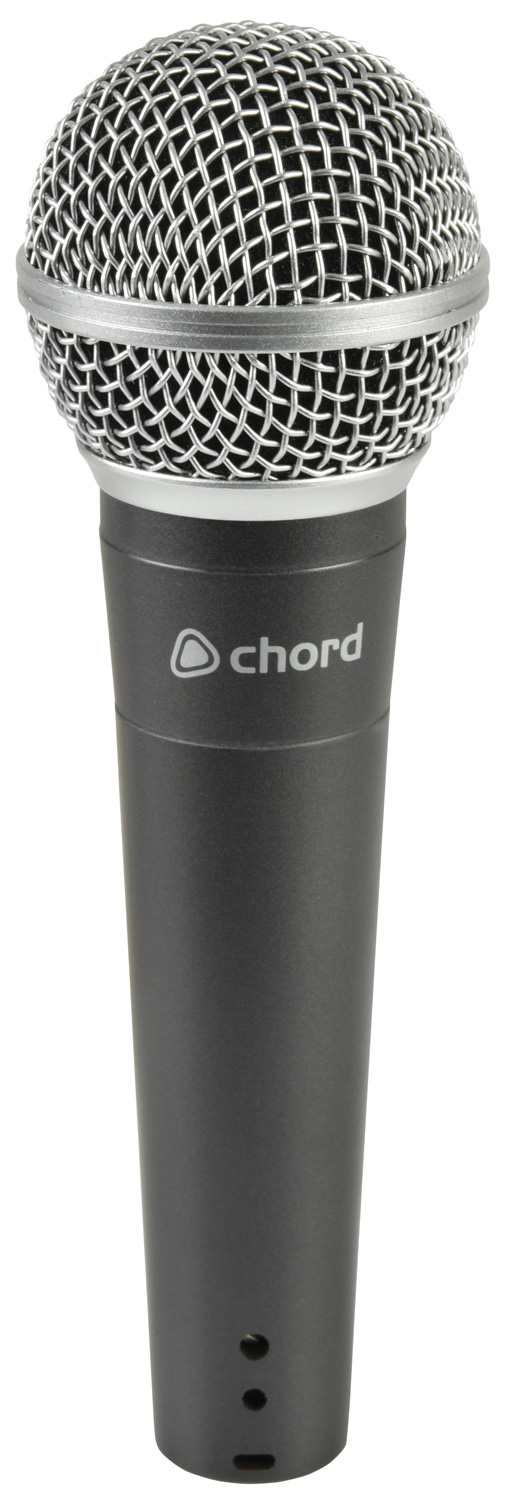

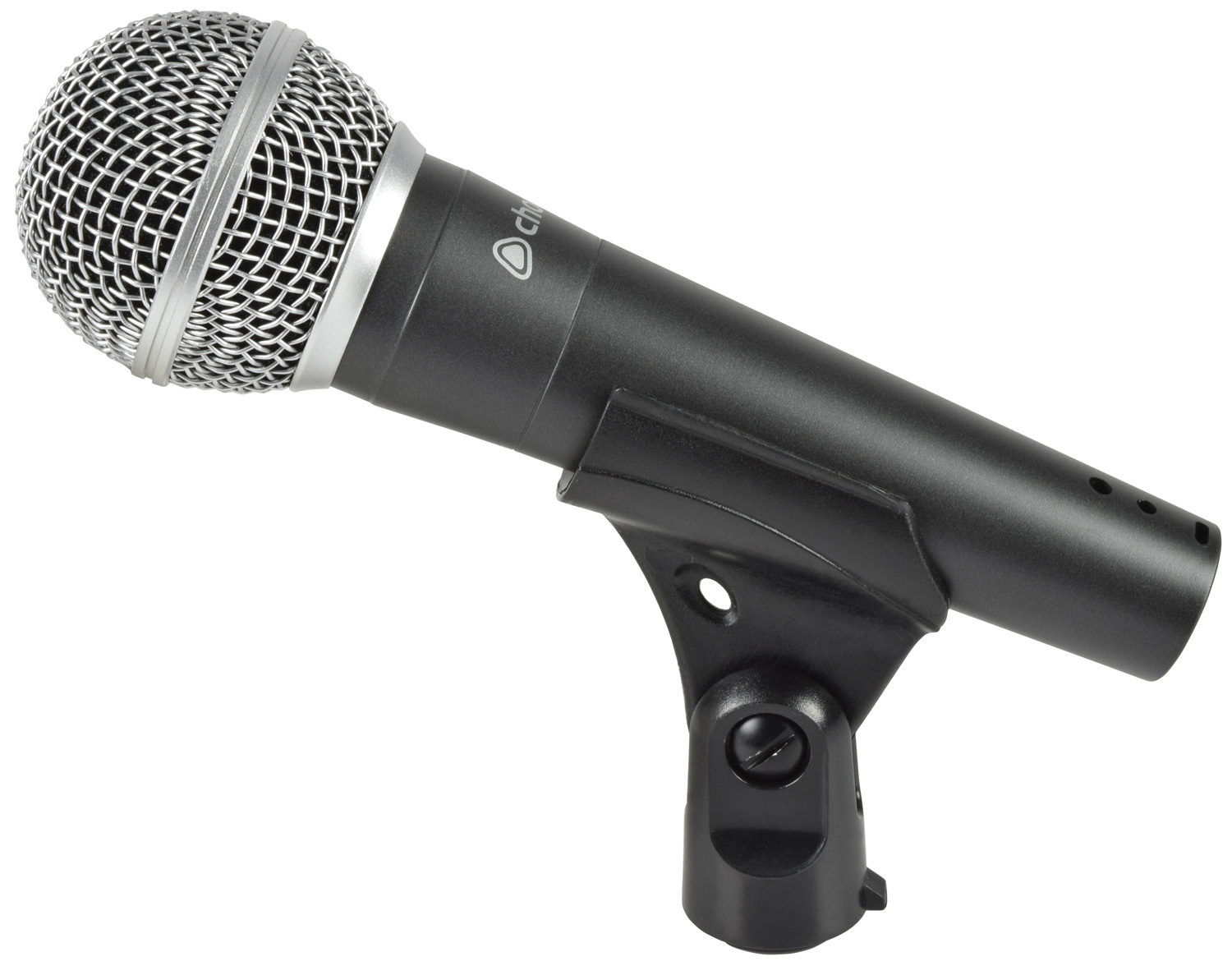

DM02 Dynamic Vocal Microphone

173.607UK DM02

Professional handheld dynamic microphone for stage and studio use. Voiced to suit both male and female vocals and with a wide bandwidth and dynamic range for instrument applications.

  • Supplied with mic holder and mic lead
  • Presence boost for vocal intelligibility
  • Rugged metal construction
Full description Find retailer
Description Version Packed
173.607UK
DM02 professional dynamic vocal microphone 		Box Label

DM02 Dynamic Vocal Microphone

Professional handheld dynamic microphone for stage and studio use. Voiced to suit both male and female vocals and with a wide bandwidth and dynamic range for instrument applications.

  • Supplied with mic holder and mic lead
  • Presence boost for vocal intelligibility
  • Rugged metal construction
  • Wide dynamic range

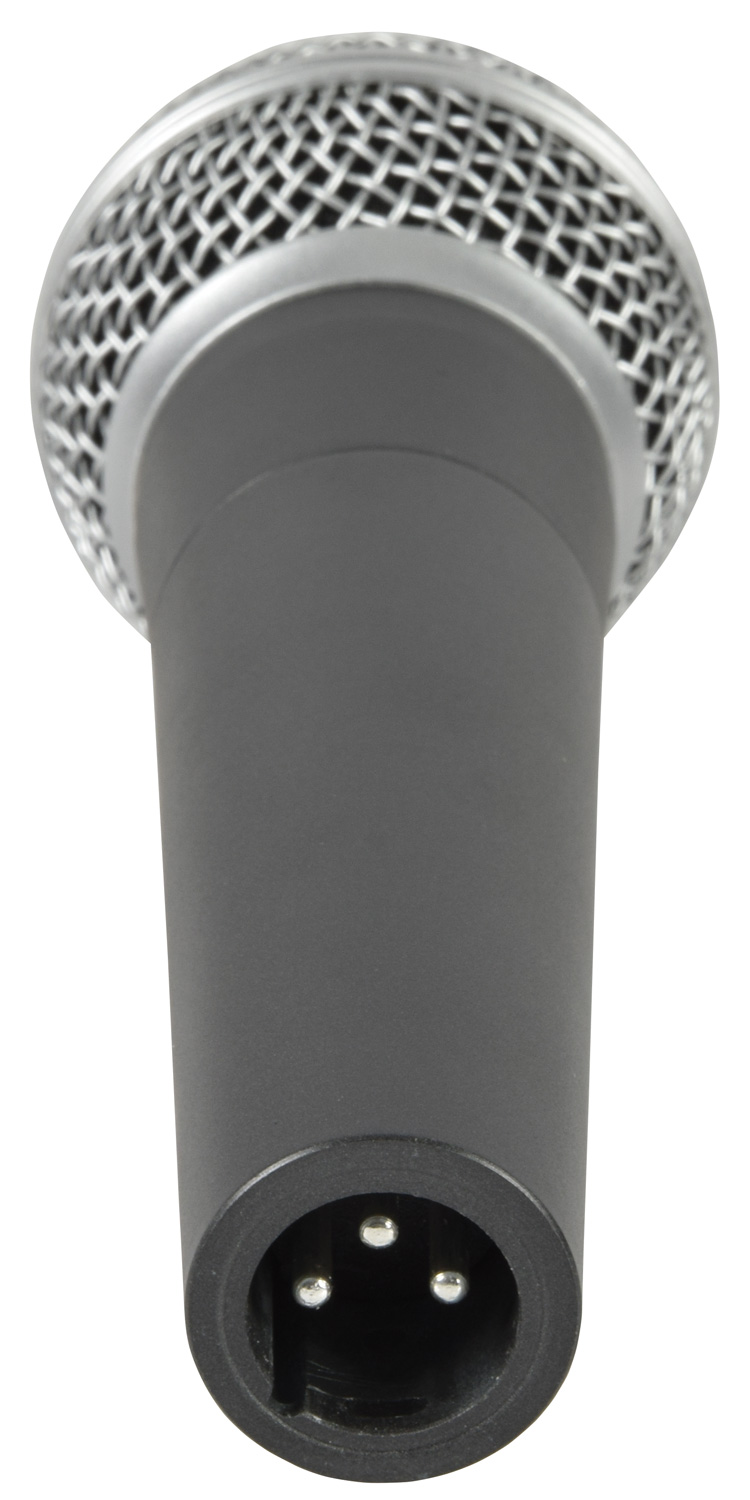

  • Connector XLRM
  • Max. SPL 144dB
  • Output impedance 600 Ohms (1kHz)
  • Sensitivity -53dB ±3dB (0dB=1V/Pa @ 1kHz)

Versions

  173.607UK
Polar pattern Hypercardioid
Frequency response 50Hz - 16kHz
Dimensions 175 x 50mmØ
Weight 230g

Support : articles

Microphones guide

Whether on stage, in the studio, place of worship or a conference, choosing the correct microphone for the job will be the difference between being heard and being heard clearly.

Friday, 3rd March 2017

Dynamic vs condenser microphones

The way that a microphones picks up sound determines how useful the resulting audio output is for different applications. There are 2 main types of capsule used in microphones – dynamic and condenser.

Friday, 3rd March 2017

In the box

The box for this item contains :

  • DM02 microphone
  • 4m XLR mic lead

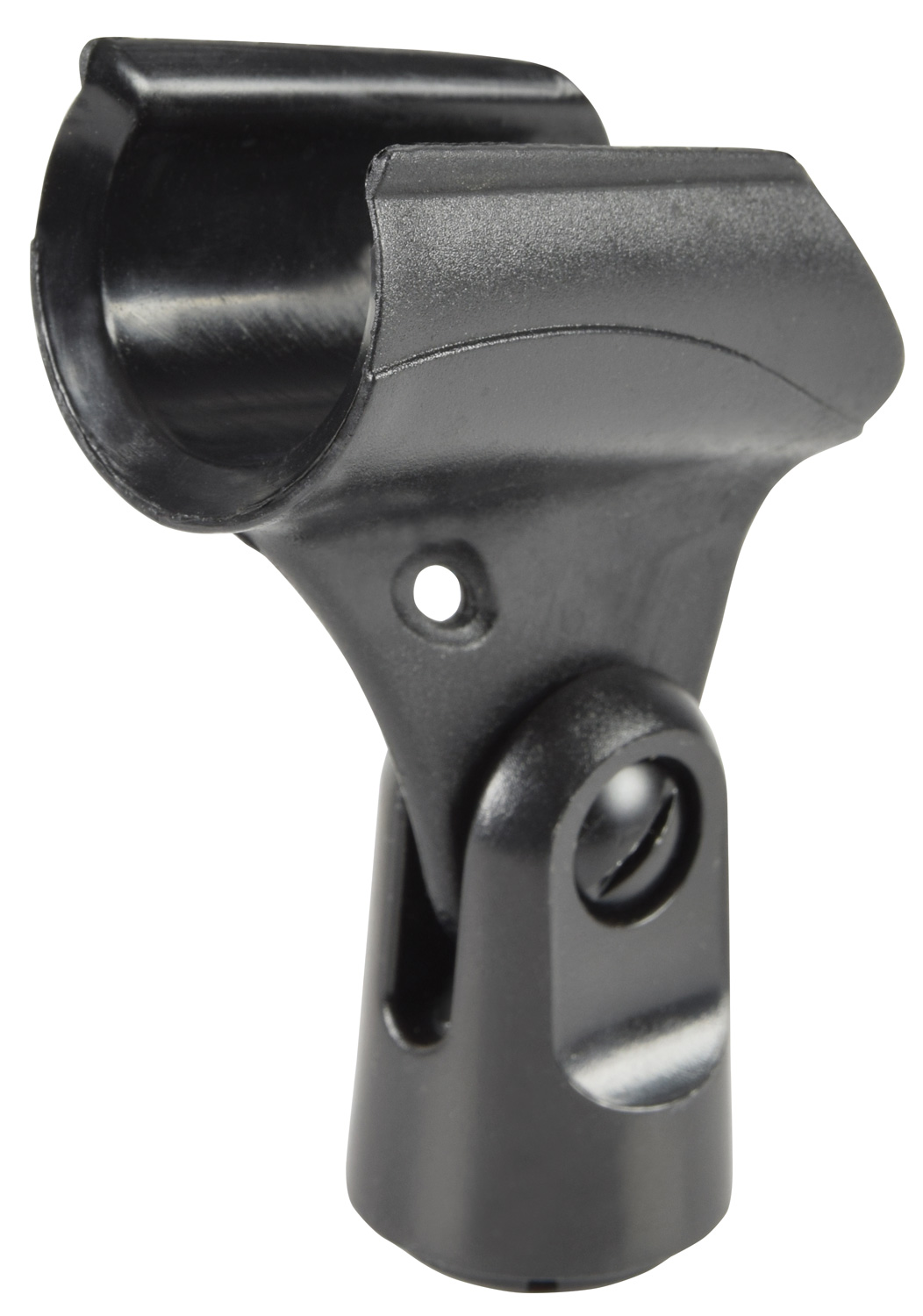

  • Mic clip

Downloads

UK Declaration of conformity
For 173.607UK (238KB)
EU Declaration of conformity
For 173.607UK (229KB)
