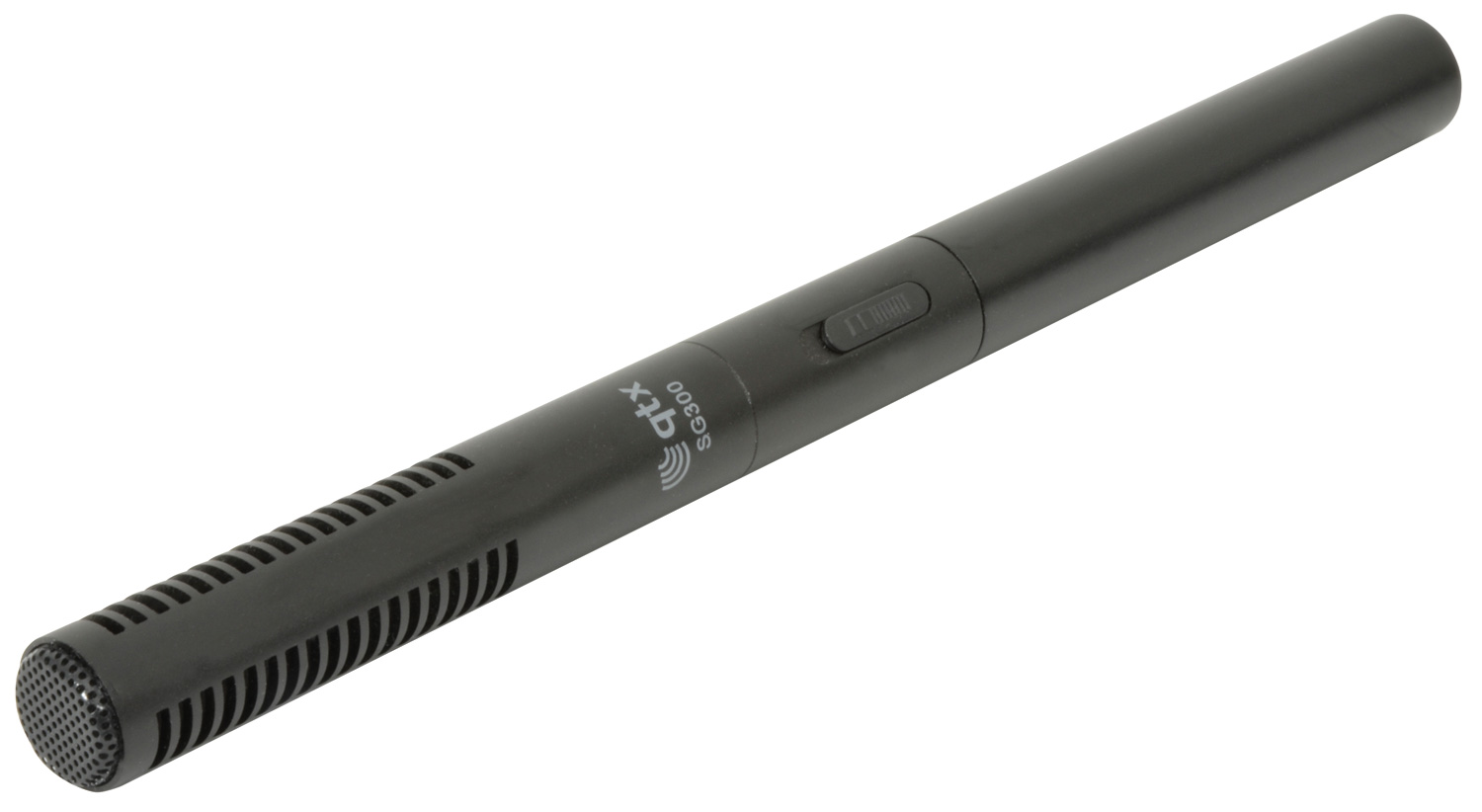

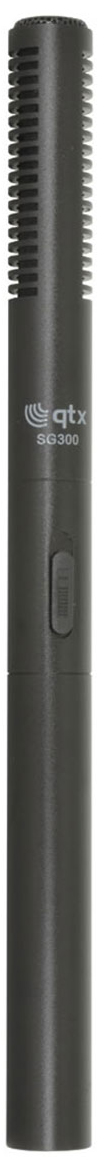

Shotgun Microphones

173.638UK SG300

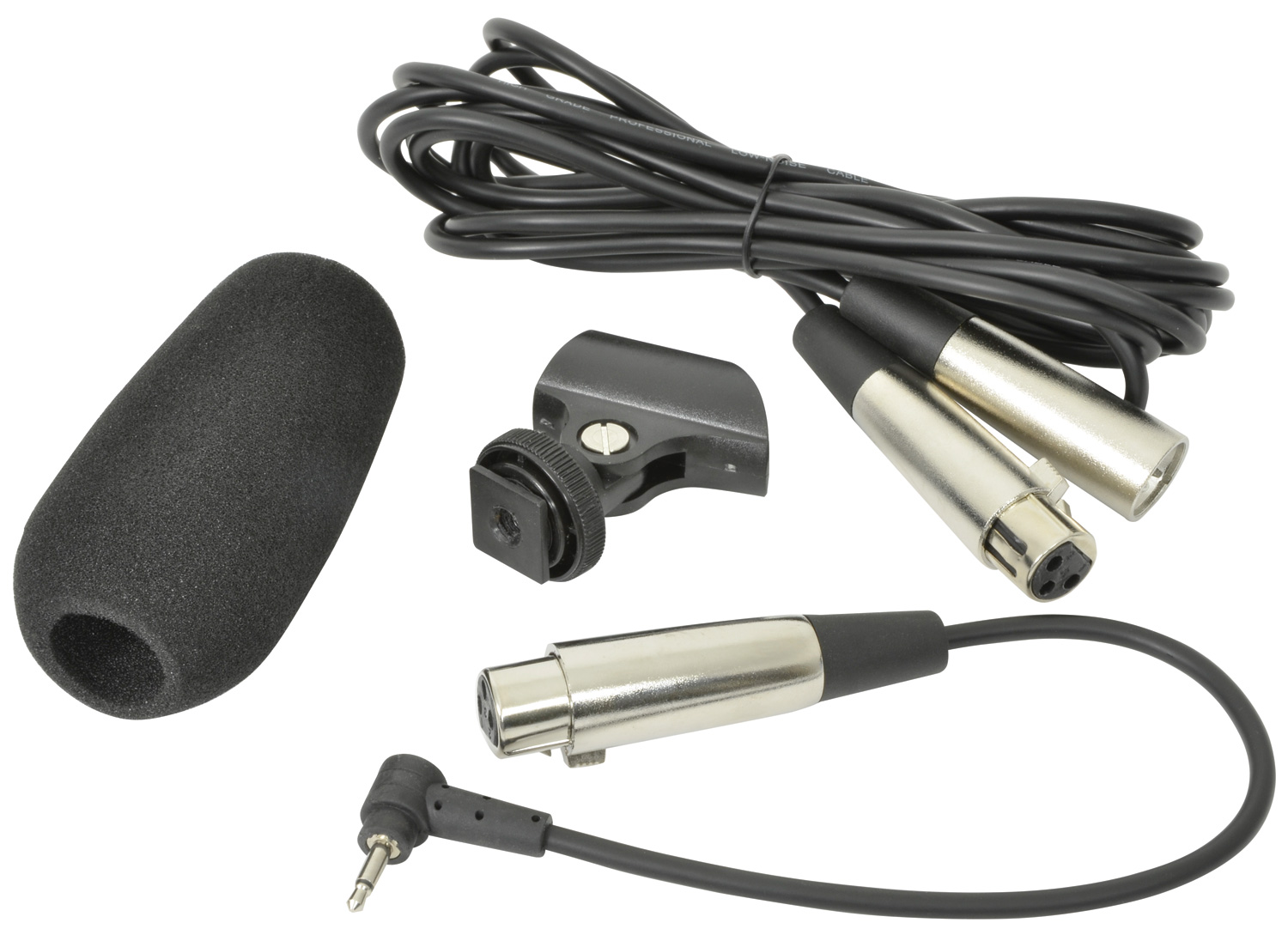

Shotgun microphones with battery compartment inside the microphone body. Integral XLRM connector, supplied with lead, clip and foam windshield.

  • Switchable cardioid/hypercardioid polar pattern
  • Supplied with hot-shoe camera mount
Full description Find retailer
Description Version Packed
173.638UK
SG300 shotgun microphone 		Short Box Label
173.639UK
SG350 long shotgun microphone 		Long Box Label

Shotgun Microphones

Shotgun microphones with battery compartment inside the microphone body. Integral XLRM connector, supplied with lead, clip and foam windshield.

  • Switchable cardioid/hypercardioid polar pattern
  • Supplied with hot-shoe camera mount
  • Power supply 1.5Vdc (AA battery)
  • Polar pattern Cardioid, hypercardioid (switchable)
  • Frequency response 50Hz-18kHz
  • Connector XLRM
  • Output impedance 230 Ohms
  • Controls 3-way switch: off - cardioid - hypercardioid
  • Sensitivity -40dB (±2dB)
  • Output impedance 500/1600K? ±30% (1kHz).
  • Frequency response 100Hz - 16kHz

Versions

  173.638UK 173.639UK
Dimensions 297 x 22mmØ 350 x 22mmØ
Weight 136g 160g

Support : articles

Dynamic vs condenser microphones

The way that a microphones picks up sound determines how useful the resulting audio output is for different applications. There are 2 main types of capsule used in microphones – dynamic and condenser.

Friday, 3rd March 2017

Downloads

UK Declaration of conformity
For 173.638UK (239KB)
EU Declaration of conformity
For 173.638UK (232KB)
