2-way PA speaker cabinets with a high-impact moulded polypropylene enclosures. Fitted with a high power main driver and a titanium diaphragm compression driver for high frequencies. Each cabinet ha...

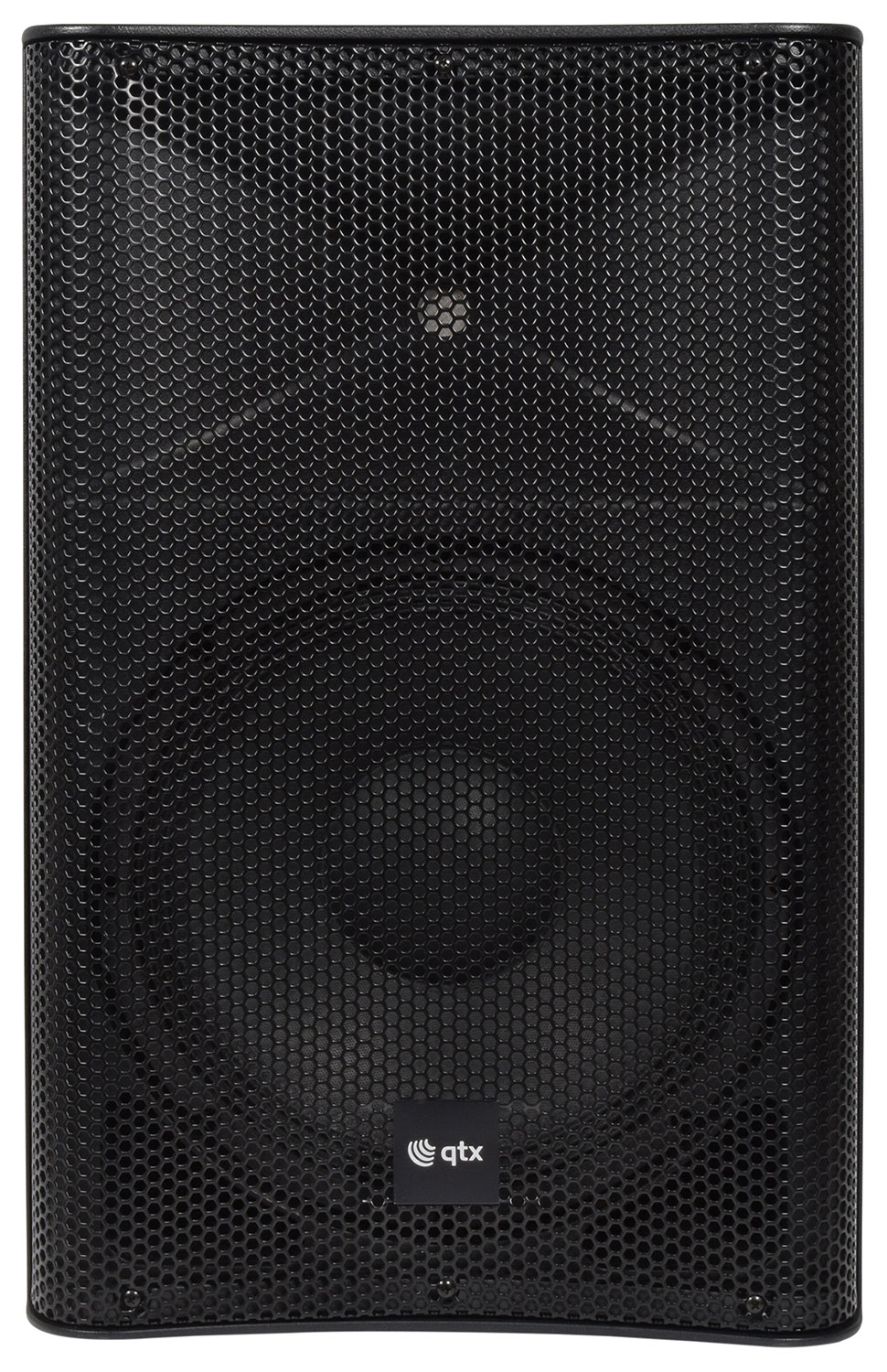

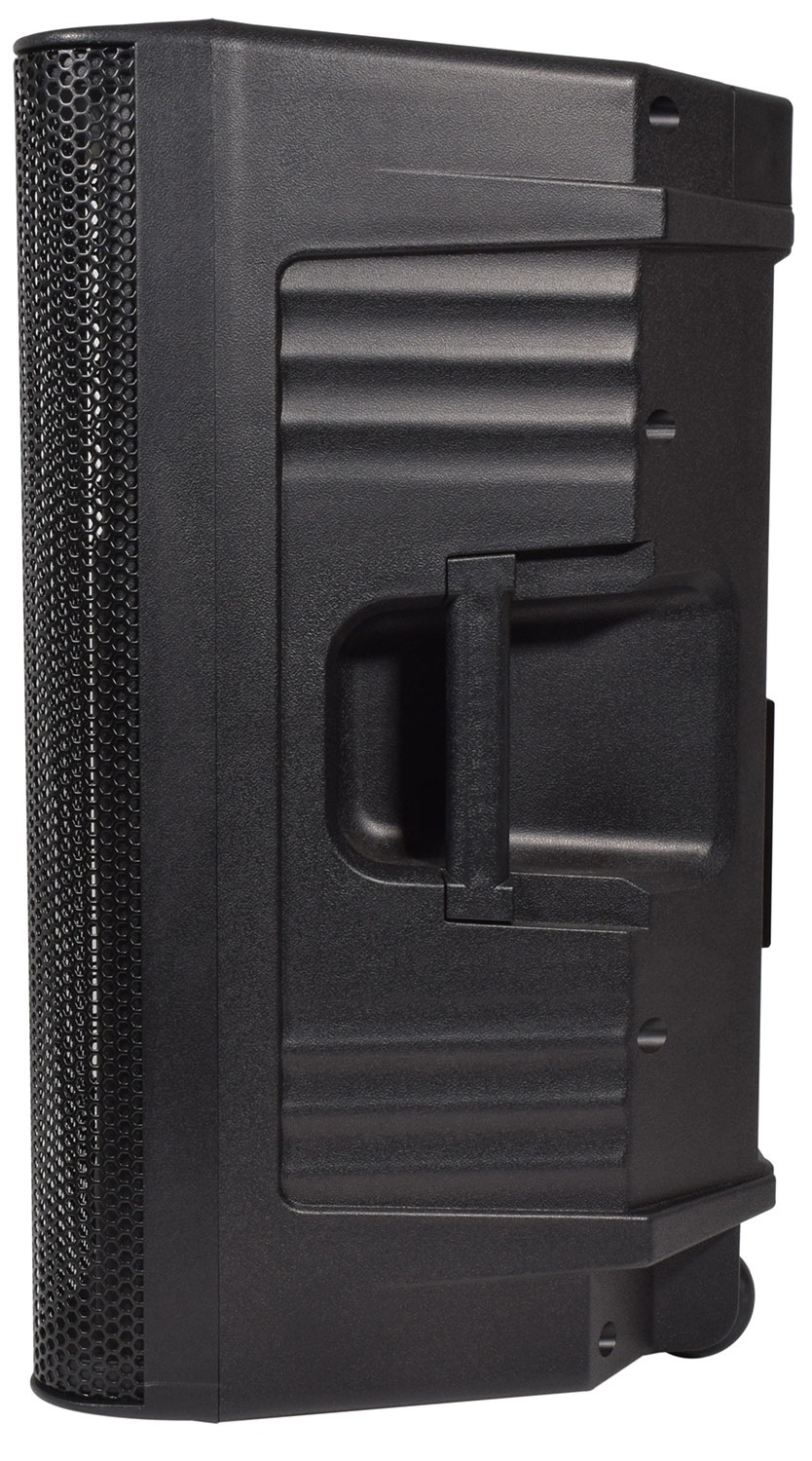

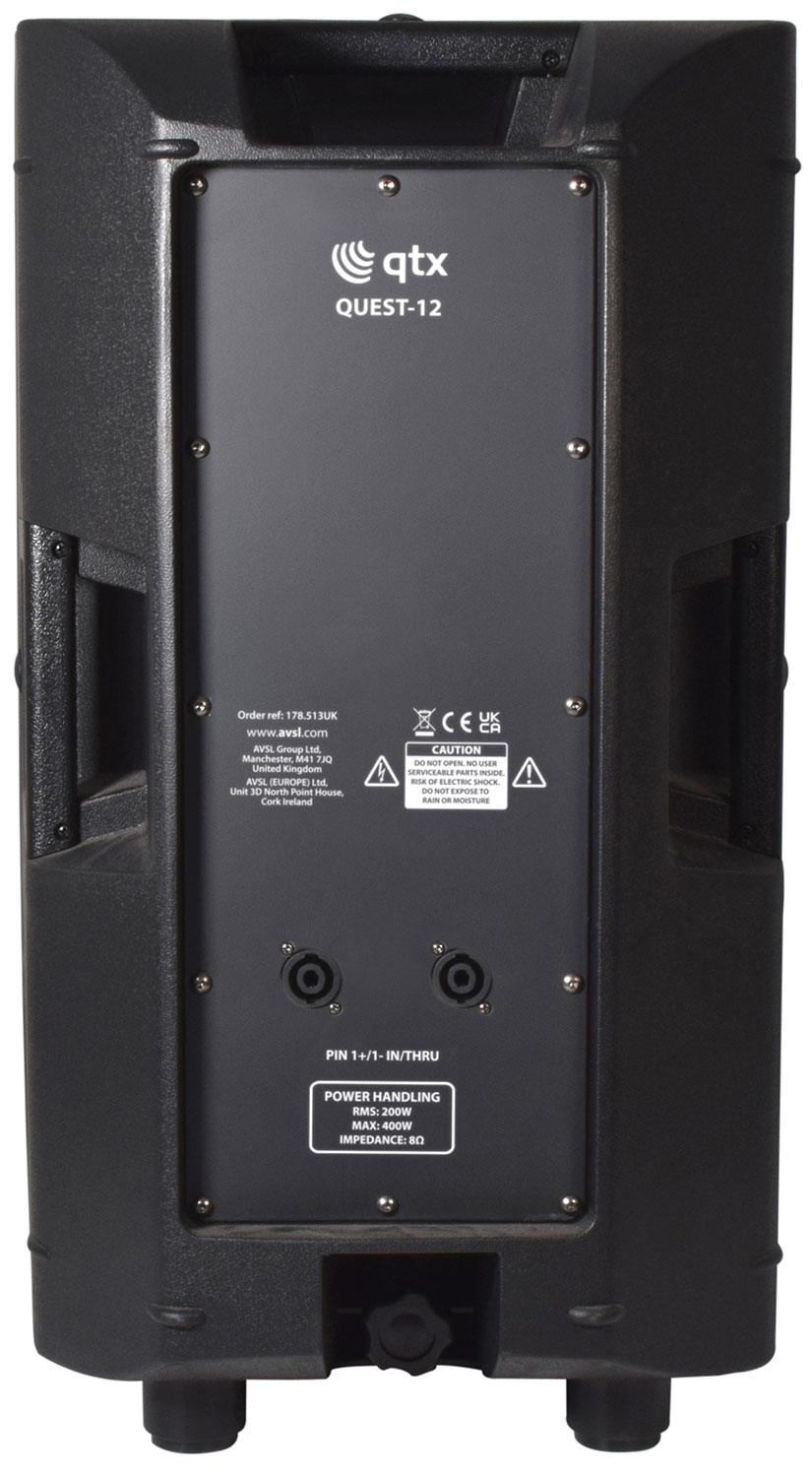

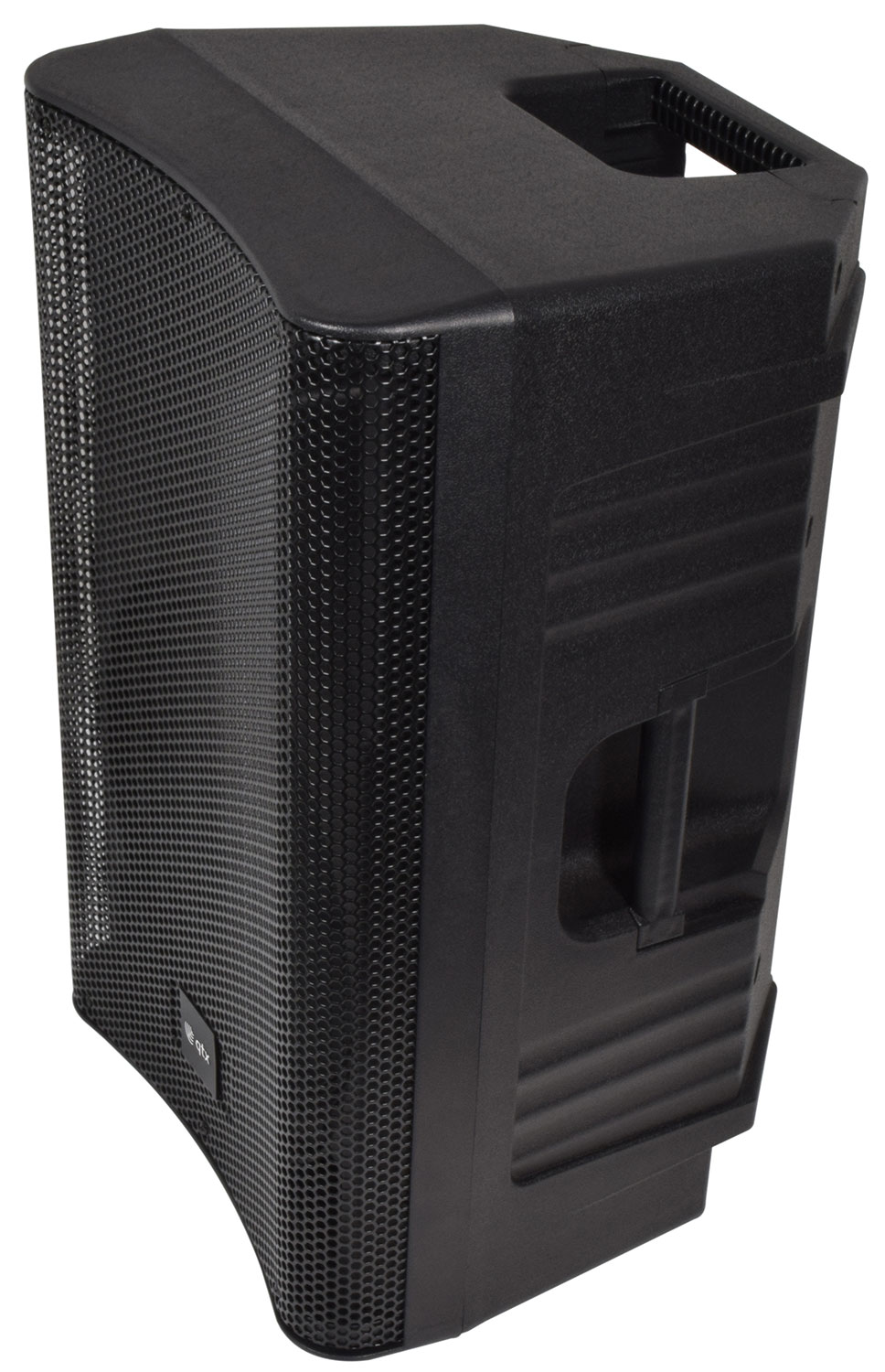

2-way PA speaker cabinets with a high-impact moulded polypropylene enclosures. Fitted with a high power main driver and a titanium diaphragm compression driver for high frequencies. Each cabinet has a 35mm pole mount socket, integral side and top handles and trolley wheels for easy portability. A perfect satellite speaker option for QUEST active cabinets or for other PA systems that need full range sound in a sturdy, roadworthy format.
| 178.511UK | 178.513UK | 178.516UK | |
|---|---|---|---|
| Woofer | 250mmØ (10") | 300mmØ (12") | 380mmØ (15") |
| Tweeter | 25mmØ (1.00") Ti Compression driver | 35mmØ (1.35") Ti Compression driver | 35mmØ (1.35") Ti Compression driver |
| Power handling : rms | 180W | 200W | 220W |
| Power handling : max | 360W | 400W | 440W |
| Sensitivity | 94dB | 96dB | 97dB |
| Dimensions | 460 x 305 x 280mm | 590 x 380 x 335mm | 680 x 415 x 380mm |
| Frequency response | 55Hz - 19kHz | 50Hz - 19kHz | 45Hz - 19kHz |
| Weight | 5.8kg | 14.6kg | 16.0kg |
Impedance is the effective resistance of an electric circuit or component to alternating current, arising from the combined effects of resistance and reactance. Here we explain the features of low impedance and how it is implemented in a speaker system.
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
A summary explaining the key differences between RMS, Max and Peak power ratings.
The box for this item contains :
