QRPA Portable PA with Bluetooth

178.838UK QR8PABT

Compact portable PA unit based on the QR speaker cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit. Two VHF h...

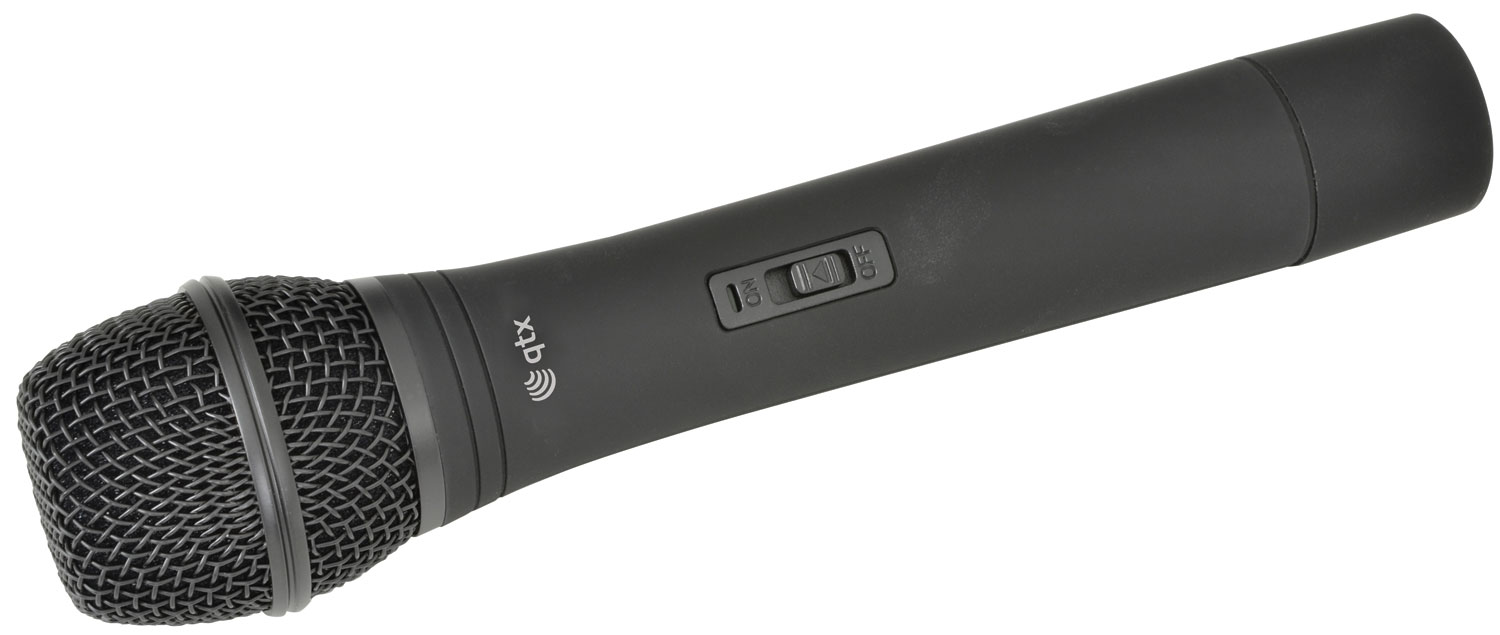

  • VHF handheld microphone included
  • Echo effect for microphones
  • Integral USB/SD/FM player with record feature and remote
Description Version Packed
178.838UK
QR8PABT Portable PA
8 Inch Box Plain
178.839UK
QR10PABT Portable PA
10 Inch Box Plain
178.847UK
QR12PABT Portable PA
12 Inch Gift Box
178.848UK
QR15PABT Portable PA
15 Inch Gift Box

Accessories

Description Version Packed
178.891UK
Headset for QR+QXPA - 174.1MHz
VHF 174.1MHz Box Plain
178.892UK
Headset for QR+QXPA - 175.0MHz
VHF 175.0MHz Box Plain
178.893UK
Handheld Mic QR+QXPA- 174.1MHz
VHF 174.1MHz Box Plain
178.894UK
Handheld Mic QR+QXPA- 175.0MHz
VHF 175.0MHz Box Plain

QRPA Portable PA with Bluetooth

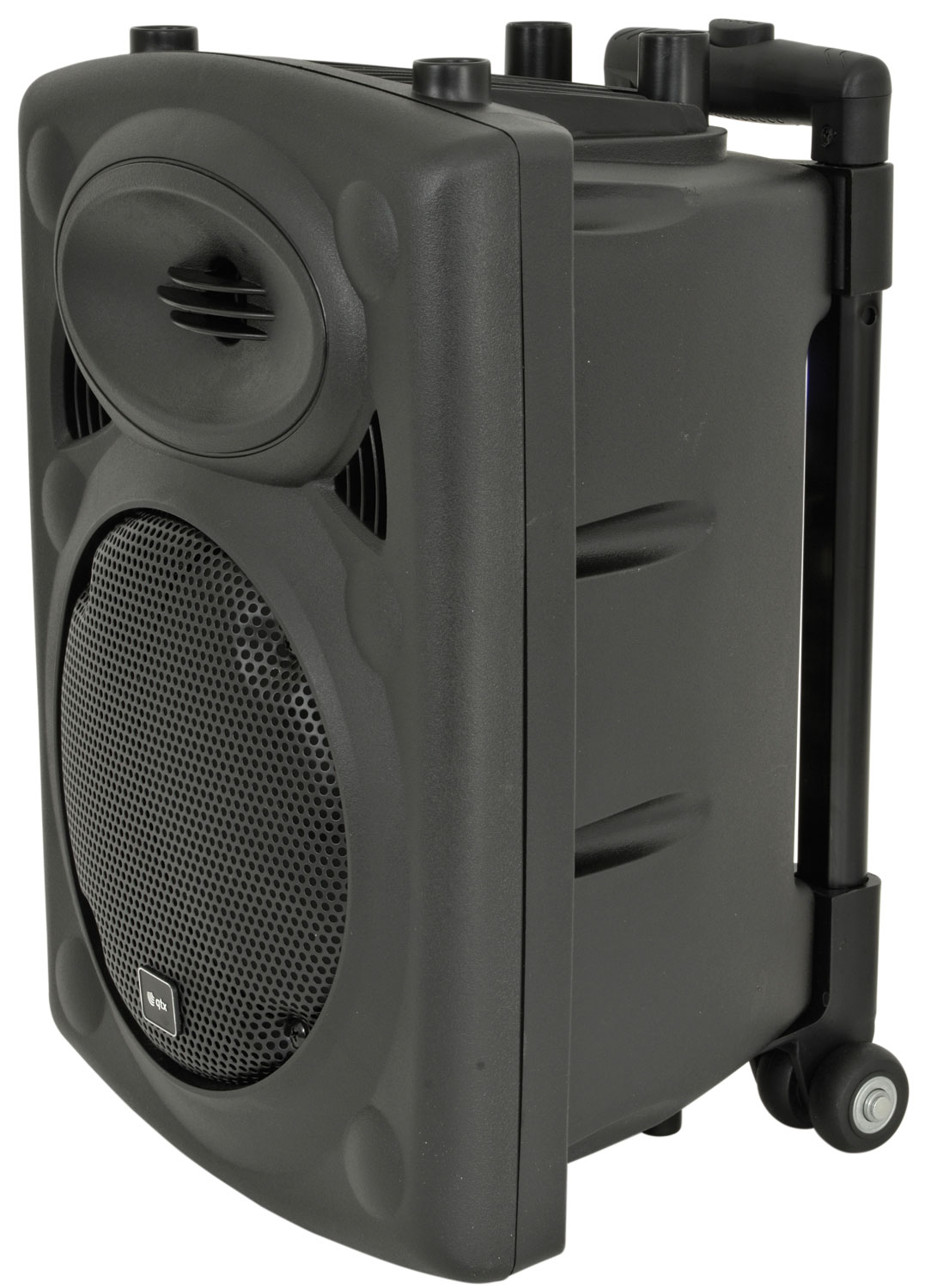

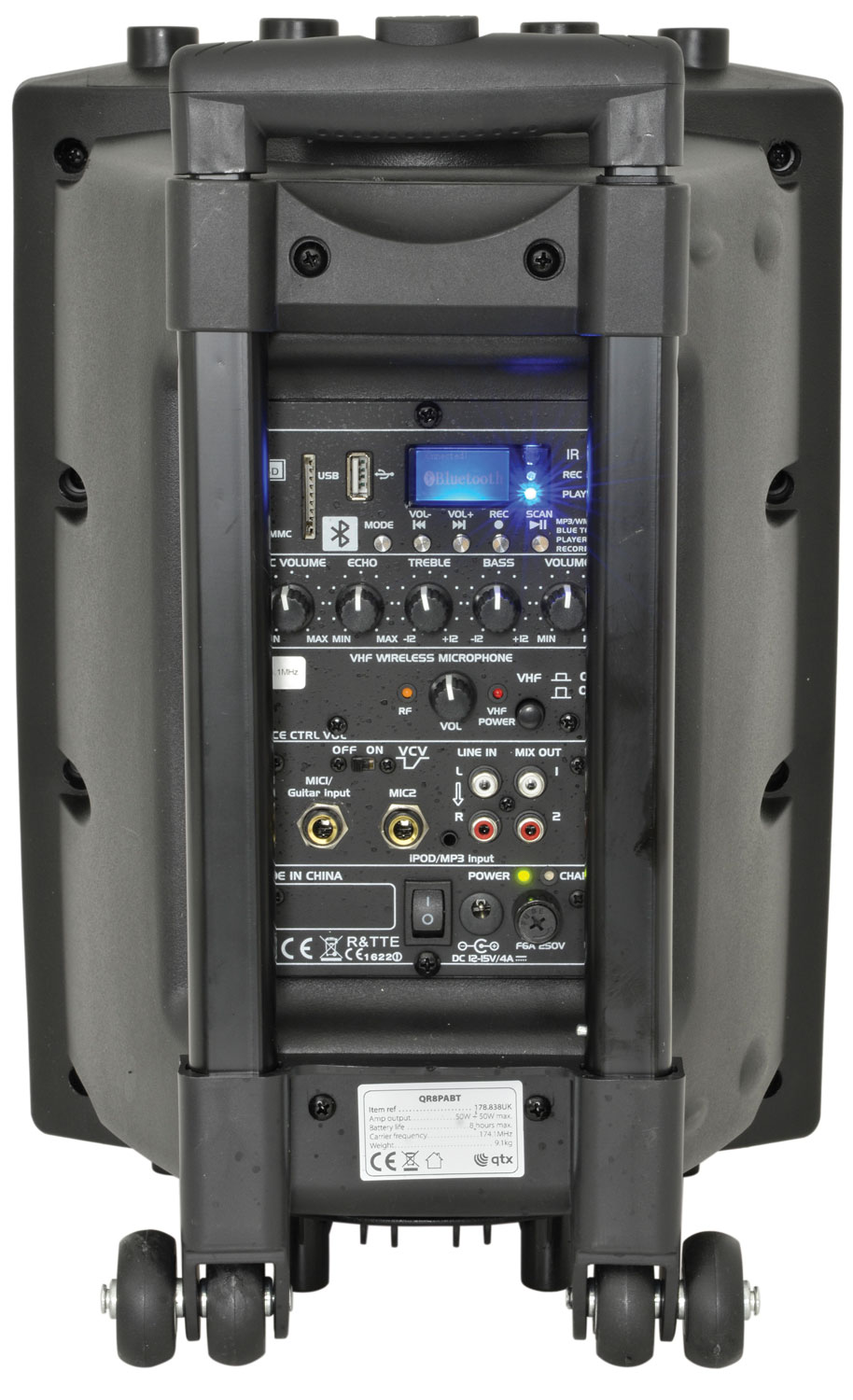

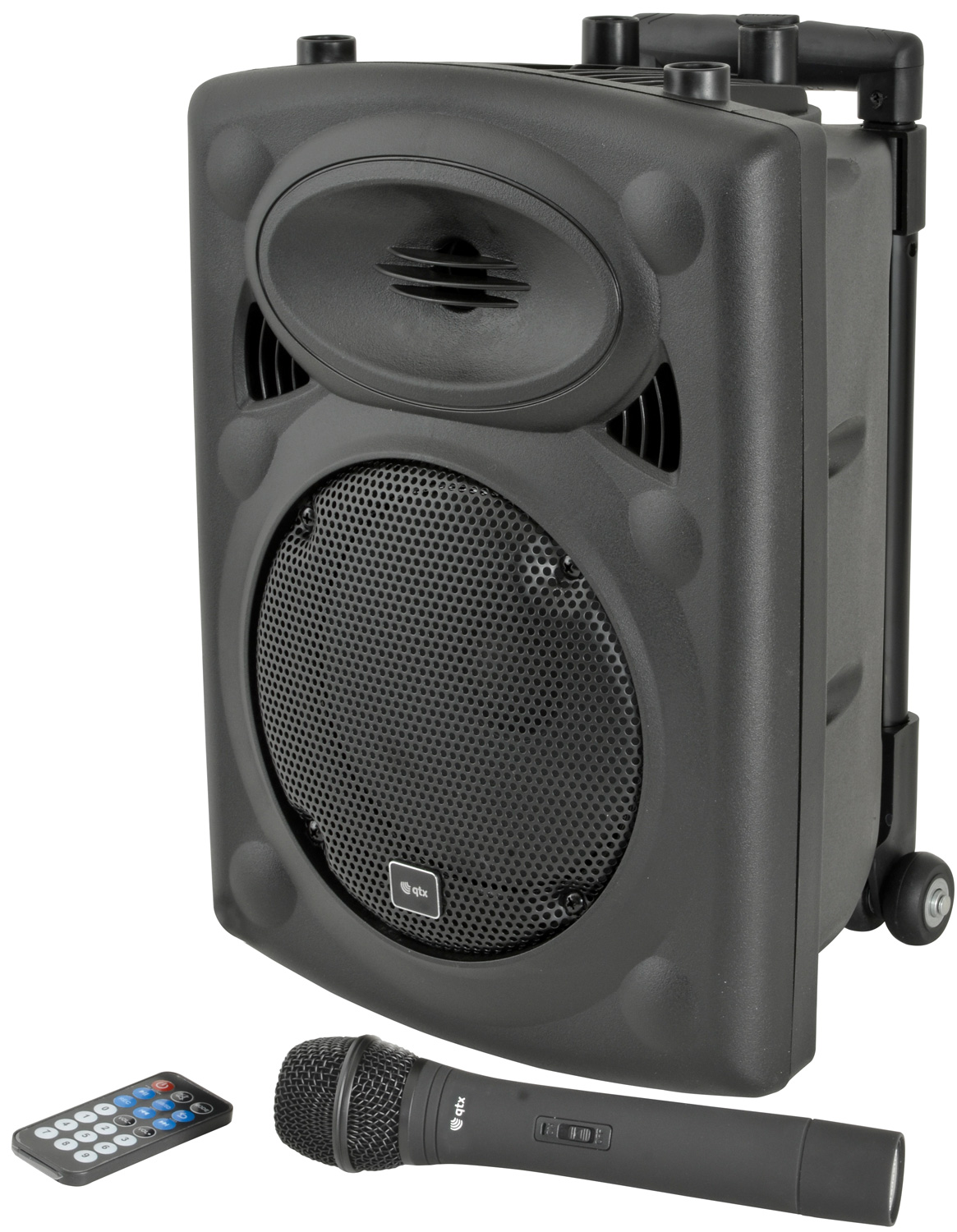

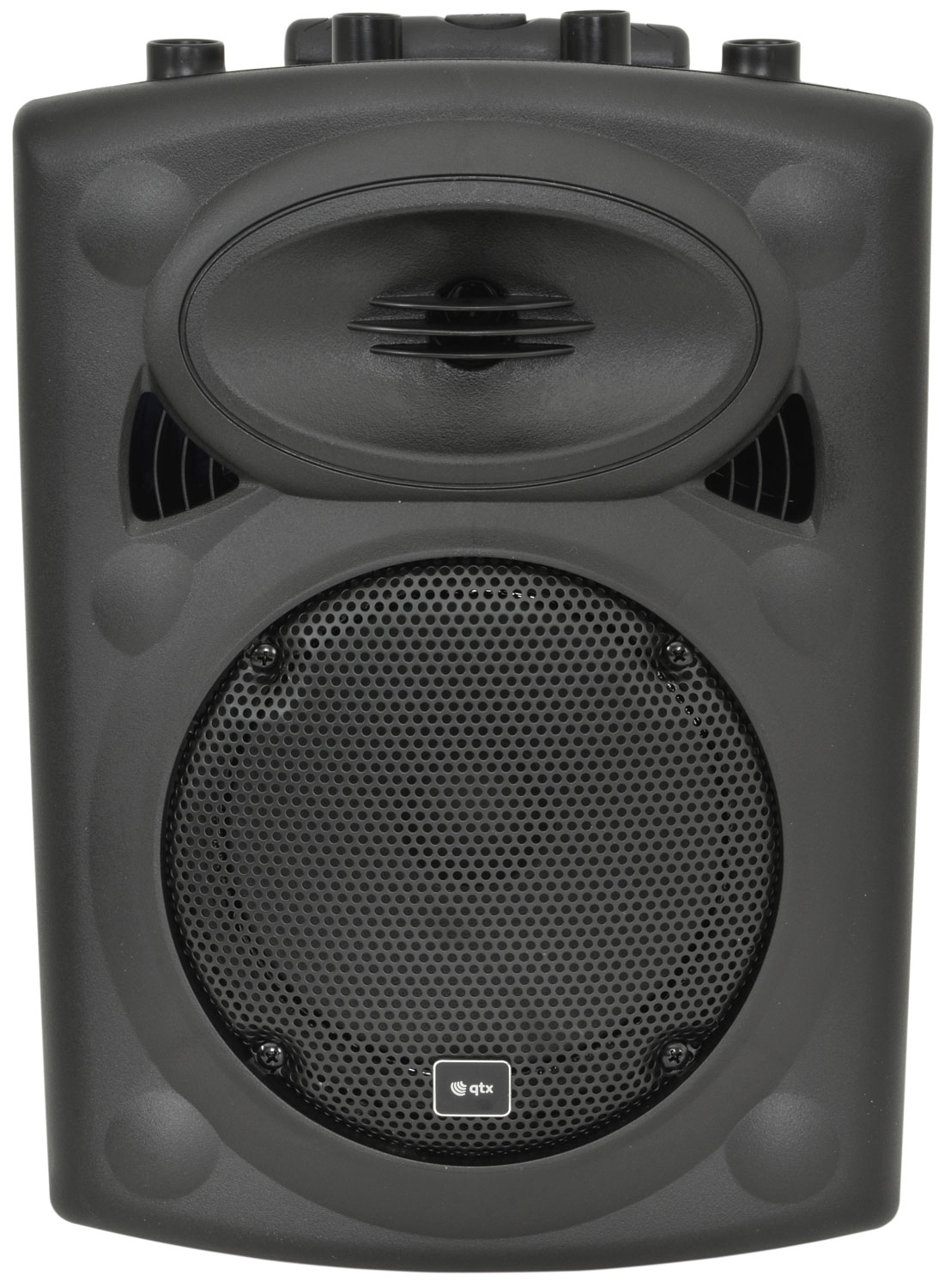

Compact portable PA unit based on the QR speaker cabinet. Built-in amplifier operating from mains or internal rechargeable battery powering a main driver and compression driven horn unit. Two VHF handheld wireless microphones are included (one on 8” and 10” versions) with the receiver built into the mixer/amp section at the rear along with a further two wired mic inputs, auxiliary line input and integral USB/SD/FM media player with record function. A B/T receiver is also built into the media player to enable pairing with a smartphone or tablet for wireless audio playback. A retractable trolley handle and rear wheels provide easy portability.

  • VHF handheld microphone included
  • Echo effect for microphones
  • Integral USB/SD/FM player with record feature and remote
  • Mains/rechargeable operation

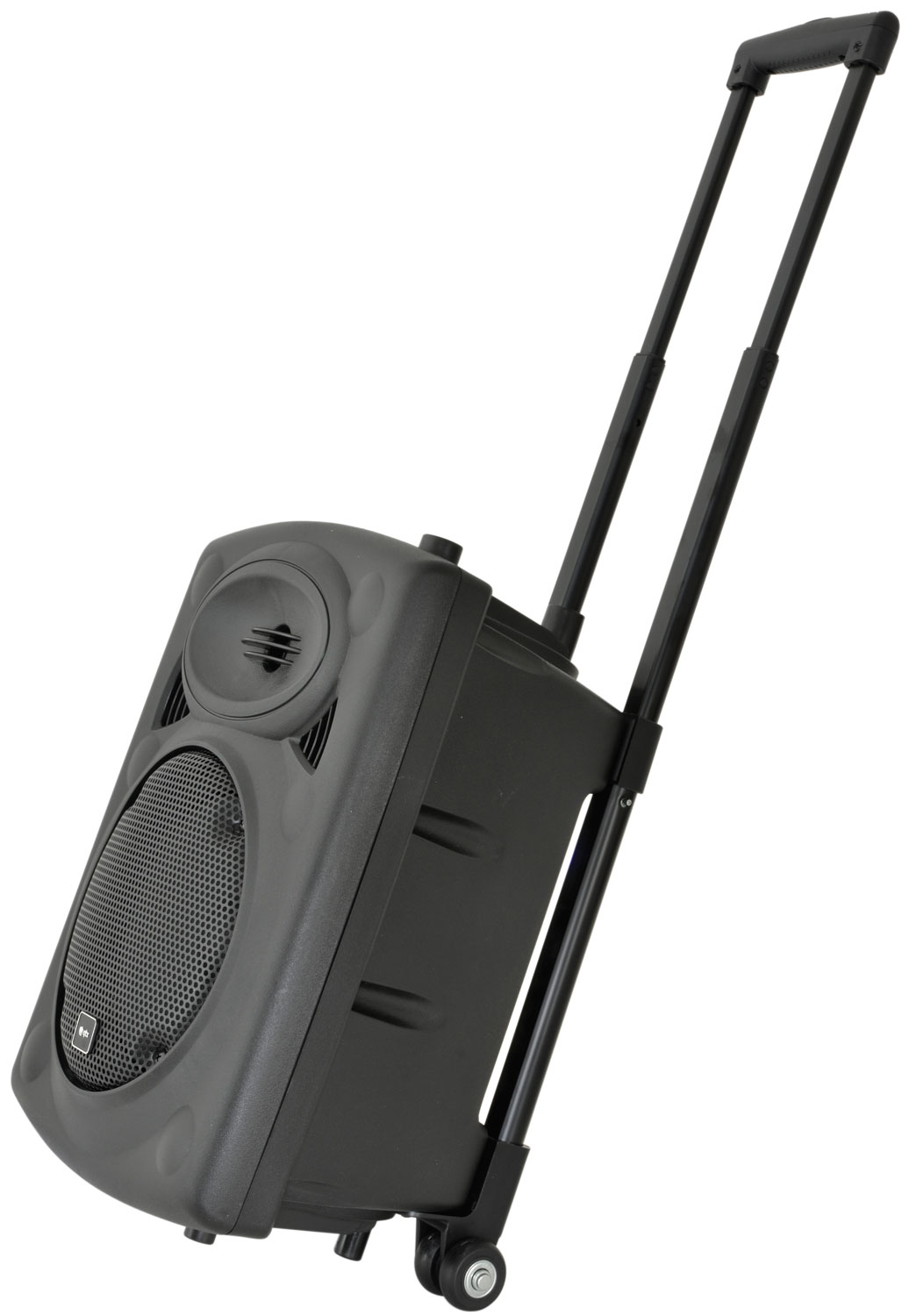

  • Built-in trolley facility
  • Switchable VCV 'mic override' function
  • B/T wireless pairing
  • Optional VHF neckband microphones available (178.891UK & 178.892UK)
  • Amplifier : output 50 + 50W max.
  • Battery life Up to 8 hours
  • Controls MIC.1/guitar, MIC.2, Echo, Bass, Treble, Master Volume & VHF mic volume, VCV
  • Bluetooth version 4.0
  • Inputs Mic.1/guitar, Mic.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack)
  • Carrier frequency 174.1MHz + 175.0MHz (12" & 15" only)

Versions

  178.838UK 178.839UK 178.847UK 178.848UK
Power supply Internal battery or 12/15Vdc @ 3A mains adaptor (supplied) Internal battery or 12/15Vdc @ 3A mains adaptor (supplied) 220-240Vac 50Hz (IEC) or 12/15Vdc @ 3A or internal battery 220-240Vac 50Hz (IEC) or 12/15Vdc @ 3A or internal battery
Main driver 200mmØ (8") 250mmØ (10") 300mmØ (12") 380mmØ (15")
Dimensions 290 x 400 x 230mm 320 x 470 x 270mm 570 x 350 x 310mm 685 x 440 x 380mm
Weight 9.1kg 10.1kg 14.0kg 18.4kg

Downloads

Instruction manual
For 178.838UK (466KB)
UK Declaration of conformity
For 178.838UK (249KB)
EU Declaration of conformity
For 178.838UK (241KB)
