QR Series Portable Powered PA Unit

178.840UK QR10PA

A compact, portable PA with pull handle, wheels and wireless neckband mic. Versatile input options, ideal for singer/songwriters, DJs, fitness instructors, buskers etc. Powered by mains or battery.

  • Active inbuilt amplifier
  • VHF wireless neckband microphone included
  • Mic, guitar, line-level aux (mp3) and RCA inputs
Description Version Packed
QR10PA Portable PA 10 inch
10 Inch Gift Box


Description Version Packed

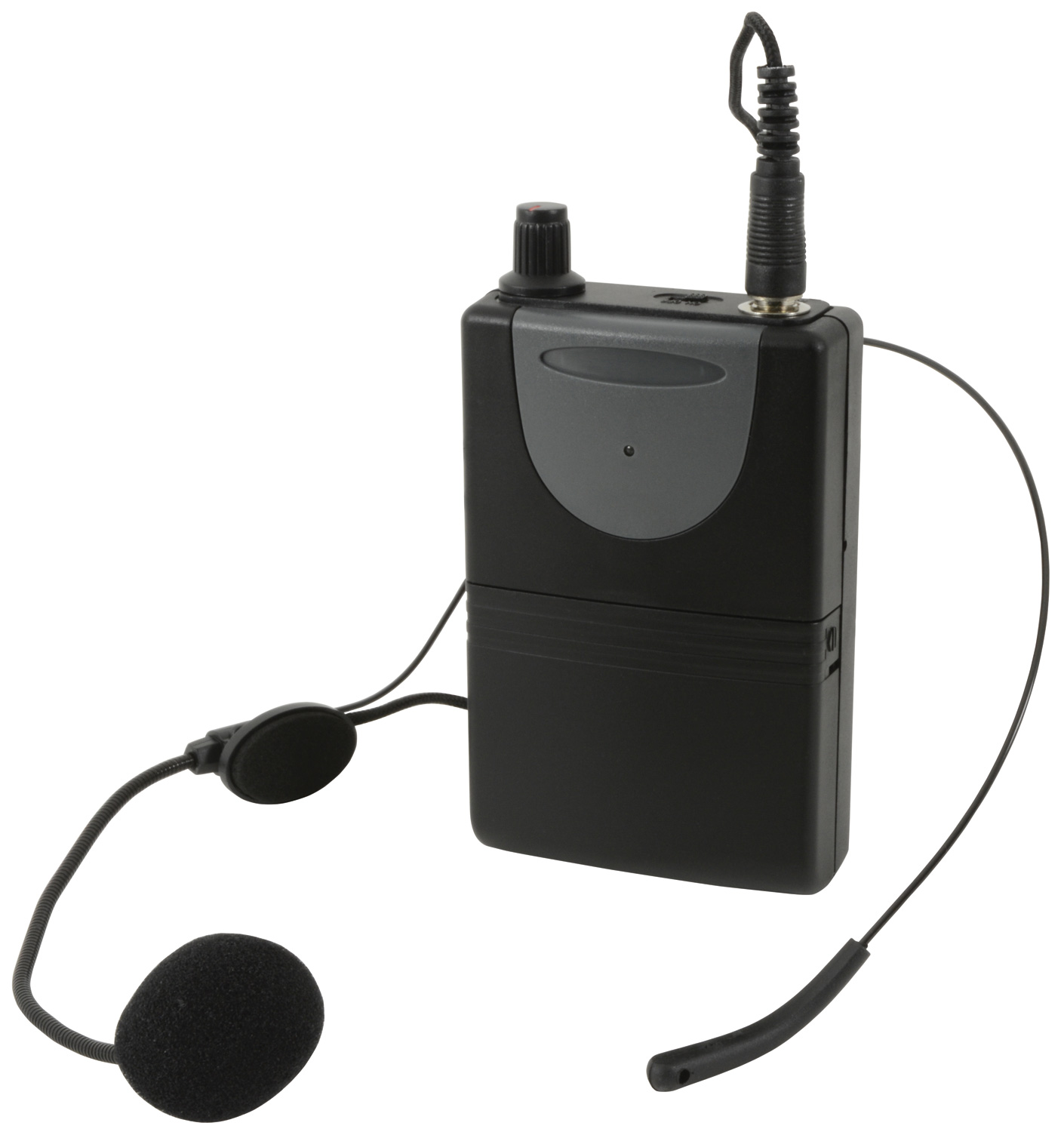

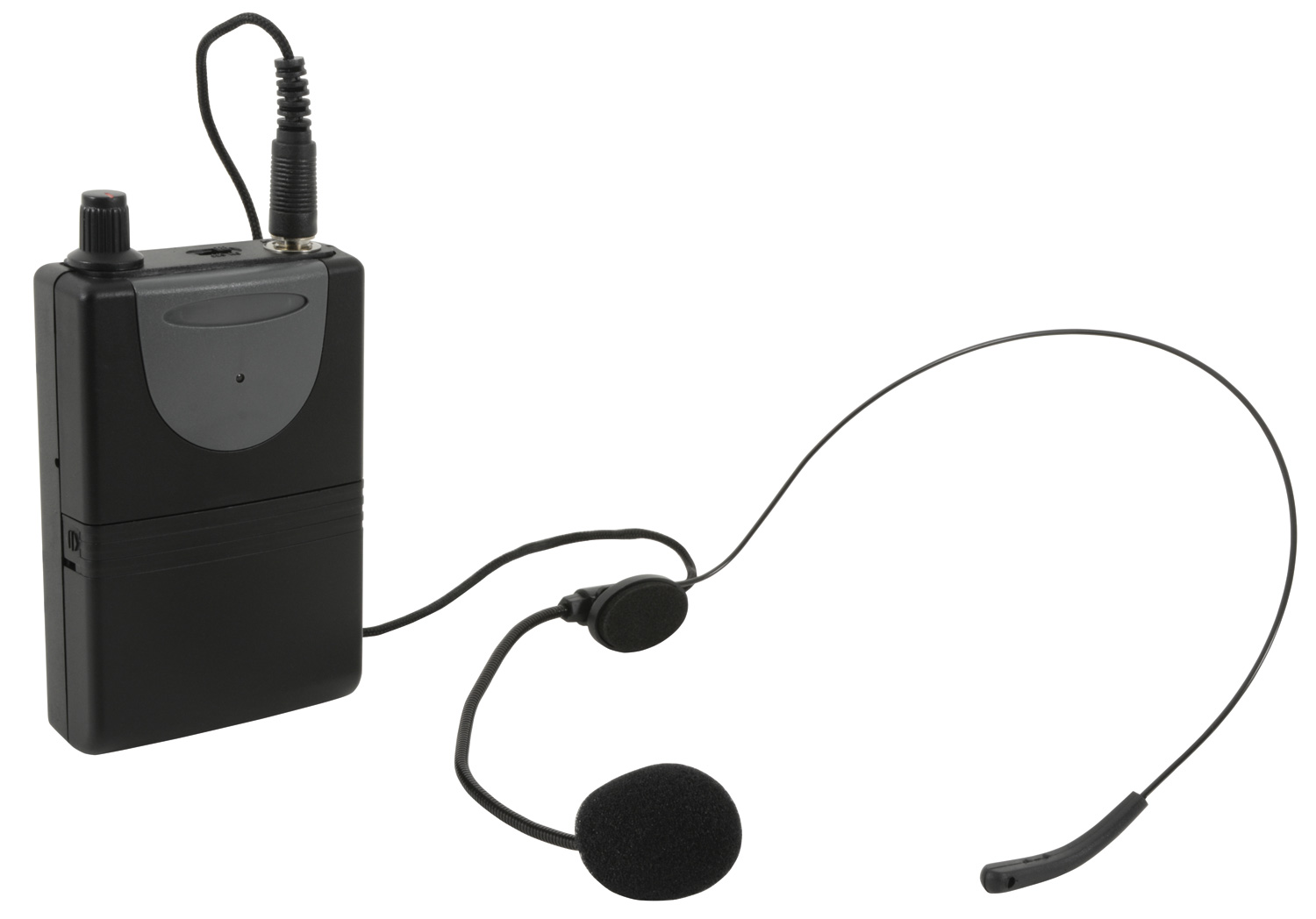

Headset for QR+QXPA - 174.1MHz
VHF 174.1MHz Box Plain
Handheld Mic QR+QXPA- 174.1MHz
VHF 174.1MHz Box Plain
VHF handheld transmitter for H25 PA
Box Plain

QR Series Portable Powered PA Unit

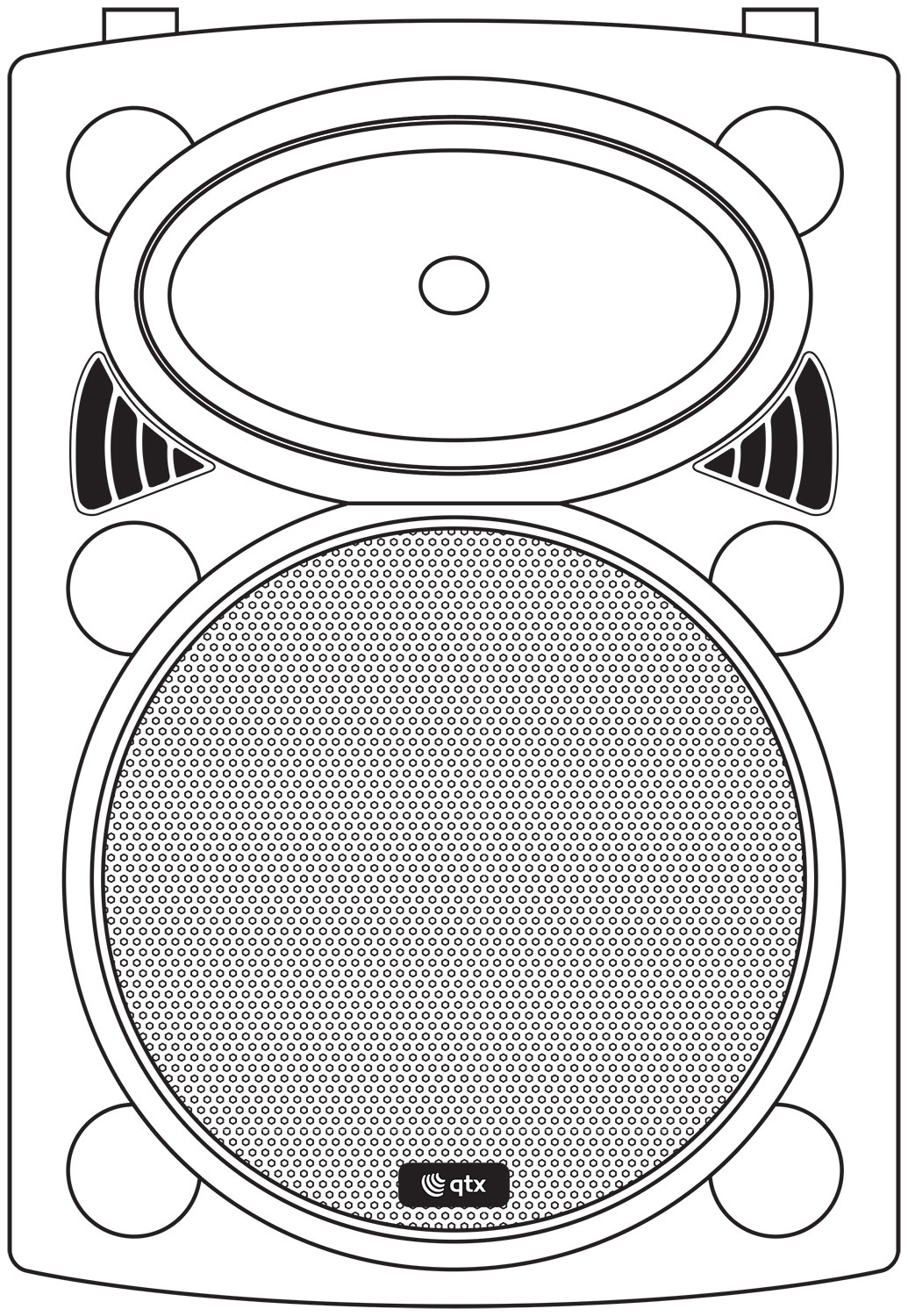

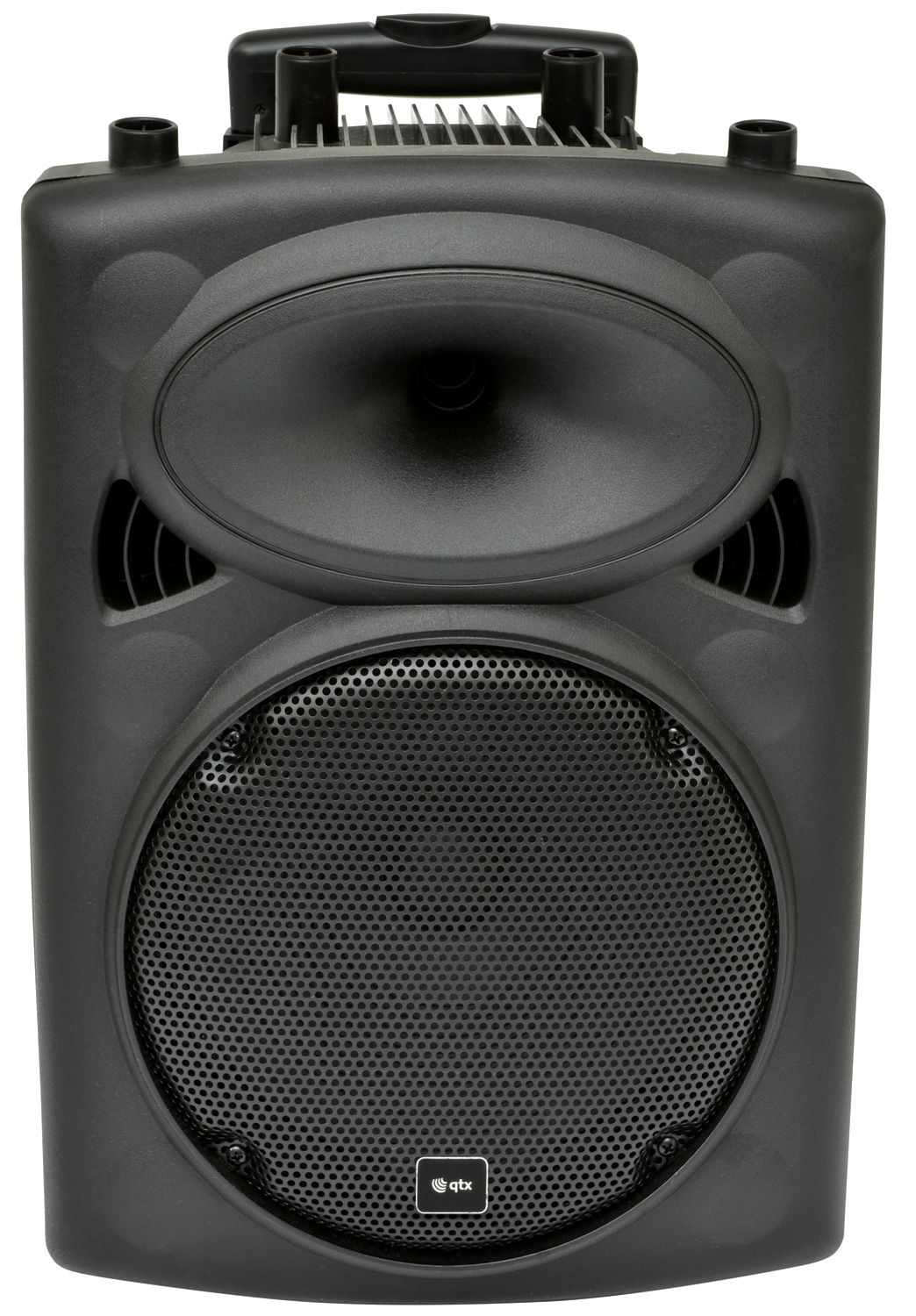

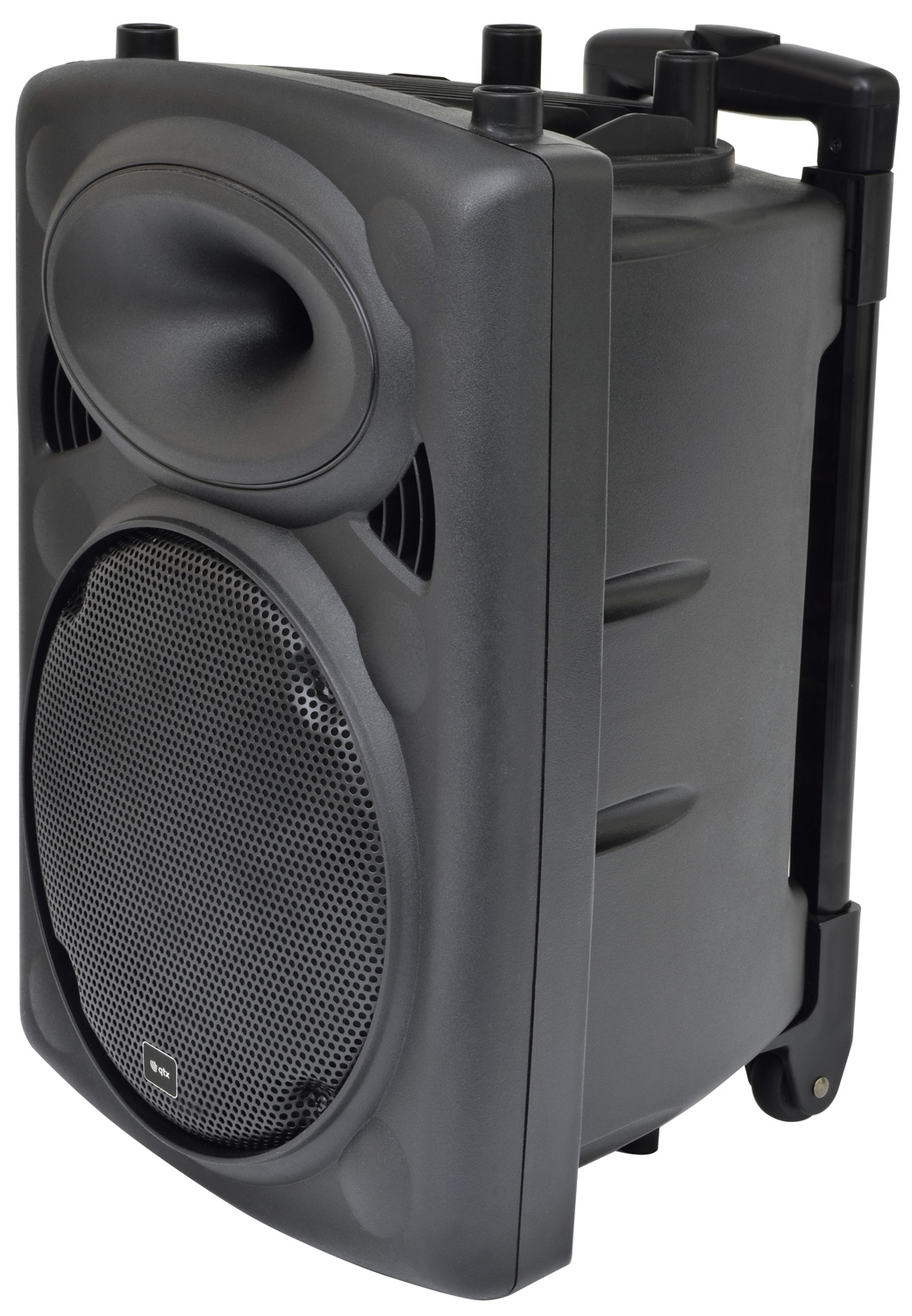

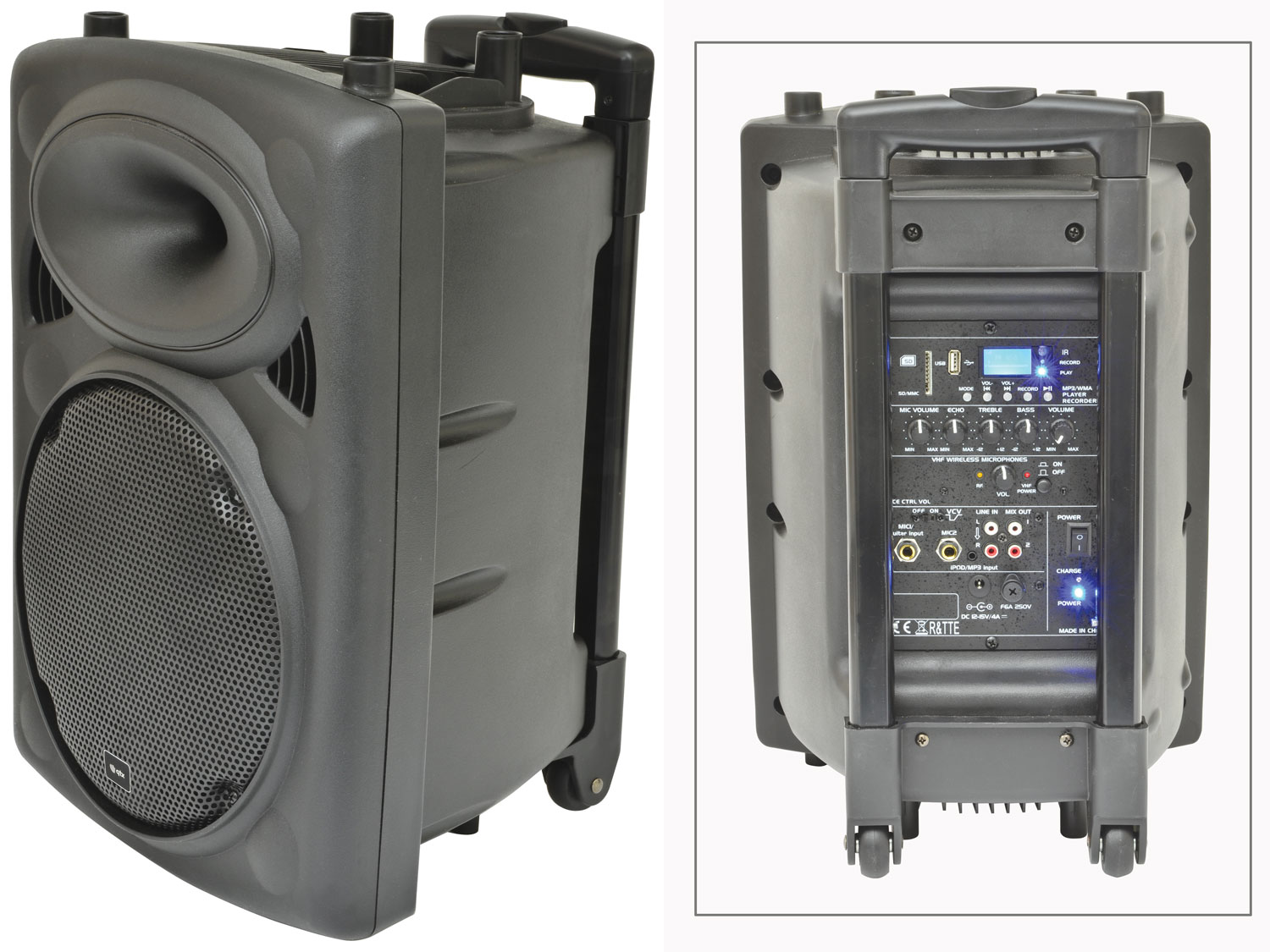

A compact, trolley-style wheeled portable PA unit with a top-mounted retractable pull handle. Versatile input options include a VHF wireless neckband microphone (included), 2 further mic inputs (one can also be used for guitar), mini jack (for phones, tablets, laptops and mp3 players), and RCA in/out (ideal for DJs). An internal media player works directly from SD card or USB memory stick, and a switchable VCV ‘voiceover’ feature automatically lowers the volume of background music when the mic/s are used. A 35mm pole mount enables the unit to be used on a stand. Mains or internal battery power (up to 8 hours).

  • Active inbuilt amplifier
  • VHF wireless neckband microphone included
  • Mic, guitar, line-level aux (mp3) and RCA inputs
  • Inbuilt media player with SD/USB inputs and IR remote control
  • VCV ‘voiceover’ feature; lowers music for vocals

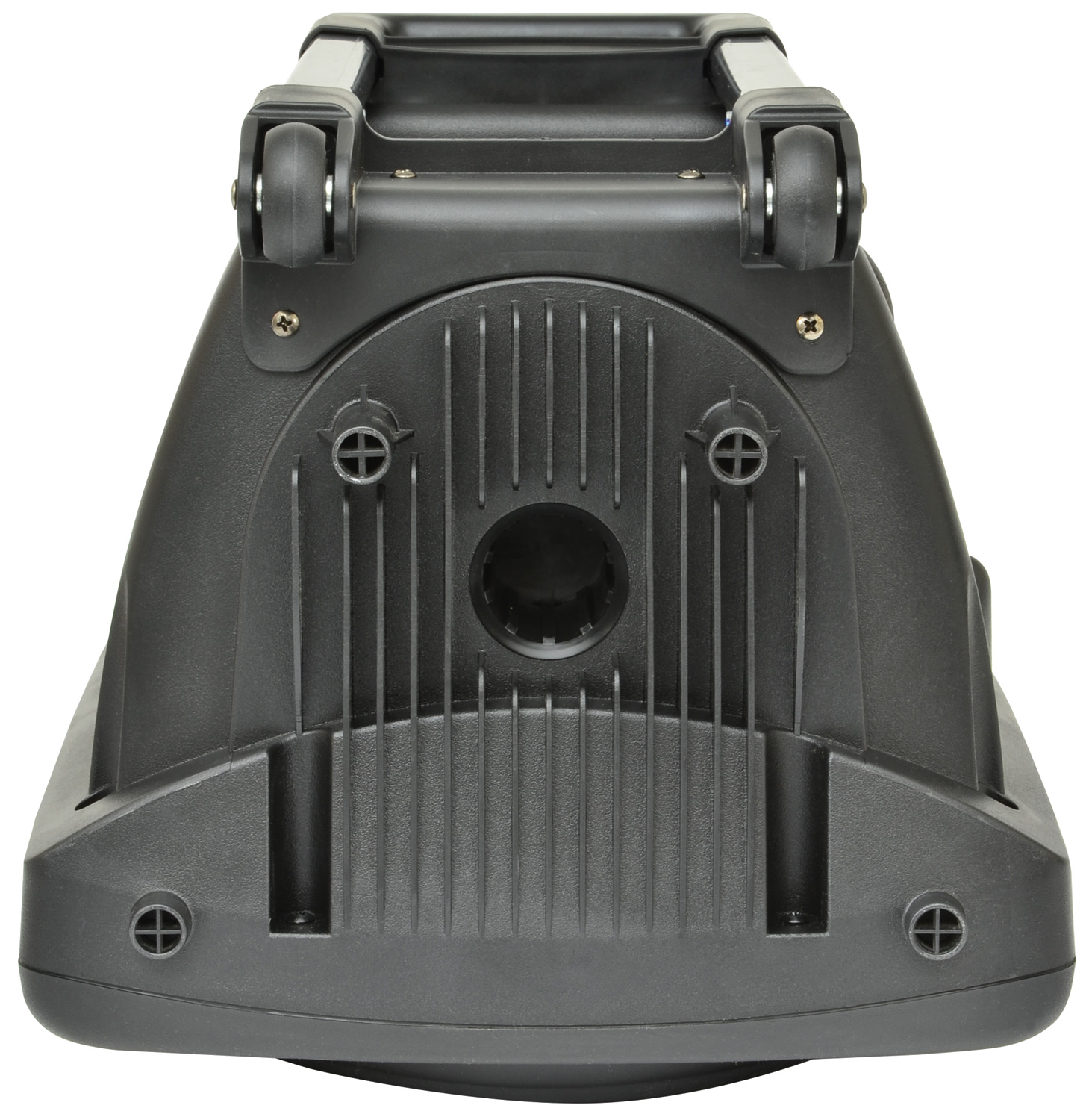

  • 35mm stand/pole mount

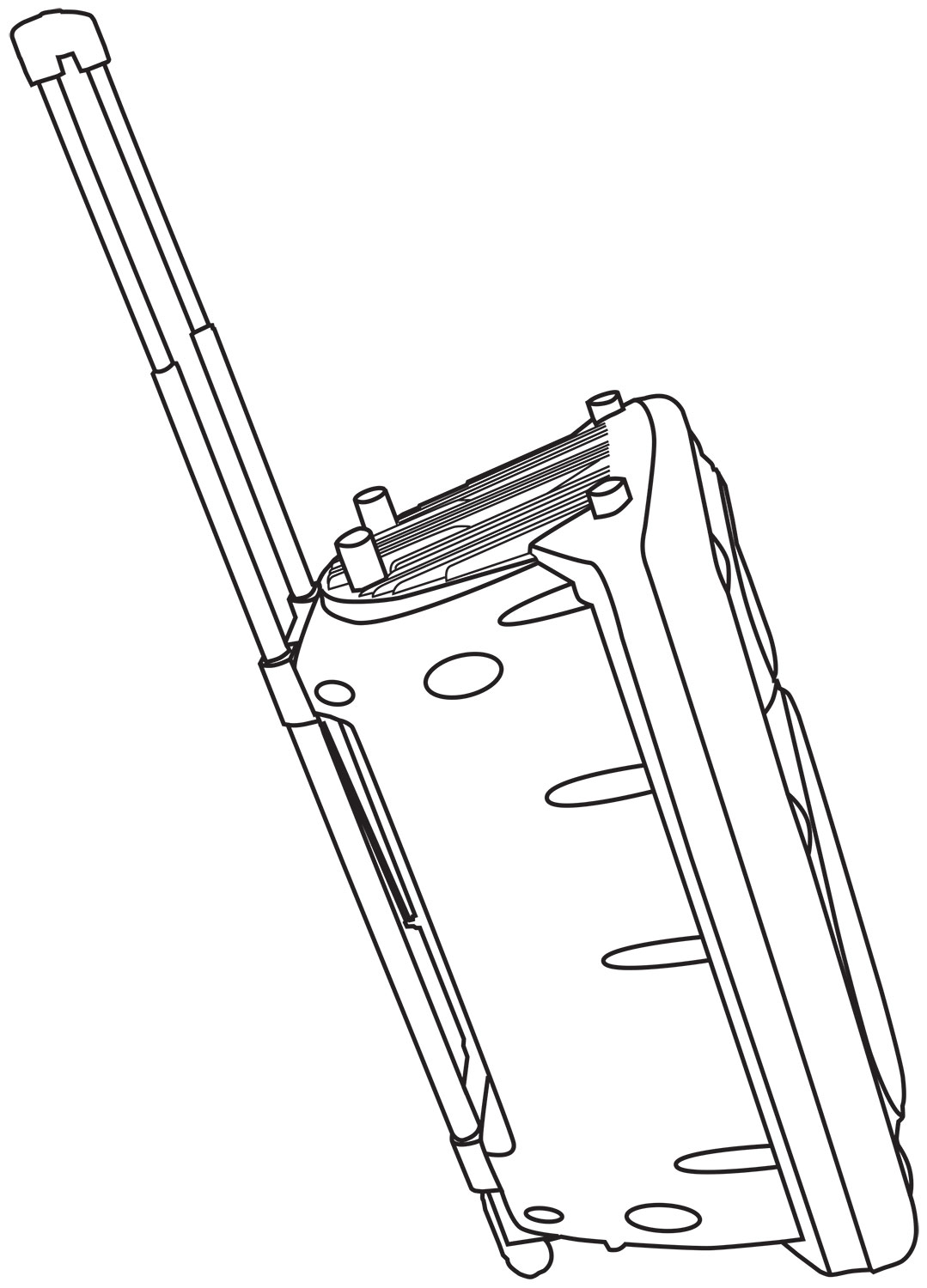

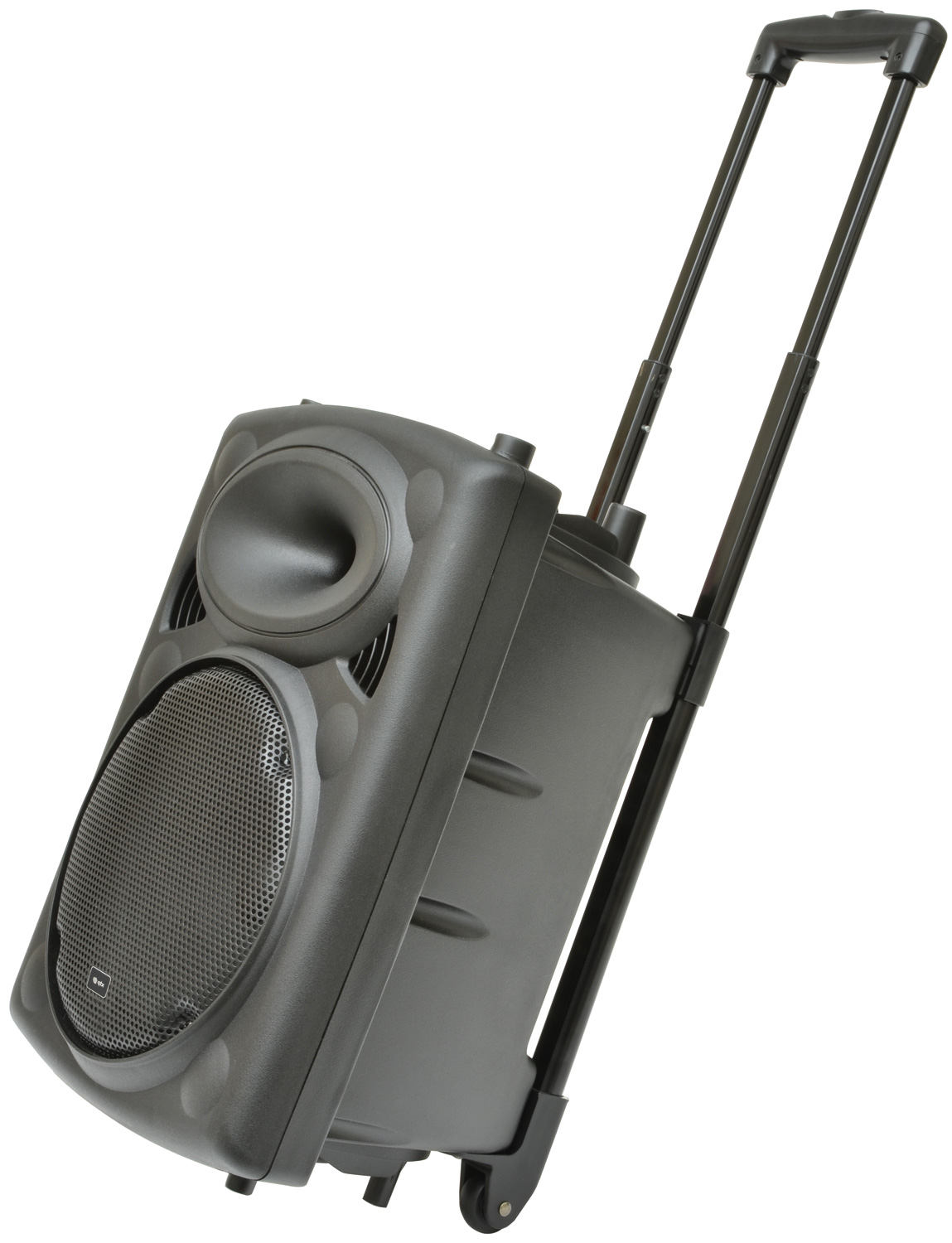

  • Pull handle and wheels for easy transit
  • Mains or internal rechargeable battery power (up to 8 hours)
  • Echo effect for microphones
  • Optional handheld mic transmitter available


  • Power supply Internal battery or 12/15Vdc @3A mains adaptor (supplied)
  • Main driver 250mmØ (10")
  • Power handling : rms 150W
  • Amplifier : output 50 + 50W
  • Battery life Up to 8 hours

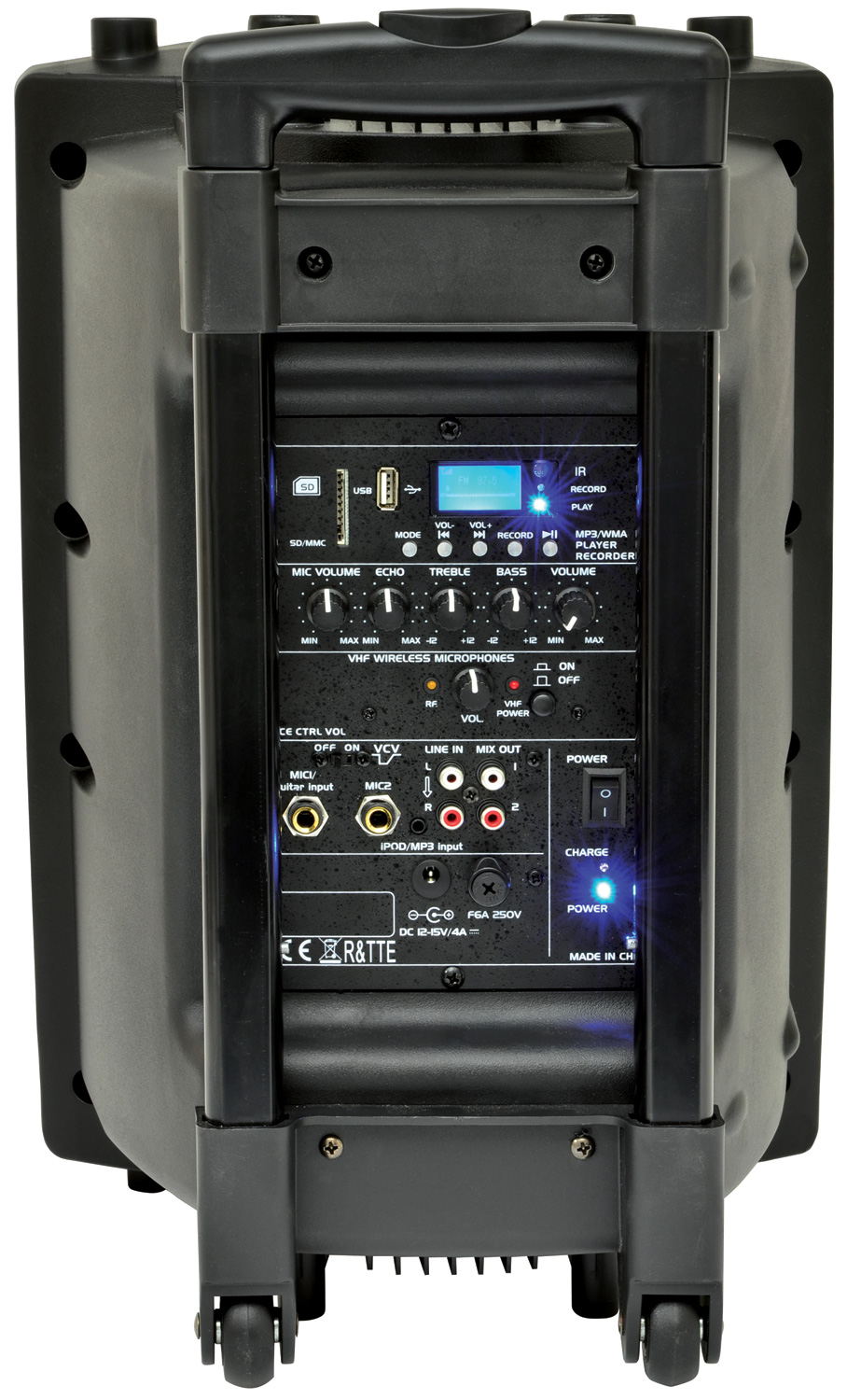

  • Controls Mic volume, Echo, Bass, Treble, Volume & VHF mic volume, VCV
  • Inputs 2 wired mic (jack) and aux (RCA)
  • Batteries : beltpack transmitter 2 x AA (alkaline)
  • Carrier frequency 174.1MHz
  • Dimensions 320 x 470 x 270mm
  • Weight 10.1kg

Trade information

Barcode / EAN 5015972119693
Tariff code 8518210000
Country of Origin CN
Package type Gift Box
Package dimensions 360 x 525 x 370mm
Package weight 11.00kg
Package quantity 1 unit
Carton dimensions 375 x 385 x 550mm
Carton weight 11.00kg
Carton quantity 1 package
Pack paper weight 1.08kg
Pack plastic weight 0.06kg


QR10 Portable PA

QR10 portable PA


Instruction manual
For 178.840UK (496KB)
