QR Series Portable Powered PA Units

178.846UK QR15PA

Compact, portable PA unit with pull/carry handles and 2 wireless microphones. Versatile input options, ideal for singer/songwriters, DJs, fitness instructors, busking etc. Powered by mains or battery.

  • 2 VHF wireless microphones included
  • Inbuilt media player with SD/USB inputs and IR remote control
  • Mains or internal rechargeable battery power (up to 8 hours)
Description Version Packed
178.843UK
QR12PA Portable PA 12 inch
12" Gift Box
178.846UK
QR15PA Portable PA 15 inch
15" Gift Box

Accessories

Description Version Packed
178.891UK
Headset for QR+QXPA - 174.1MHz
VHF 174.1MHz Box Plain
178.892UK
Headset for QR+QXPA - 175.0MHz
VHF 175.0MHz Box Plain
178.893UK
Handheld Mic QR+QXPA- 174.1MHz
VHF 174.1MHz Box Plain
178.894UK
Handheld Mic QR+QXPA- 175.0MHz
VHF 175.0MHz Box Plain
127.080UK
QR15 slip cover for QR15, QR15A or QR15PA speaker
QR15/QR15A/QR15PA Bag
952.411UK
VHF handheld transmitter for H25 PA
Box Plain

QR Series Portable Powered PA Units

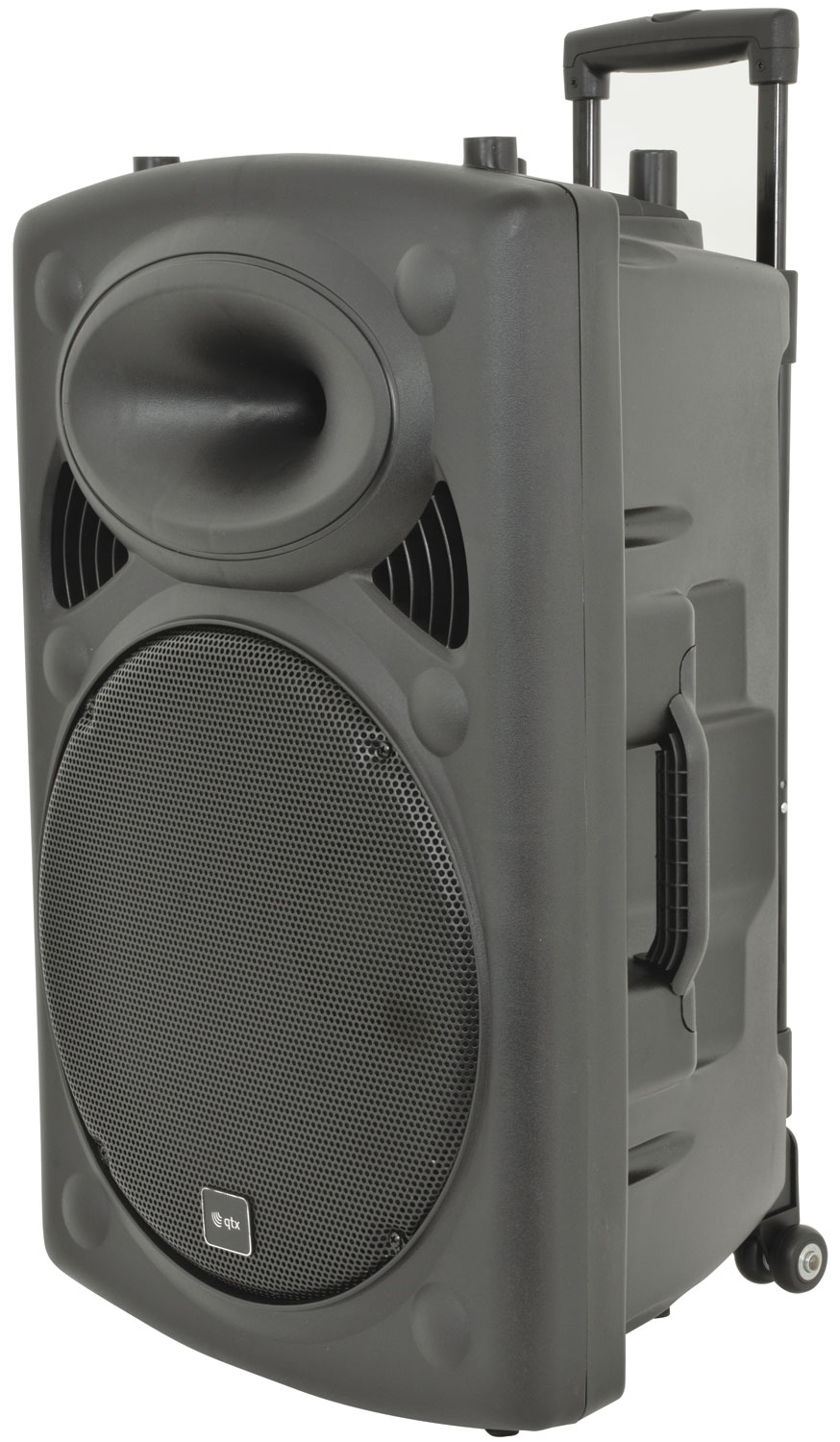

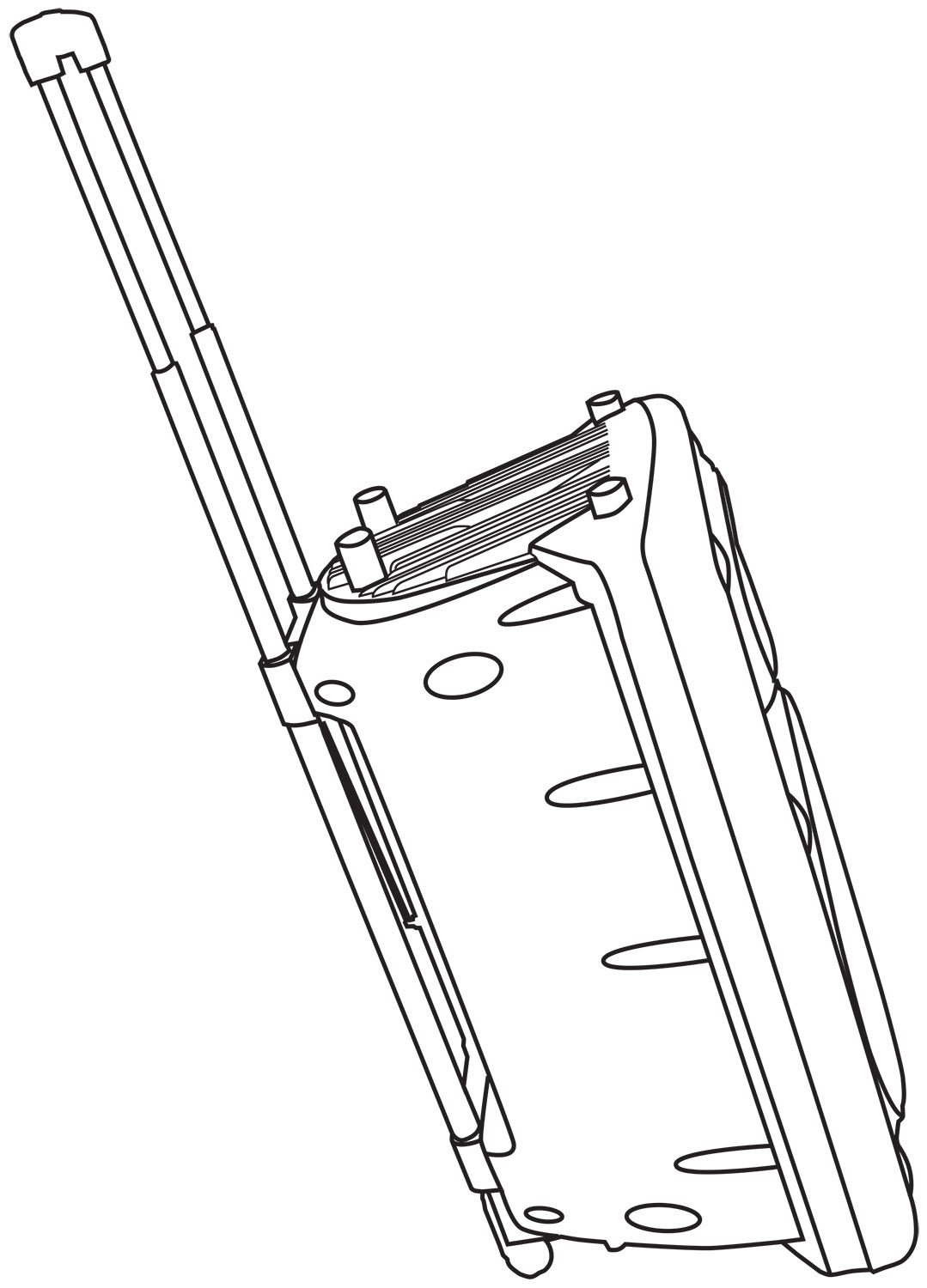

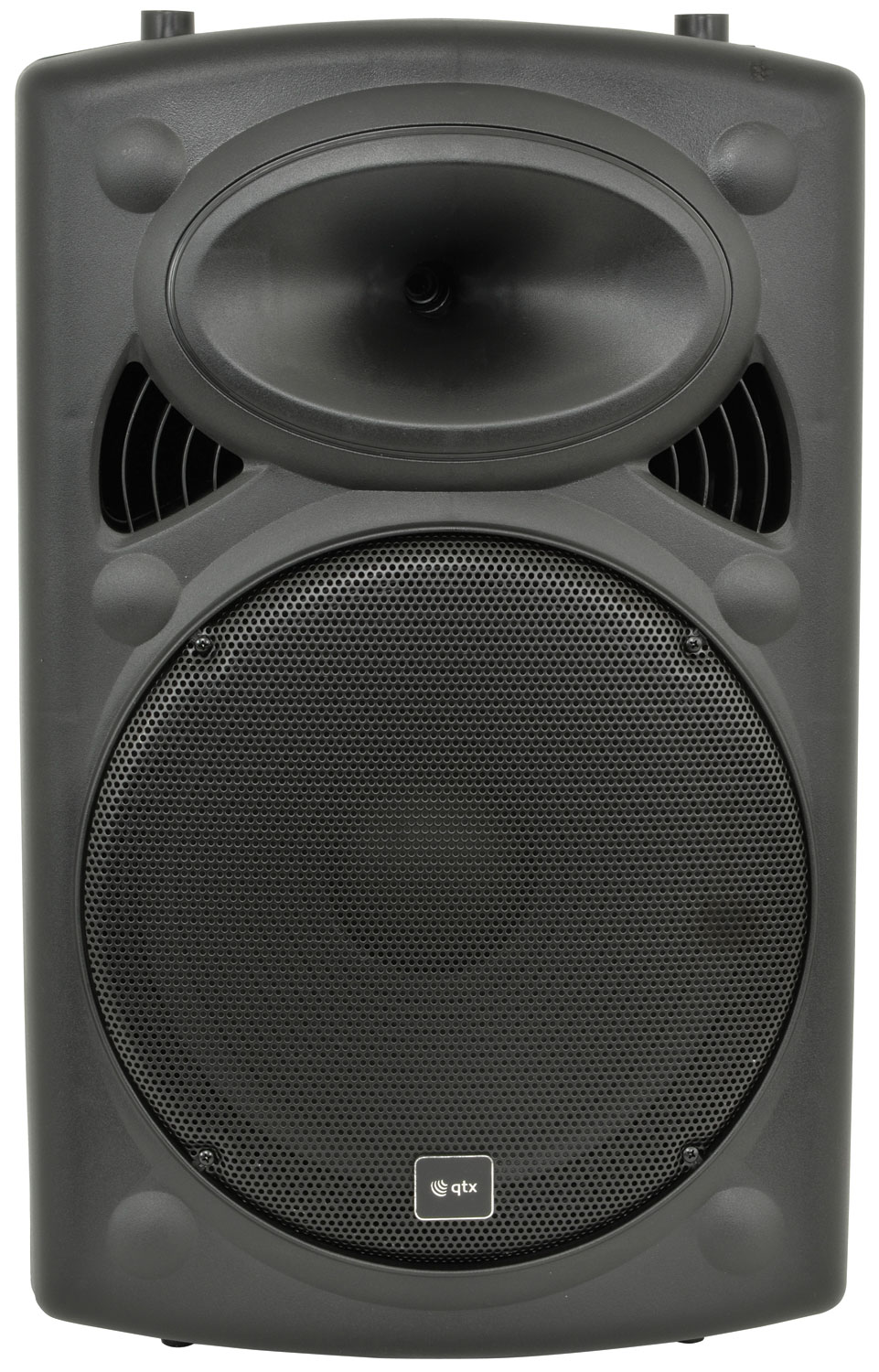

A compact, trolley-style wheeled portable PA unit with a top-mounted retractable pull handle and side-mounted carry handle. Versatile input options include 2 VHF wireless microphones (included), 2 further mic inputs (one can also be used for guitar), mini jack (for phones, tablets, laptops and mp3 players), and RCA in/out (ideal for DJs). An internal media player works directly from SD card or USB memory stick, and a switchable VCV ‘voiceover’ feature automatically lowers the volume of background music when the mics are used. A 35mm pole mount enables the unit to be used on a stand. Mains or internal battery power (up to 8 hours).

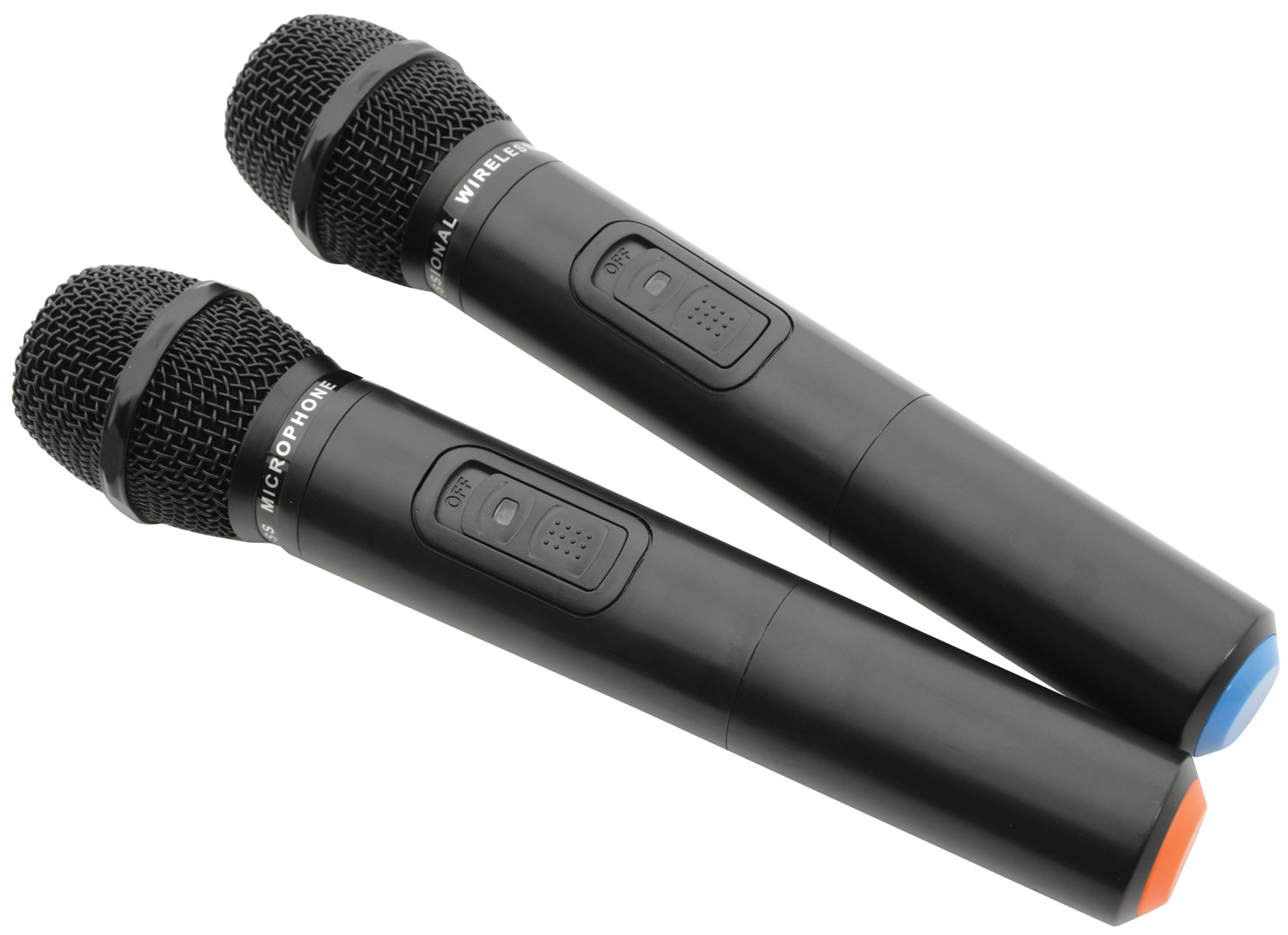

  • 2 VHF wireless microphones included

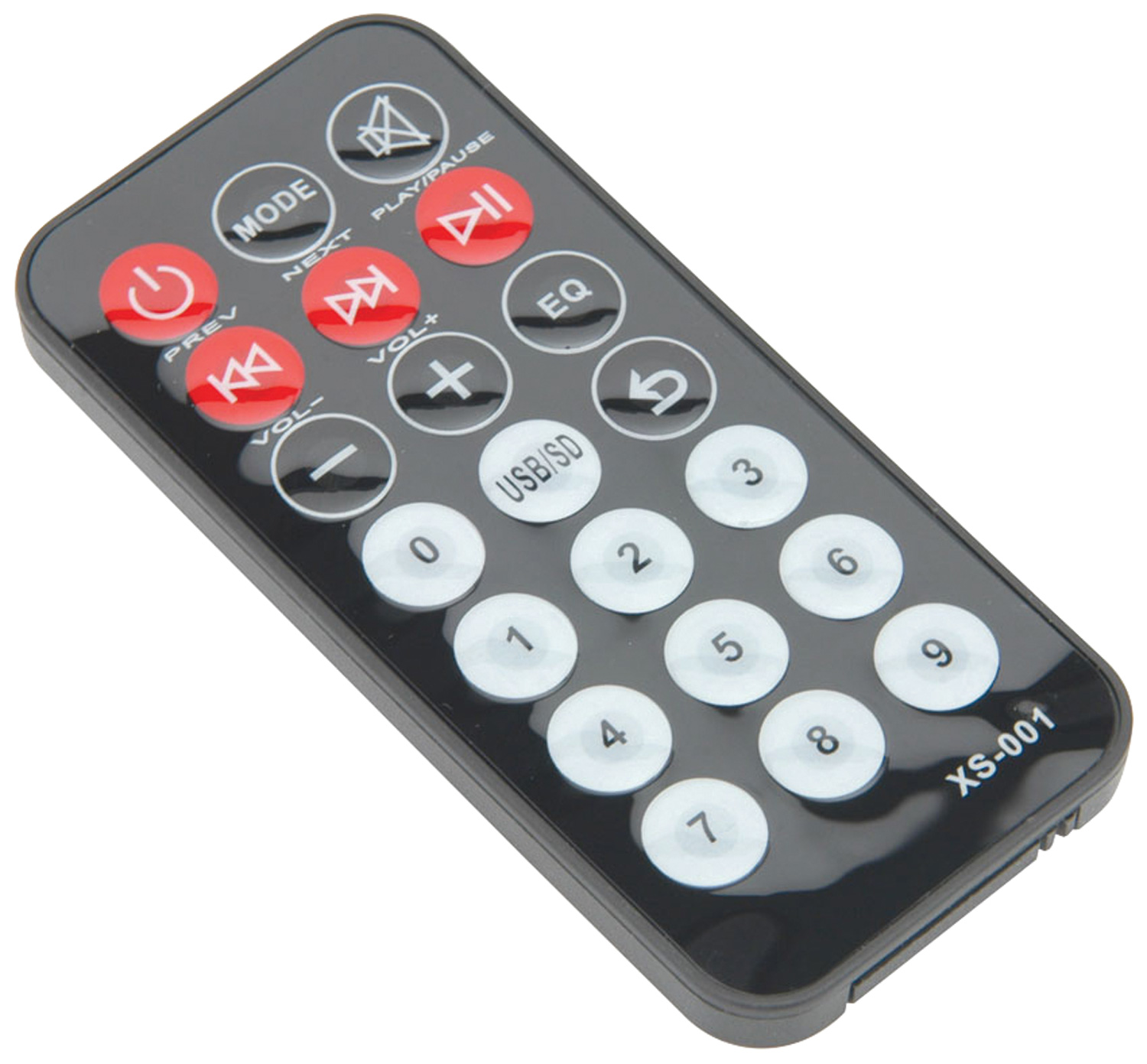

  • Inbuilt media player with SD/USB inputs and IR remote control
  • Mains or internal rechargeable battery power (up to 8 hours)
  • Active inbuilt amplifier
  • Mic, guitar, line-level aux (mp3) and RCA inputs

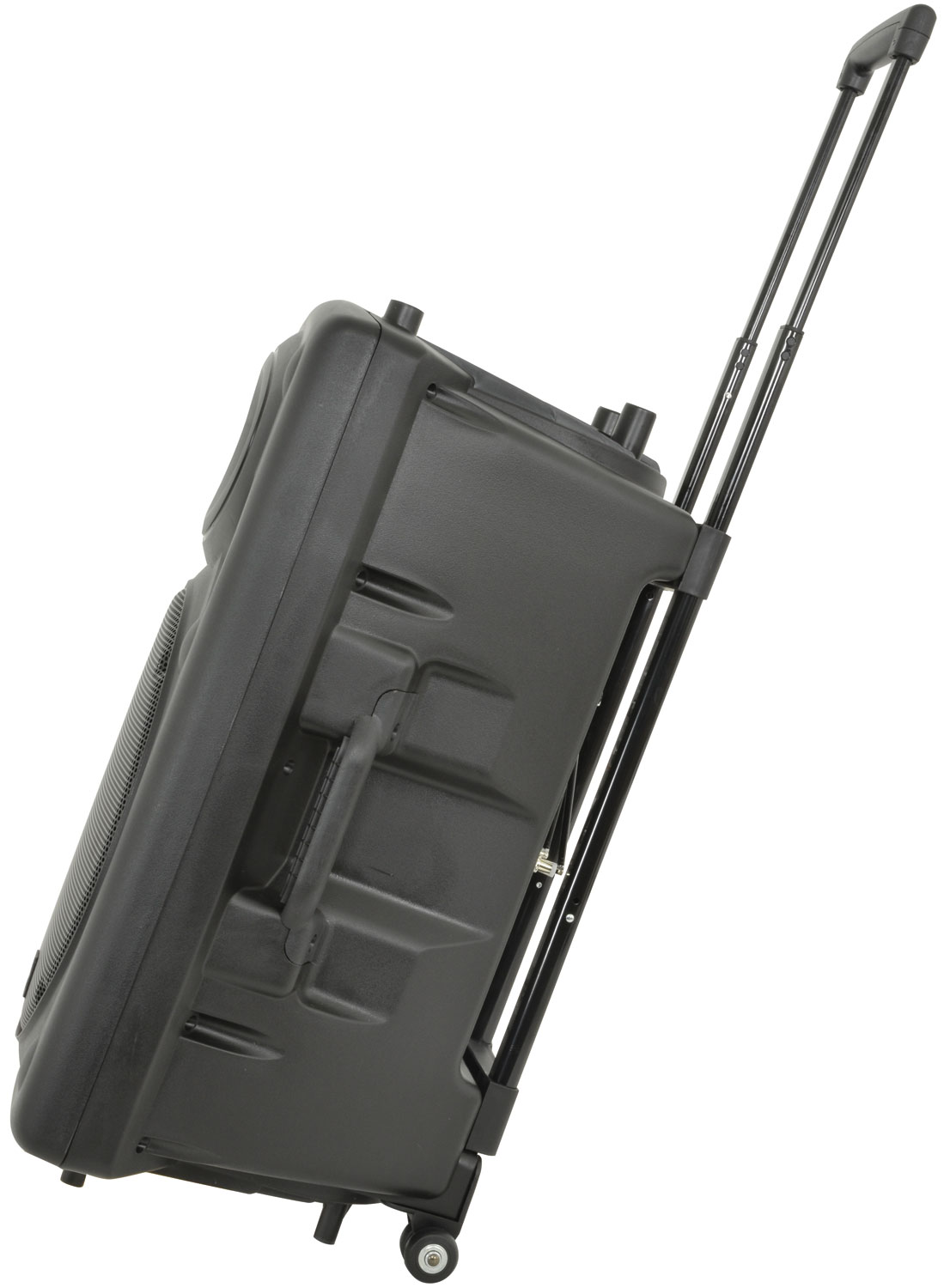

  • Pull/carry handles and wheels for easy transit
  • Switchable VCV ‘voiceover’ feature; lowers music for vocals
  • Echo effect for microphones

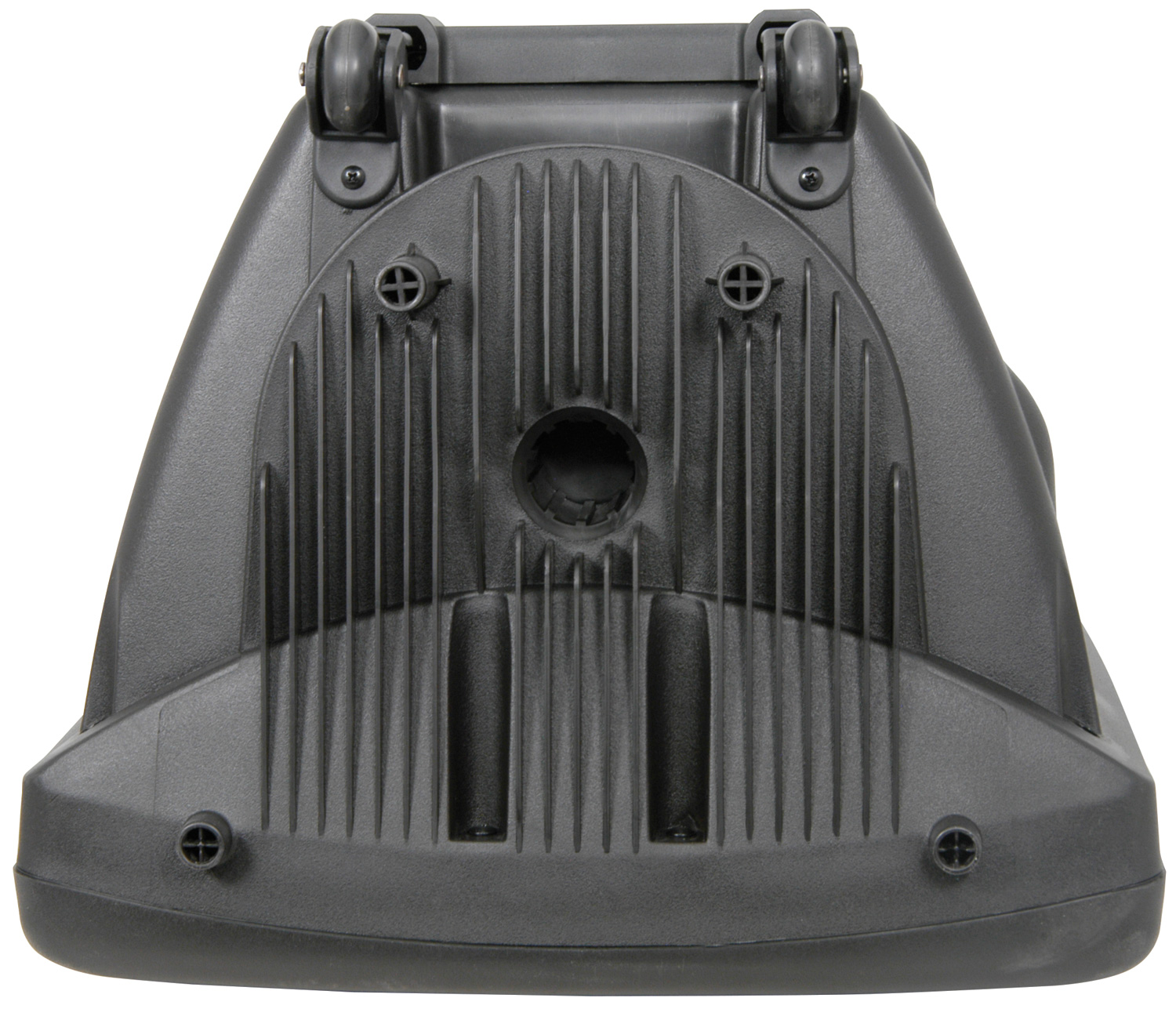

  • 35mm stand/pole mount
  • Optional neck-worn transmitters available
  • Power supply 220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery
  • Power consumption max. 100W
  • HF driver 25mm (1'') Titanium compression driver
  • Battery life Up to 8 hours

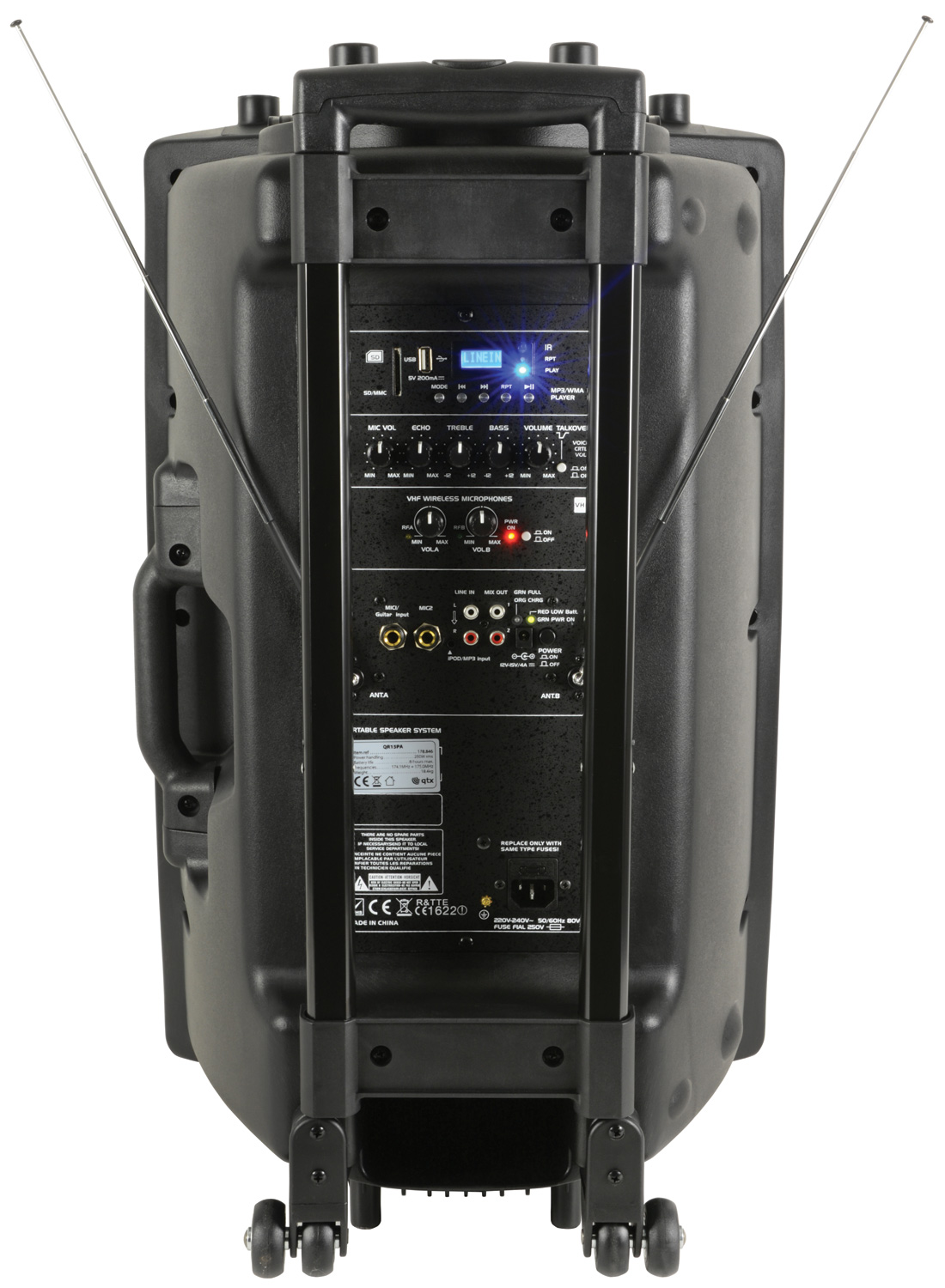

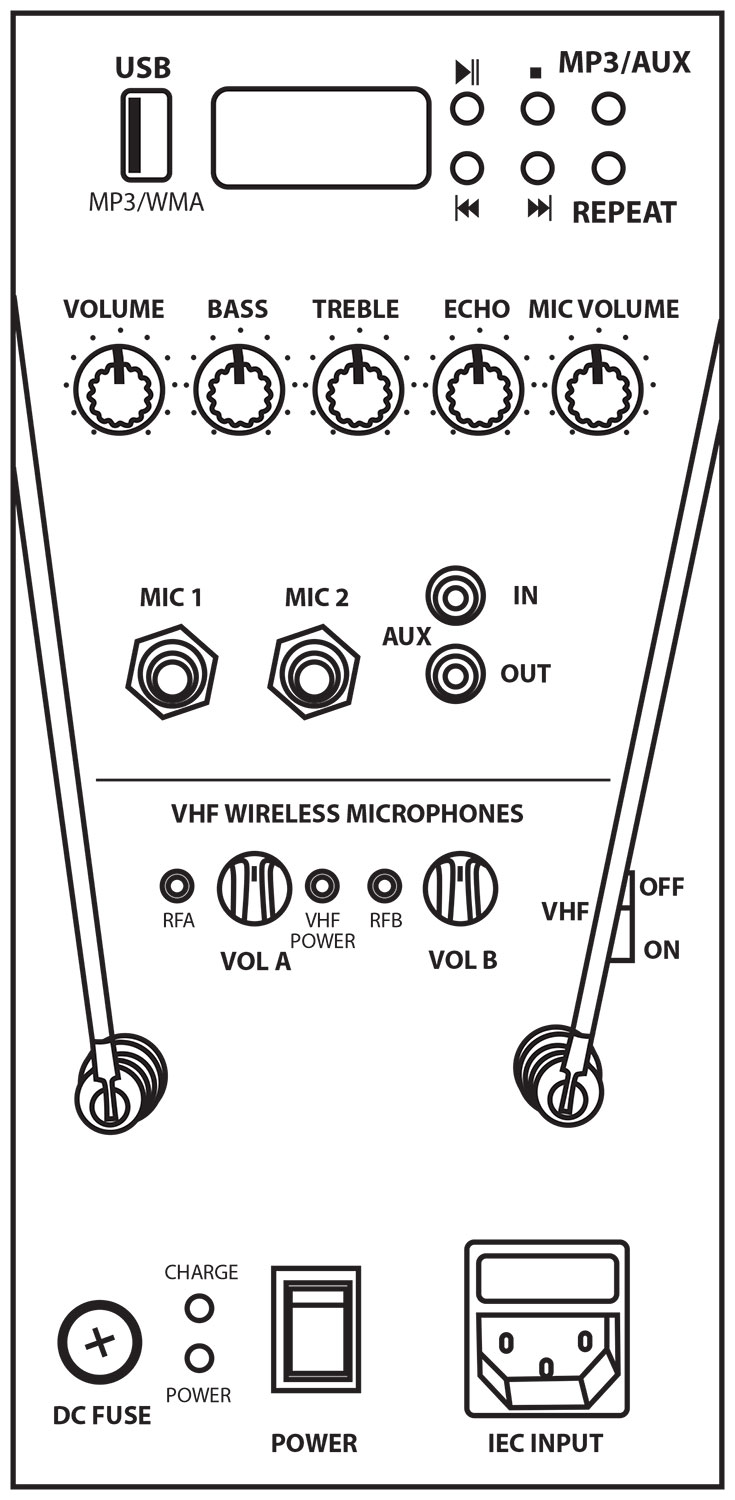

  • Controls Volume, Bass, Treble, Echo, Mic volume, VCV & VHF mic levels
  • Inputs 2 wired mic (jack) and aux (RCA & 3.5mm)
  • Wireless microphone frequencies 174.1MHz + 175.0MHz
  • Amplifier : output 50 + 50Wrms

Versions

  178.843UK 178.846UK
Main driver 300mm (12'') 380mm (15'')
Power handling : rms 200W 250W
Frequency response 48Hz - 20kHz 45Hz - 20kHz
SPL @ 1W/1m 100dB 103dB
Dimensions 570 x 350 x 310mm 685 x 440 x 380mm
Weight 14kg 18.4kg
