2-Wire Audio Door Phone System

350.011UK
2WDPv2

This 2-wire audio door phone system allows simple communication with visitors before opening the door. Fitted with high quality circuitry to provide clear, interference free audio and additional… more

  • High quality circuitry provides clear 2-way audio
  • Easy to install and operate
  • Adjustable ring volume
DESCRIPTION VERSION PACKED
350.011UK

2-Wire Audio Door Phone System

Gift Box

2-Wire Audio Door Phone System

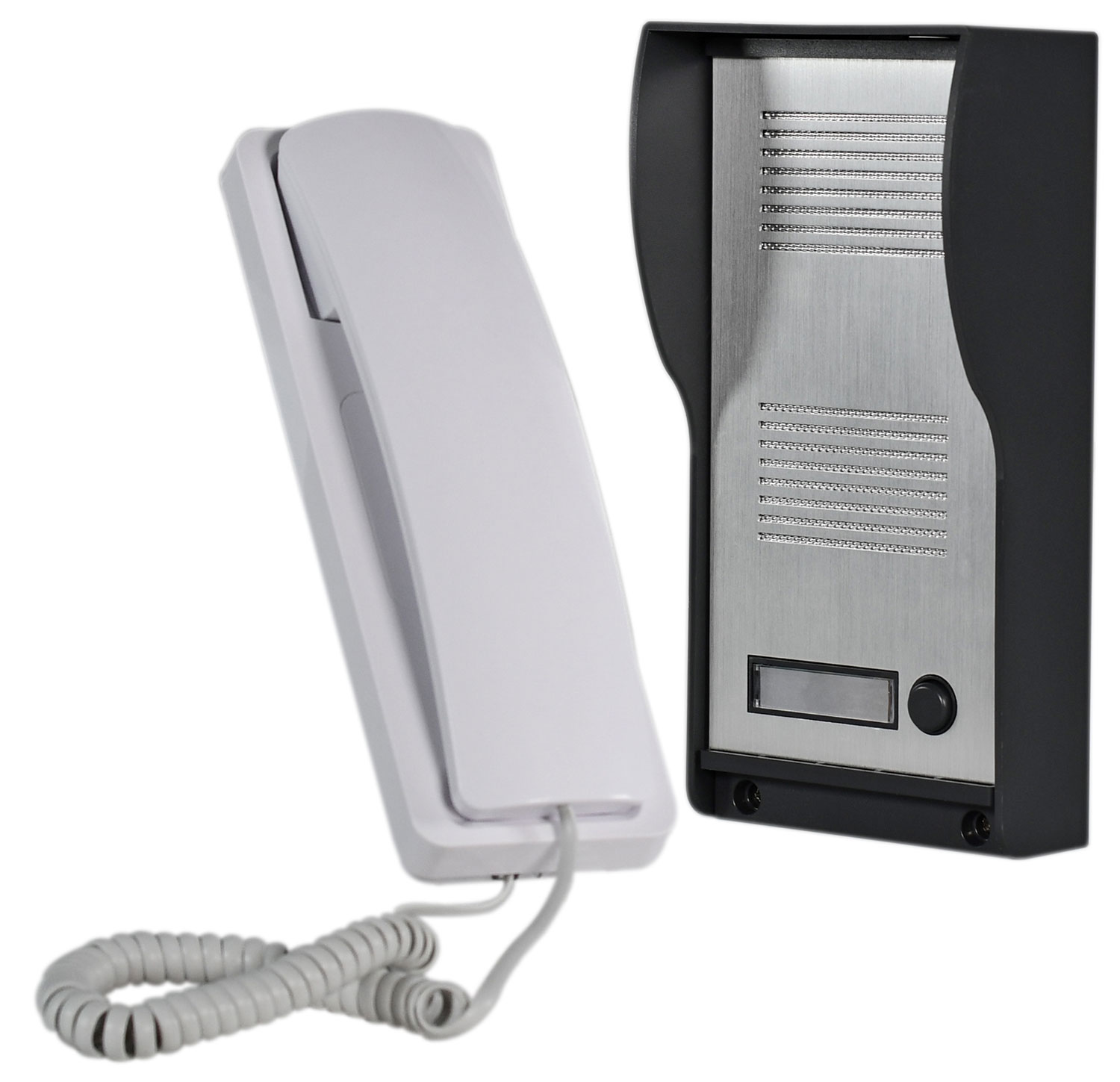

This 2-wire audio door phone system allows simple communication with visitors before opening the door. Fitted with high quality circuitry to provide clear, interference free audio and additional functionality for the opening of an electronic lock. Easy to install and operate, with adjustable ring volume this system is ideal for use in both domestic and business applications or for the elderly and less mobile.

  • High quality circuitry provides clear 2-way audio
  • Easy to install and operate
  • Adjustable ring volume
  • Maximum transmission distance of 100m (using 2 x 1.0mm² cable)

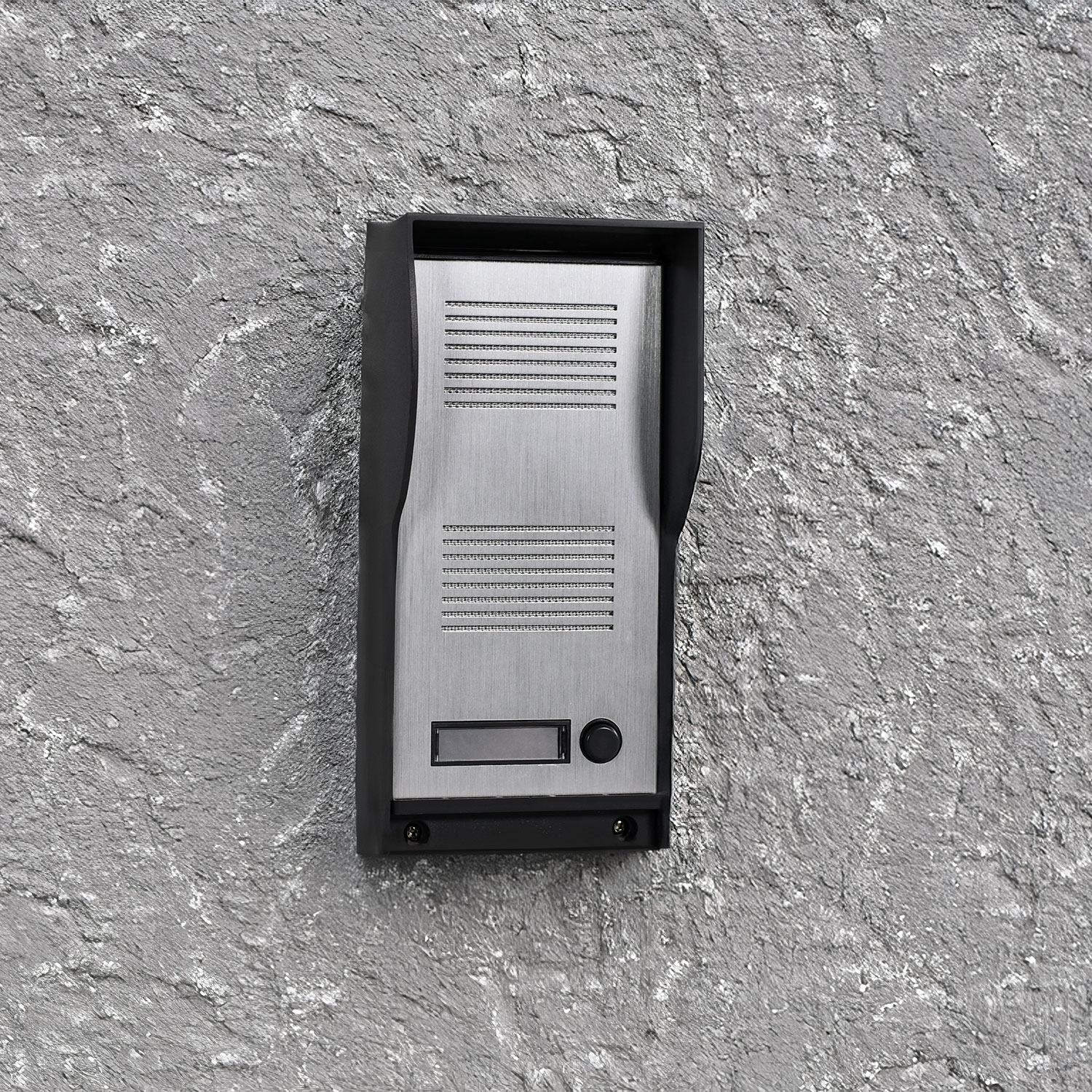

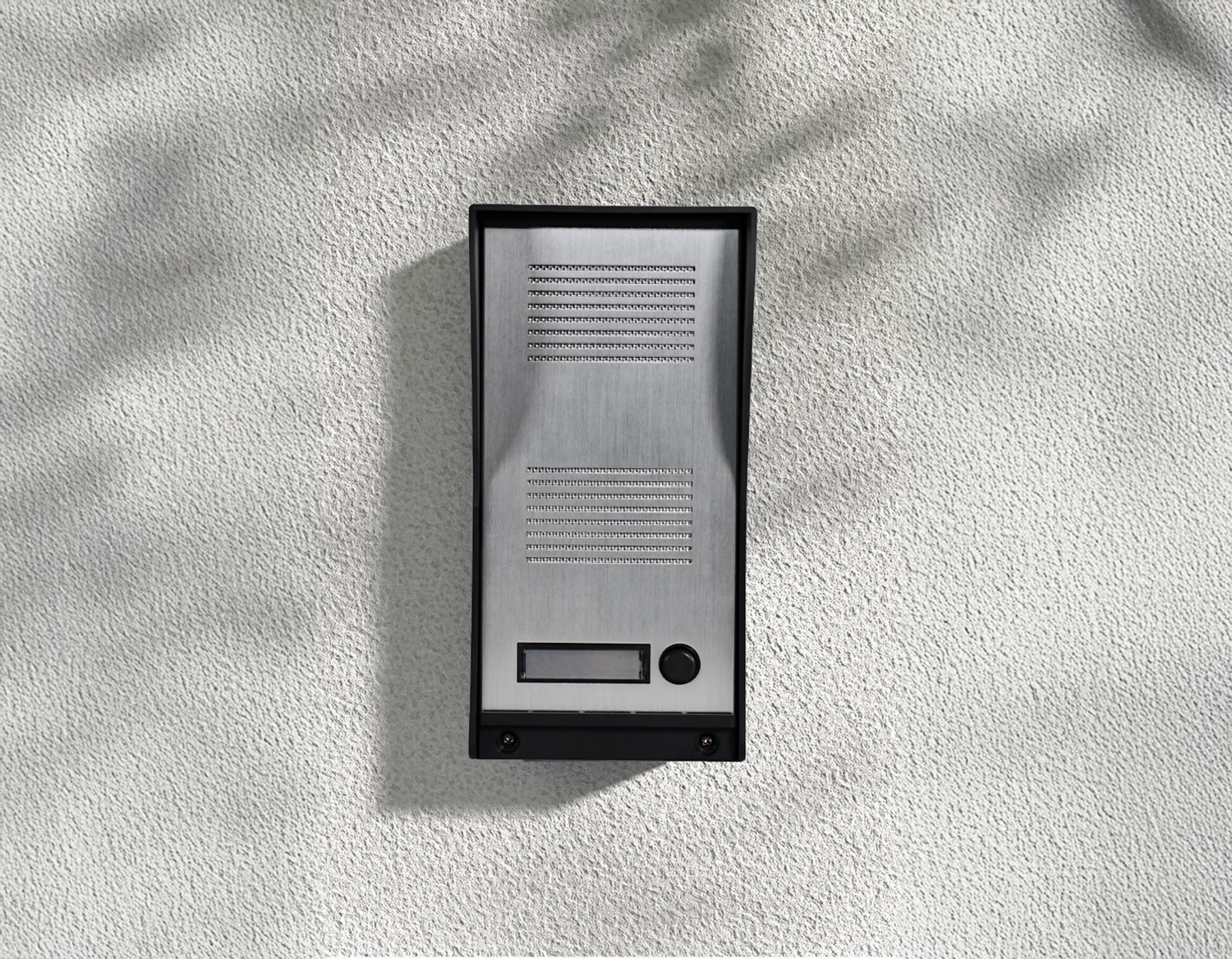

  • Weatherproof outdoor unit (IP44 rated) with backlit nameplate

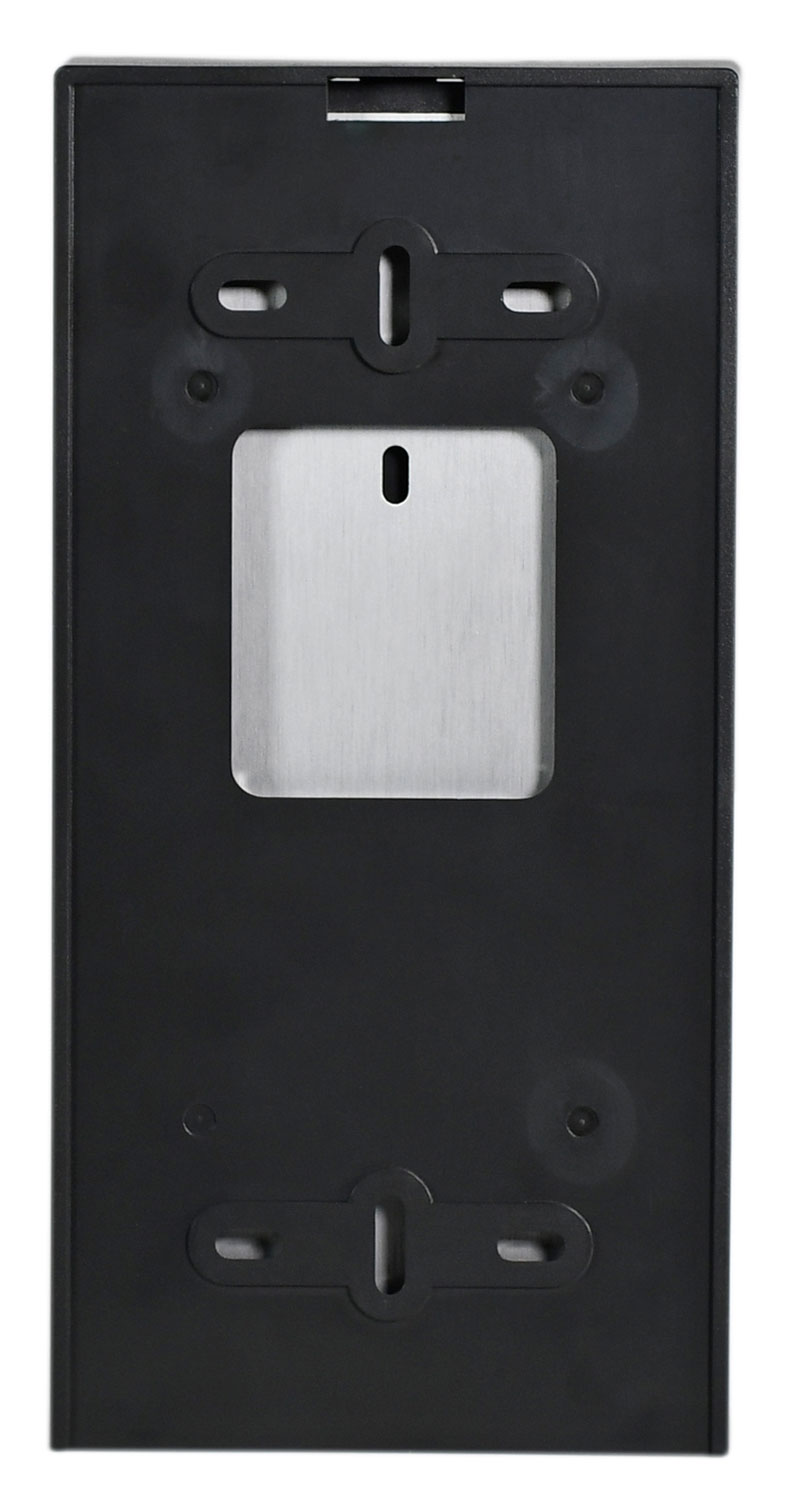

  • Supplied with rain shade for outdoor unit and wall mount brackets
  • Power supply AC 100-240V 50/60Hz (hardwired)
  • Power consumption <3W (static); <7W (working)
  • Transmission distance 0~50m (0.5mm²); 50~100m (1.0mm²)
  • Operating temperature -10°C~+50°C (indoor unit); -20°C~+50°C
  • Dimensions (outdoor unit) 215 x 105 x 65mm (inc. rain shade)
  • Dimensions (indoor unit) 208 x 65 x 60mm
  • Weight (outdoor unit) 464g
  • Weight (indoor unit) 380g

In the Box

  • Outdoor unit with wall mountable rain shade

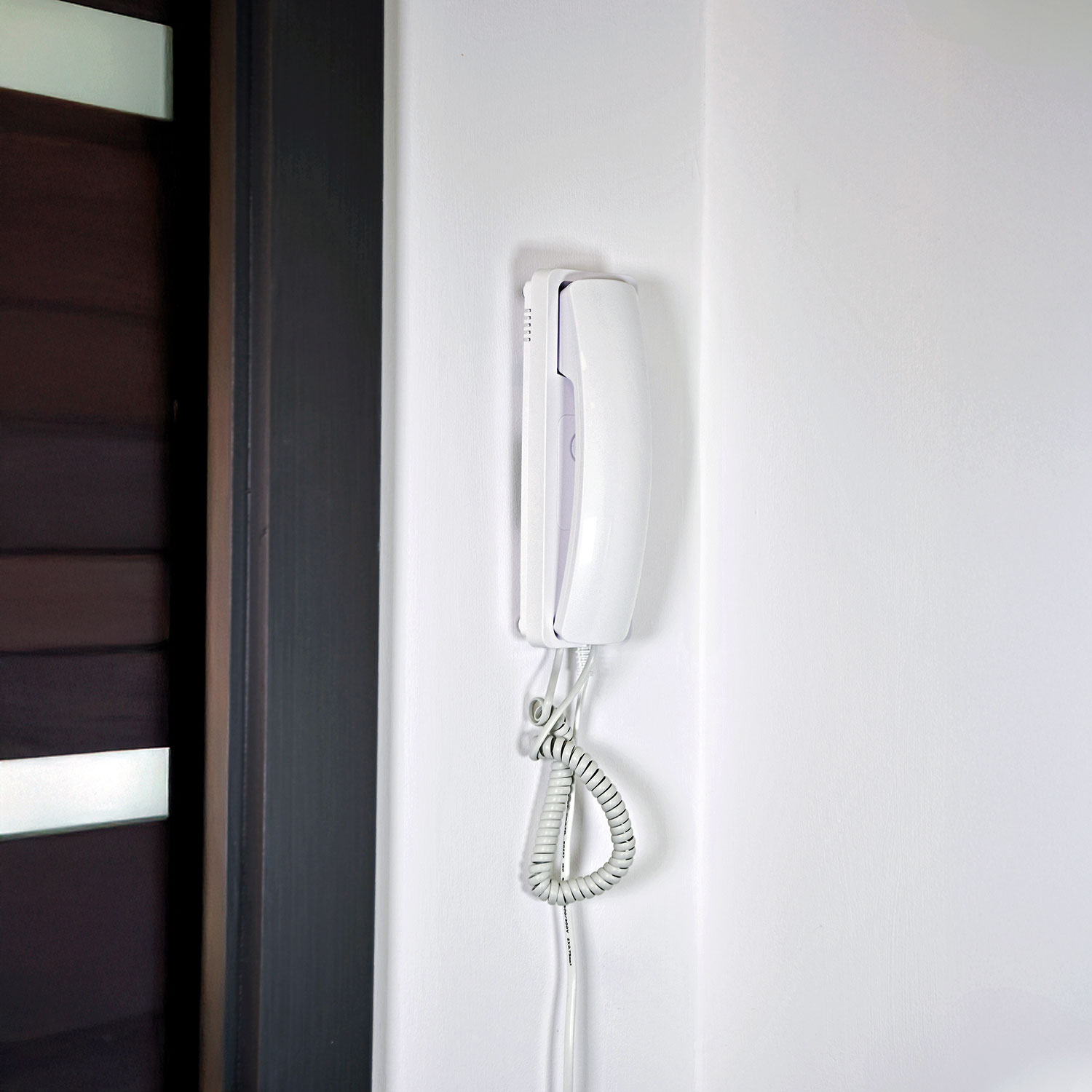

  • Indoor unit with hardwired UK power lead
  • Wall mount bracket for indoor unit
  • Fixings pack
  • User guide
