IP ratings
IP (or "Ingress Protection") ratings are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.
Weatherproof Outdoor Enclosure with 4-Gang 2m Extension Lead
429.870UK
A tough and watertight enclosure intended for use in outdoor or dusty environments. The box when closed is IP64 rated and comes complete with a 4-Gang 2m extension lead inside. There are 6 cable en...
- IP64 rated when the cover is closed
- Protects the contents against water and dust
- 4-Gang 2m Extension lead included with orange cable for greater visibility
| Description | |
|---|---|
|
429.870UK
Outdoor Enclosure with 4-Gang Ext 2m |
Weatherproof Outdoor Enclosure with 4-Gang 2m Extension Lead

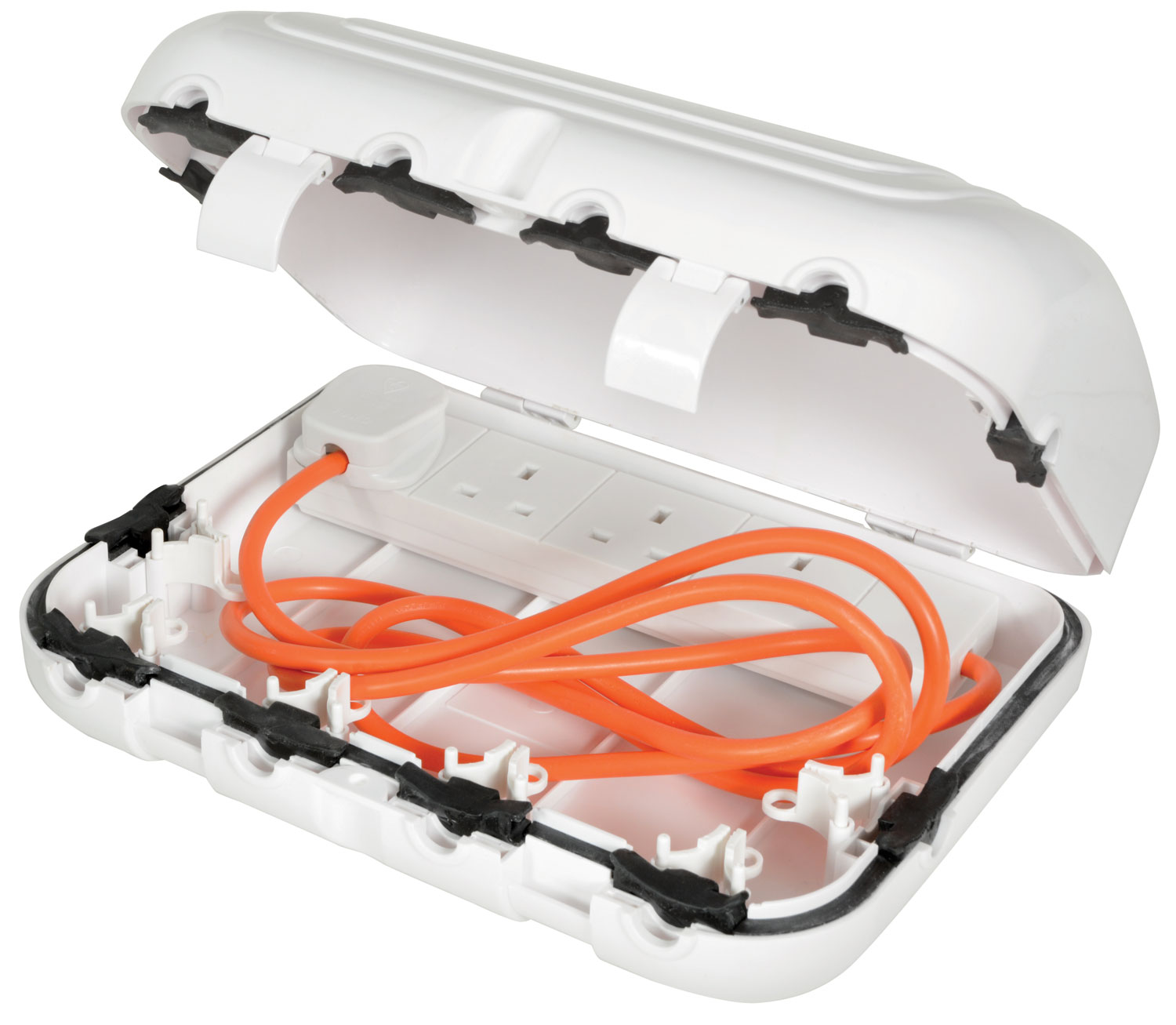

A tough and watertight enclosure intended for use in outdoor or dusty environments. The box when closed is IP64 rated and comes complete with a 4-Gang 2m extension lead inside. There are 6 cable entries with rubber seals to keep your cables secure without letting in moisture and also 6 cable clamps inside to keep them locked in position.
- IP64 rated when the cover is closed
- Protects the contents against water and dust
- 4-Gang 2m Extension lead included with orange cable for greater visibility

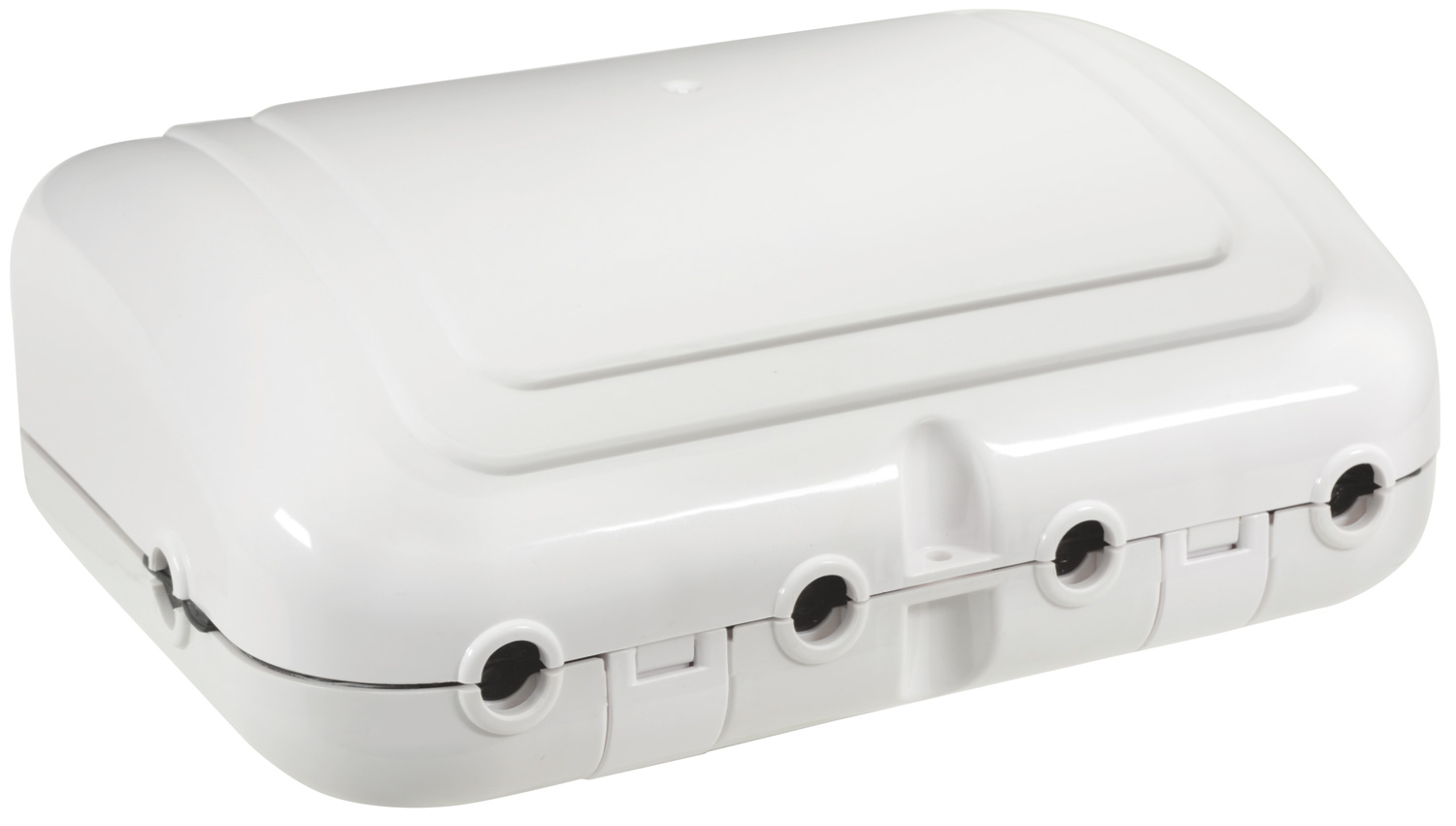

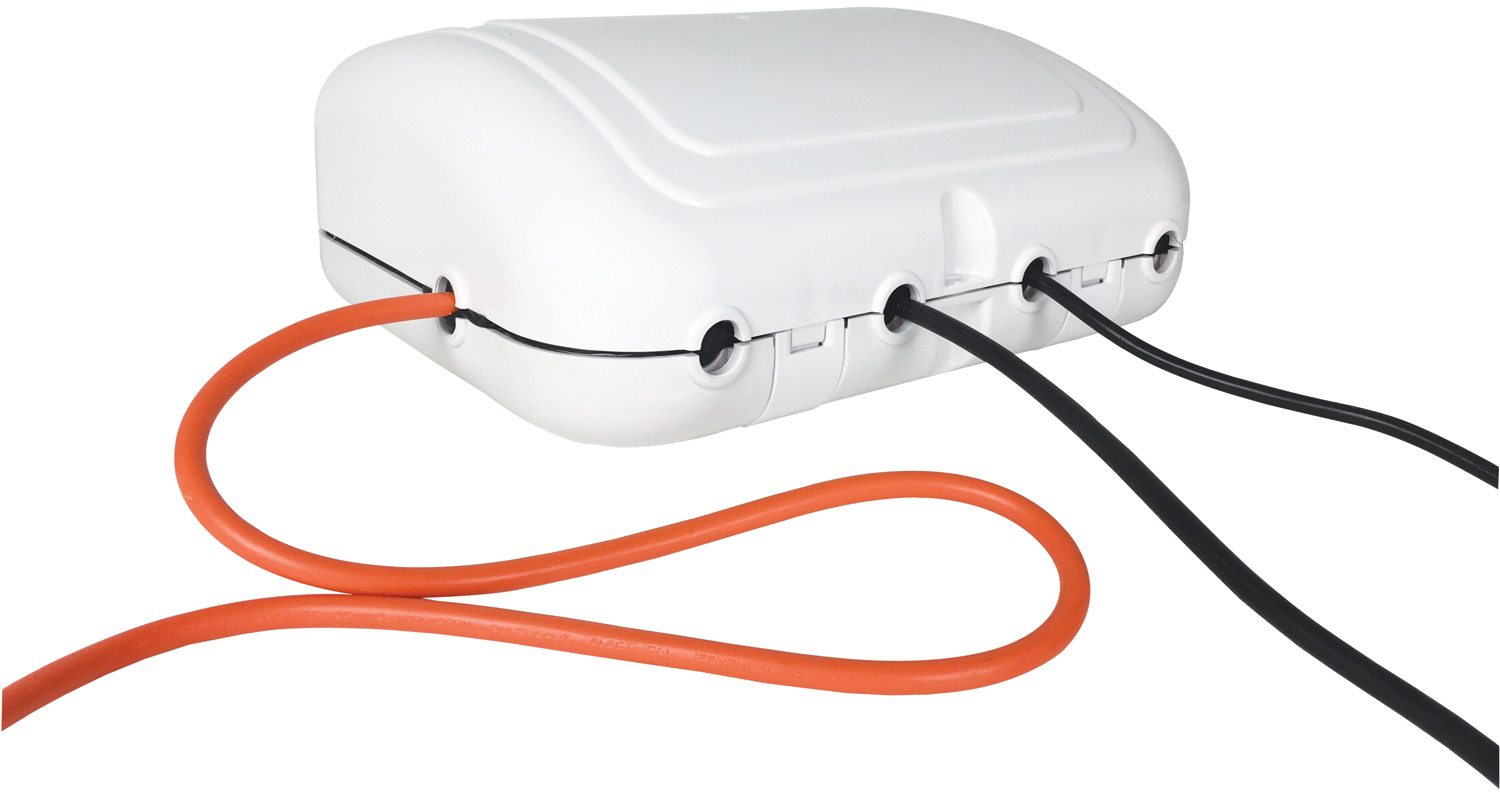

- 6 cable entries (4 front and 2 side) with rubber seals for cable up to 9mm in diameter
- 6 cable clamps inside (4 front and 2 side) to keep the cables secure once in place
- Deep lid to accommodate mains adaptors etc

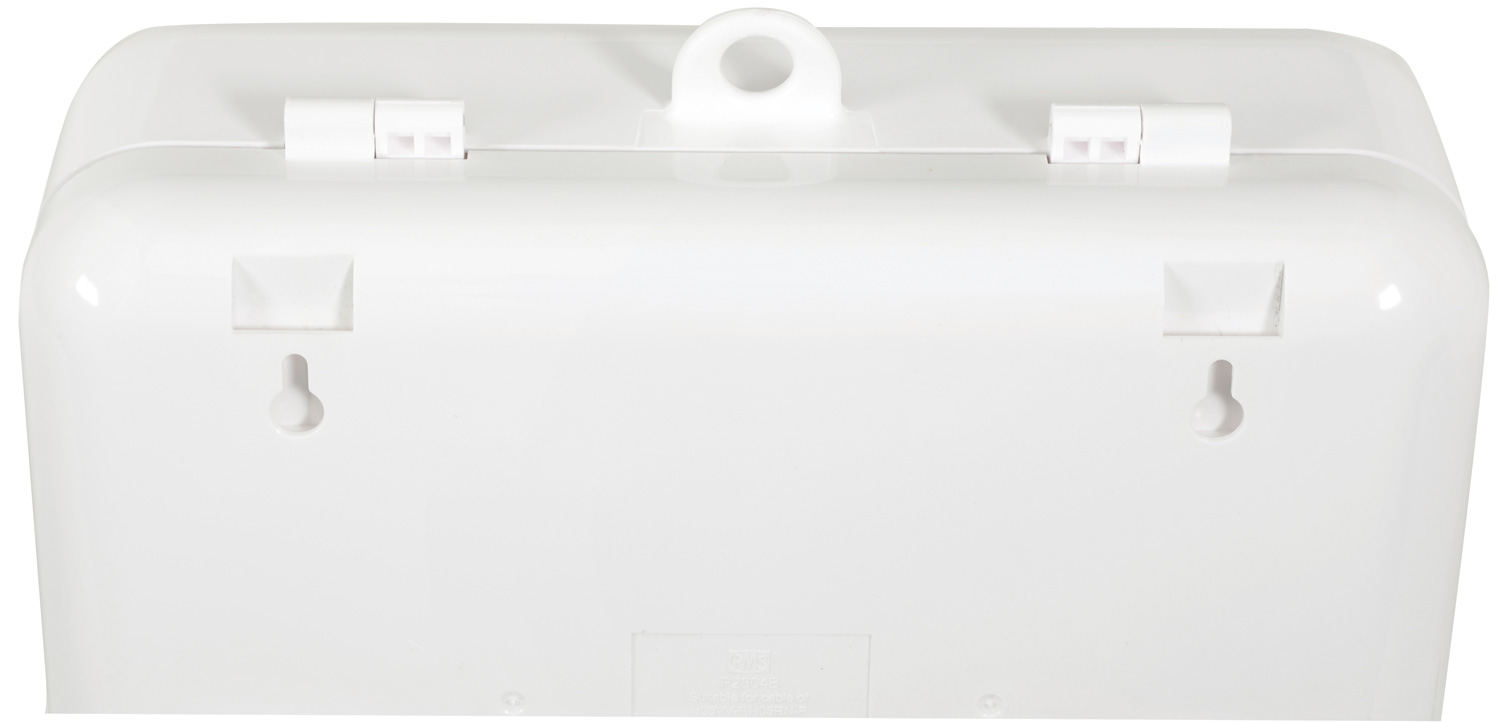

- Keyholes on the back and a top bracket for wall mounting or hanging
- IP rating IP64
- Voltage 230Vac
- Max. current 13A
- Dimensions 300 x 225 x 110mm
- Weight 1.5Kg (including extension lead)
