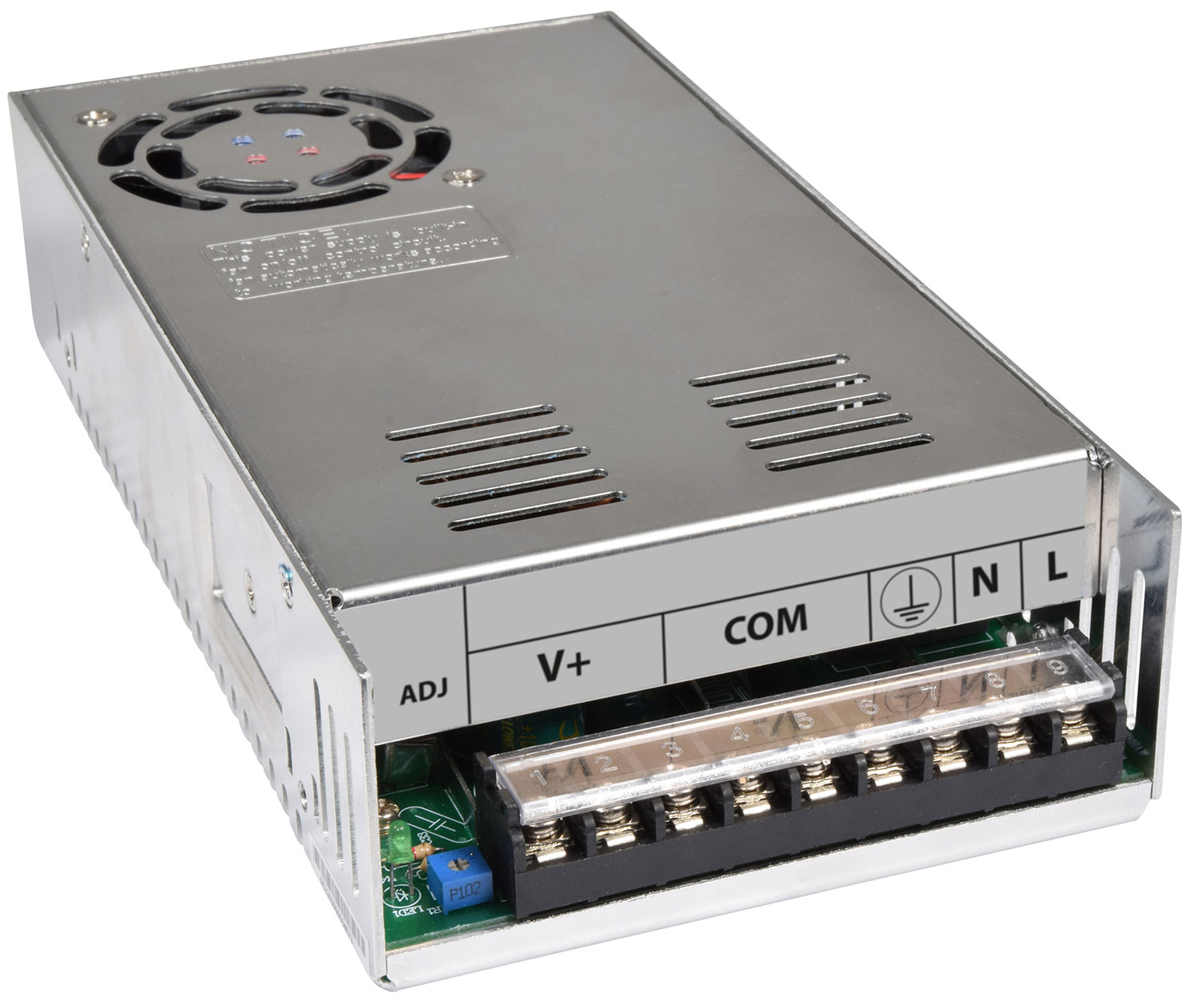

13.8Vdc Switch Mode Power Supplies
Series of 13.8Vdc switching power supplies, suitable for applications that require a stable and regulated DC voltage output. The specific voltage of 13.8V is commonly used because it aligns with the nominal voltage of a 12V lead-acid battery when it is fully charged. This makes these power supplies compatible with systems that are normally battery-powered allows them to provide a stable power source even when the battery voltage fluctuates. Ideal use for radio equipment, security systems, alarm systems, access control systems, 12Vdc LED Lighting systems and central monitoring systems. For indoor use only.
- Short circuit protection
- Overload protection
- Auto reset

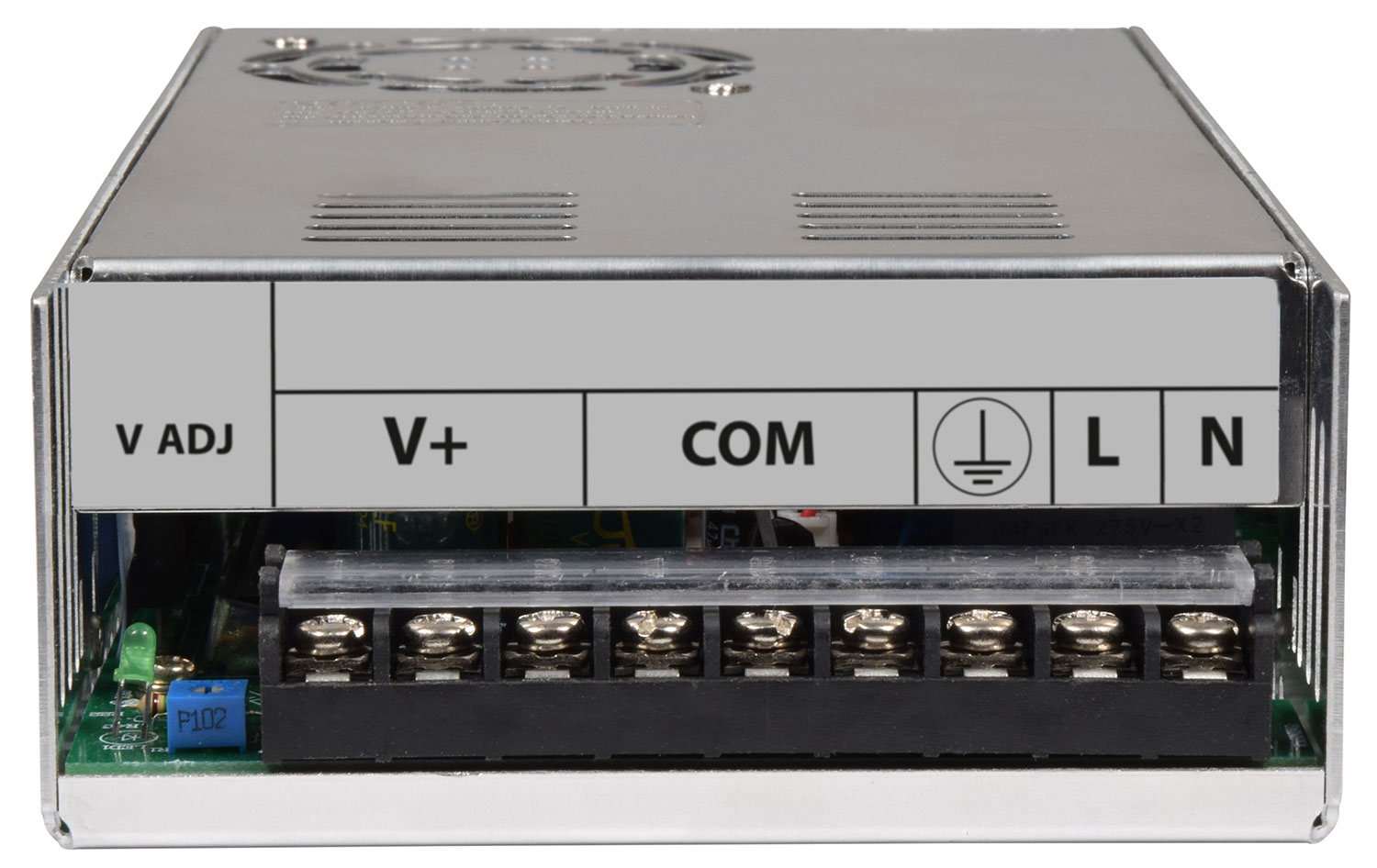

- Easy installation, screw terminals
- Fan cooling for higher power models
- Higher power models with 3 channels to spread load
- Output voltage 13.8Vdc
- IP rating IP20
- Voltage range 12.42V-15.18V
- Working temperature -10~40?
Versions
| 650.755UK | 650.756UK | 650.759UK | 650.761UK | 650.762UK | 650.764UK | |
|---|---|---|---|---|---|---|
| Power supply | 240Vac/1.3A, 50Hz | 240Vac/1.3A, 50Hz | 240Vac/2.5A 50Hz | 240Vac/4A 50Hz | 240Vac/4A 50Hz | 240Vac/6A, 50Hz |
| Power : max. | 49.68W | 74.52W | 207W | 345W | 414W | 600.3W |
| Output current | 3.6A | 5.4A | 15A | 25A | 30A | 43.5A |
| Dimensions | 110x35x80mm | 110x35x80mm | 200x38x100mm | 220x50x115mm | 220x50x115mm | 240x65x125mm |
| Weight | 0.22kg | 0.22kg | 0.54kg | 0.85kg | 0.85kg | 1.15kg |
| Output channels | 1 | 1 | 2 | 3 | 3 | 3 |
In the box
The box for this item contains :
- 1pcs 13.8Vdc power supply
