24Vdc In-line Power Adaptor / LED Driver
3A
660.456UK
DC2472UK
24Vdc power supplies built into a sealed in-line housing. Mains power input is via a 2-pin fig.8 socket (UK mains lead supplied) and output is on a hard-wired lead terminated with a 5.5 x 2.1mm DC… more
- 1.2m output lead with DC5521 plug
- Supplied with UK fig.8 mains lead
| DESCRIPTION | VERSION | PACKED | |
|---|---|---|---|
|
660.456UK
24Vdc Indoor PSU/LED Driver 3A |
3A | Box Label |
24Vdc In-line Power Adaptor / LED Driver

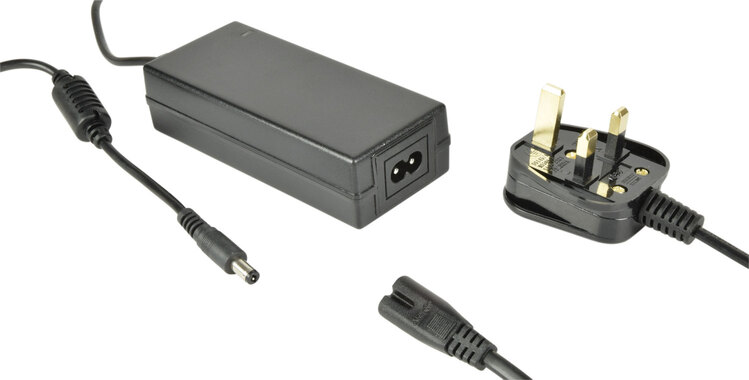

24Vdc power supplies built into a sealed in-line housing. Mains power input is via a 2-pin fig.8 socket (UK mains lead supplied) and output is on a hard-wired lead terminated with a 5.5 x 2.1mm DC plug. Stable and reliable power supplies for LED tape, CCTV and other equipment.
- 1.2m output lead with DC5521 plug
- Supplied with UK fig.8 mains lead
- Current max. 3A
- Wattage 72W
- Size 120 x 50 x 30mm
- Input 100-240Vac, 47/63Hz
- DC output 5.5 x 2.1mm DC plug
- Lead length 1.2m
- IP rating IP20
- Voltage 24Vdc
- Polarity Centre positive
