Neutrik® NAC3FXX Powercon Connectors

763.487UK

Locking AC mains cable connector, keyed and colour coded for power-out, screw terminal assembly, for cable diameters 6-12mm and 10-16mm. The powercon FXXA/FXXB is a single phase (3 conductor) lo...

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
Description Version Packed
763.485UK
NAC3FXXB-W-S Powercon
6-12mm Grey Poly Bag
763.486UK
NAC3FXXB-W-L Powercon
10-16mm Grey Poly Bag
763.487UK

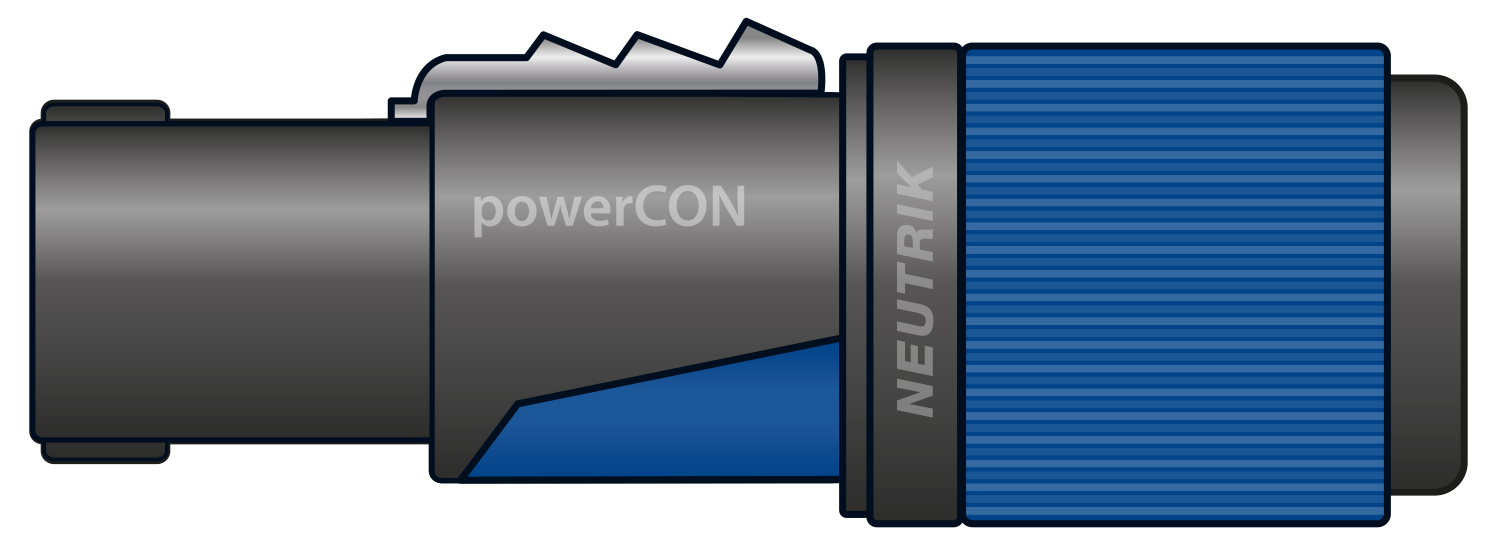

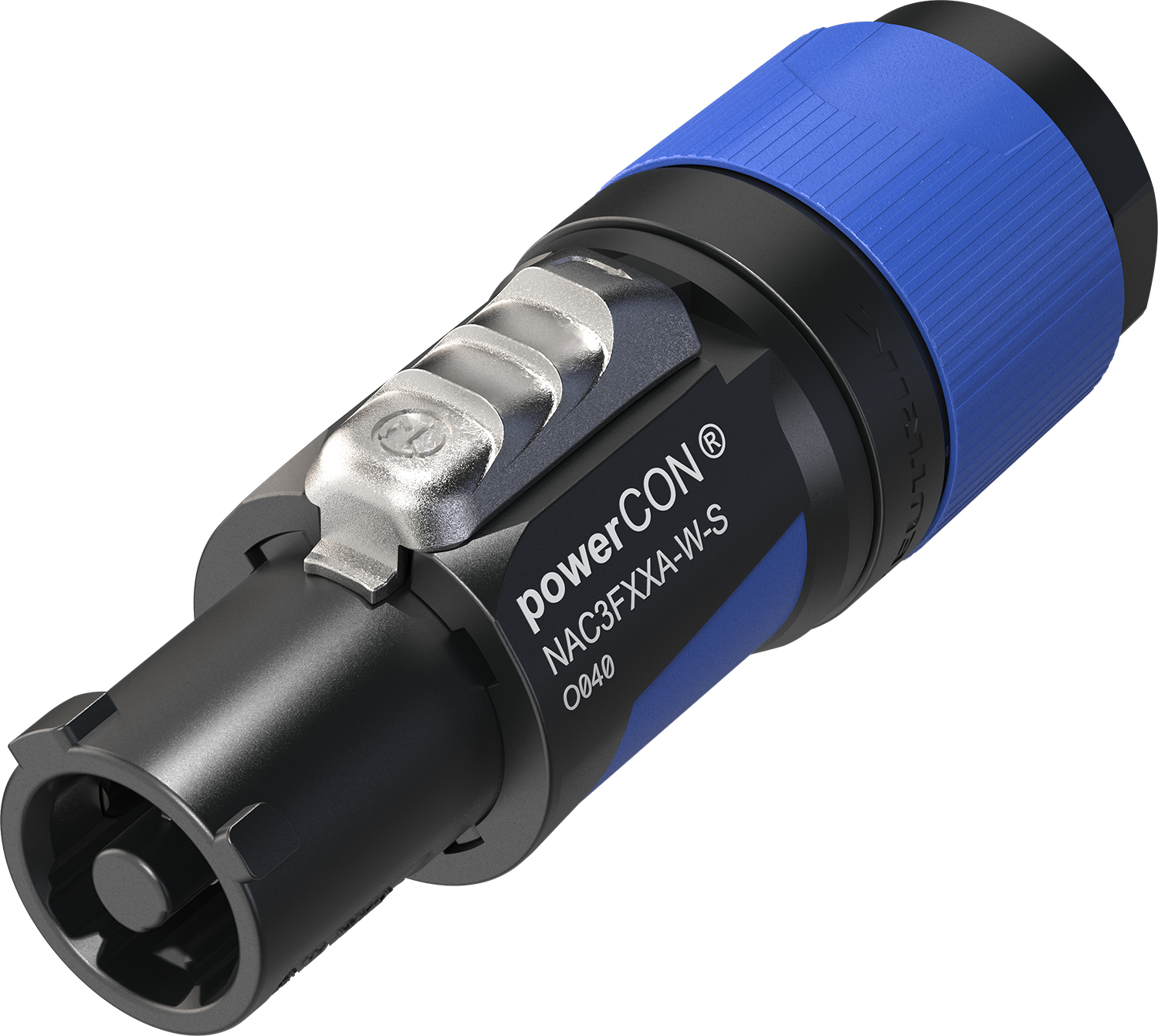

NAC3FXXA-W-S Powercon
6-12mm Blue Poly Bag
763.488UK
NAC3FXXA-W-L Powercon
10-16mm Blue Poly Bag

Neutrik® NAC3FXX Powercon Connectors

Locking AC mains cable connector, keyed and colour coded for power-out, screw terminal assembly, for cable diameters 6-12mm and 10-16mm. The powercon FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powercon XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Contact resistance ? 2 m?
  • Lifetime Typically 5’000 mating cycles
  • Terminals Screw type
  • Temperature range -33 °C to + 80 °C
  • IP rating IP20

Versions

  763.485UK 763.486UK 763.487UK 763.488UK
Cable : diameter 6-12mm 10-16mm 6-12mm 10-16mm
