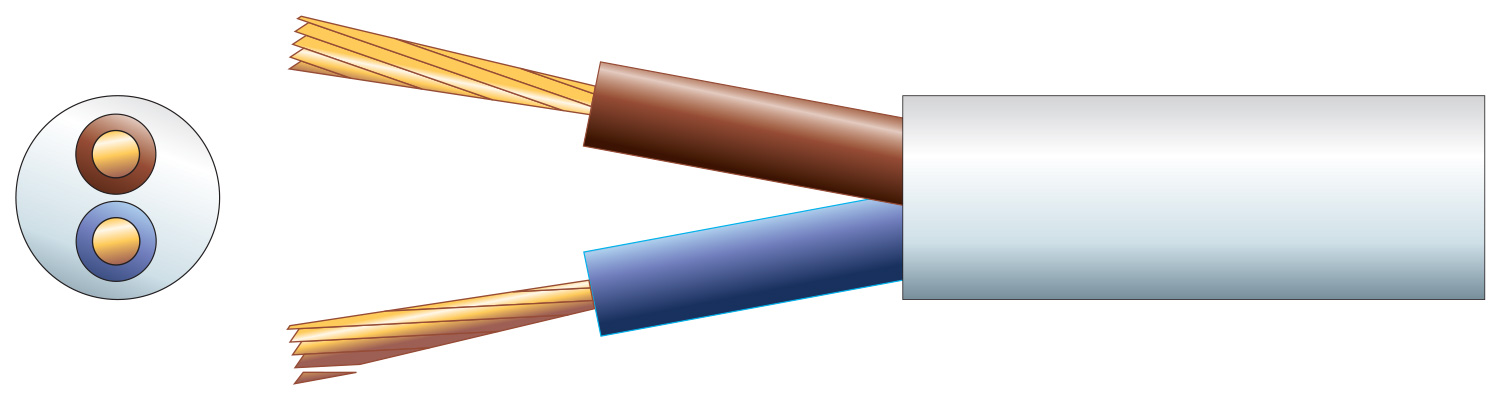

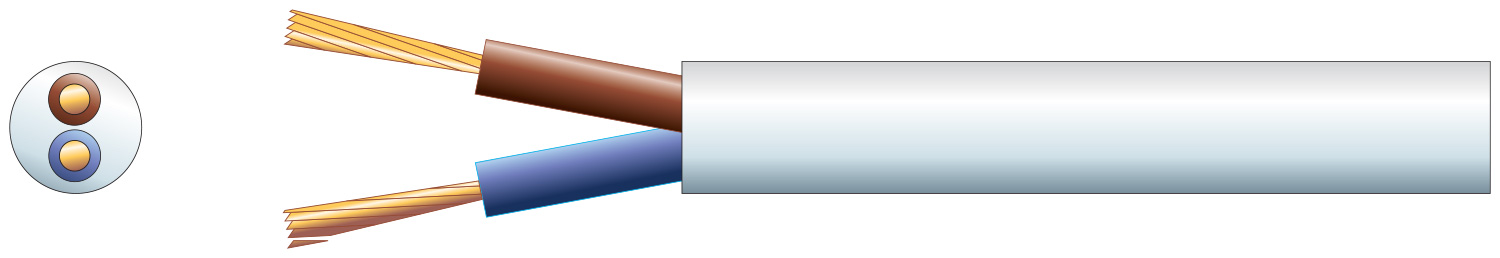

2182Y 2 Core Round PVC, 300/300V, HO3VV-F2, 6A

804.323UK

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

Full description Find retailer
Description Version Packed
804.323UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 5.8mmØ, White, 100m 		White 100m Reel
804.326UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 5.8mmØ, Black, 100m 		Black 100m Reel
804.324UK
2 core round mains PVC, 2 x 24/0.2mm, 6A, 5.8mmØ, White, 50m 		White 50m Reel

2182Y 2 Core Round PVC, 300/300V, HO3VV-F2, 6A

Round profile mains electric cable. Flexible PVC sheath for use in light electrical applications. BSI approved to BS6500, VDE approved.

  • CSA 0.75mm²
  • Strands 2 x 24/0.2mmØ
  • Cable : dimensions 5.8mmØ
  • Packed 4 reels
  • Current 6.0A max.

Versions

  804.323UK 804.326UK 804.324UK
Length 100m 100m 50m
Colour White Black White

Downloads

UK Declaration of conformity
For 804.323UK (248KB)
EU Declaration of conformity
For 804.323UK (237KB)
