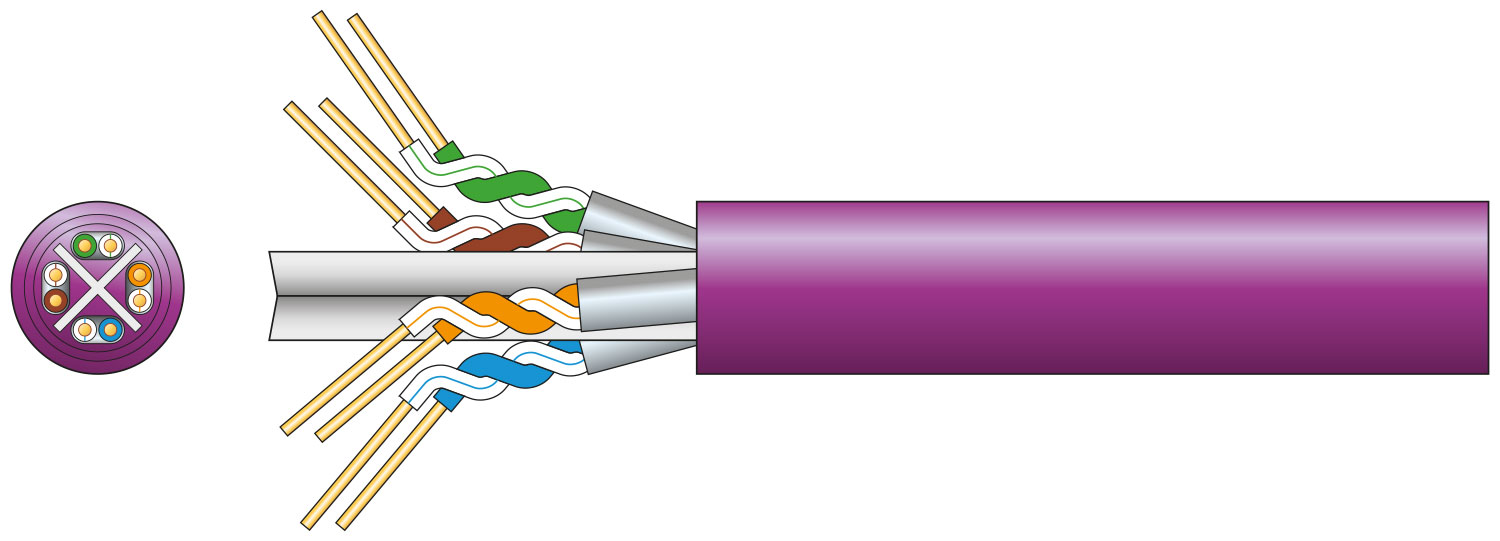

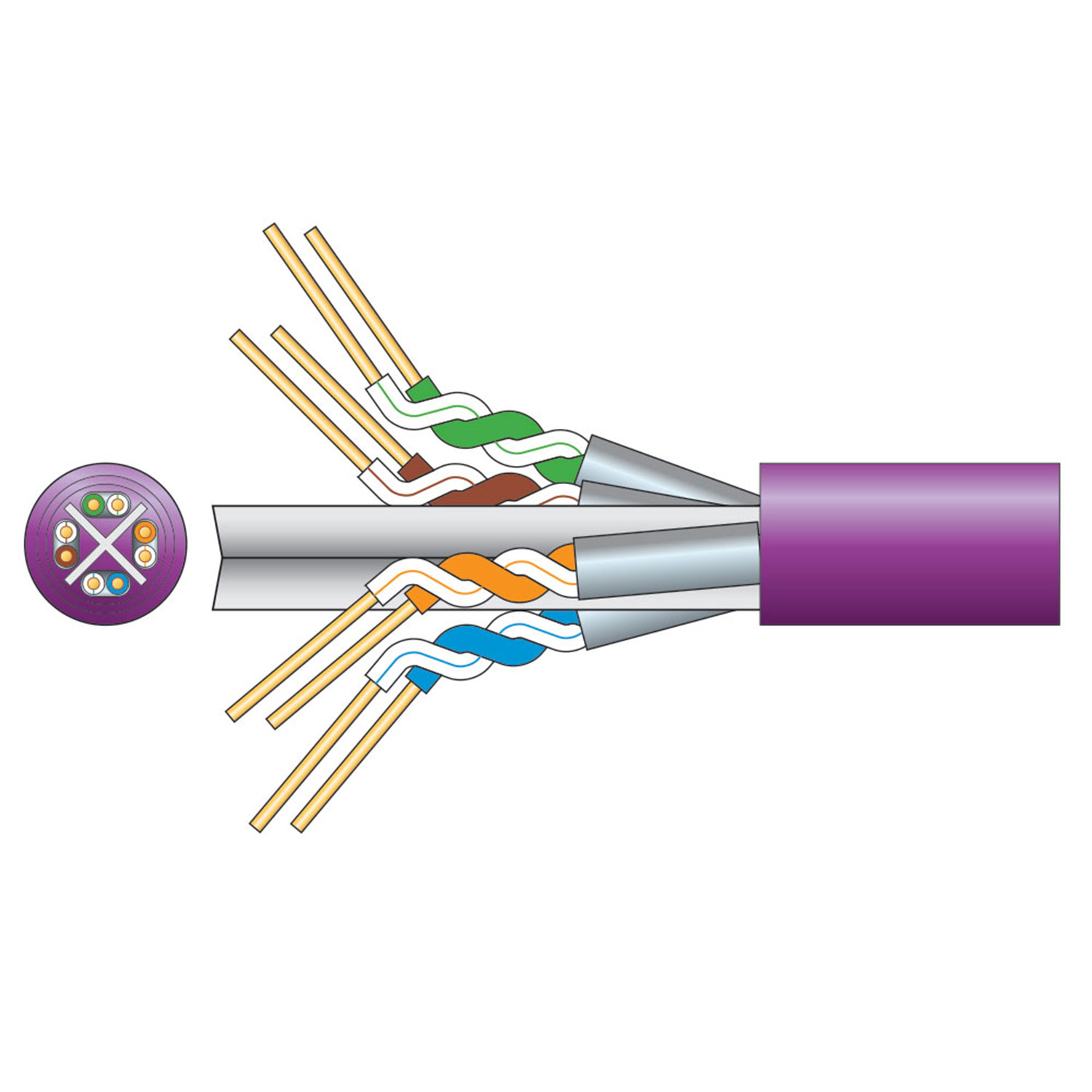

Cat6a U/FTP LSZH Network Cable

808.031UK

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This c...

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
Description Version Packed
808.031UK
Cat6a U/FTP LSZH Network Cable 305m Lilac
Lilac 305m Reel

Cat6a U/FTP LSZH Network Cable

Cat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

  • Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
  • AWG 23 oxygen free solid copper conductor
  • Supplied on a sturdy wooden drum reel
  • Passes Cat6a fluke test 100m at 500MHz
  • Complies to TIA/EIA-568 Cat6a standard
  • HDBaseT Compliant
  • Conductor Solid OFC
  • Strands 8 x 1/0.565mmØ ±2%
  • Conductor CSA 8 x 0.251mm²
  • Cable : diameter 7.5mmØ
  • Screen Aluminium foil
  • Insulation PE 0.385mm thickness
  • Sheath LSZH 0.55mm thickness
  • Capacitance 6.6nF/100m
  • DC resistance @ 20°C <7.8 Ohms/100m
  • Impedance (1 to 250MHz) 100±15 Ohms
  • Impedance (250 to 500MHz) 100±22 Ohms
  • Return loss >25dB @100m
  • Attenuation <45.3dB @100m
  • NEXT >74.3dB
  • PSNEXT >72.3dB
  • ELFEXT >14dB
  • PSELFEXT >11dB
  • Phase delay <570ns
  • Cable colour Lilac
  • Length 305m
  • Weight 14.5kg

Downloads

UK Declaration of conformity
For 808.031UK (242KB)
EU Declaration of conformity
For 808.031UK (232KB)
Fluke Test
Report
DoP Certification
In relation to the new CPR regulations 1st July 2017
