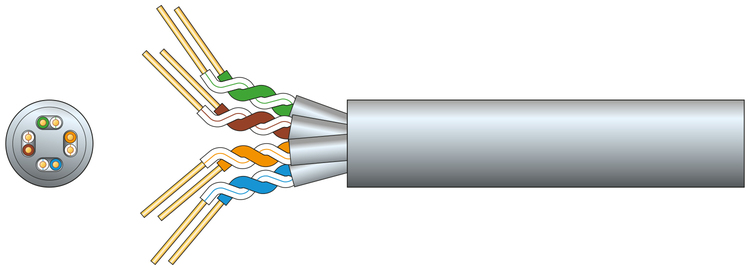

Cat6a U/FTP Network Cable
808.032UK
Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed fo...
- AWG 23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
| Description | |
|---|---|
|
808.032UK
Cat6a U/FTP Network Cable 305m Grey |

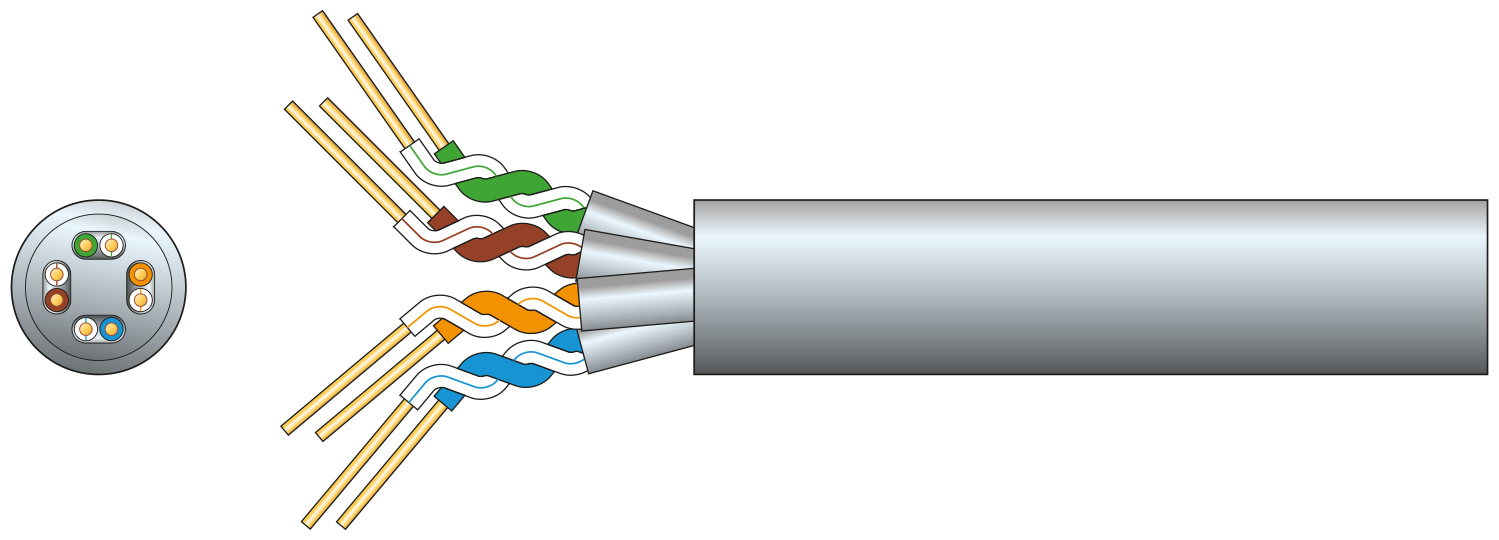

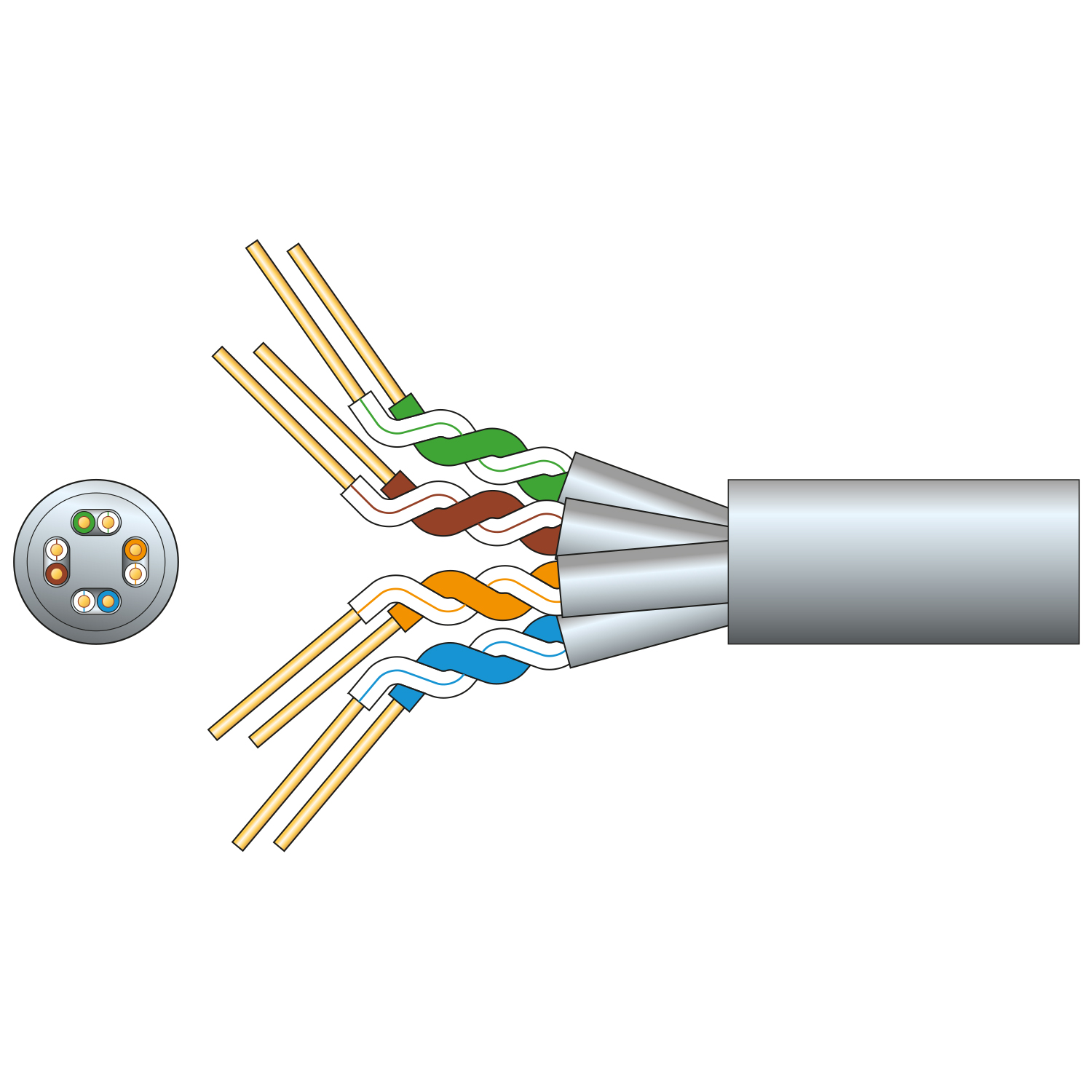

Cat6a U/FTP Network Cable
Cat6a oxygen free copper twisted pair data cable with PVC sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
- AWG 23 oxygen free solid copper conductor
- Supplied on a sturdy wooden drum reel
- Passes Cat6a fluke test 100m at 500MHz
- Complies to TIA/EIA-568 Cat6a standard
- Conductor Solid OFC
- Strands 8 x 1/0.560mmØ ±2%
- Cable : diameter 7.3±0.5mm
- Screen Aluminium/Mylar foil
- Insulation PE 1.330±0.05mmØ
- Sheath PVC 0.55±0.05mm thickness
- Capacitance <330pf/100m
- DC resistance @ 20°C <9.38 Ohms/100m
- Impedance (100 to 250MHz) 100±15 Ohms
- Impedance (250 to 500MHz) 100±22 Ohms
- Return loss >25.61dB
- Attenuation <2.51dB
- NEXT >103.94dB
- PSNEXT >102dB
- ELFEXT >110.68dB
- PSELFEXT >108.56dB
- Phase delay <428.1ns
- Colour Grey
- Length 305m
- Weight 17.4kg
