QR Passive Series Replacement Drivers

902.527UK

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets.

  • Vented magnets
  • Spade terminals
Description Version Packed
902.527UK

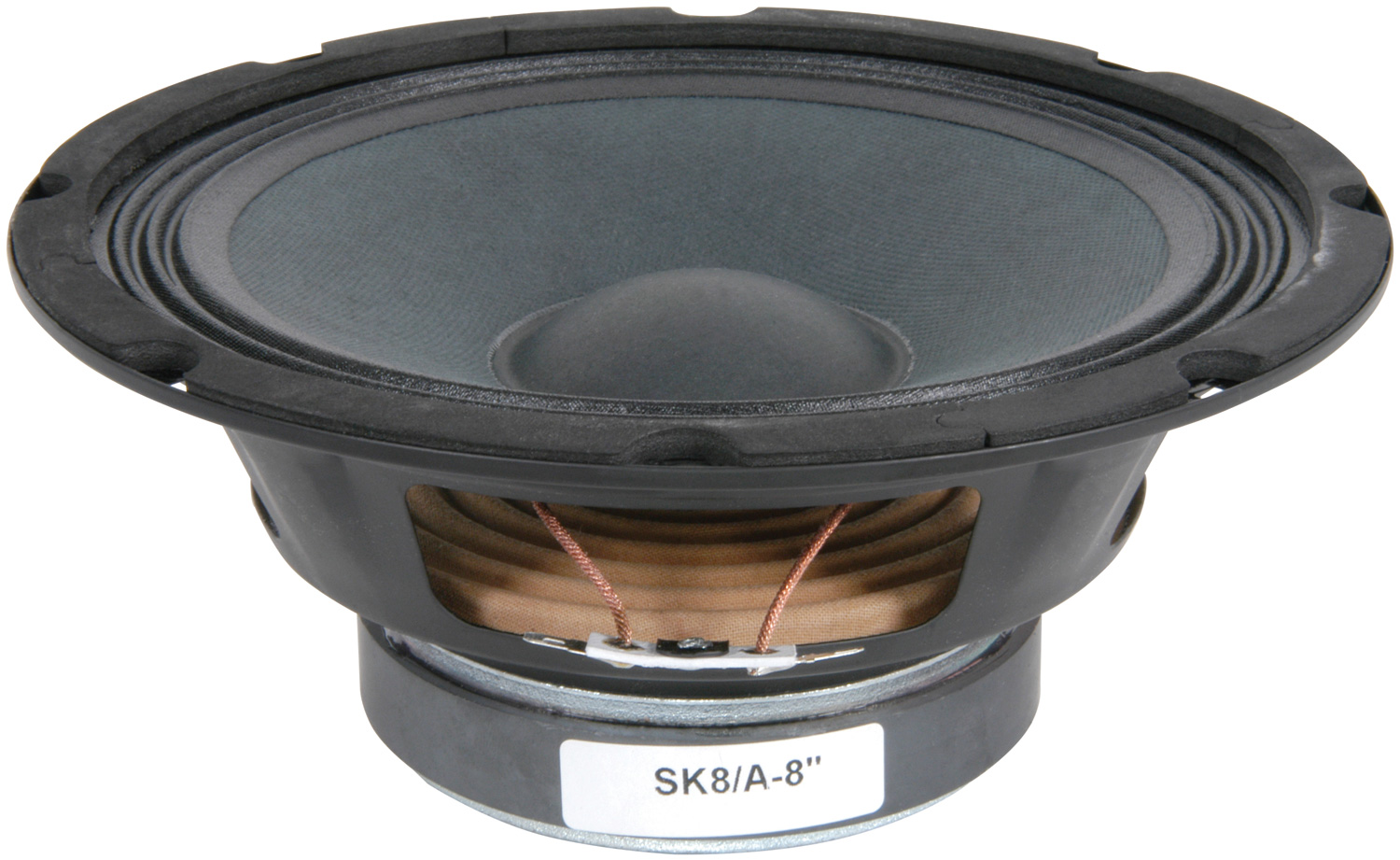

8" driver for QR8 (178.210UK)
8" for QR8 Box Label BW
902.524UK
10" driver for QR10 (178.211UK)
10" for QR10 Box Label BW
902.521UK
12" driver for QR12 (178.212UK)
12" for QR12 Box Label BW
902.518UK
15" driver for QR15 (178.213UK)
15" for QR15 Box Label BW

QR Passive Series Replacement Drivers

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets.

  • Vented magnets
  • Spade terminals
  • Impedance 8 Ohms

Versions

  902.527UK 902.524UK 902.521UK 902.518UK
Power max. 200W 300W 400W 500W
Power rms 100W 150W 200W 250W
Magnet size 110 x 18mm 120 x 20mm 140 x 20mm 156 x 20mm
Diameter 20cm (8") 25cm (10") 30cm (12") 38cm (15")
Frequency response 55Hz - 8kHz 50Hz - 6kHz 45Hz - 6kHz 42Hz - 5kHz
Magnet weight 710g (25oz) 850g (30oz) 1.1kg (40oz) 1.4kg(50oz)
SPL @ 1W/1m 93dB 95dB 98dB 101dB
Voice coil 35mm (1.35") 52mm (2") 52mm (2") 62mm (2.5")
Dimensions 87mm x 210mmØ 108mm x 255mmØ 129mm x 307mmØ 151mm x 385mmØ
Weight 1.5kg 2.85kg 4.02kg 5.27kg
