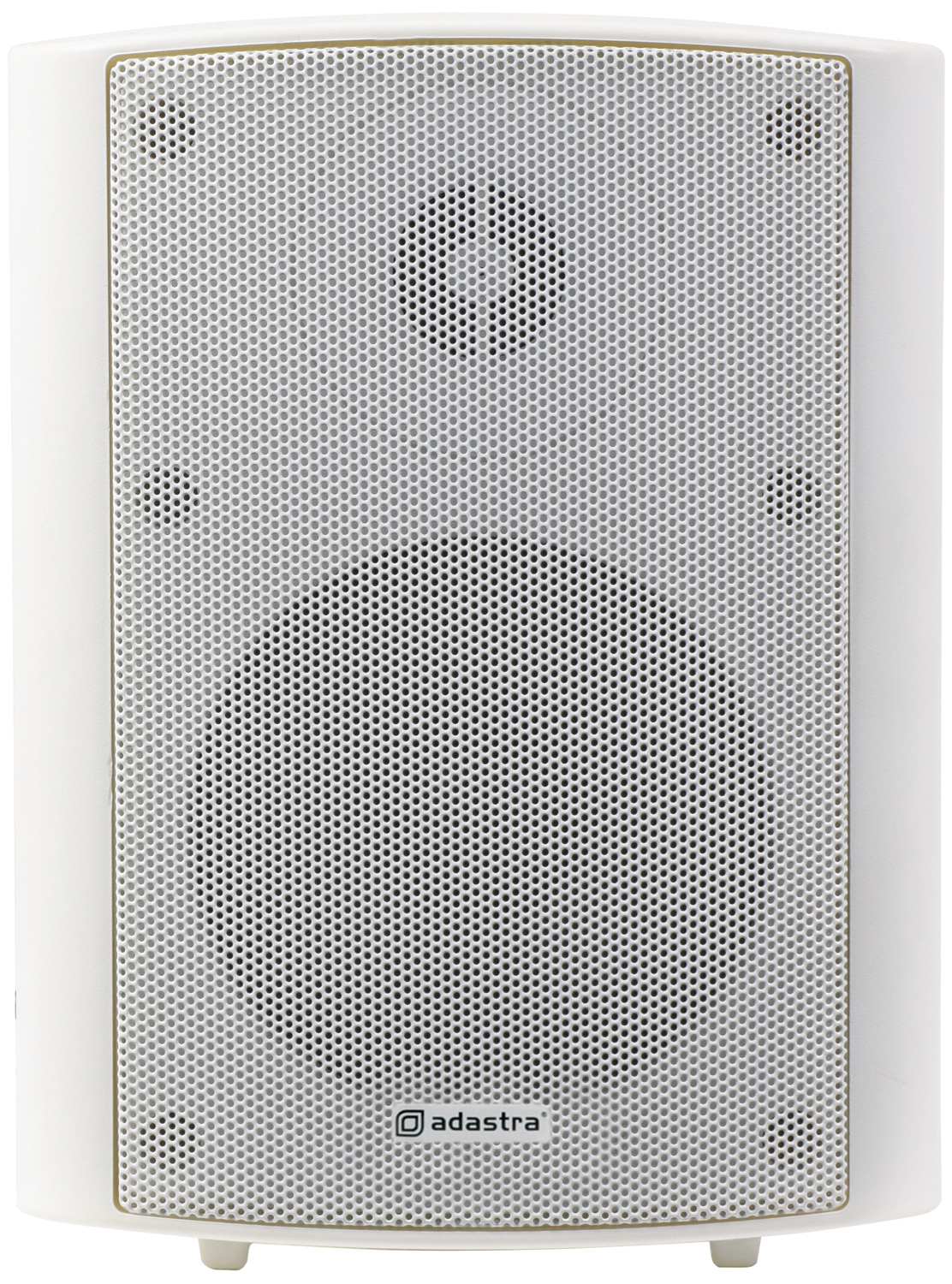

BPA-series 12V Weatherproof Active Speaker

952.824UK BP4A-W

Active version of the BP-series weatherproof wall-mounted speakers with an internal amplifier and hard-wired 4-core cable for signal and power input. Each speaker can be driven by any 12Vdc power s...

  • Requires 12Vdc 2A+ power supply
  • IP54 for sheltered outdoor use
  • 4-core hard-wired cable for power and signal input
Description Version Packed
952.824UK
BP4A-W Active 12Vdc Speaker 4" White
4" White Box Label

Accessories

Description Version Packed
660.451UK
12Vdc Indoor PSU / LED Driver 2A
2A Box Label

BPA-series 12V Weatherproof Active Speaker

Active version of the BP-series weatherproof wall-mounted speakers with an internal amplifier and hard-wired 4-core cable for signal and power input. Each speaker can be driven by any 12Vdc power supply with 2A or more current capacity (e.g. 153.754UK) and accepts a mono line level signal input. A suitable alternative to active horn speakers where sound quality is paramount. These speakers can be operated in indoor or sheltered outdoor areas, thanks to the water-resistant polypropylene drivers and sealed cabinets. Designed for CCTV installations, simple background music systems or to extend an existing sound installation without adding further amplifiers.

  • Requires 12Vdc 2A+ power supply
  • IP54 for sheltered outdoor use

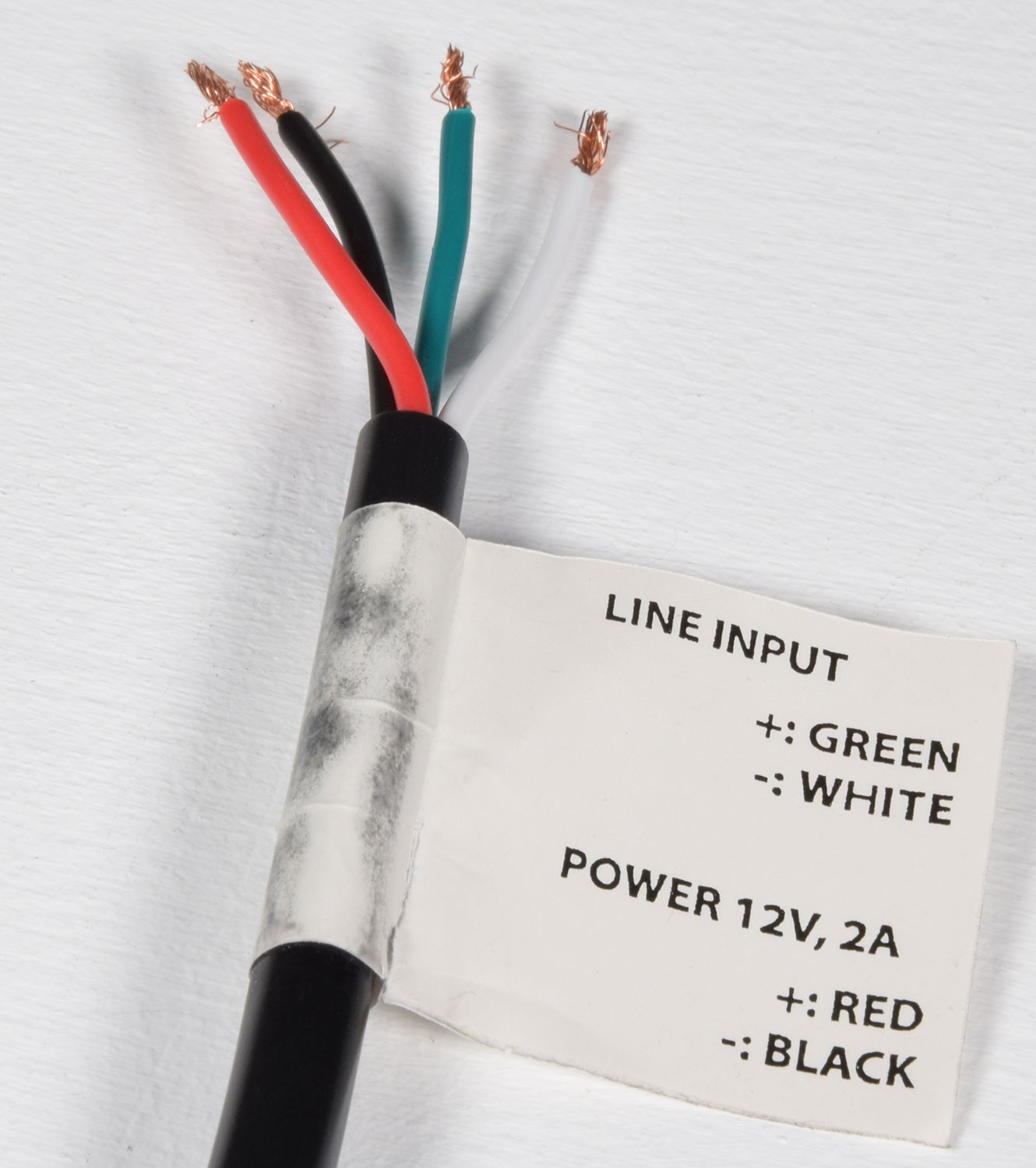

  • 4-core hard-wired cable for power and signal input
  • Inbuilt amplifier

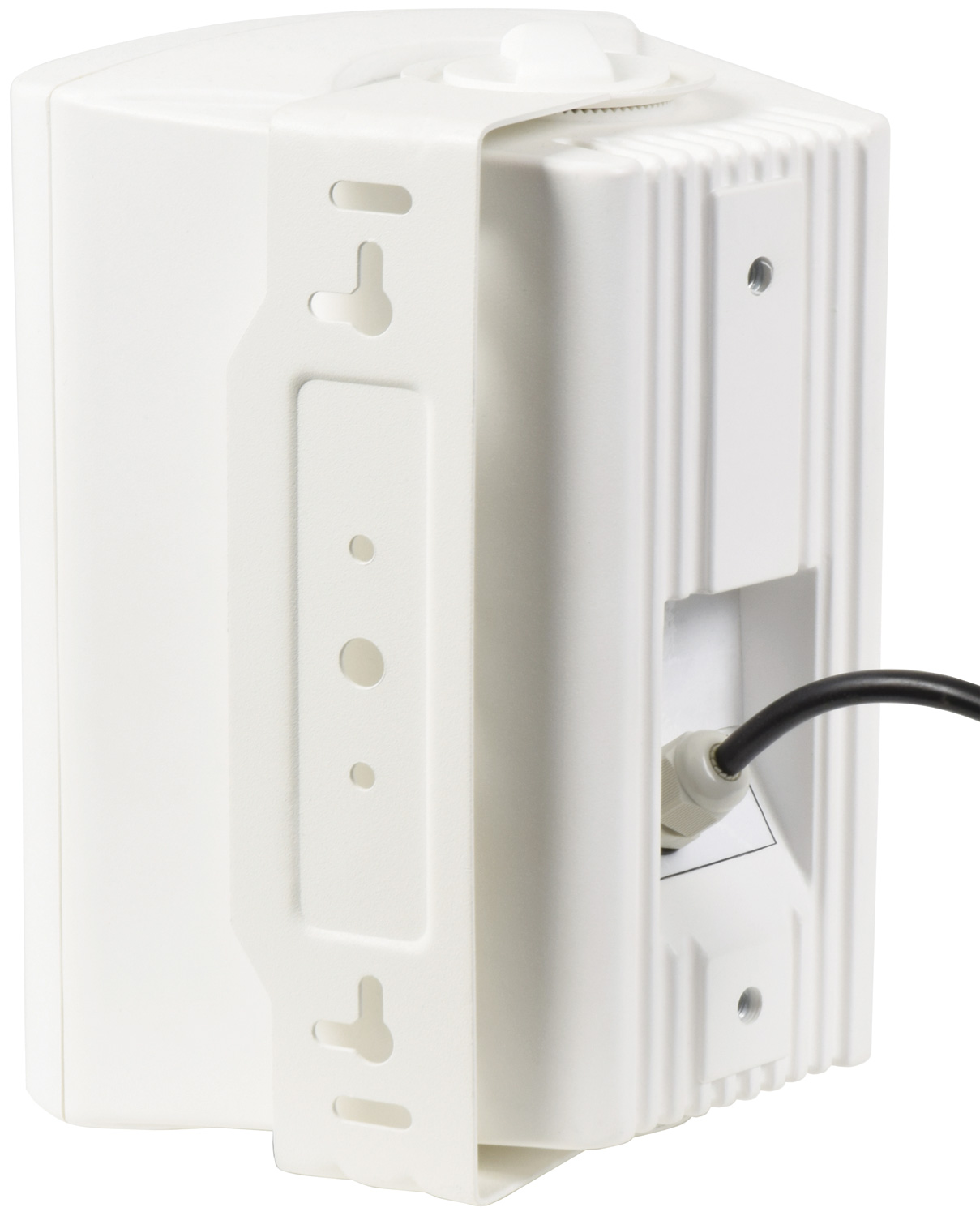

  • Wall mounting bracket included
  • Power supply 12Vdc, 2A or more (not included)
  • Input signal 0.775Vrms (1.3Vmax)
  • Woofer 100mmØ (4") polypropylene cone
  • Tweeter 25mmØ (1") balanced dome
  • IP rating IP54
  • Max power output 12W
  • Dimensions 195 x 150 x 150mm
  • Weight 1.298kg

Support : articles

Active speakers

Active speakers contain their own amplifier to drive the speaker, which will be matched by impedance and power handling. This makes them a simple solution for distributed audio systems.

Sunday, 1st January 2017

Speaker system types

Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems

Sunday, 1st January 2017

Power Ratings: RMS vs Max vs Peak

A summary explaining the key differences between RMS, Max and Peak power ratings.

Tuesday, 10th March 2020

In the box

The box for this item contains :

  • BPA-series active wall speaker
  • Wall bracket and screw caps

Downloads

UK Declaration of conformity
For 952.824UK (249KB)
EU Declaration of conformity
For 952.824UK (237KB)
