100V line speakers
For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. 100V line is a solution to this problem.
Sound Projectors
952.941UK
WSP10-B
Weatherproof sound projectors with injection-moulded body and coated steel grille. Suitable for indoor or outdoor music and speech applications. The hard-wired input cable has 4-cores to enable con...
- Adjustable steel mounting bracket
- Weatherproof ABS enclosure
Sound Projectors

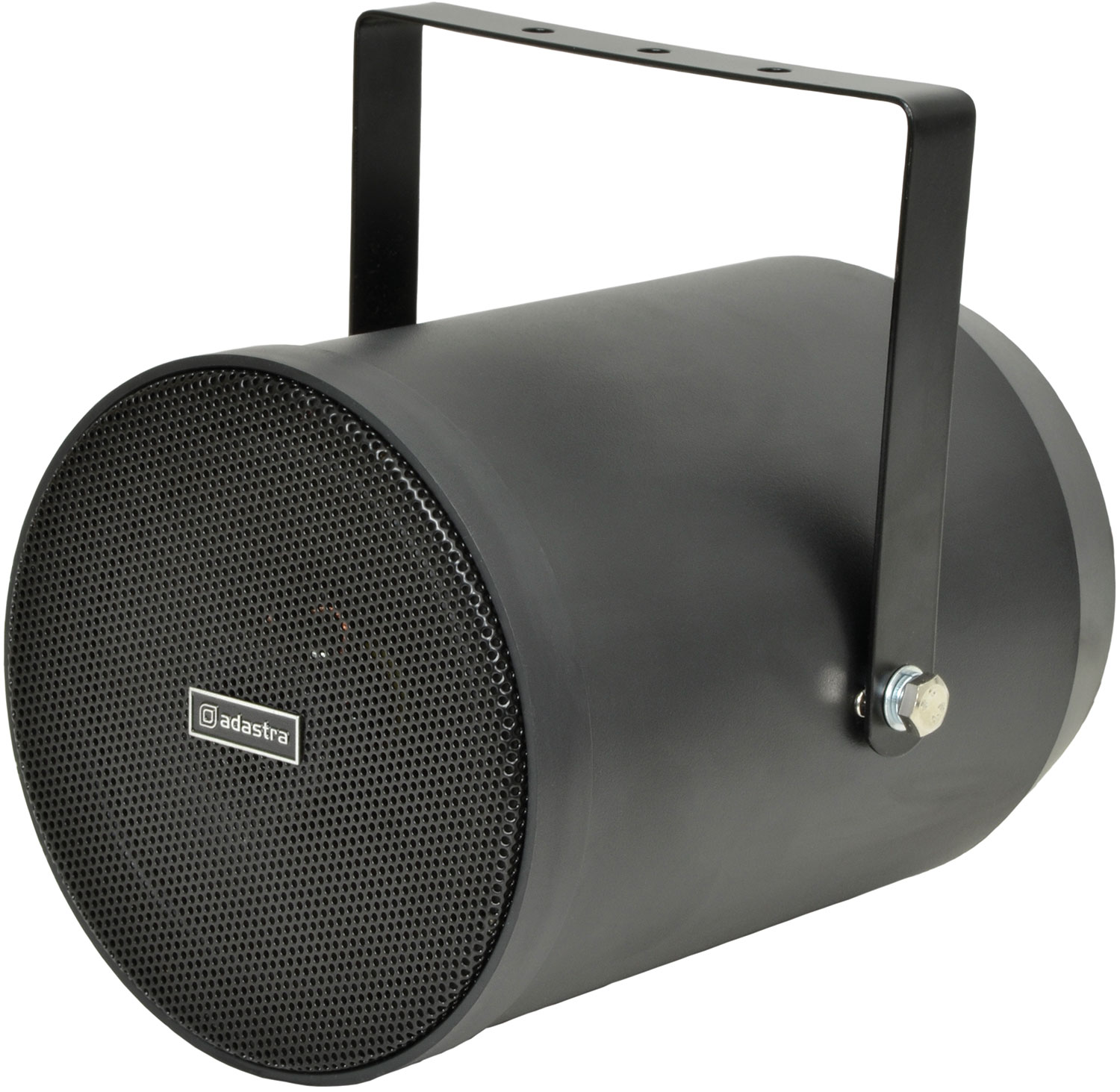

Weatherproof sound projectors with injection-moulded body and coated steel grille. Suitable for indoor or outdoor music and speech applications. The hard-wired input cable has 4-cores to enable connection for different power tappings. If necessary, the transformer may be bypassed internally to give an 8 Ohms load.
- Adjustable steel mounting bracket
- Weatherproof ABS enclosure
- Housing material ABS
- Tweeter Concentric 12mm (0.5") mylar dome
- IP rating IPX5
- Cable : length 350mm
Versions
| 952.940UK | 952.941UK | 952.942UK | 952.943UK | |
|---|---|---|---|---|
| SPL @ 1W/1m | 90dB | 90dB | 92dB | 92dB |
| Frequency response | 130Hz - 17kHz | 130Hz - 17kHz | 100Hz - 17kHz | 100Hz - 17kHz |
| Main driver | 135mmØ (5.25") polypropylene cone | 135mmØ (5.25") polypropylene cone | 165mmØ (6.5") polypropylene cone | 165mmØ (6.5") polypropylene cone |
| Dimensions | 225 x 136mmØ | 225 x 136mmØ | 245 x 177mmØ | 245 x 177mmØ |
| Weight | 1.304kg | 1.304kg | 2.020kg | 2.020kg |
| Power max. : 8 Ohms | 10W | 10W | 25W | 25W |

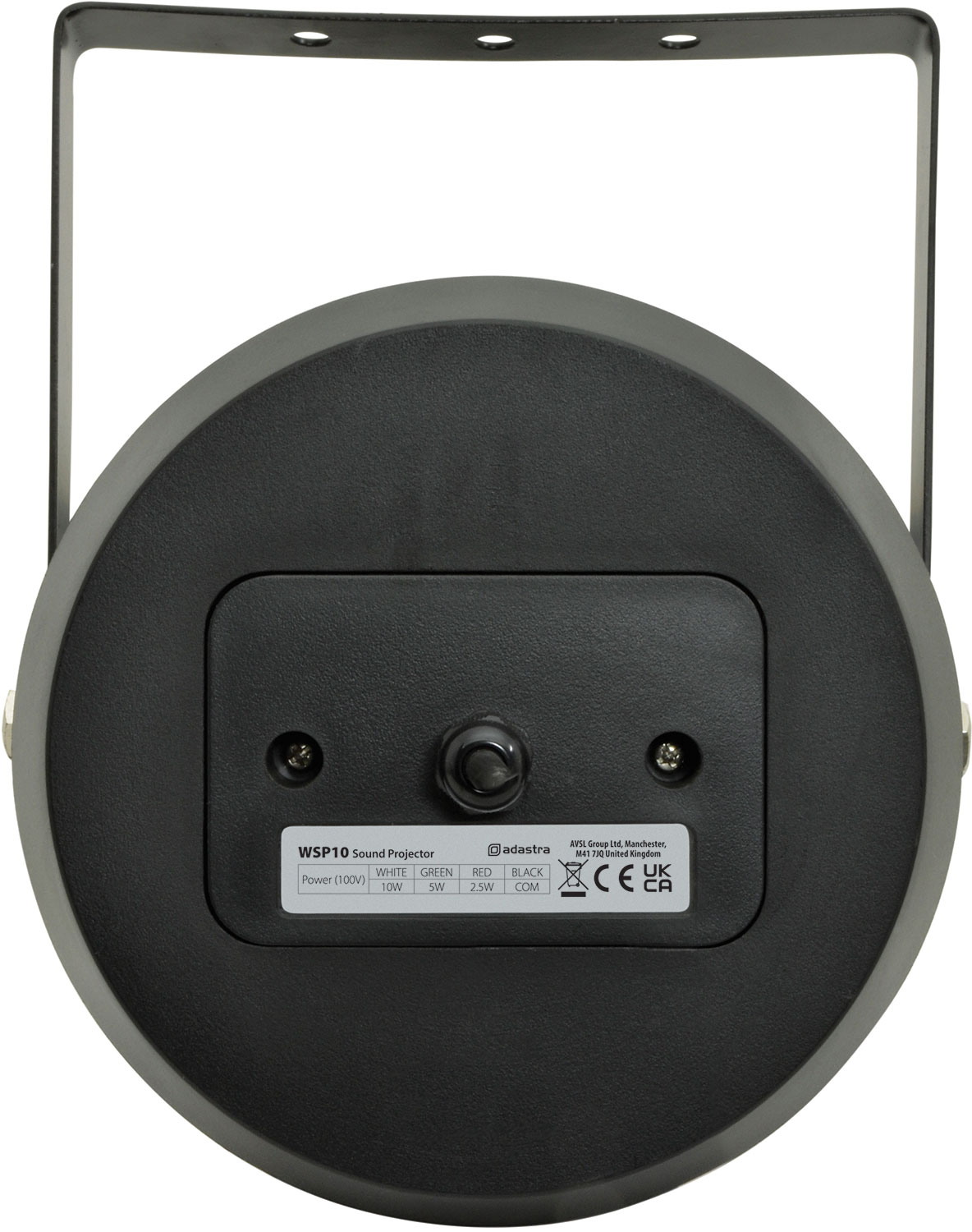

| Tappings | 2.5W, 5W, 10W (100V line) | 2.5W, 5W, 10W (100V line) | 5W, 10W, 20W (100V line) | 5W, 10W, 20W (100V line) |
| Colour | White | Black | White | Black |
Support : articles
Speaker system types
Our speaker and amplifier products cover many environments and applications with a focus on clear and efficient sound coverage. Here we discuss the different types of systems
IP ratings
IP (or "Ingress Protection") ratings are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.
Power Ratings: RMS vs Max vs Peak
A summary explaining the key differences between RMS, Max and Peak power ratings.
In the box
The box for this item contains :
- Weatherproof sound projector
- Wall-mounting bracket
Downloads
UK Declaration of conformity
For 952.941UK (245KB)
For 952.941UK (245KB)
EU Declaration of conformity
For 952.941UK (233KB)
For 952.941UK (233KB)
